SKU: 408-1

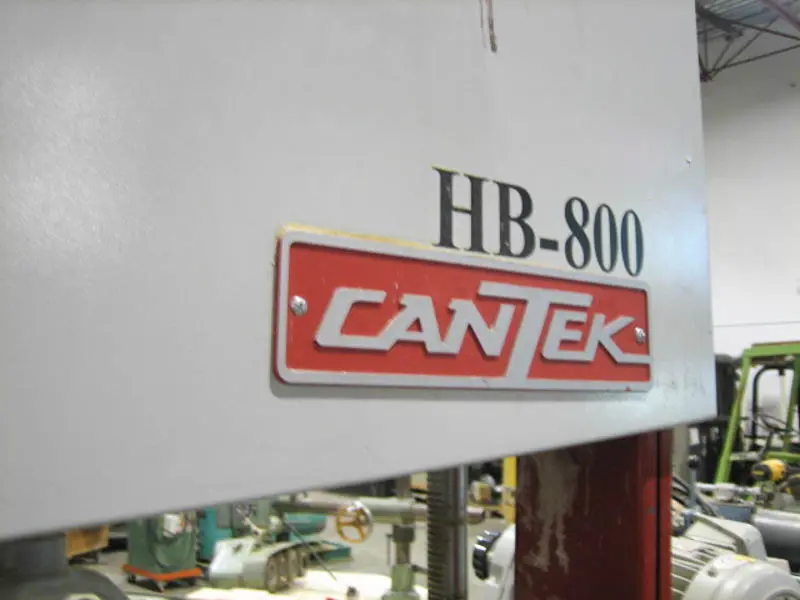

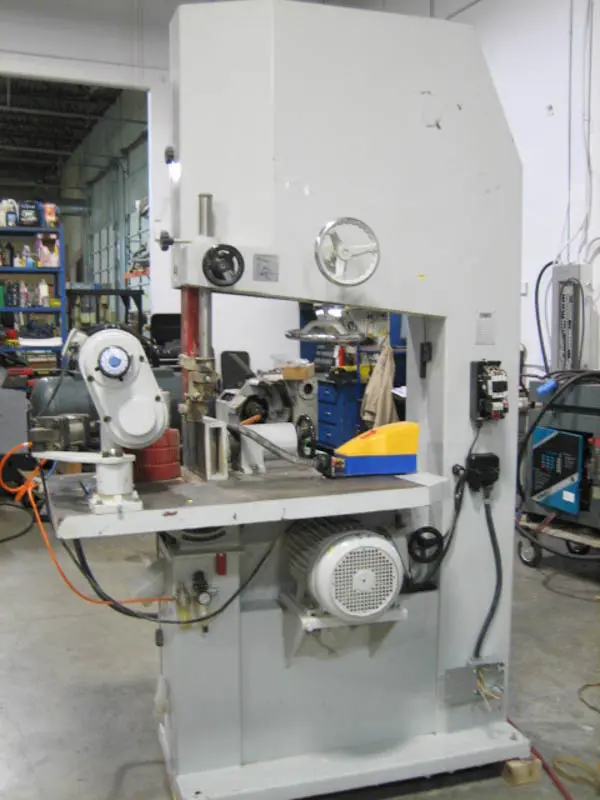

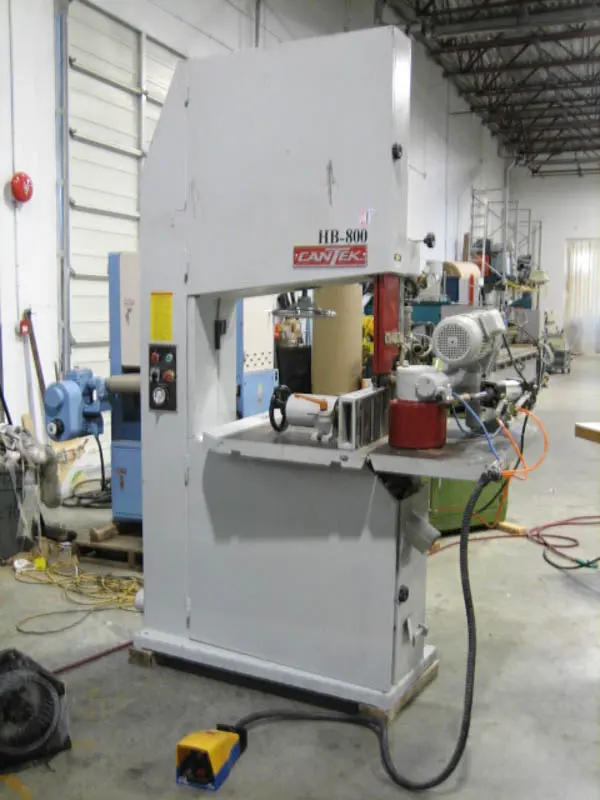

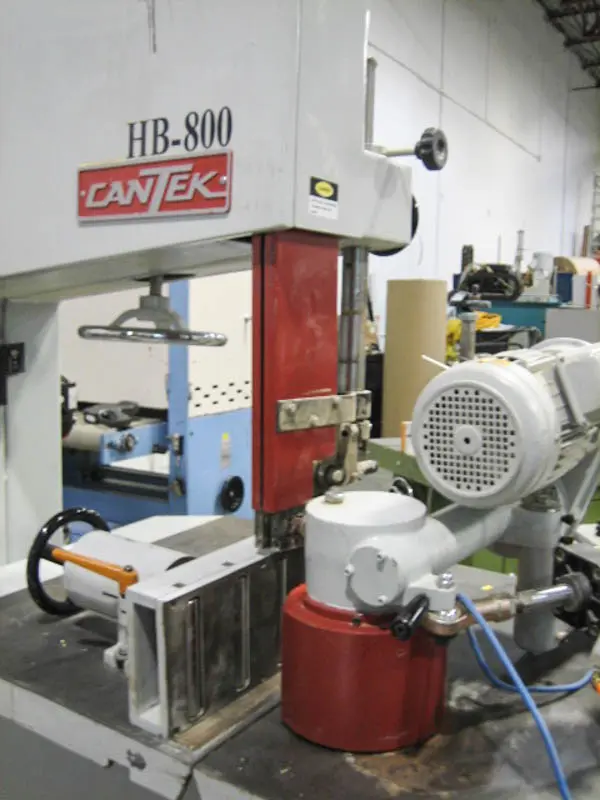

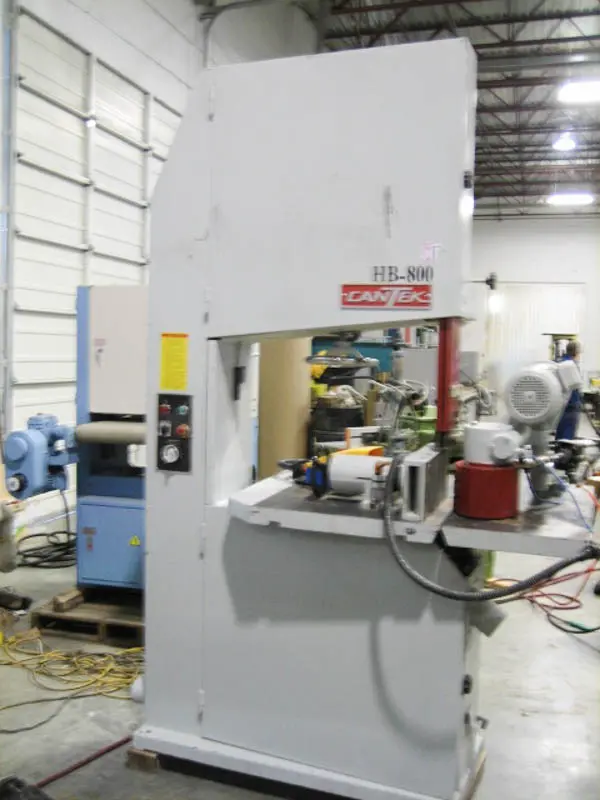

Cantek HB 800 32″ Vertical Band Resaw

Out of Stock But wait, we have similar products

Manufacturer Description:

  • Heavy fabricated steel machine frame
  • Specially designed Bakelite guide blocks provide rigid side blade support for straight cutting

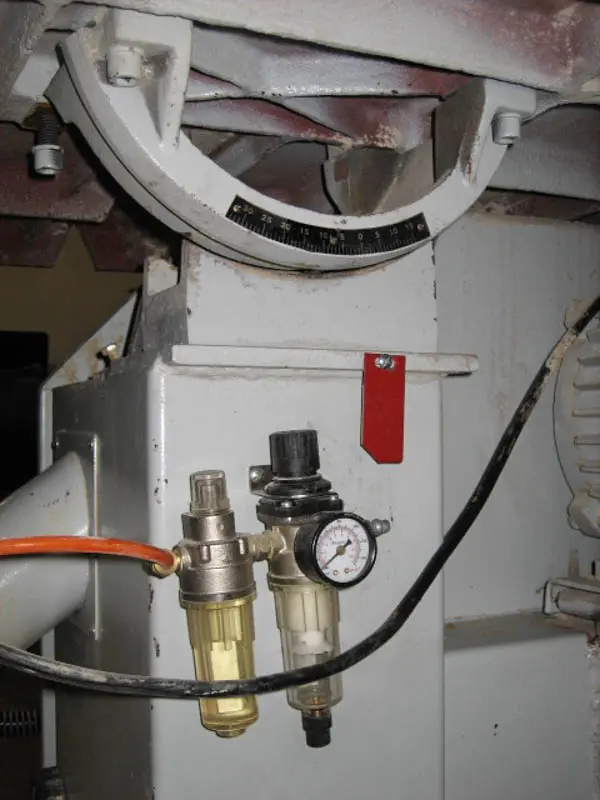

  • Large cast iron work table is precision ground & can tilt to a maximum of 45o
  • Convenient blade tension adjustment by means of a handwheel and gauge
  • Cast iron upper and lower saw wheels are precision machined and dynamically balanced
  • Rack & pinion blade guide adjustment
  • Wheel is crowned for proper blade tracking & added stability of the blade
  • Foot brake for braking wheels & blade
  • Blade lubrication system and reservoir for lubricant keeps blades cool
  • Including Electrics to UL/CSA – all starters

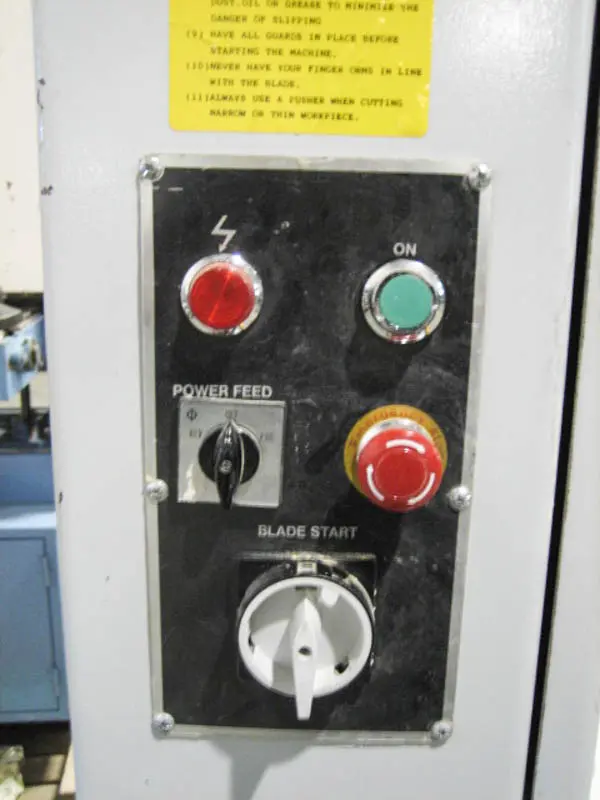

  • Auto Start-Delta control for main motor with Emergency Stop Switch
  • Telemecanique brand magnetic switch

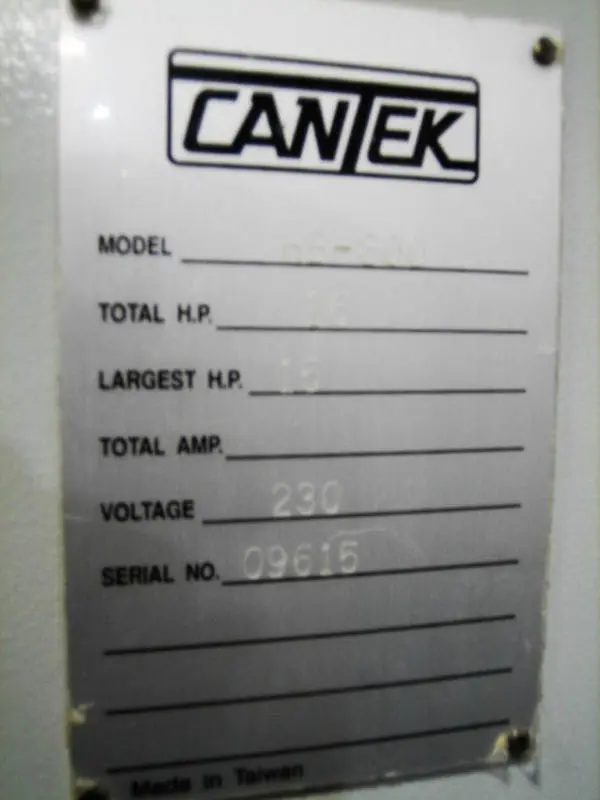

Brand
Model
HP
Voltage
Serial
Table size 45-1/4" x 31-1/2"
Table tilting 0 – 45 o
Throat capacity 30-5/8"
Width of wheel 3.543" (90mm)
Blade speed 5024 FPM
Blade length 216" to 217-1/8"
Blade width 4"
Dust hood dia. 4" x 2
