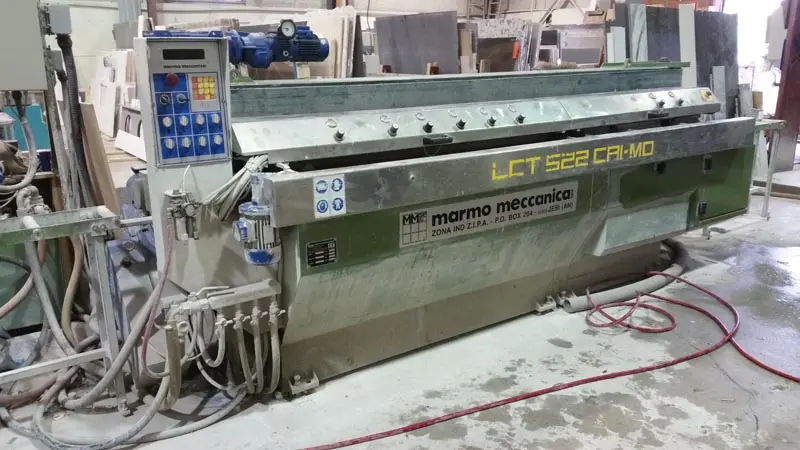

Marmo Meccanica Edge Polisher LCT 522 CRMO

Out of Stock But wait, we have similar products

Manufacturer Description:

The LCT 522 can perform multiple different edge details including full bullnose, half bullnose, pencil edge, bevels and flat polish. In addition to squared off or inclined edges, the LCT polishes multiple edge details and other convex shapes on slabs of marble or granite. The machine is automatic and can work continuously; as long as the edges to be polished have the same thickness the pieces can be inserted one after another. Then they are carried by a conveyor belt through a group of automatic polishing motors which bear a series of abrasives, from the coarsest grain to the polisher. These abrasives are the same type as those on a normal edge polisher. In the “LCT”, the slabs of marble or granite are placed vertically, in the way they are normally handled. This system, in addition to avoiding possible breakages of the material, enables the machine to occupy less space and to reduce considerably the working area required.



  • Number of Polishing Motors: 5
  • Number of Beveling Motors: 2
  • Number of Gauging Motors: 1
  • Number of Profile Motors: 1
  • Total Water Consumption: 15 gallons/minute
  • Total Power Requirement: 230v/3phase/100amps
  • Total Dimension of Machine: 12.2ft x 4ft x 5ft
  • Total Weight of Machine: 5,060lbs
  • Extension Tables: Standard 3.6ft in length
  • Working Speed: 30-60 Lineal feet per Hour
  • Maximum Abrasive Size: 5″ or 130mm
  • Minimum material size: 8 inches x 16 inches
  • Maximum material size: NO MAXIMUM
Brand
Model
Serial
KW 23.9
Voltage
Phase
