SKU: 639-16

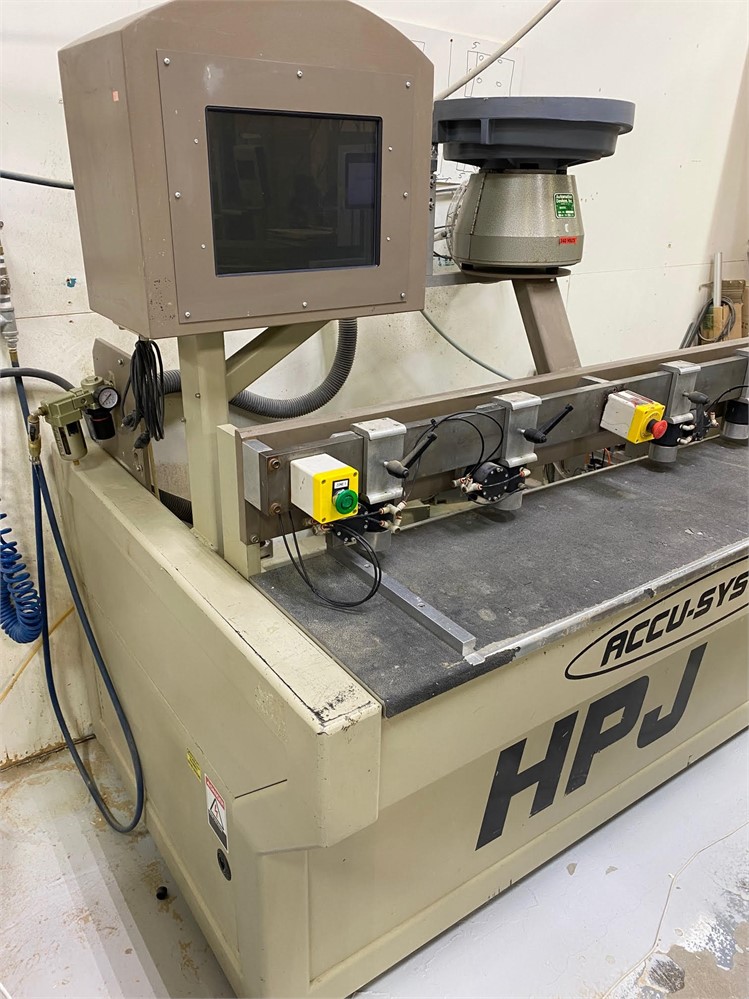

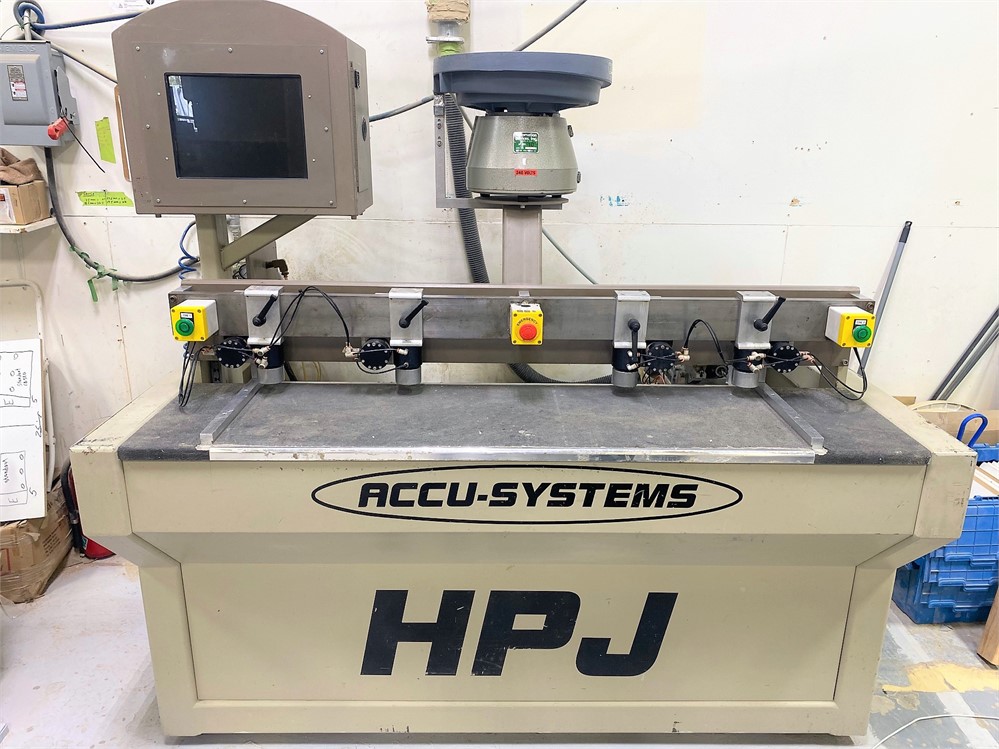

Accusystems HPJ-6 CNC Drill and Dowel Insertion Machine

Out of Stock But wait, we have similar products

Specifications

  • 240V
  • 3 Phase

Accu-Systems Model HPJ CNC Bore, Glue Insert Dowel Machine

2) Working Zones (LH / RH) of 24″ each and a table length of 49″; CNC controlled head assembly with rapid (side-to-side) traverse.

Standard head assembly with (1) boring, gluing & dowel insertion unit with a 2 HP – 3,500 RPM drill motor, head is currently set up for 8 mm dia dowels.

Max. dowel length 1.365″ (35 mm); up to 1.125″ (28.5 mm) material thickness with digital readout for height adjustment. Currently set up for 8mm.

(4) Pneumatic, quick side to side adjustable hold-down clamps.

NC “Color Touch Screen” control, ALLIMAC “Advantech” for function and part programming & program storage; Windows based PC.

Selector control for boring only or doweling, adjustable drilling speed.

(1) 18″ Dia. vibratory feed hopper, totally sealed electronically metered glue system with 1-button flushing, 100 PSI high power glue pump, 2-1/2-gal. glue tank.
Anti-slip table surface, rack & pinion drive, and centralized dust collection manifold.

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
