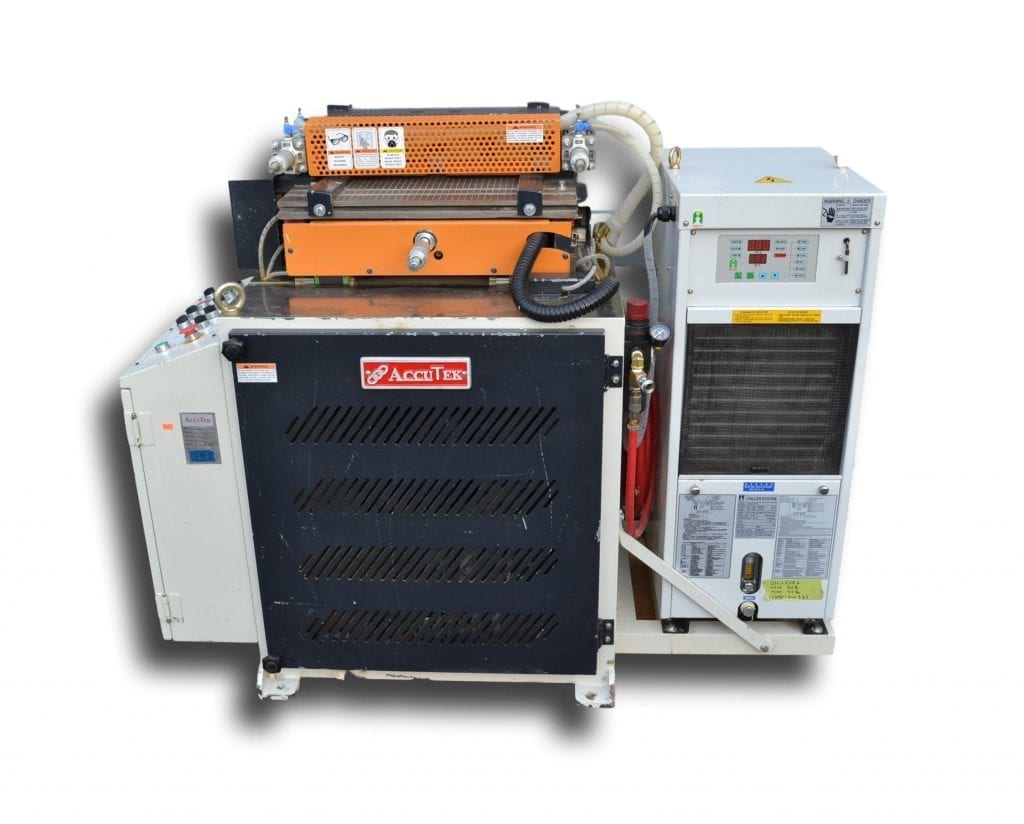

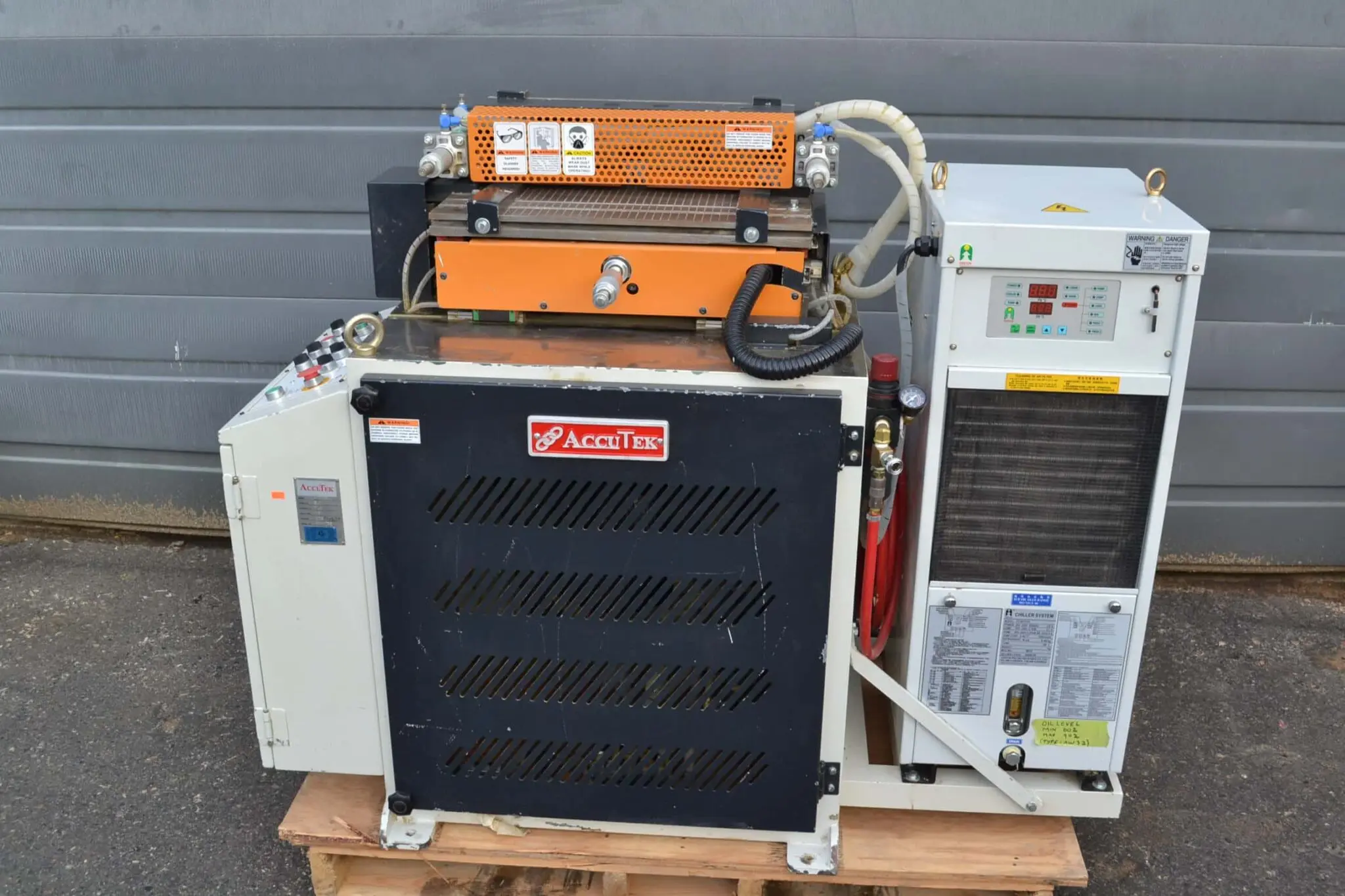

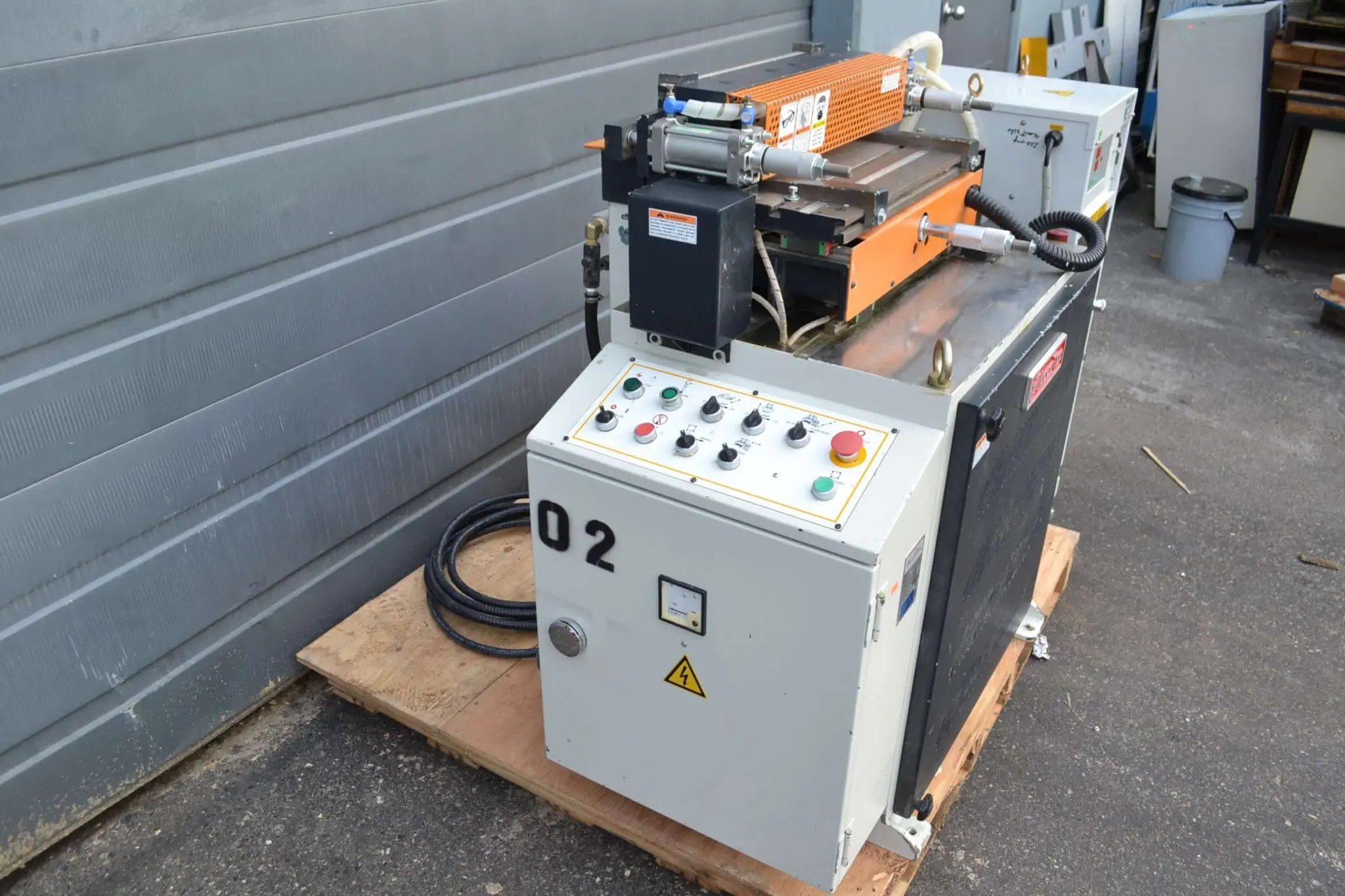

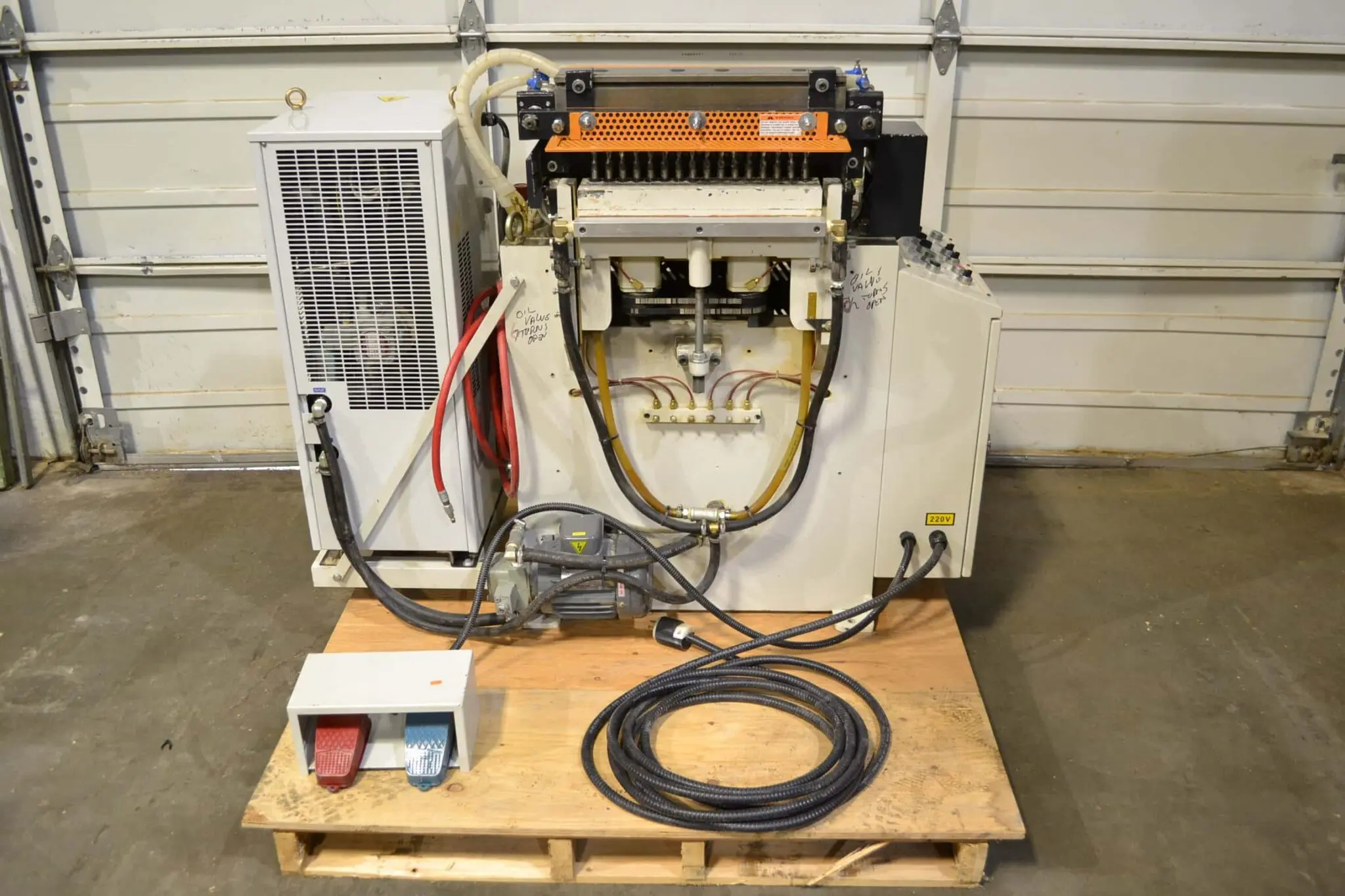

AccuTek Pneumatic Hydraulic Dove Tail(MULTI SPINDLE) Joint Milling Machine

Features:

• Multiple spindles finish a cycle within 15 seconds, making 8~24 pcs of dovetail joints

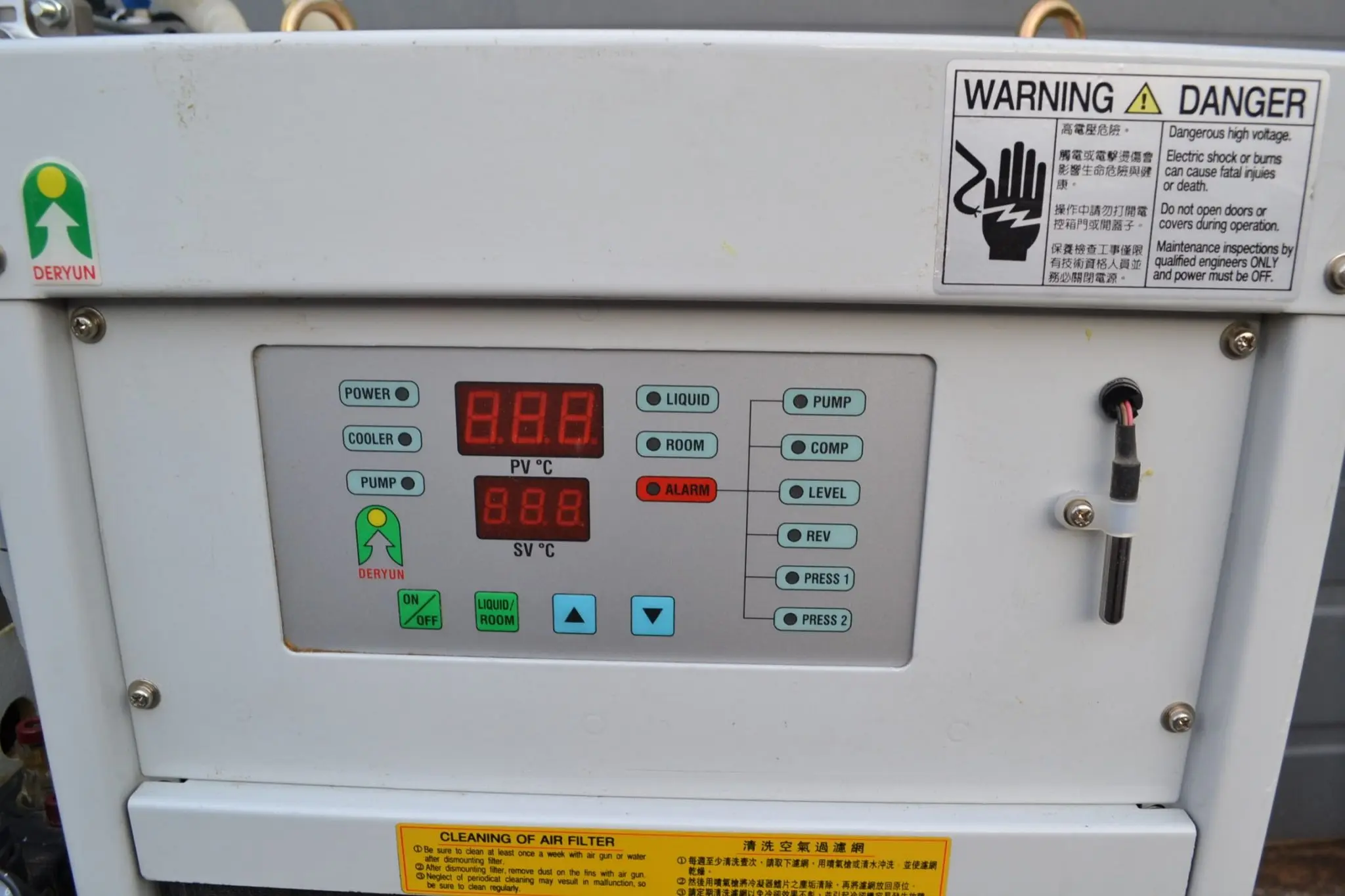

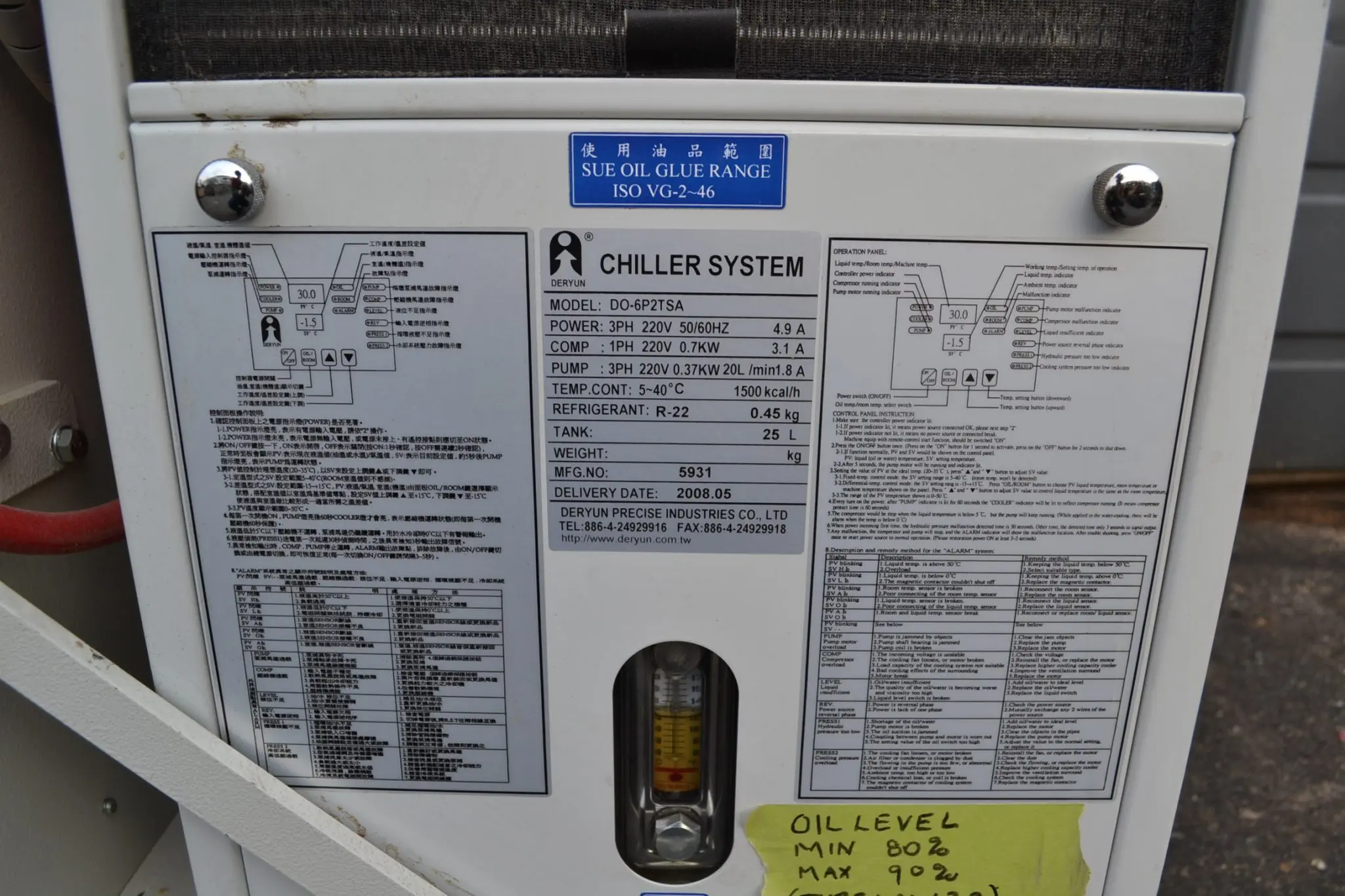

• The spindle rotation speed is 7500rpm under temperature control with cooling cycle system. The speed is so high that it can process soft or loose wood material for high-quality dovetail joints.

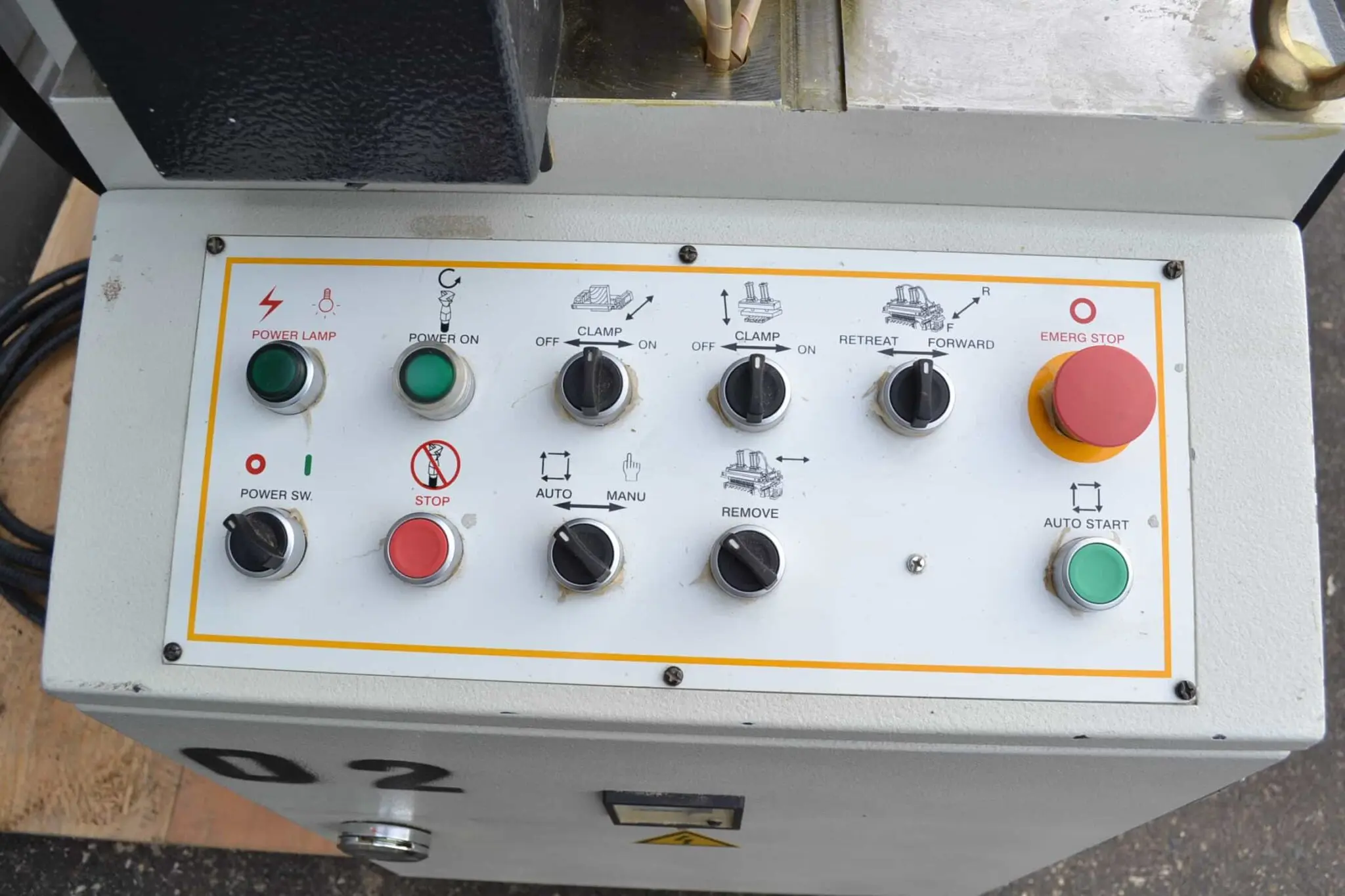

• Simple operation with only one button in auto mode.

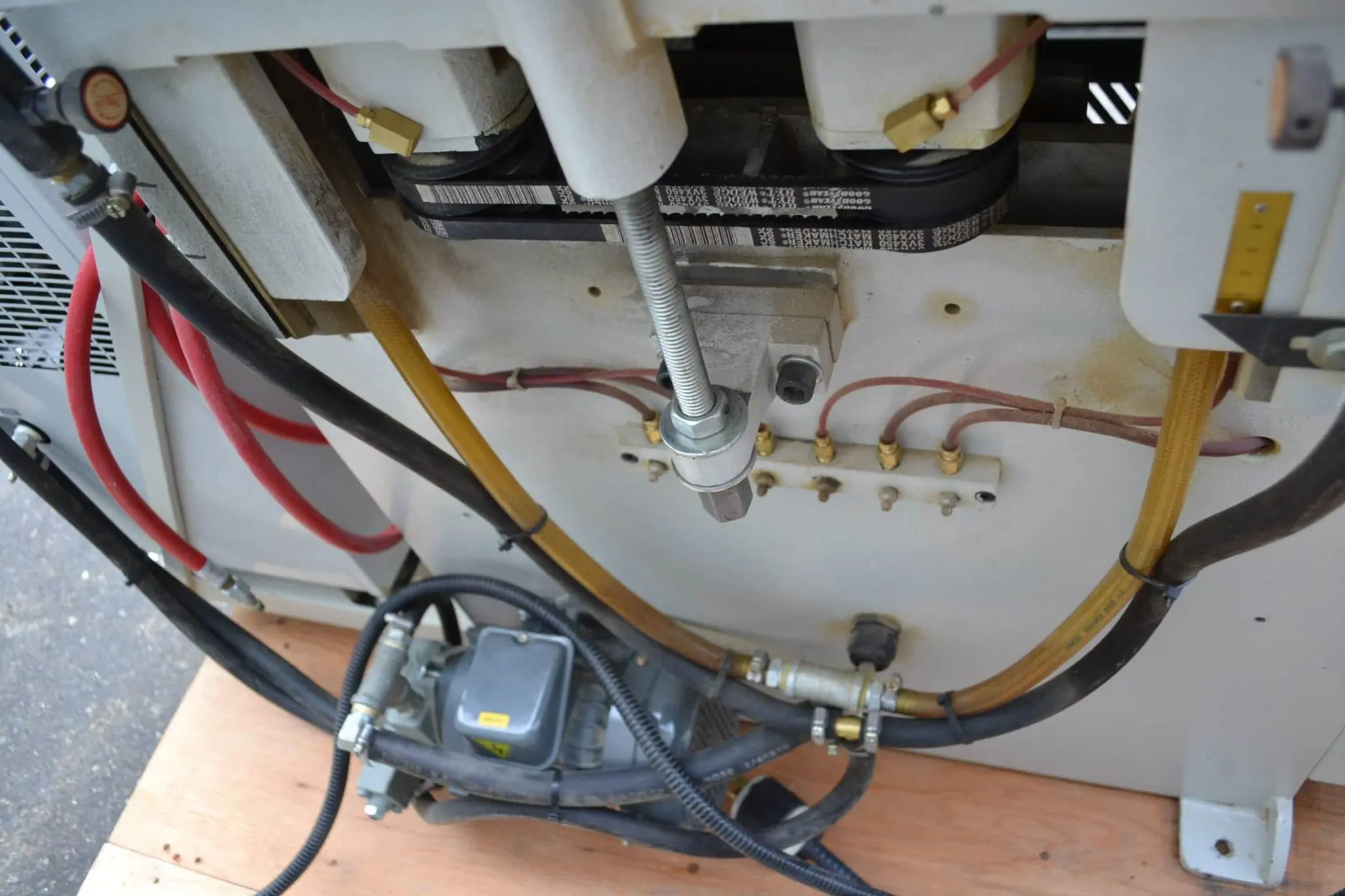

• V-Belt transmission for less noise, low heat-conduction and easy replacement.

Specification:

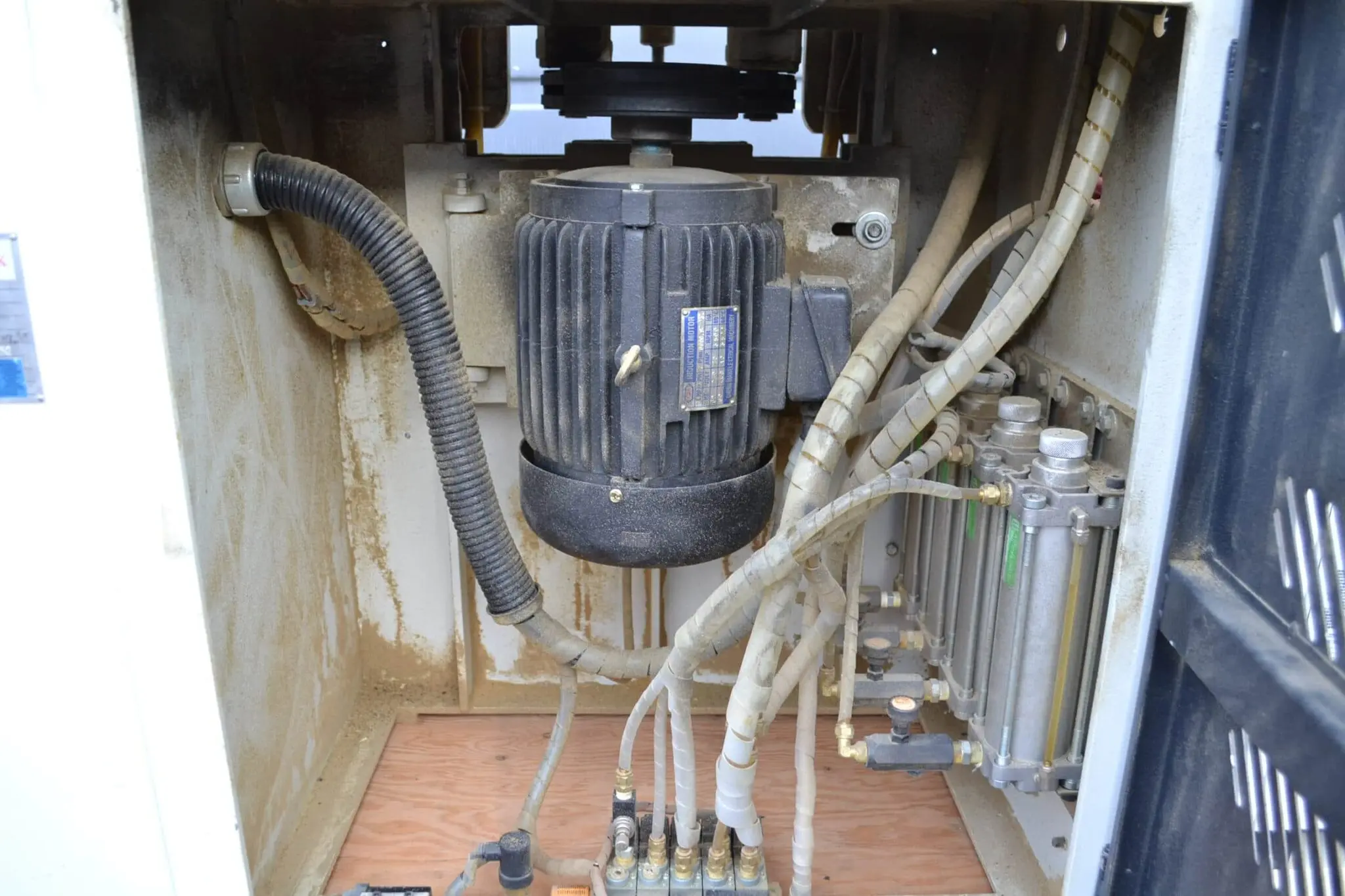

• Main motor: 7.5 HP
• Cutter Spindle: 16 pcs
• Spindle rotation: 7500 RPM
• Working range (thickness): 3/8″ ~ 1″
• Max. width of working piece: 412mm(16-1/4″)
• Net weight: 585 kgs
• Gross weight: 670 kgs
• Machine size (LxWxH) mm: 1430 x 760 x 1080
• Packing size (LxWxH) mm: 1570 x 870 x 1350
