Features and Specifications:

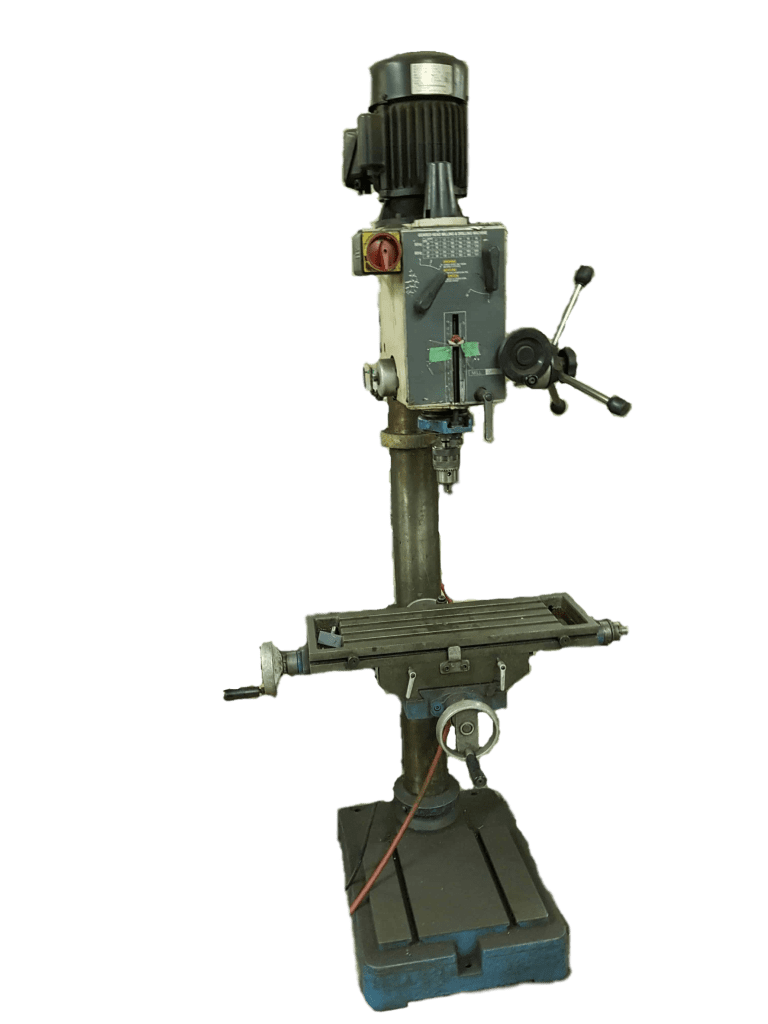

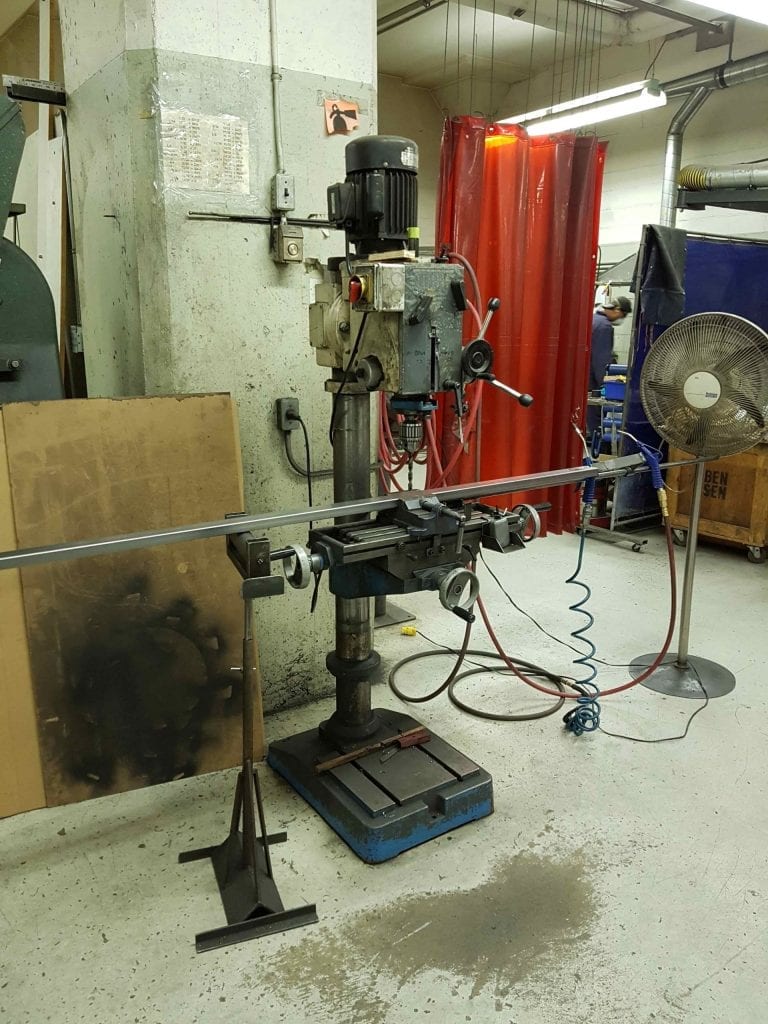

- CROSS Table – Geard Head Floor Type Milling Drilling Machine
- This fine quality machine offers maximum versatility.
- Can be used for milling, drilling, routing, boring, cutting keyways and many other routine light-duty operations.
- Ideally suited for home or machine and maintenance shops. Rigid construction.
- Heavy duty column.
- Massive head casting.
- Head swivel 360°.
- Tapping switch, work light, table power feed
- 6 Speed Main Motor 2 HP, Single Phase, 60 Hz and 1725 RPM
- Taper MT3 or R8
- Stroke 130 mm
- Depth 260 mm
- Table Size 585 x 190 mm
- X Travel 380 mm
- Y Travel 180 mm
- Column Diameter Ø 115 mm
- No. of T Slot 4
- T Slot Size 14 x 24 mm
- Packing Dimensions (L x W x H) 830 x 740 x 1860 mm
- Machine Weight NW/GW 280 / 310 kgs
- Cutting Capacity In Mild Steel(Optional) Drilling 40 mm (11/2″)
- Cutting Capacity In Mild Steel(Optional) Face Mill 100 mm (4″)
- Cutting Capacity In Mild Steel(Optional) End Mill 20 mm (3/4″)
- Cutting Capacity In Mild Steel(Optional) Tapping 20 mm (3/4″)
- Cutting Capacity In Light Alloy 40 mm (11/2″)
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
