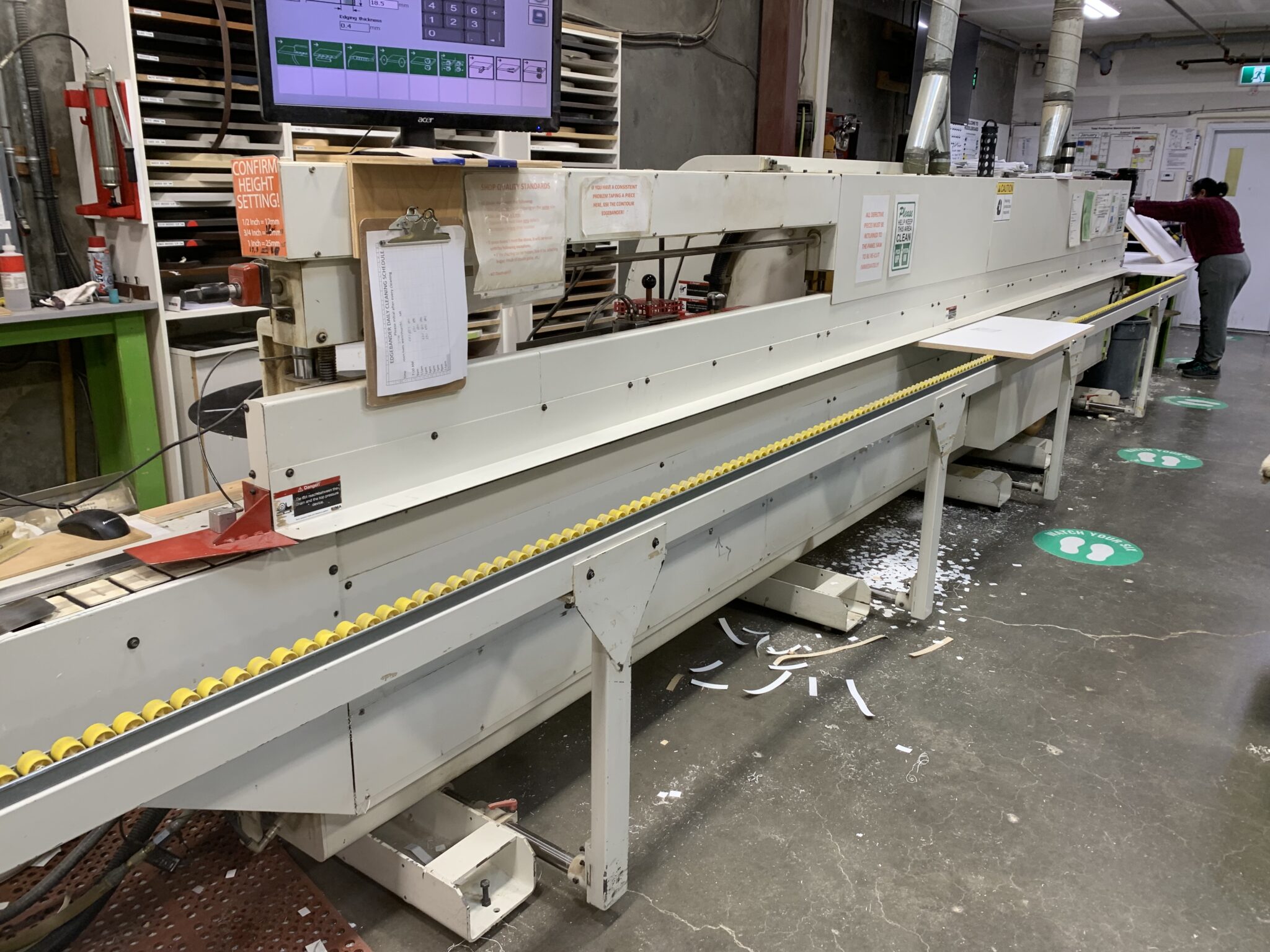

IMA Advantage 70 Edgebander

Specifications

• Edgebanding capacity: 0.3 – 3 mm (0.012 – 0.118″), in coil and up to 12 mm (0.47″) strips. Panel thickness min./max 8- 65 mm (0.315 – 2.362″)
• Edgeband thickness max: 12 mm
• Thickness of coiled edgeband max 3 mm
• Feedrate max: 16m/min
• Corner Rounding
• Scraper unit: profile and flat
• Spraying Unit: Anti-sticking solvent, top & bottom application.
• Aggregates actuated by control: pneumatic
• Edgeband height max: 65 mm
• Workpiece length min: 150 mm
• Workpiece width min: 65 mm
• Glue system granulate: glue pot above feeding chain

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
