Aerdon SSL17 Hydraulic Scissor Lift Table 4000 Lbs Capacity

Features and Specifications:

• Model SSL 17

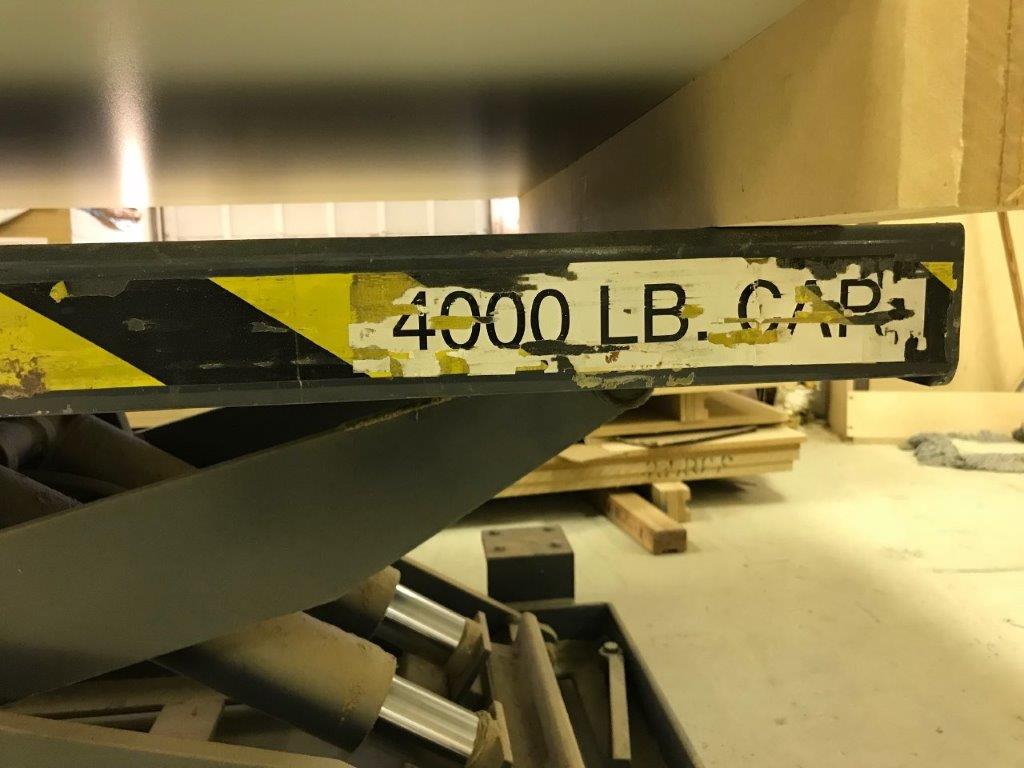

• Capacity 4000 lbs .
• Standard Base Platform 24″ x 60″
• Max. Platform 48″ x 88″
• Lowered Height 9″
• Lift 40″
• Raised Height 49″
• Standard Motor 1 h.p. /110 v.
• Shipping Weight 850 Lbs
• CSA, Hydro approved power packs & controls,
• Remote 1 hp 110/1/60 power pack, (requires dedicated 20 amp circuit)

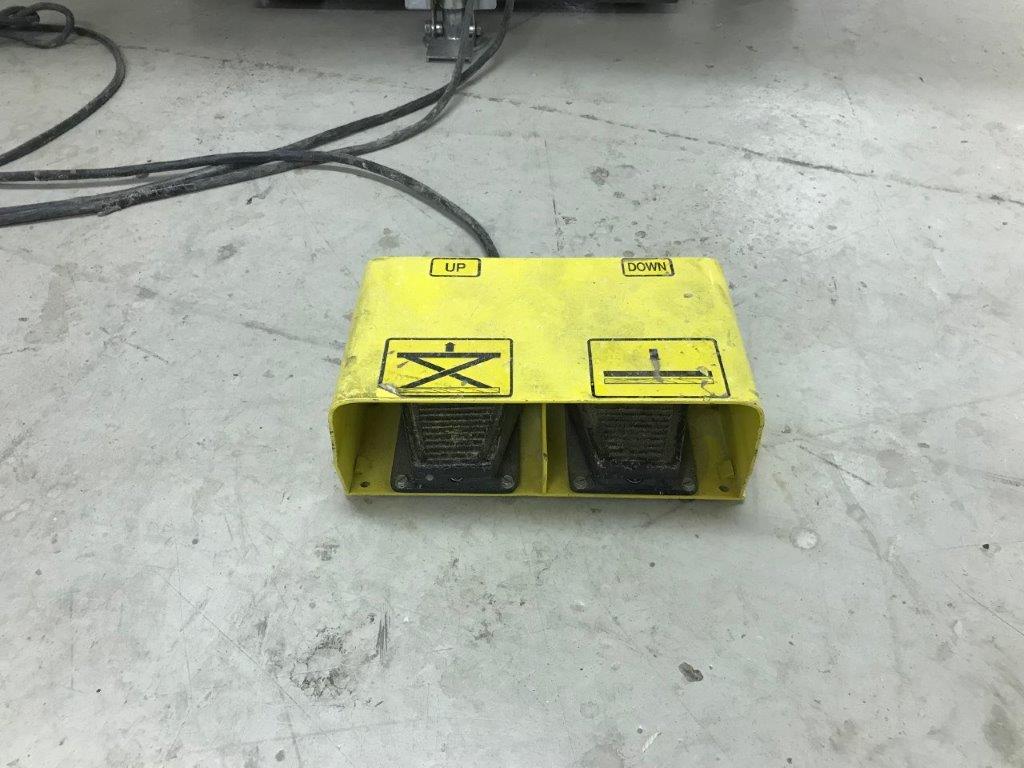

• Nema 4 motor rated push button controls,
• Power pack includes pressure relief valve,
• check and flow control valve, Ground and hard chrome solid rod hydraulic cylinders rated at 3,000 psi working pressure,
• Velocity fuse fall safe protection, Abrasion, oil and weather resistant hydraulic hose with 4 to 1 safety factor at 3,000 psi,
• Solid steel scissor legs, (44,000 psi minimum yield) Smooth steel platform, Structural steel base frame,
• Ground superior shafting pivot pins, Lifetime lubricated teflon coated bushings,
• Sealed cam follower rollers, Safety warning striping on platform sides.

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
