Features and Specifications:

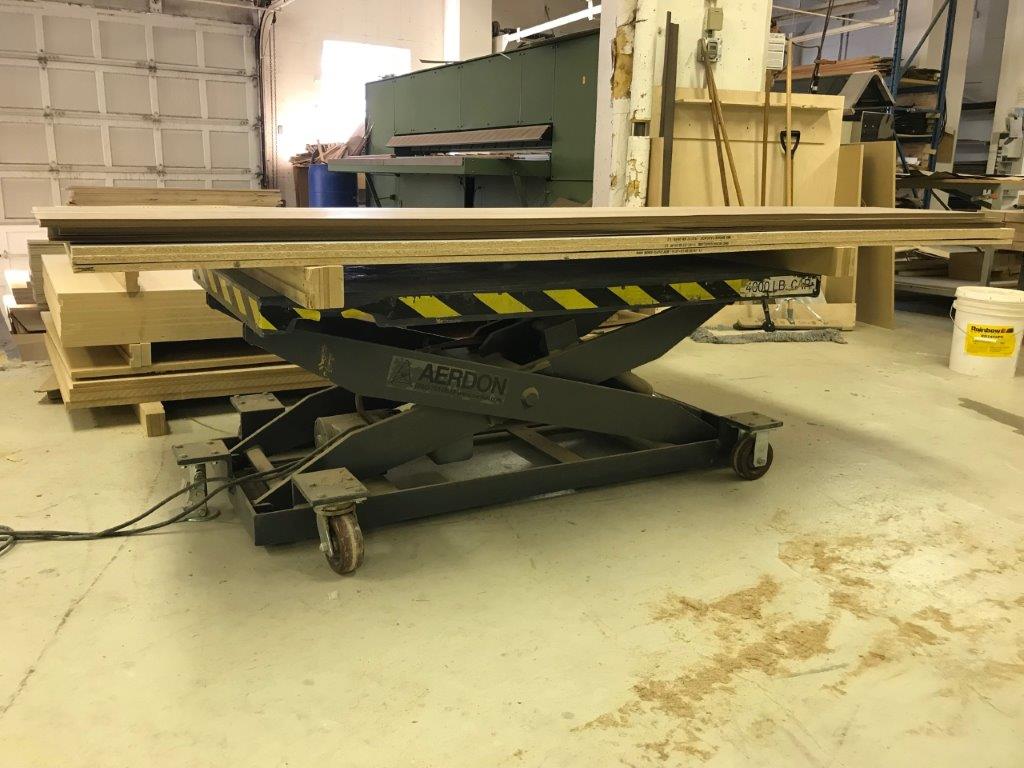

- Model SSL 17
- Capacity 4000 lbs .
- Standard Base Platform 24″ x 60″
- Max. Platform 48″ x 88″
- Lowered Height 9″
- Lift 40″
- Raised Height 49″
- Standard Motor 1 h.p. /110 v.
- Shipping Weight 850 Lbs
- CSA, Hydro approved power packs & controls,
- Remote 1 hp 110/1/60 power pack, (requires dedicated 20 amp circuit)
- Nema 4 motor rated push button controls,
- Power pack includes pressure relief valve,
- check and flow control valve, Ground and hard chrome solid rod hydraulic cylinders rated at 3,000 psi working pressure,
- Velocity fuse fall safe protection, Abrasion, oil and weather resistant hydraulic hose with 4 to 1 safety factor at 3,000 psi,
- Solid steel scissor legs, (44,000 psi minimum yield) Smooth steel platform, Structural steel base frame,
- Ground superior shafting pivot pins, Lifetime lubricated teflon coated bushings,
- Sealed cam follower rollers, Safety warning striping on platform sides.
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
