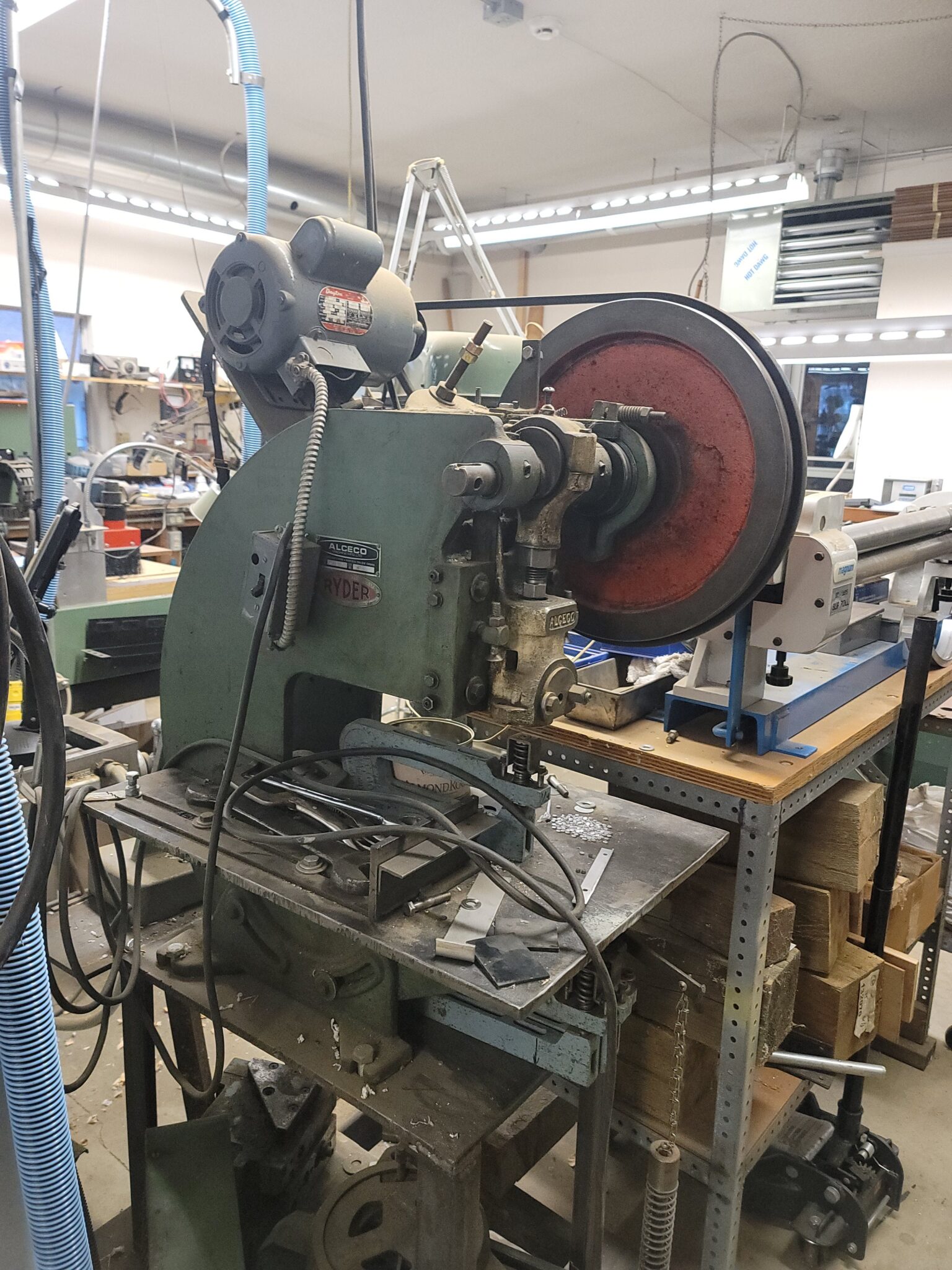

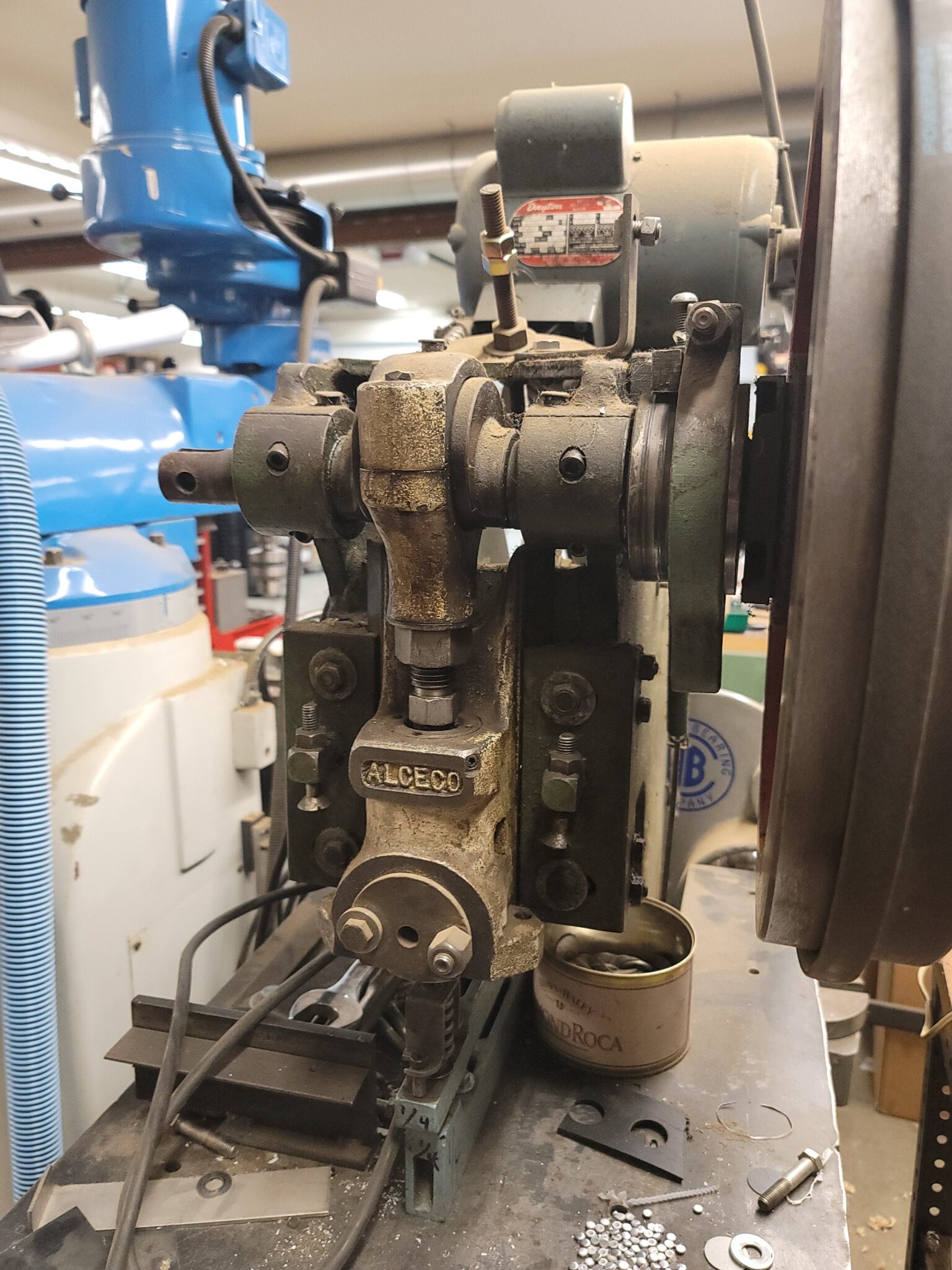

Alceco 6-12DT 6 Ton Punch Press

Specifications

• CAPACITY . . . . . . . . . . . . . . . . . . . . . . . .6 TON
  STROKE. . . . . . . . . . . . . . . . . . . . . . . . . .1-1/4″
  RAM ADJUSTMENT. . . . . . . . . . . . . . . .1-1/2″
  SHUT HEIGHT (SDAU) . . . . . . . . . . . . .6-5/8″
  BED TO GIBBS . . . . . . . . . . . . . . . . . . . .7-3/4″
  BED AREA . . . . . . . . . . . . . . . . . . . . . . . .7″ FB X 11″ LR
  THROAT DEPTH. . . . . . . . . . . . . . . . . . .12″
  SPEED. . . . . . . . . . . . . . . . . . . . . . . . . . . .185 SPM
  MOTOR. . . . . . . . . . . . . . . . . . . . . . . . . . .1-1/2 HP @ 1,720 RPM
  ELECTRICS. . . . . . . . . . . . . . . . . . . . . . . 115/60/1 VOLT
  APPROX. DIMENSIONS . . . . . . . . . . . .28″ W X 22″ D X 65″ H
  APPROX. WEIGHT. . . . . . . . . . . . . . . . .395 LBS
  C/W:
  – MECHANICAL CLUTCH;
  – MECHANICAL FOOT & HAND TRIP;
  – SINGLE STROKE MECHANICAL MECHANISM TO RAM;
  – ON/OFF SWITCH;

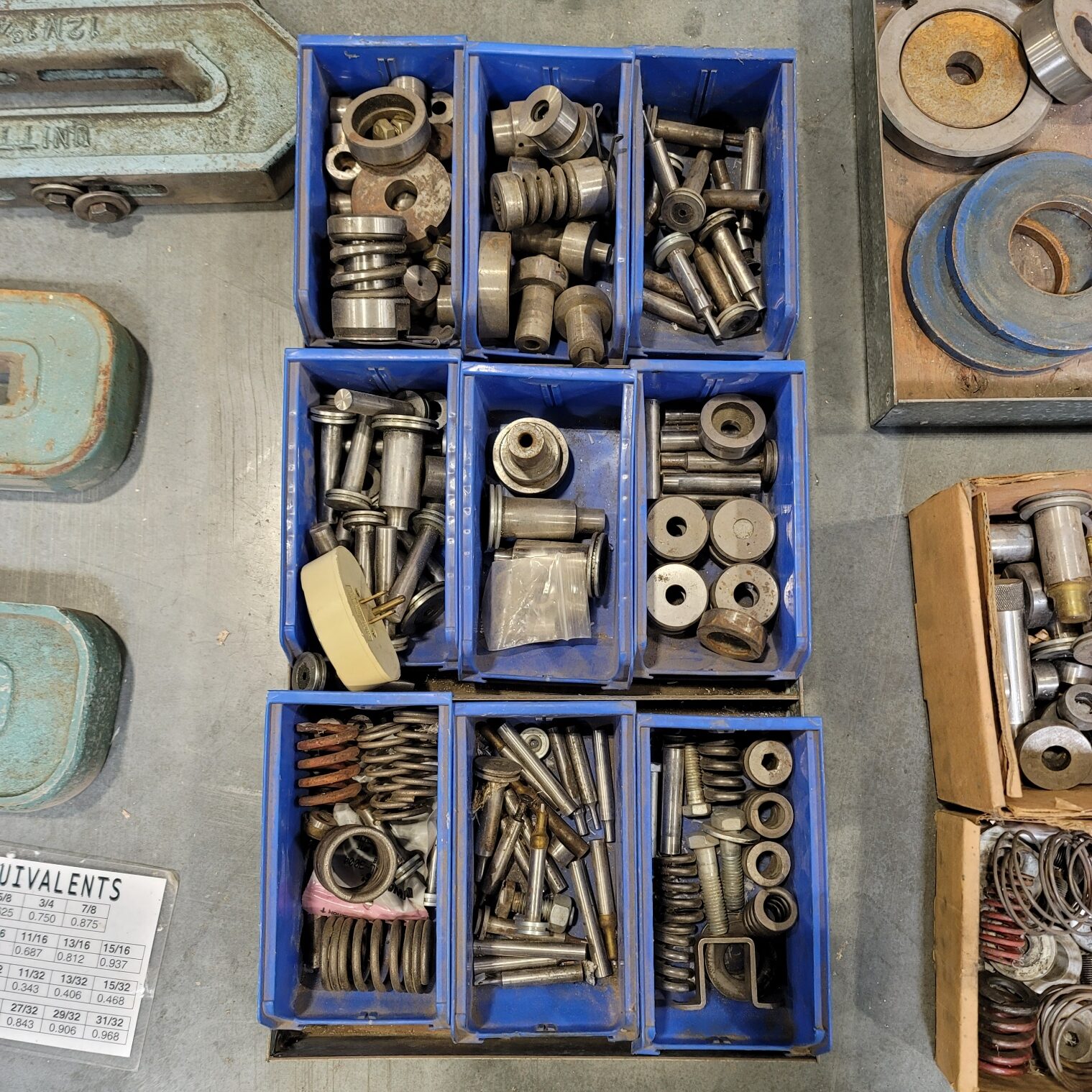

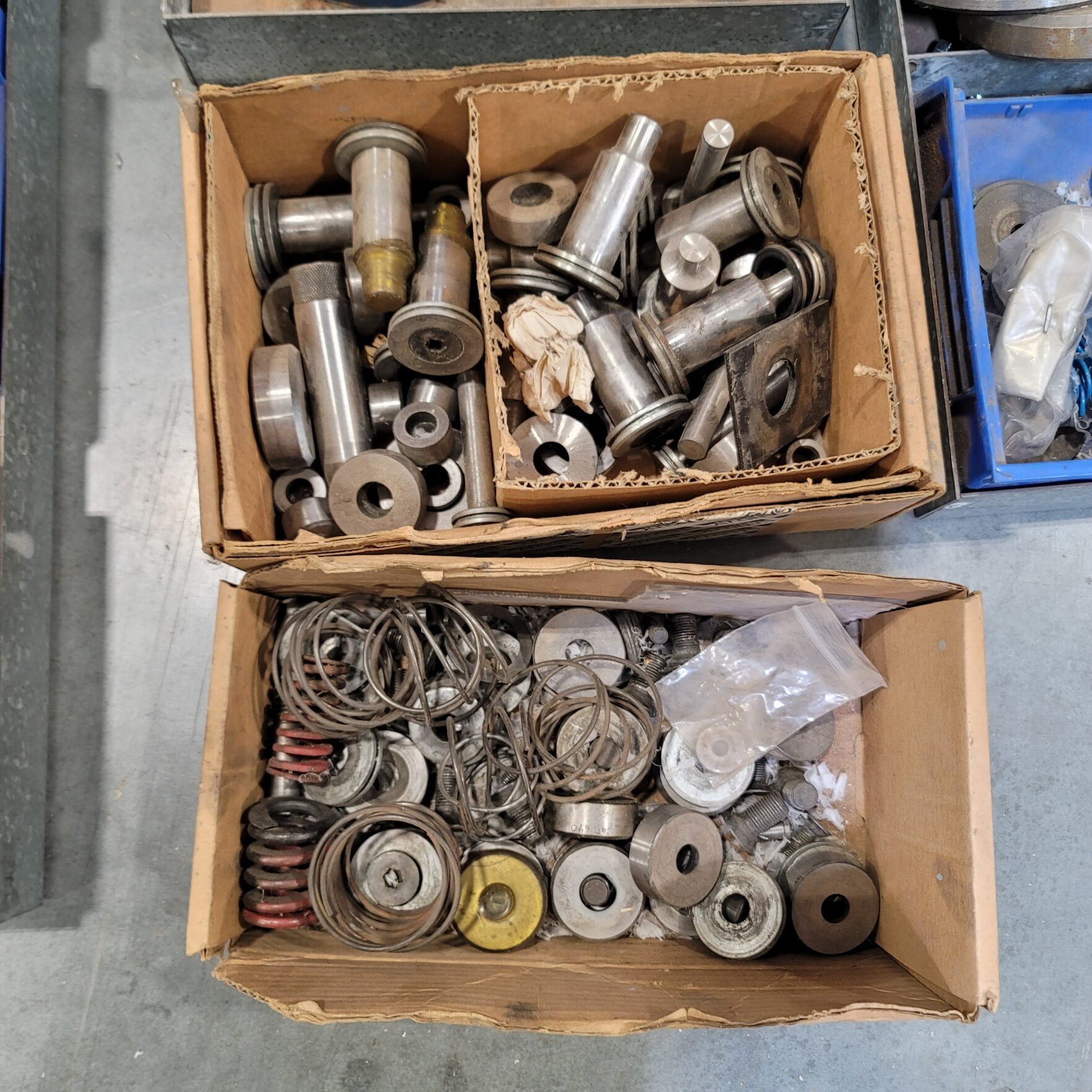

Comes with tooling

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
