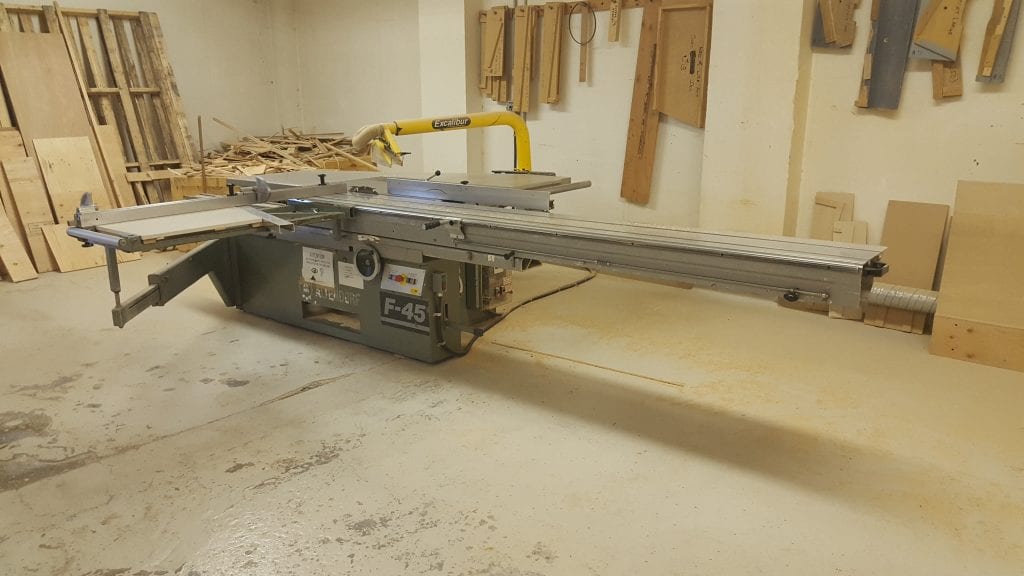

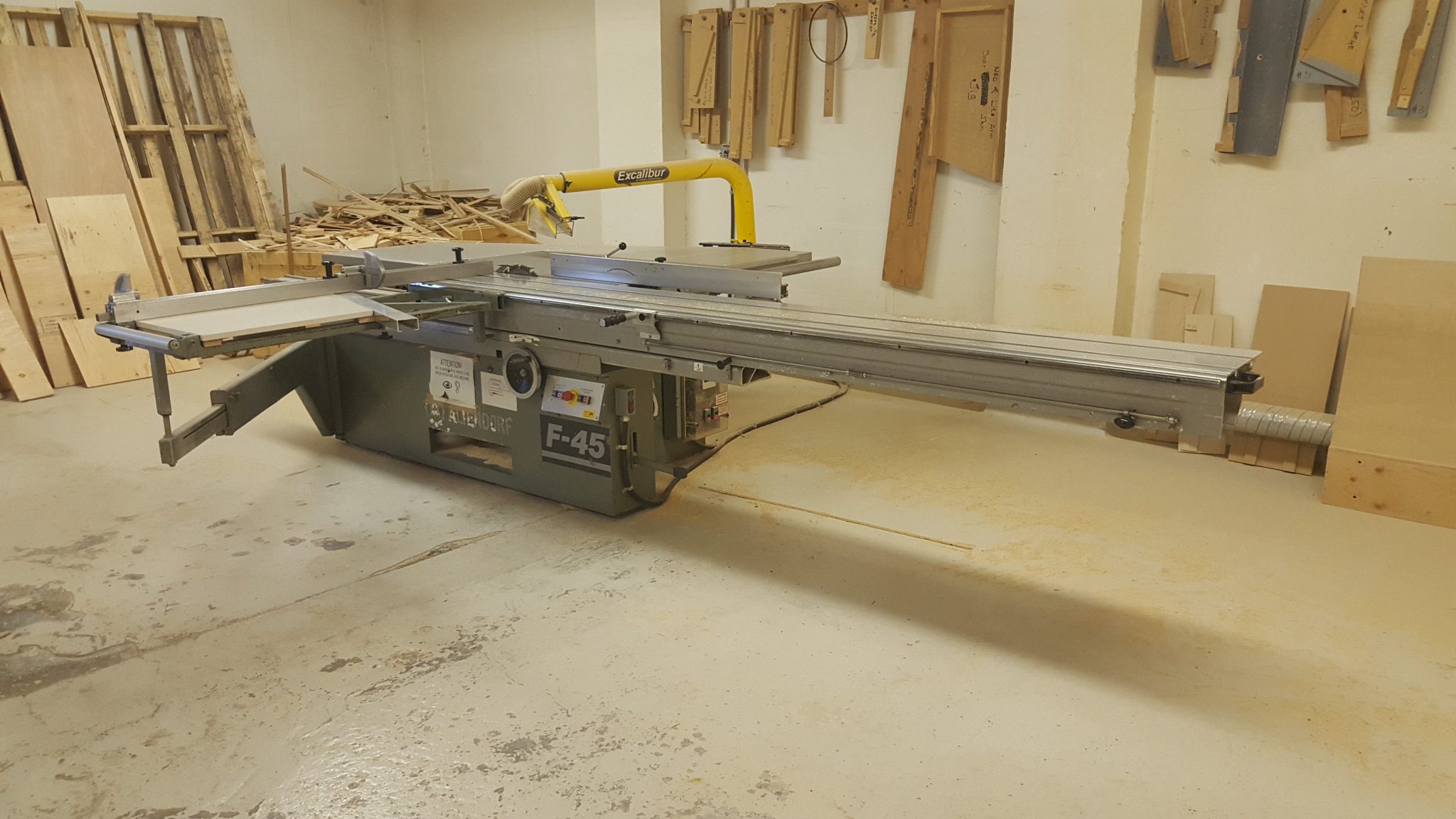

ALTENDORF F-45 Sliding Table Saw

Features and Specifications:

• 220 V, 60 cy and 3 Phase
• 7.5 HP main motor,
• 1 HP scoring motor with 9,000
  RPM blade speed;
• (4) cutting speeds of 3,000 – 4,000
  – 5,000 & 6,000;
• digital display on tilt and raise/lower.
• Double roller carriage system,
• manual raise-and-lower by hand wheel of the main blade,
• manual tilting by hand wheel of saw group from 0° –
  45°; 4-7/8″
• depth of cut, 51″ rip cut cap.
• sliding table lock mechanism
• 31-1/2″ x 29-1/2″ table extension.
• Dust extraction 800CFM (120mm & 80mm)
• Tilting of arbor 0-46°
• Cutting length 122” (3105mm)
• Cutting Depth Max – 90° 154mm* (6”)
• Cutting Depth Max – 45° 105mm* (4”)
• Standard main blade 300mm x 3.2mm x 30mm
• Main blade arbor 30mm wth 2 pin holes
• Dado capacity 20mm
• Scoring blade diameter 120mm
• Scoring blade arbor diameter 15mm

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
