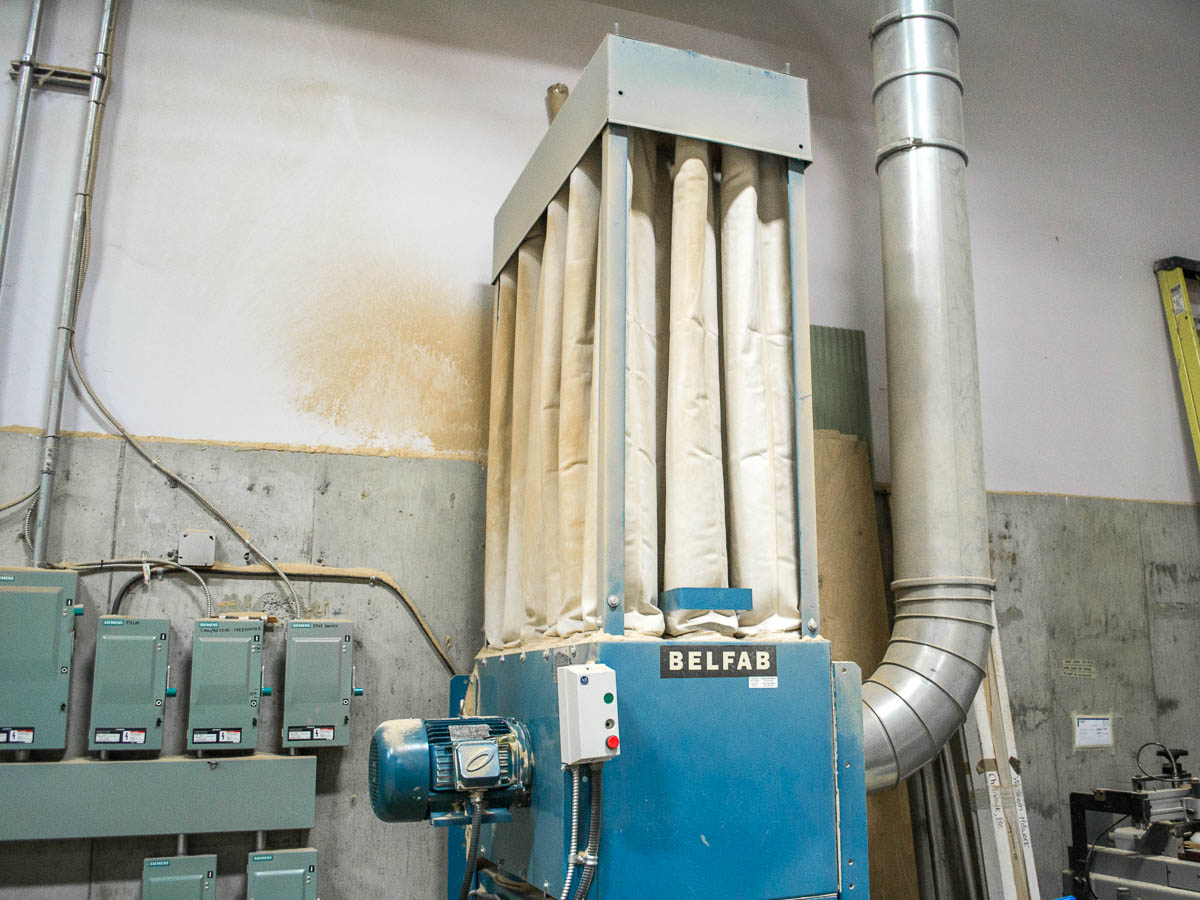

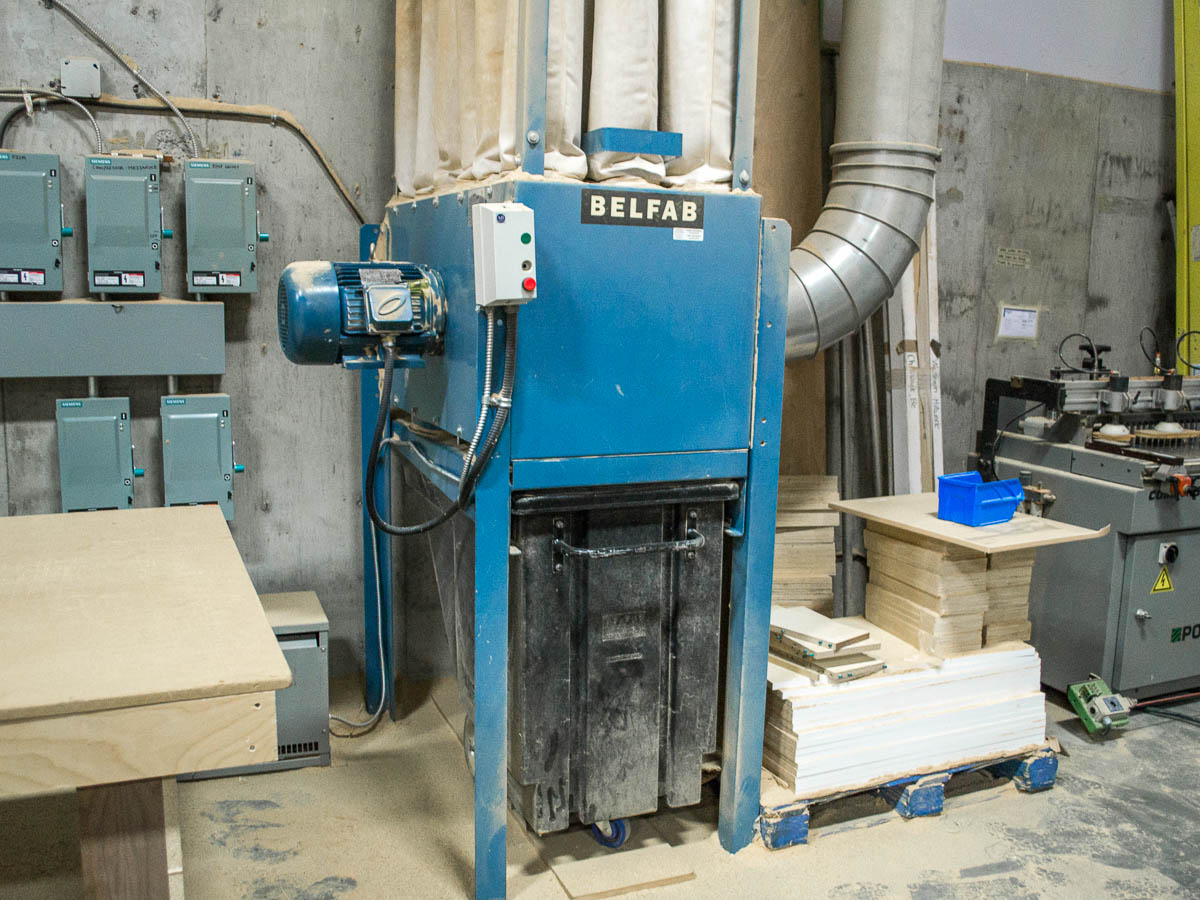

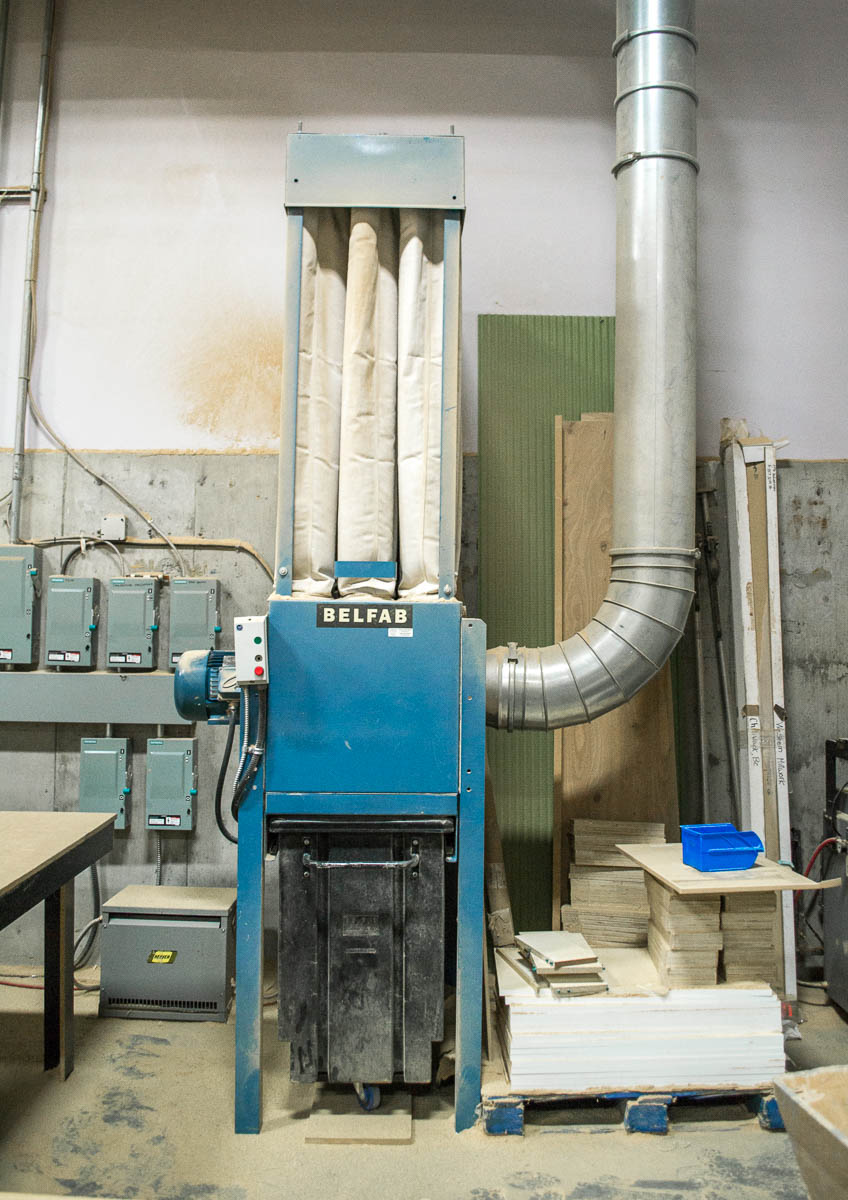

Belfab JNBN-OP 7 5HP Dust Collector

Manufacturer Description:

• The JNBM-OP model is an industrial small capacity dust collector system equipped with a 7.5 HP blower generating over 3500 CFM, available in single or three phases electrical connection.
• This collector is designed to collect dust particles ranging from coarse to mixed sizes, generated by wood machines operating in intermittent or continuous fashions and producing moderate to heavy dust loads.
• The JNBM-OP unit is generally recommended for applications involving one or two machines in a small shop environment or in larger facilities where there is a need for an industrial “stand alone solution”.

Specifications:

• Filtration surface (sq.ft) 165
• Dimension (W x D X H) (in.) 44” x 48” x 130”
• Module weight (lbs) 325
• Disposal capacity ft³ 18
