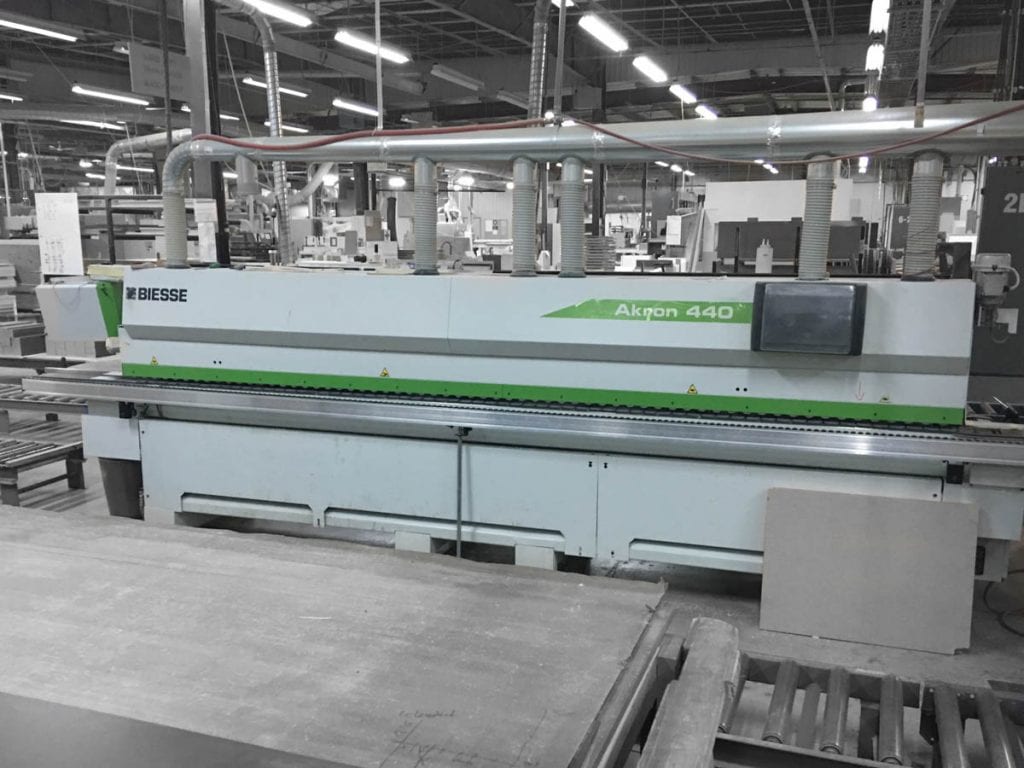

Automatic single sided edgebanding machine for the application and processing of flat edge-banding material in coils (melamine, PVC, ABS, veneer) and in strips (solid wood, HPL, prepared veneers etc.)
- Premilling
- Anti Adhesive
- Glue unit
- End trim
- Tilting top and bottom trimming ‘
- 2 motor corner rounding with computer controlled radious change
- Profile scrapper
- Flat scrapper
- Buffing
- Hot air blower
TECHNICAL CHARACTERISTICS AKRON 400
- Panel height: from 10 to 60 mm
- Panel height with corner rounding unit: from 10 to 35/60 mm (depending on profiles)
- Height of edge-banding material: from 14 to 64 mm
- Thickness of edge-banding material in rolls: from 0.4 to 3 mm
- Thickness of edge-banding in strips (*): from 0.4 to 10 (12) mm
- Min panel length: 140 mm
- Min panel width (with length 140 mm): 85 mm
- Min panel width (with length 250 mm): 50 mm
- Track feed speed: 12 & 18 m/min
- Glue pot capacity: 2 Kg (approx)
- Glue pot heating time at ½ load: 10 minutes (approx.)
Pre-milling unit FI-502 axis driven by brushless motor
- Gluing unit VC-511 axis driven by brushless motor
- End trimming unit IN-801
- Tilting trimming unit RI-501 axes driven by brushless motor
- 2 motors corner rounding unit CR-200V with FAST 4 positions
- Edge scraper RBK with Dust extraction
- Glue scraper RCC-701 with Dust extraction
- Brushing unit SP-501
- Hot air blower PH-501
Numeric Control switch board
Numeric Control Color TS10 with 10”
The Numeric Control TS10 allows to manage the machine and its functions.
Technical characteristics:
- Graphic 10” LCD display TOUCH SCREEN, 640×480 pixel.
- Operating system WINDOWS CE.
- USB port.
Some of the included functions:
- Automatic start-up of the motors as wriiten in the program.
- Direct button for the choice of the second passage.
- Managing of 8 numerical axis.
- Lists of programs with manual and/or automatic start.
- Error diagnostic with codes and comments.
- Production statistic data.
- The touch screen is mounted on an adjustable control arm
