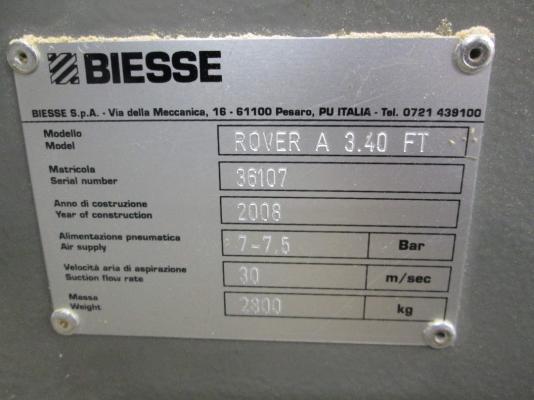

Biesse Rover A 3.40 FT Nesting CNC Machining Center

Out of Stock But wait, we have similar products

Features and Specifications:

The Biesse Rover A 3.40FT represents the latest technological advancements in “Nested Based” machining centers designed for the processing of engineered and solid woods, plastics, non ferrous metals, like aluminum and composite materials like Corian™.

  • This BIESSE ROVER A 3.40 FT  CNC MACHINING CENTER unit is in excellent condition.
  • Working Fields:
    X = 3685 mm (145″)
    Y = 1290 mm (50.7″)
    Z = 140 mm (5″)
  • AXIS Stroke:
    X = 4165 mm (163.9″)
    Y = 1640 mm (64.5″)
    Z = 200 mm (7.8″)
  • Stratified Phenolic Table
  • (10) Pop-Up Reference Pins : 4 in Front, 4 in Back and 2 each Side
  • High Precision Linear Guide System
  • Centralized Lubrication System
  • Powerful 16HP HSD Electrospindle
  • Accepts HSK F63 Tool Holders
  • 18 Position Tool Changer
  • Tool Length Presetter
  • Pre-Wired for “C” Axis
  • 4 Way Air Nozzle
  • Biesse BH 21L Boring Head
  • 14 Independent Vertical Spindles: (7) in X and (7) in Y
  • 3 Independent Horizontal Spindles: (2) in X and (1) in Y
  • Grooving Saw in X-axis
  • Busch Mink Vacuum Pump
  • Air Conditioned Control Cabinet
  • PC Driven CNI XP600 NC Control
  • IPC Computer w/15″ Color Screen
  • 80 GB Hard Drive, Keyboard, and Mouse
  • “BIESSEWORKS” and “BIESSENEST” Software Included on controller

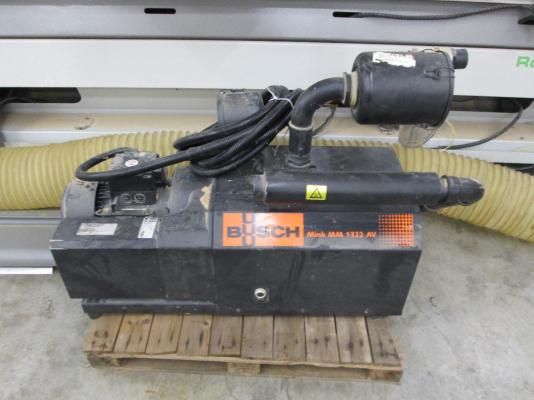

  • Busch vacuum pump

The Busch MM series positive displacement vacuum pumps feature a compact rotary claw design that is air-cooled, dry-running and non-contacting. These features, along with quality construction, result in a pump that offers extremely high reliability and a long service life.

Features
• Non-contacting design, eliminates internal wear and parts
to replace
• Air-cooled, requiring no water
• Dry-running, no sealing or lubricating oil is needed in the pumping
chamber
• Minimal maintenance
• Economical, reduced power requirements
• High volumetric efficiency

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.



Weight 1270.06 lbs
