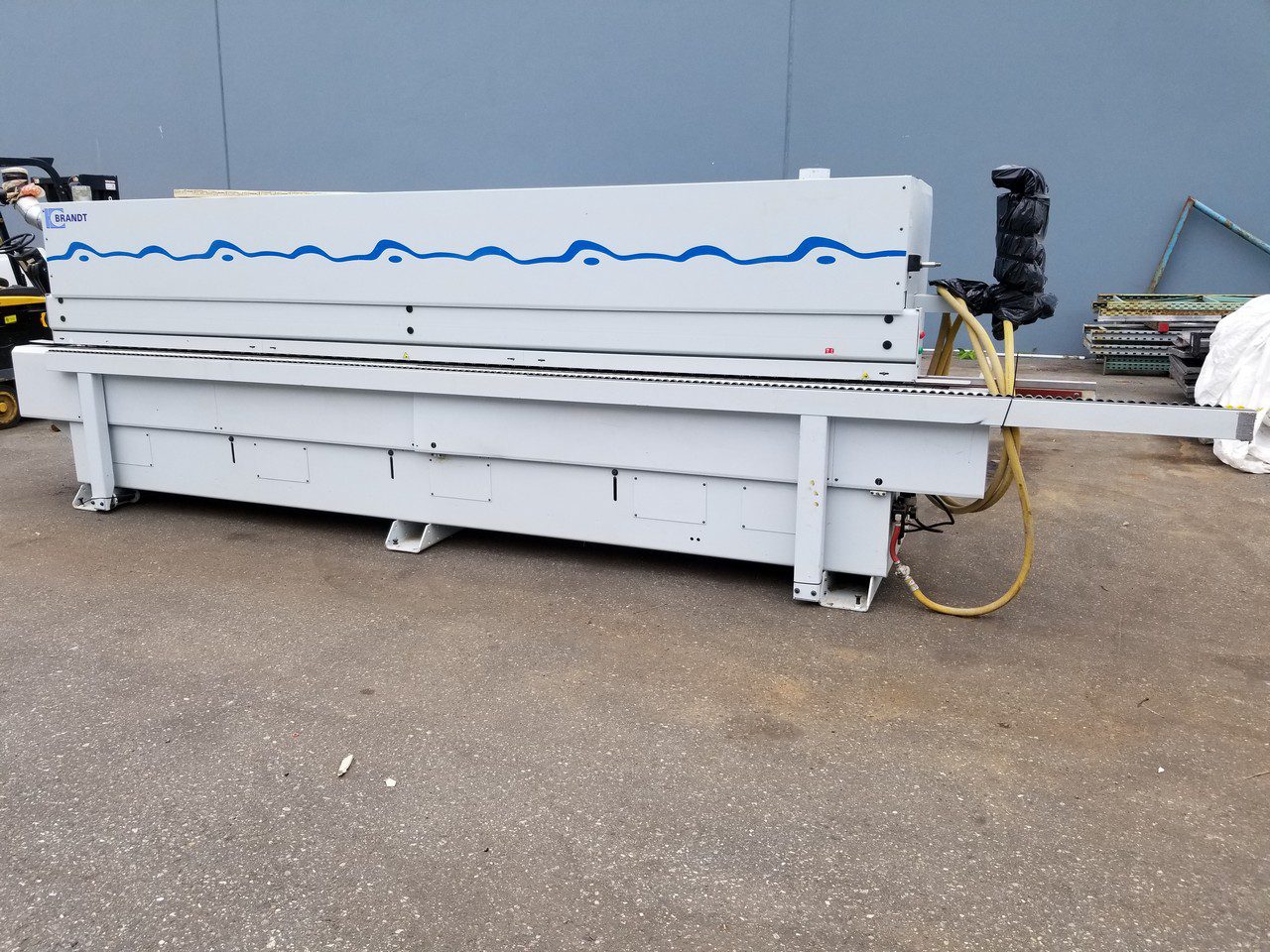

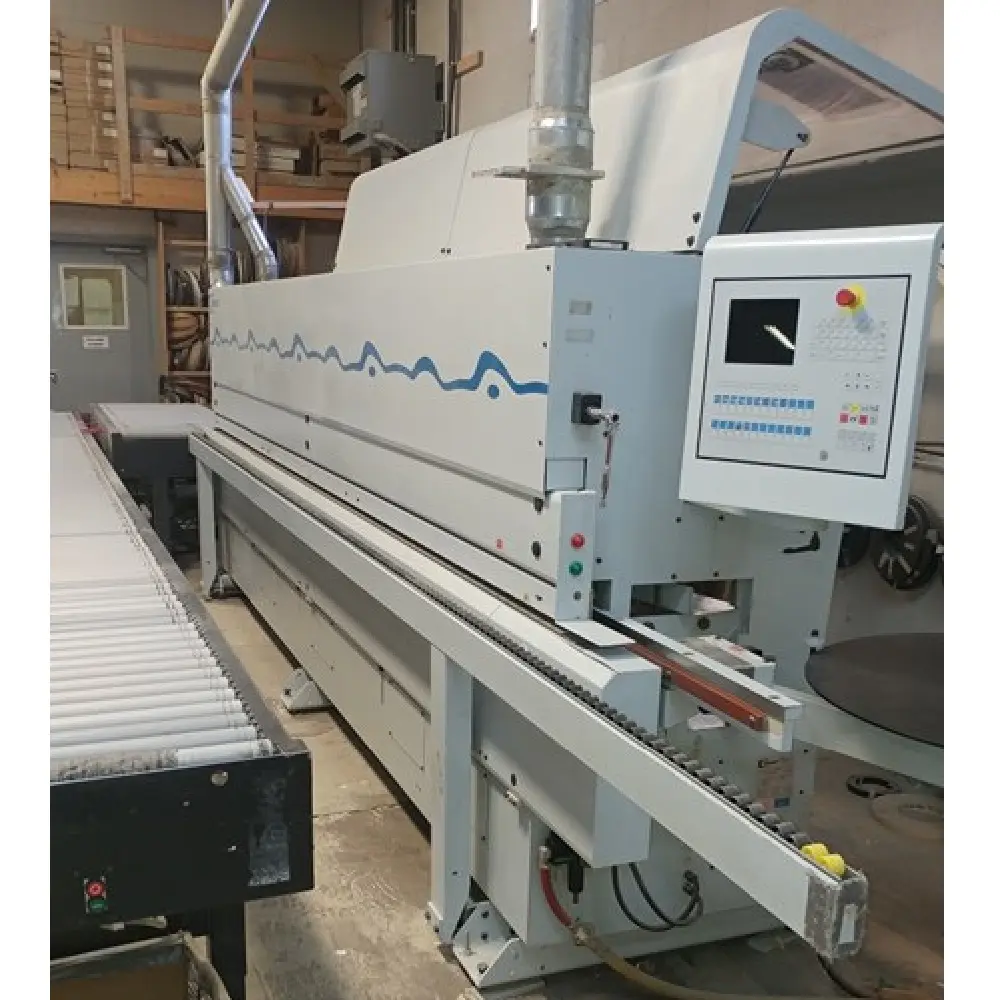

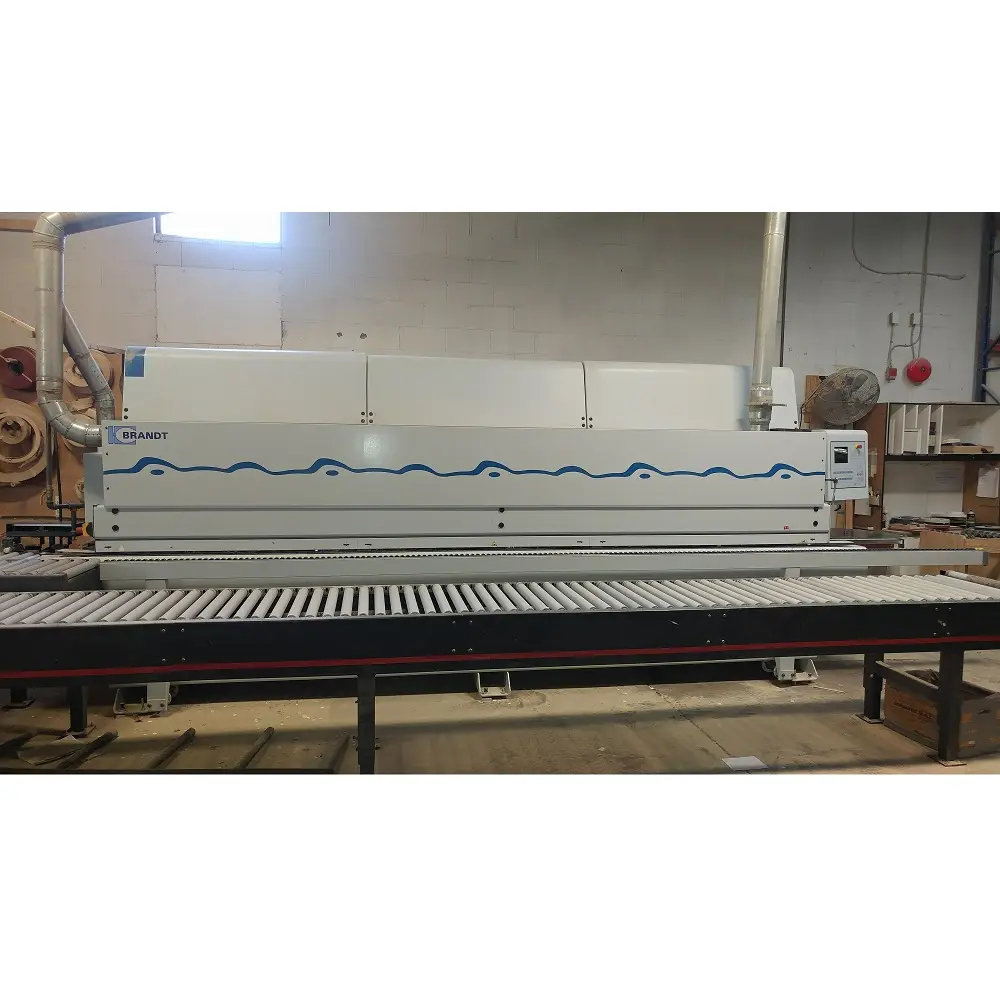

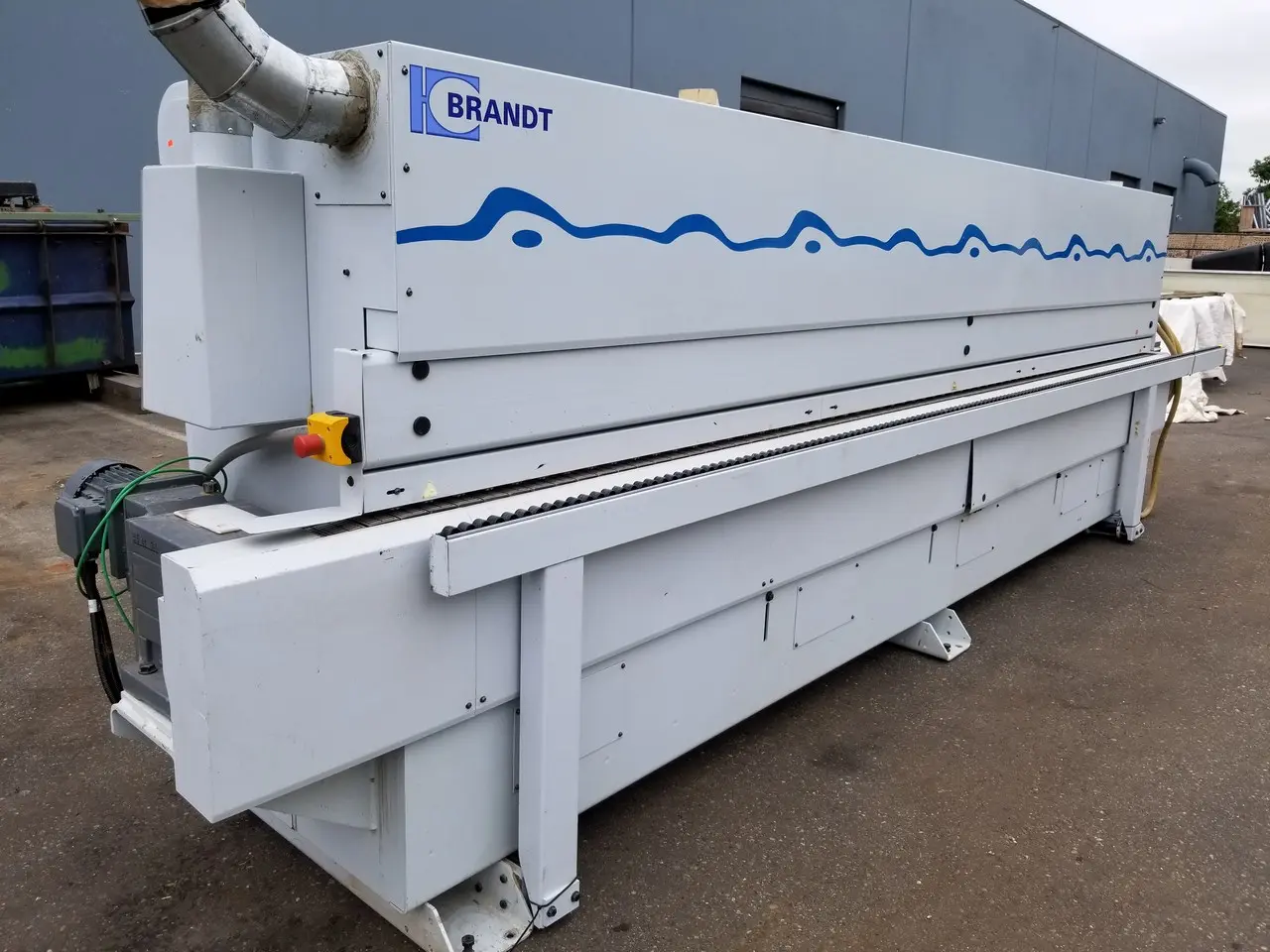

Brandt KDF 660 C Edgebander premill / corner rounding

Features and Specifications:

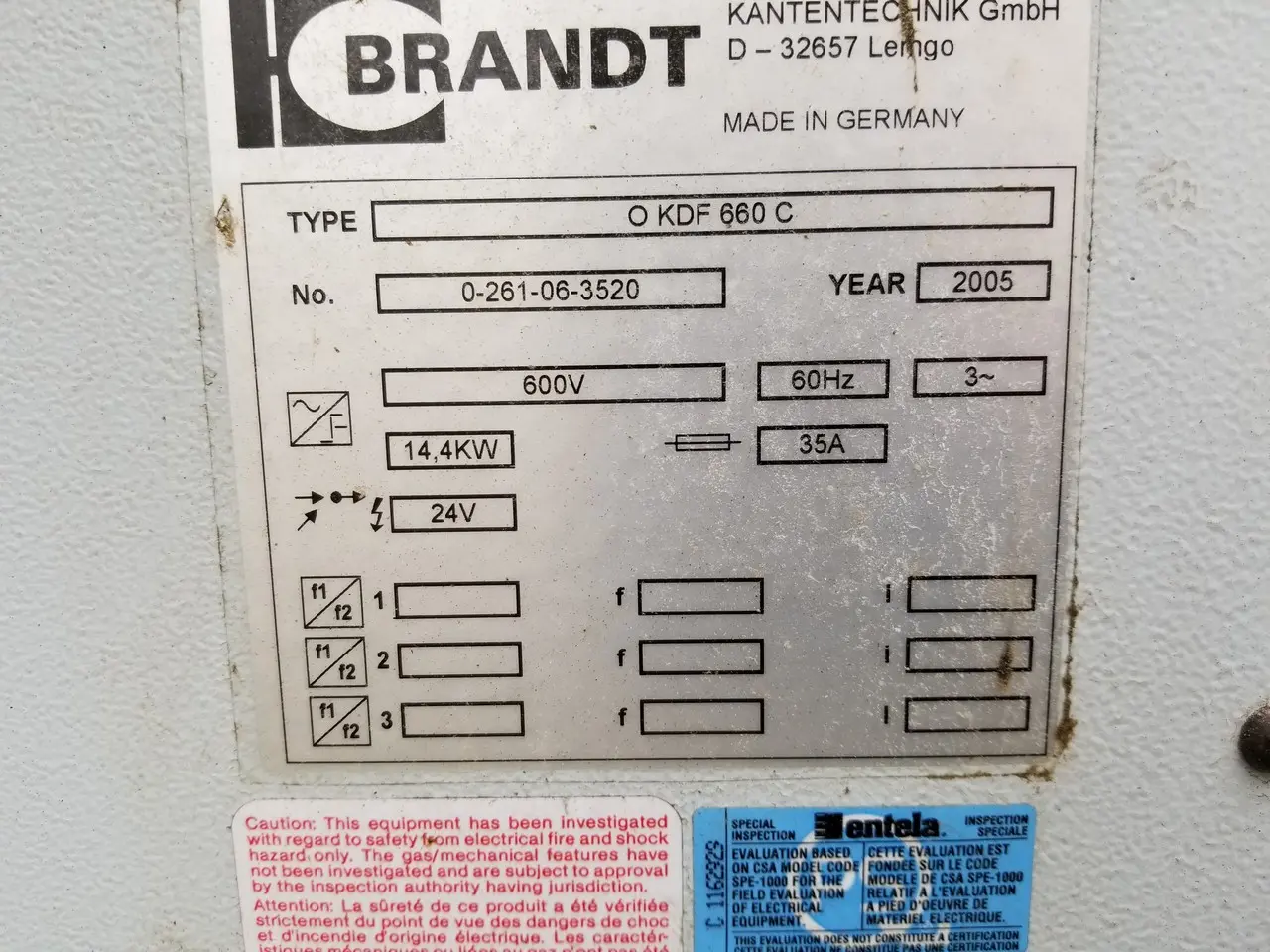

• Type O KDF 660 C
• Serial no. 0-261-06-335-20
• year of construction 2005
• height of work piece min-max 8 – 60 mm
• edge thickness min. max. 0,4-12 mm
• feed m/min. 14 m/min
• feed speed infinitely variable yes
• stop side right
• jointing-/profile-trimming 1 per site
• glue indication glue roller
• gluing aggregate hot melt glue
• edge magazine roller 3 mm
• edge magazine strips yes
• edge magazine massive 12 mm
• pressure zone straight
• snipping chamfer-straight

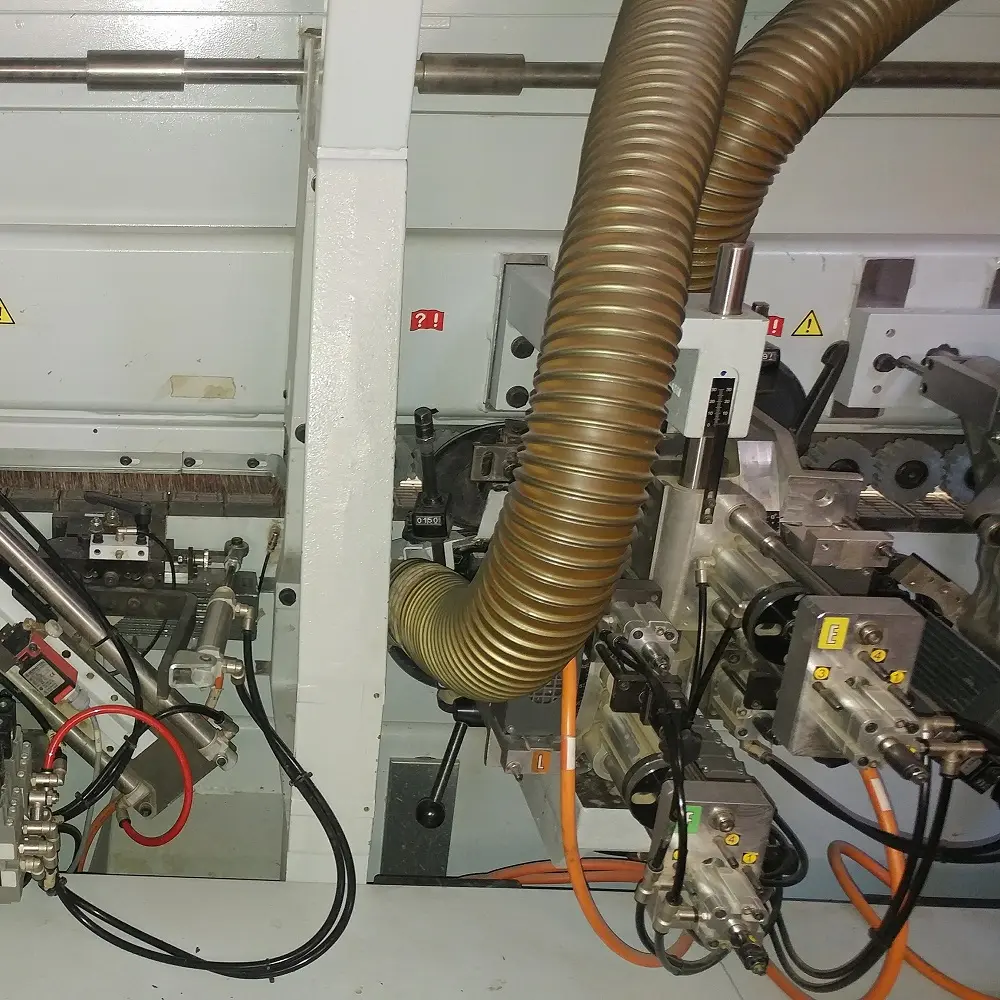

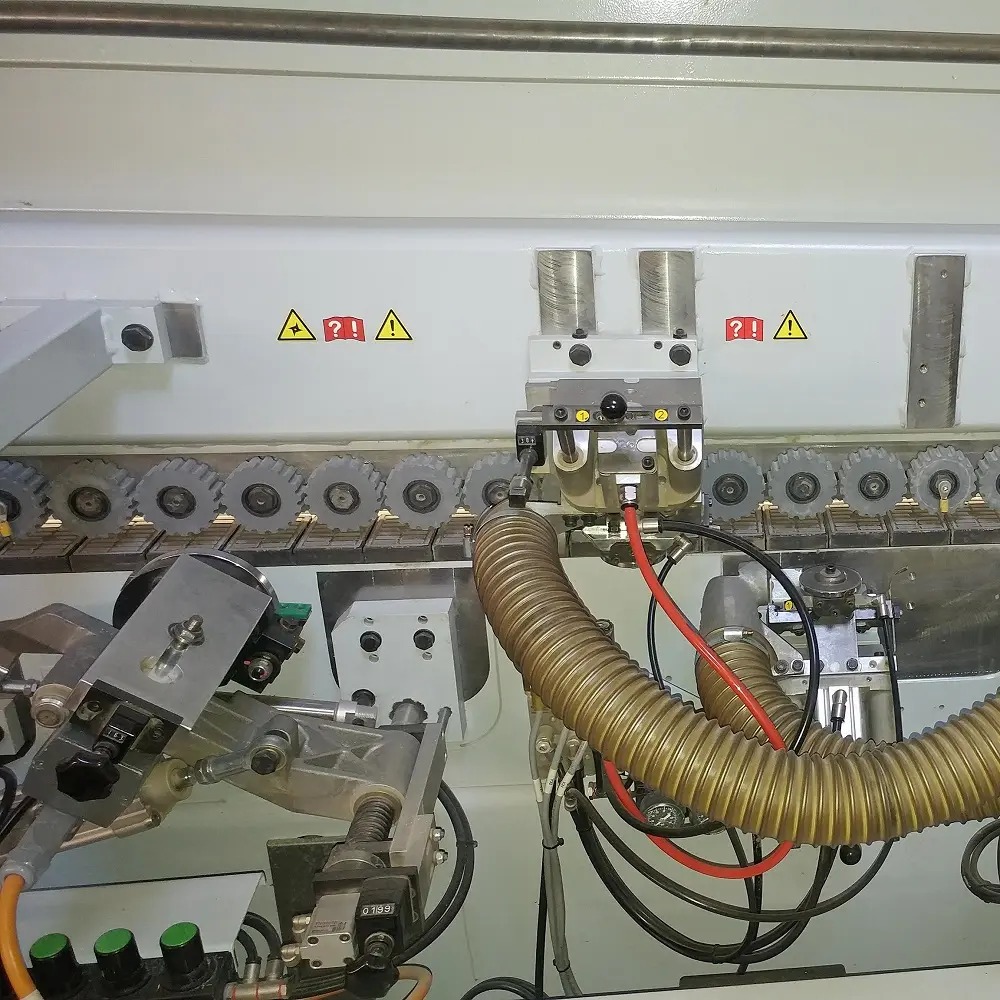

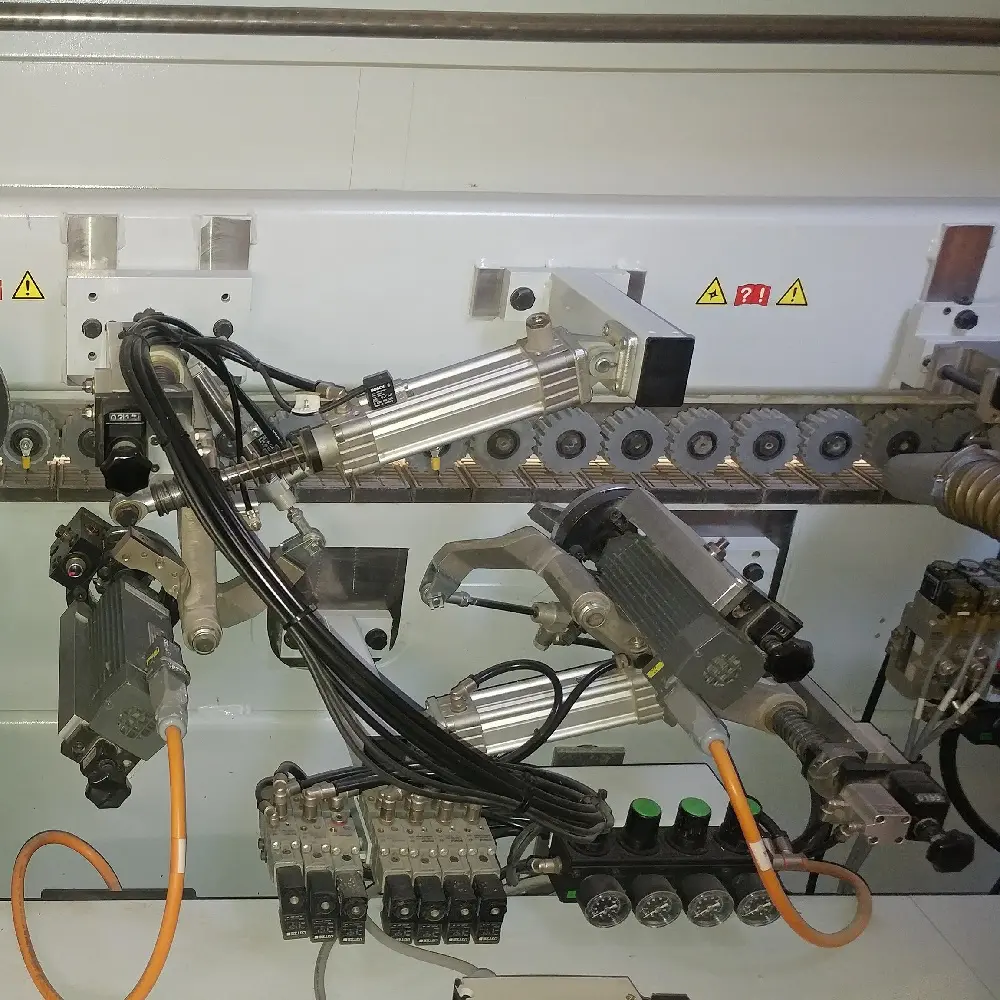

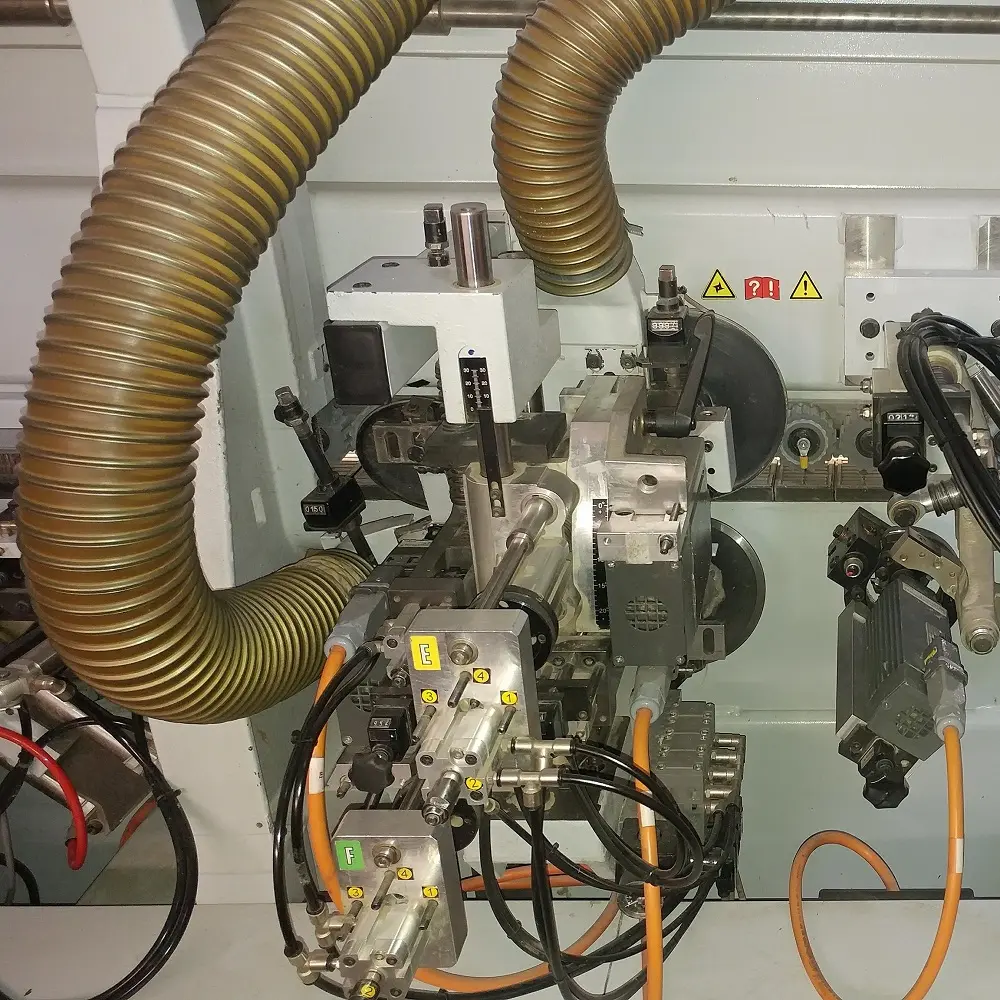

• profile trimming / copying (2 motors) 1 per site
• profile trimming / copying (4 motors) 1 per site
• profile sliding blade bottom 1 per site
• buffing aggregate top/bottom 1 piece
• height adjustment manually

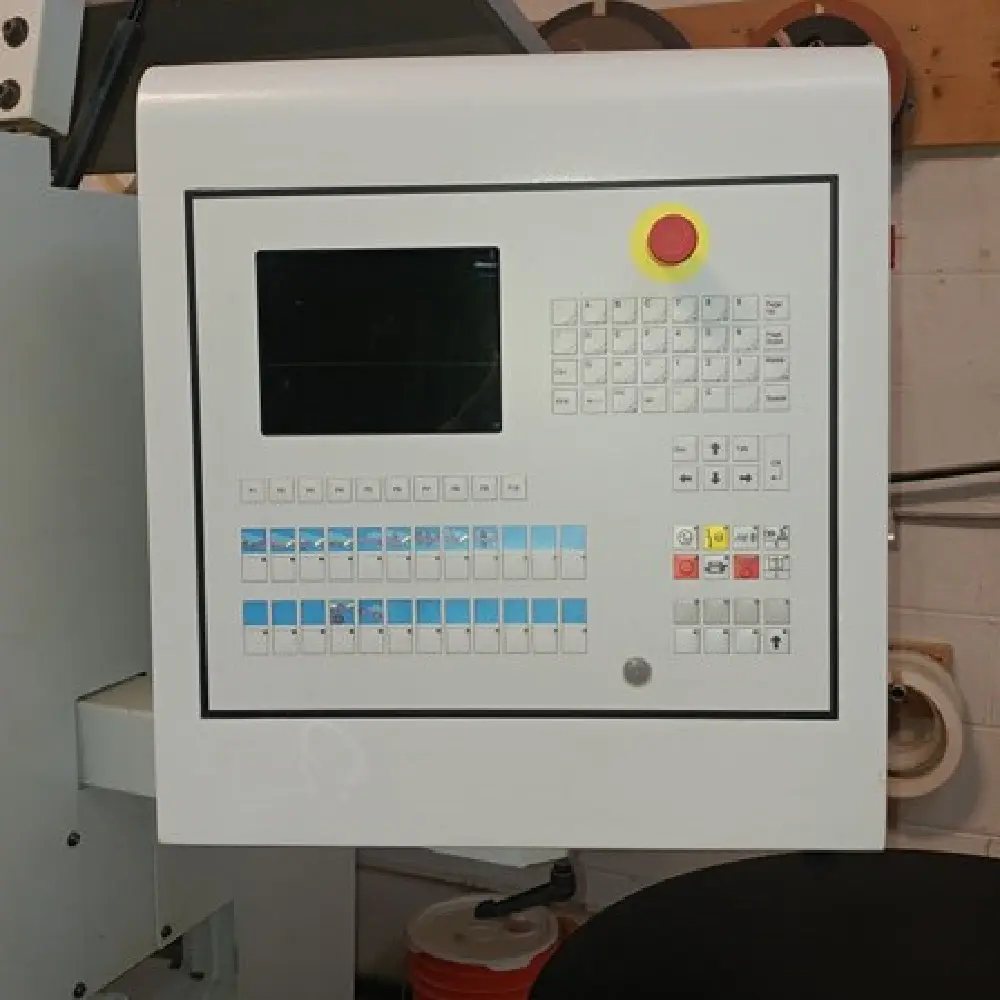

• electronic control yes

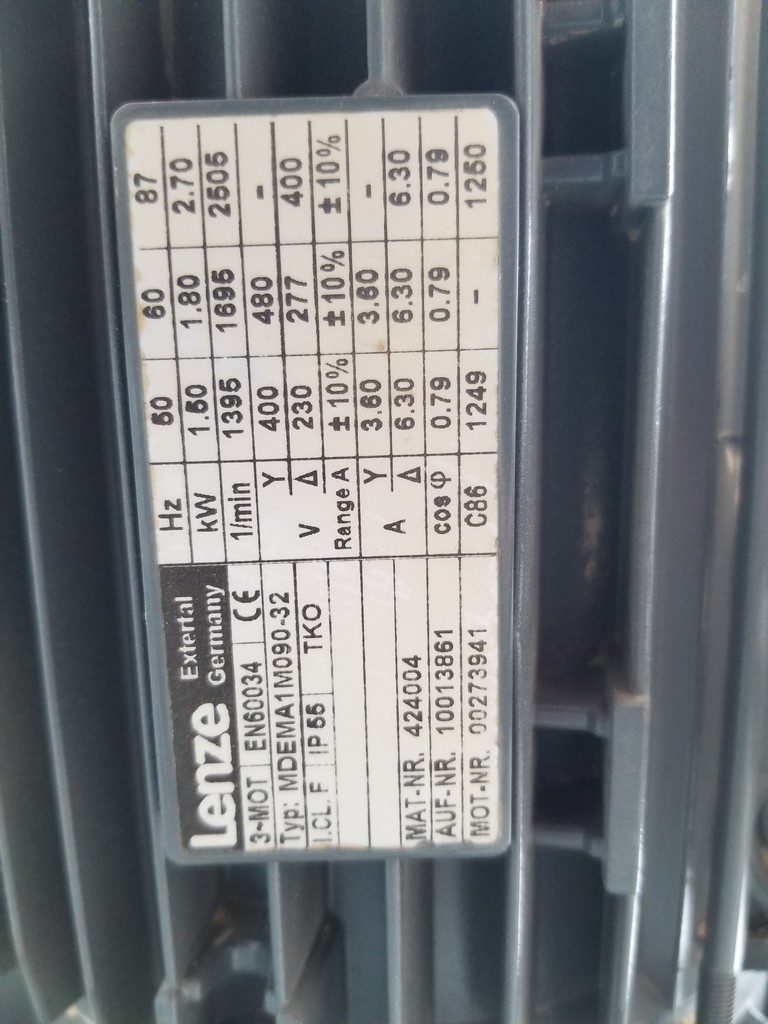

• connection 600 V/35 A/60 Hz/ 3 Ph
• machine dimension 1
• length 6400 mm
• width 1400 mm
• height 2100 mm
• weight 2700 kg

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Brochure Available.
