SKU: 558-7

Brandt Optimat F13 Top and Bottom Trimmer

Out of Stock But wait, we have similar products

Features and Specifications:

  • Model Optimat F13
  • S/N :0-260-06-0013
  • Brandt Optimat Curved Panel Edge Trimmer
  • 47″ x 31″ cast aluminum main table
  • 26″ x 6 1/2″ side table

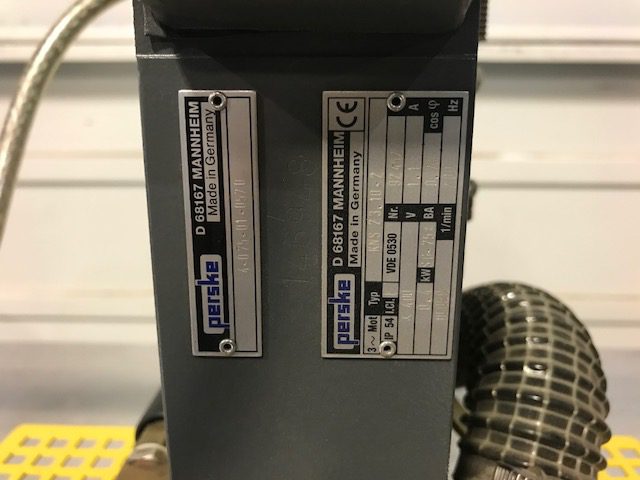

  • (2) .54 hp, 400V, 3 ph cutterhead motors
  • .5 hp, 230/400V, 3 ph saw motor
  • Variable speed cutterhead

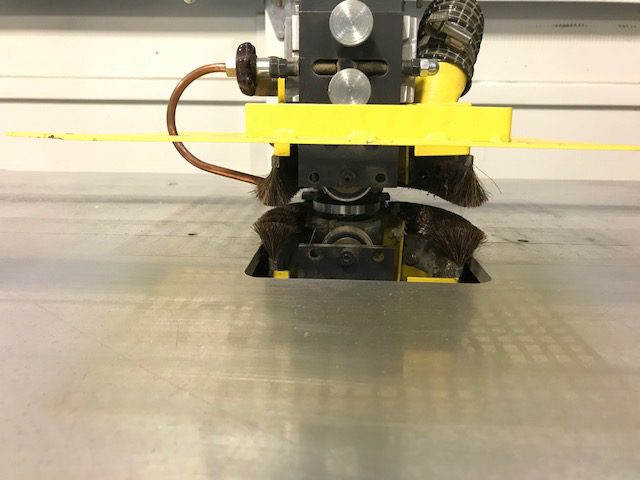

  • Top & bottom radius profiled cutterheads w/ insert cutter knives.

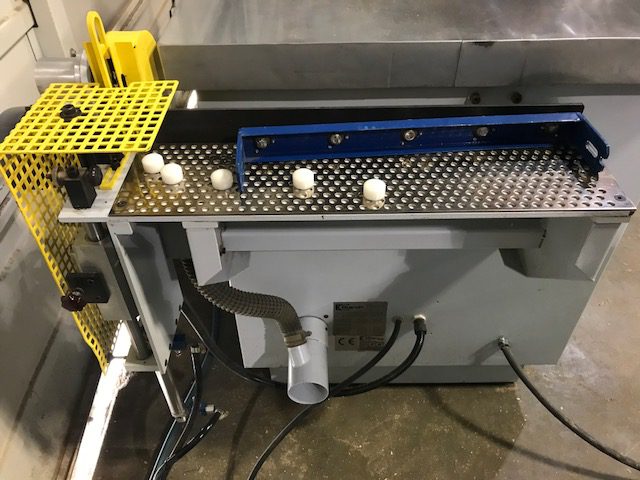

  • Side mounted trim saw station
  • Separate foot pedal controls for egde trimming & saw stations
  • 3 mm max edgebanding thickness
  • 70 mm max distance between top & bottom cutterheads
  • Turn knob height adjustment of top cutterhead.
  • Year       200
  • 3 phase
  • Voltage  230 V
  • Estimated dimensions   32″ x 60″ x 48″

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
