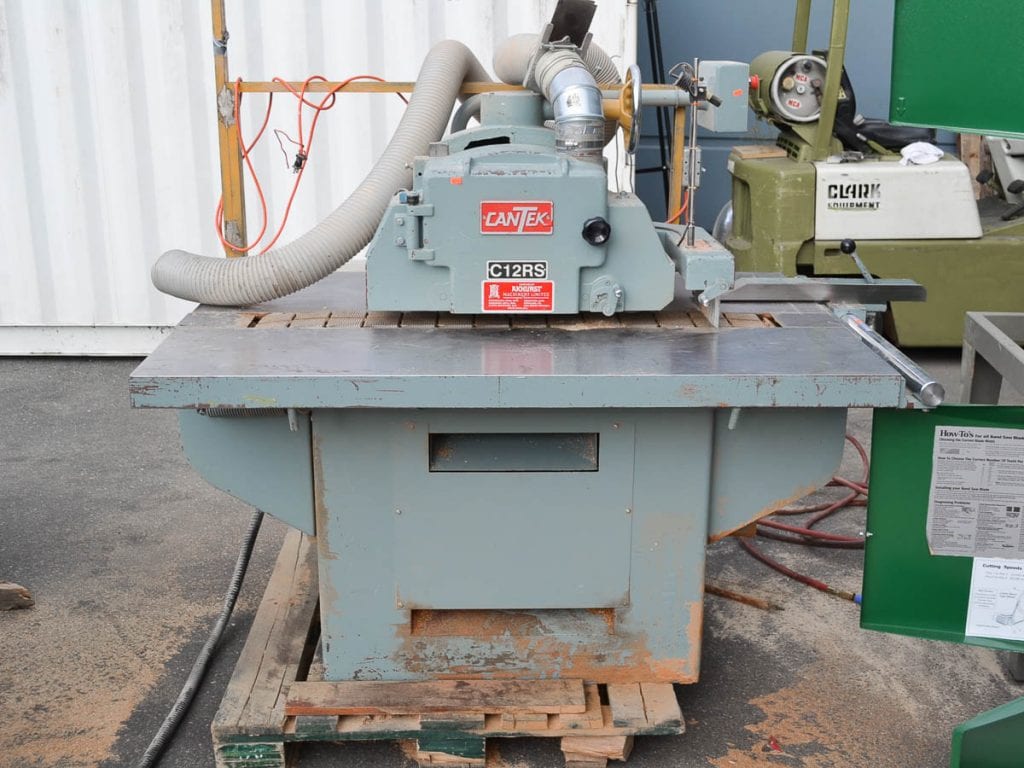

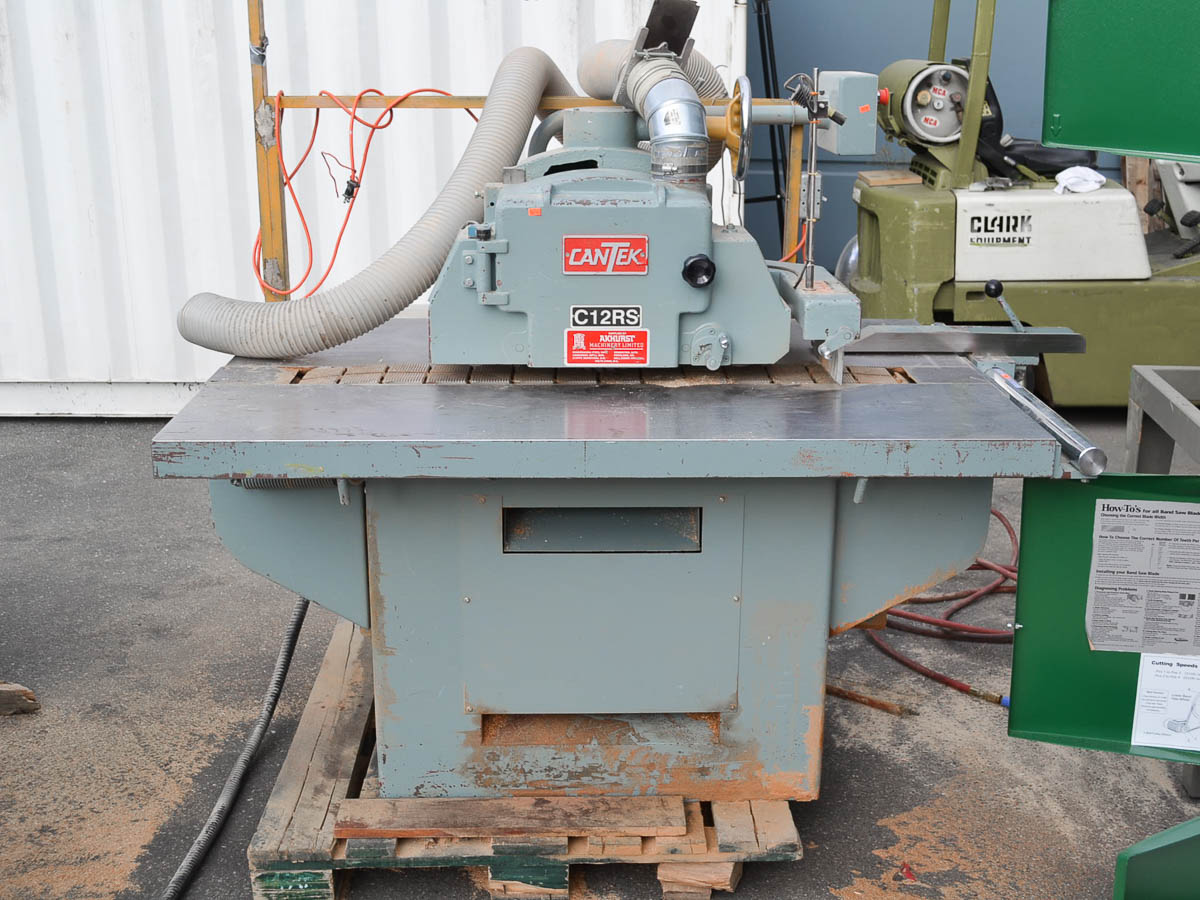

Cantek C12RS Rip Saw

Specifications

• Straight line rip saw, variable speed, laser line, good chain, low use
• Saw Blade diameter 8″ -12″

• 1″ saw arbor

• Saw arbor speed 4,500 RPM

• 15HP saw arbor motor

• 2HP feed motor, 45-120 FPM variable speed

• Minimum workpiece length 8″, maximum cutting thickness 3 3/8″

• 18″ throat

• 38″ x 57″ table size, 31 1/2″ table height

• Overhead cutting Rip Saw with heavy cast iron ground tables and cast iron pressure housing with 6 guide rollers and a solid welded steel base.

• The cast iron upper pressure housing provides a stable mounting for the precision ground nickle chrome steel saw arbor and can be easily adjusted by the hand wheel for thickness changes

• Features a one-piece cast iron chain with a diamond cut surface for positive material feeding.

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
