SKU: 501-9

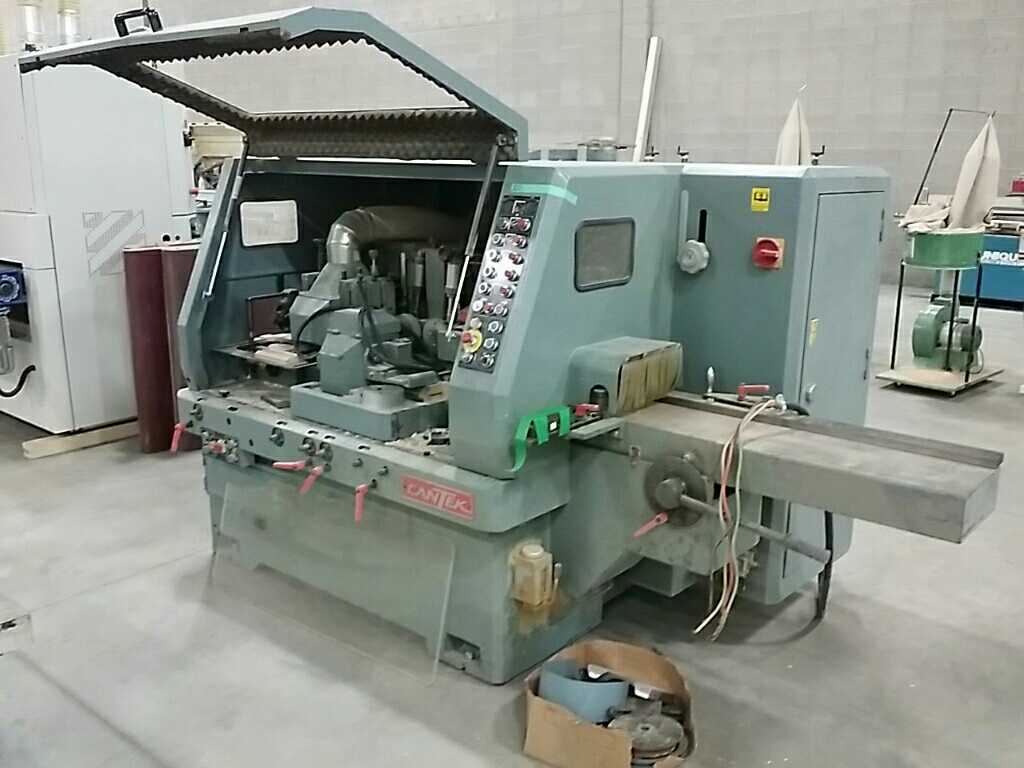

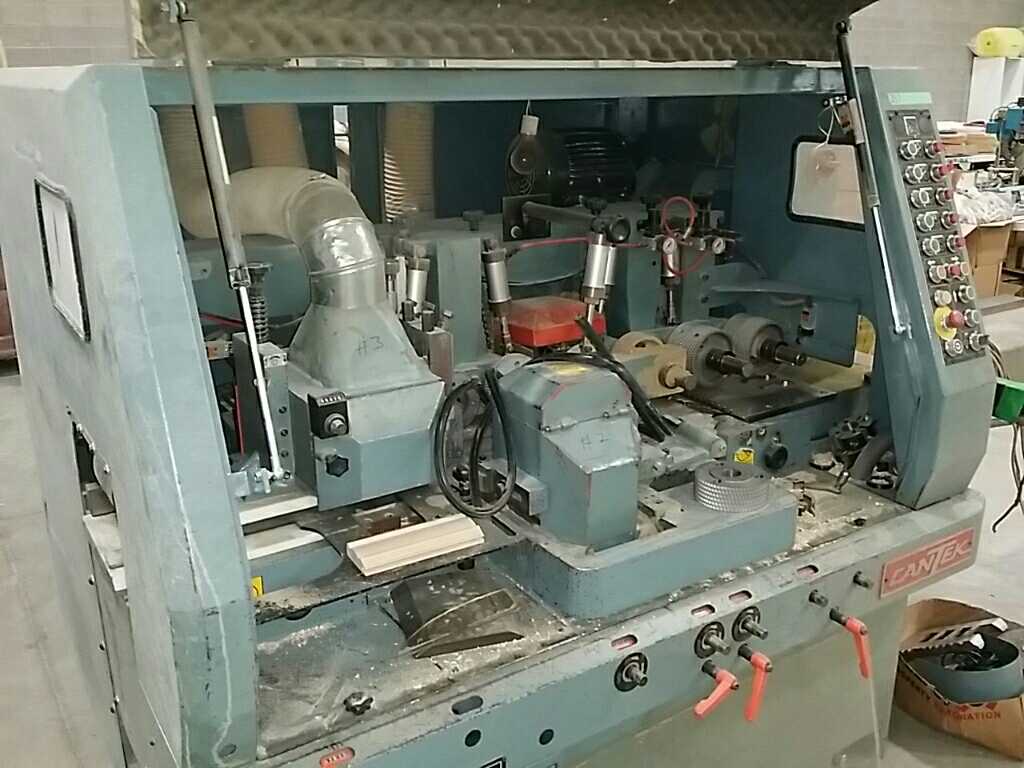

Cantek CM757 4-HEAD PLANER MOULDER

Out of Stock But wait, we have similar products

Sale!

FEATURES

  • Individual motor drive to each cutterhead
  • Chrome plated bed plates after 1st bottom head
  • Chrome plated fence after 1st bottom head
  • Chainless drive to top and bottom feed rolls
  • Infeed and outfeed driven bed feed rolls
  • Digital readouts to all head movements
  • Pneumatic pressure adjustable to all top feed rolls
  • Sound enclosure with full view window
  • Central control panel with all push buttons
  • 4 head*
  • B-L-R-T*
  • 220v 3 phase*

SPECIFICATIONS

Maximum capacity 5” x 8” wide
Minimum capacity 5/16” x 1” wide
Minimum length to thru feed 9-1/2” long
4 Head B-L-R-T
First bottom head 7.5 HP
Fence side head motor 7.5 HP
Front side head motor 10 HP
Top head motor 15 HP
Feed Motor 5 HP
Power rise and fall to top head / feed rolls 1 HP
Feed speeds 21 to 75 ft/min
Spindle speeds 6000 RPM
Spindle diameter 40mm
Net weight 5,370 lbs



Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
