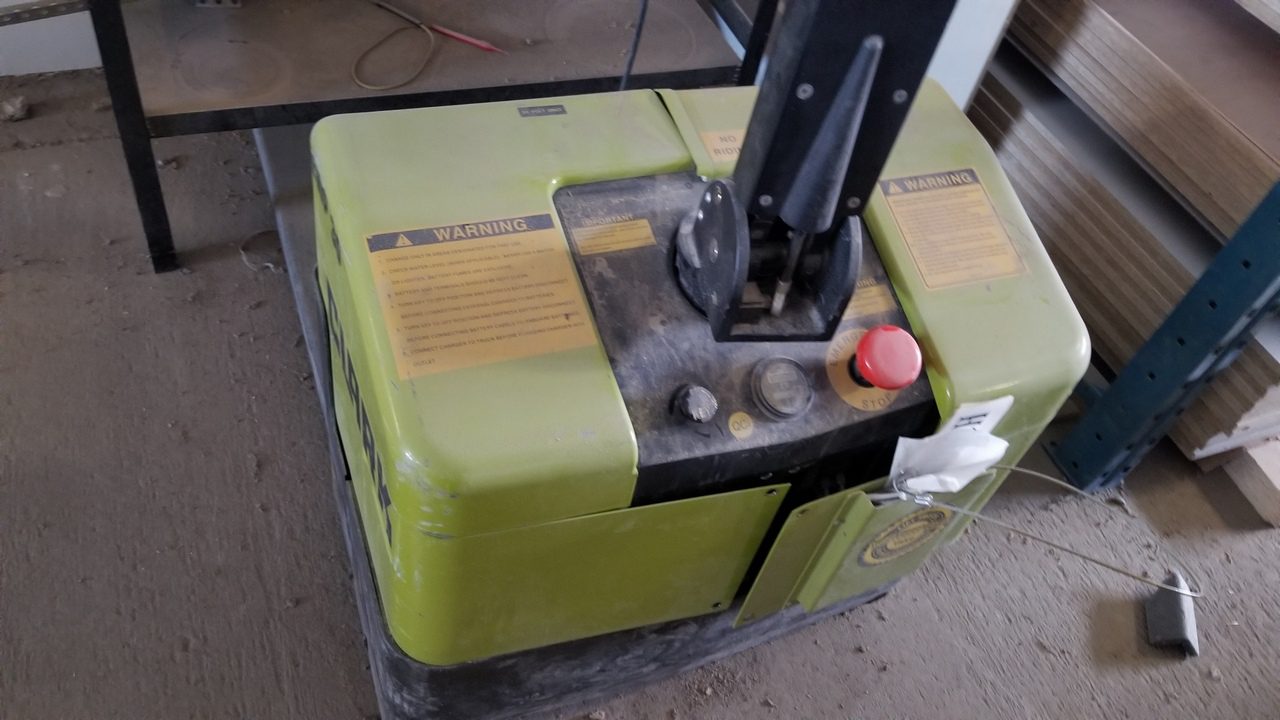

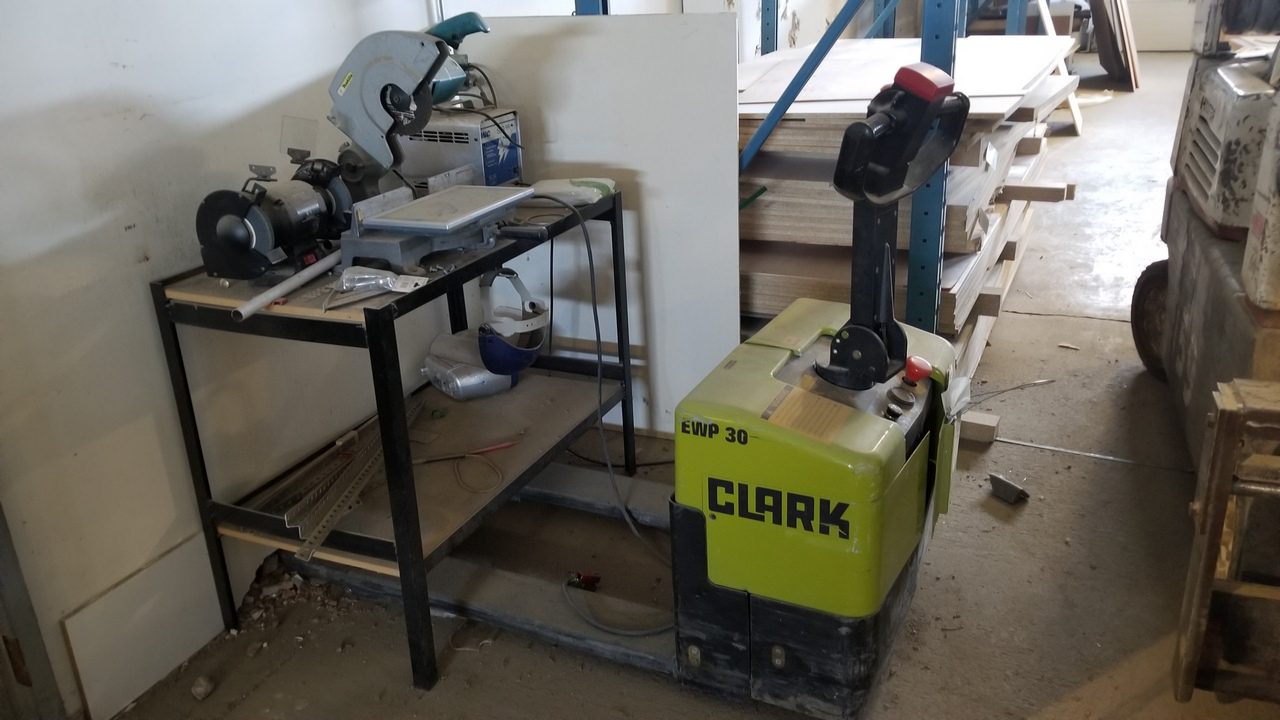

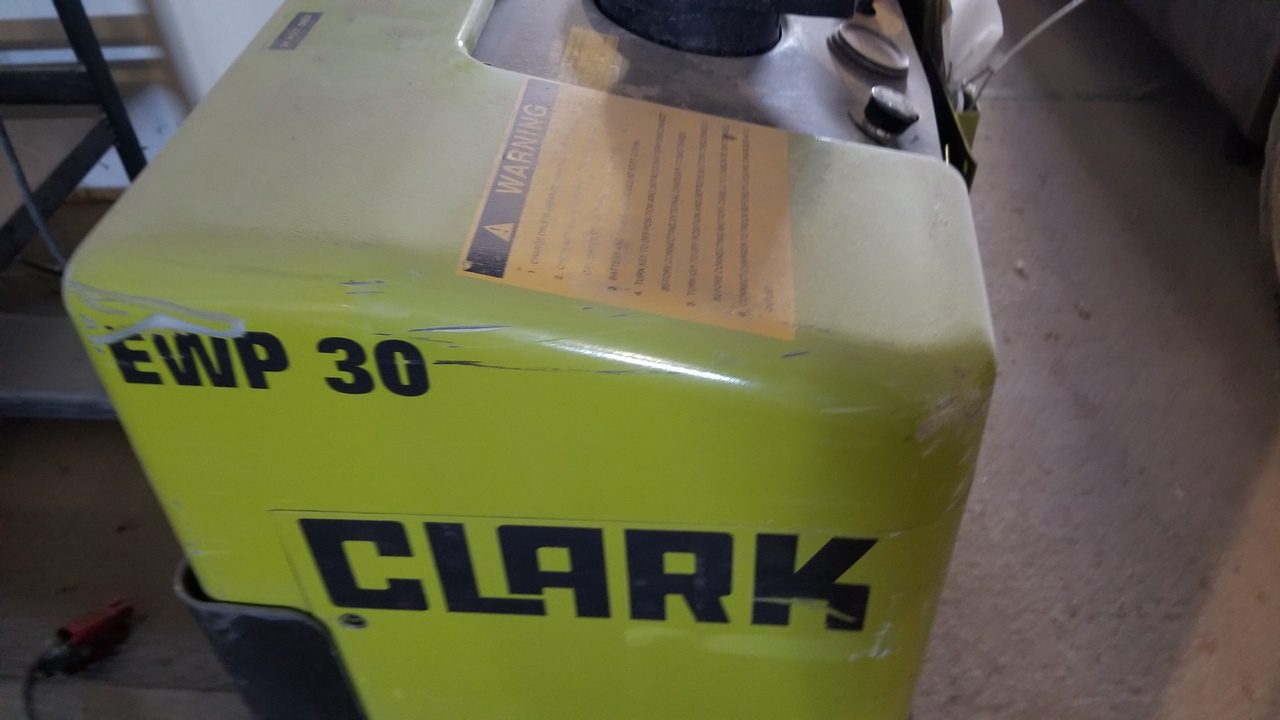

Clark EWP 30 Low Lift Pallet Truck Electric 24 Volt

Features and Specifications:

• DRIVE MOTOR – 24-Volt permanent magnet DC drive motor increases efficiency and duty cycle
• BRAKES – Parking brake is automatically applied when truck stops and handle is released
• HYDRAULIC SYSTEM – Lift cylinder has durable, chrome-plated lift rod provides smooth lifting and lowering
• STANDARD BATTERY – 70 Ah (AGM) Absorbed Glass Mat battery pack for extended run times – up to 4.5 hours
• ON-BOARD CHARGER – Standard 110 V three-prong outlet plug for convenient charging
• STANDARD EQUIPMENT – Quick disconnect EPD power cut-off, hour meter, and battery discharge indicator all come standard
• Load Capacity / Rated Load @ 24” LC lbs(kg) 3000 (1360)
• Chassis Height, Lowered in(mm) 26.5 (673)
• Width in(mm) 27.0 (686)
• Right Angle Stack (48”L x 40”W, Add 6”-8” for Clearance)  in (mm)  58.0 (1473)
• Travel speed loaded / unloaded mph(kph) 2.5 (4.0) / 2.8 (4.5)
• Power Unit 24 Volt

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
