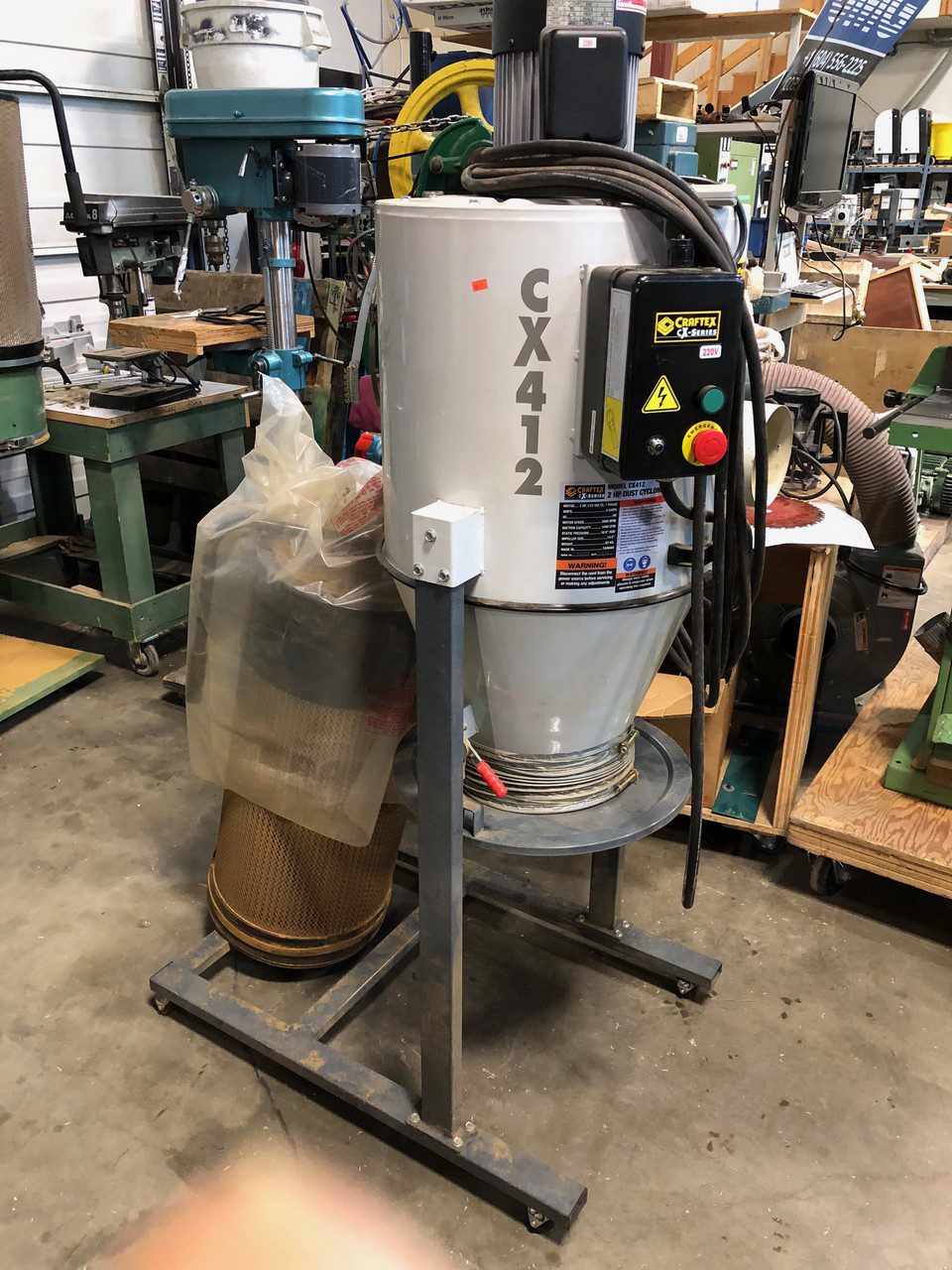

Craftex 2 HP Cyclone Dust Collector CX412

Features and Specifications:

• MFG Date : March 2016
• Ultra high efficiency separation
• 1 micron canister with manual hand crank for cleaning

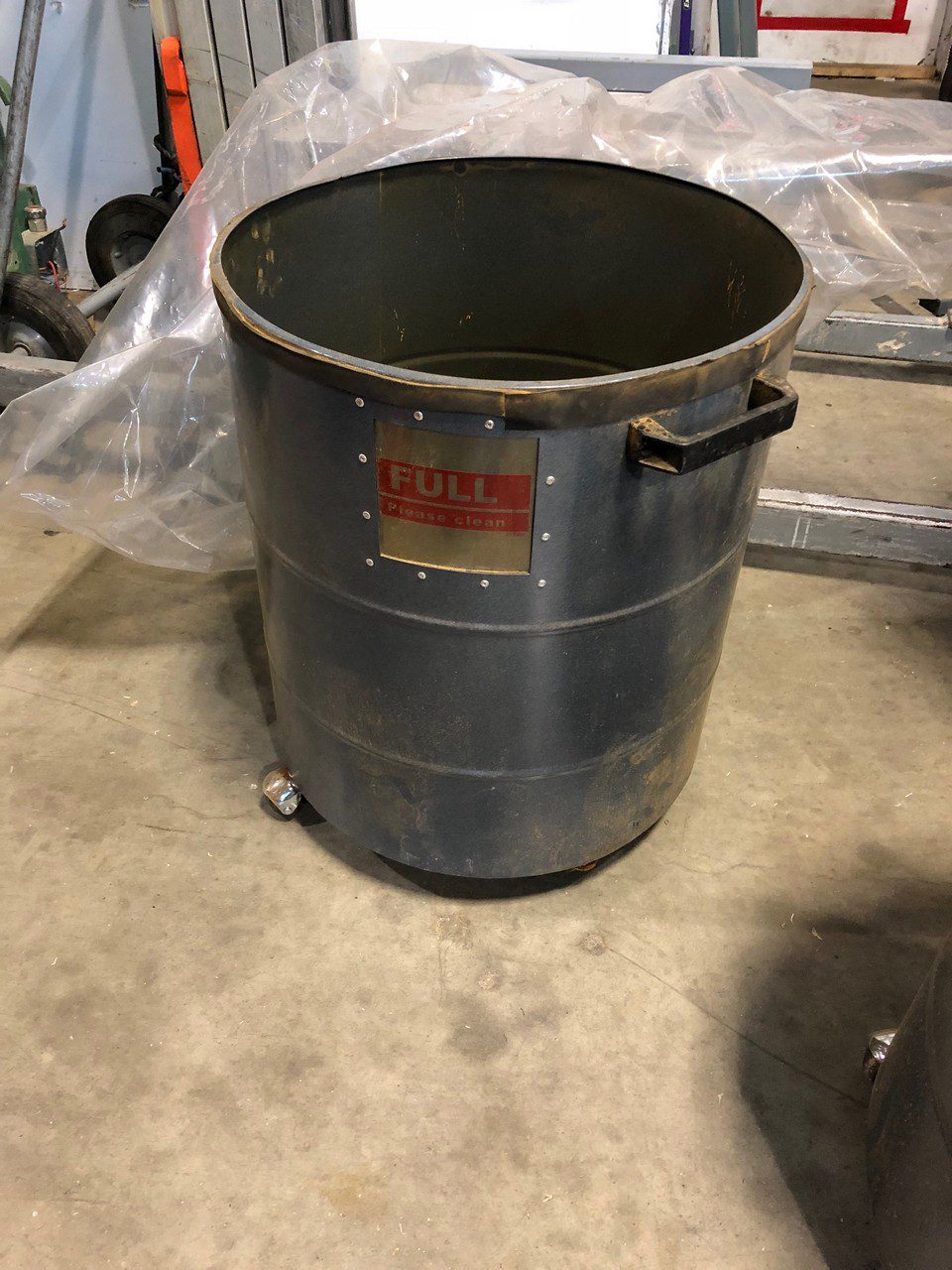

• 28 gallon steel drum with quick release levers and castor wheels
• Remote Control with timer setting automatically shuts the machine off after 2, 4, 6 or 8 hours
• 4 Wheel castors for portability
• Powder coated paint
• Made in Taiwan

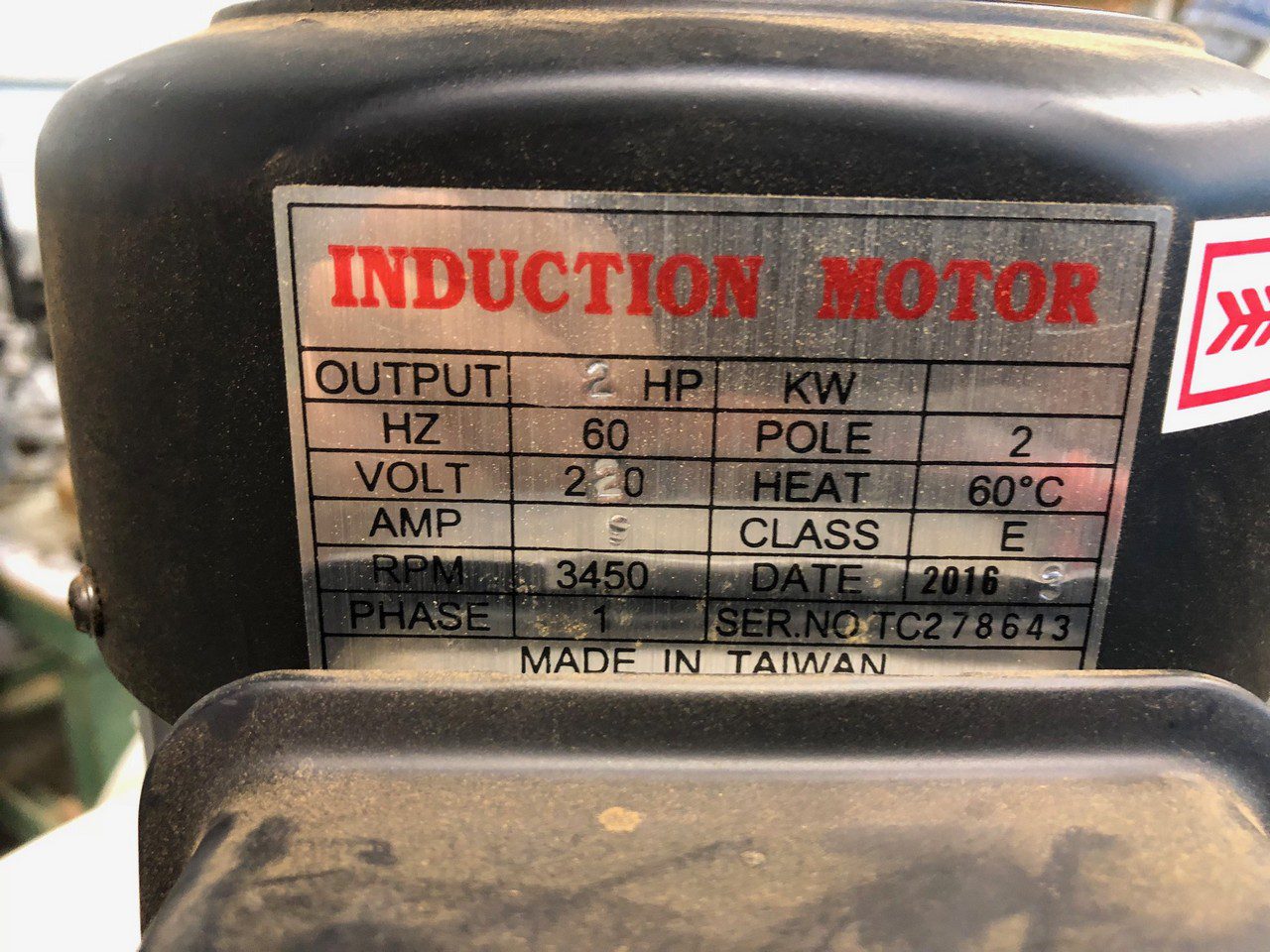

• Motor: 2HP, 220V, Single Phase, 60Hz
• Amps: 9 Amps
• Motor Speed: 3450 RPM
• Steel Drum Capacity: 28 Gallons
• Suction Capacity: 1450 CFM
• Static Pressure: 10.5″ H2O
• Noise Level at 36″: 76 Db
• Impeller Size: 14.5″
• Switch: ON/OFF Magnetic Switch
• Inlet Size: 6″ (with 4″ Y Inlet)
• Assembled Dimensions: 41.5″ x 26.5″ x 71″
• Package Size: 45″ x 28.5″ x 37″
• Weight: 83 Kg

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
