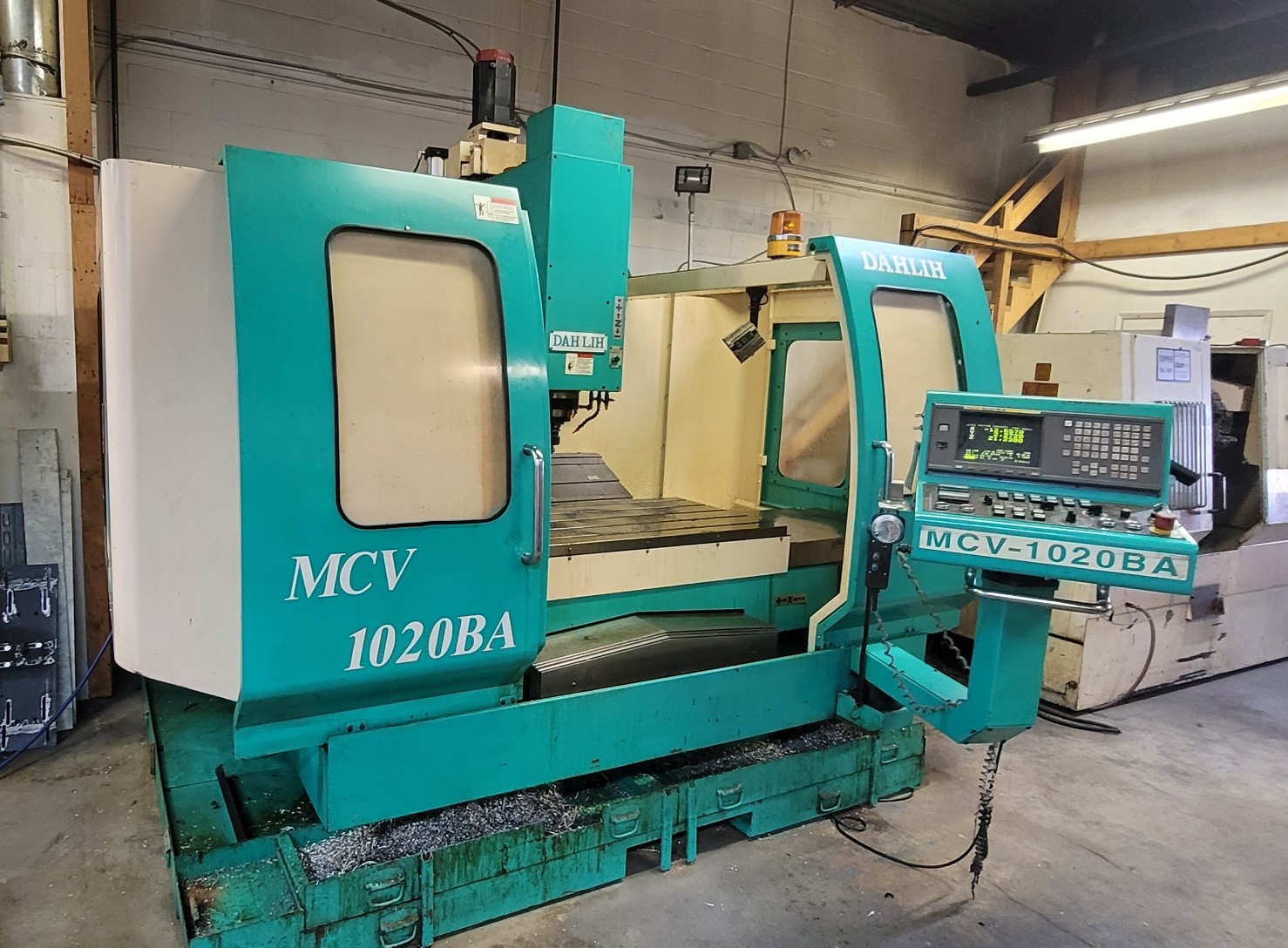

Dah Lih DL-MCV-1020BA CNC Mill

Specifications

Less Than 900 hours of Use

220V  –  3 Phase

• Working Surface: 49.2″ x 26″
• T-Slot: 0.7″ x 5″
• Max Tableload: 2200 lbs
• X -Axis Travel: 40″
• Y-axis Travel: 21.65″
• Z-axis Travel: 22″
• Spindle Nose: N.T. 40
• Spindle Speed: 40-4000 rpm
• Cutting Feed (in/min): 0.04″ – 394″
• Rapid Travel (in/min): x,y: 787″ z: 472″
• Tool Holder: B.T. 40
• Auto Tool Changer with 25 tool Storage Capacity
• 10 HP Spindle Motor
• Fanuc M-18 Controller
• Mfg Date: 2000

Manual Available

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
