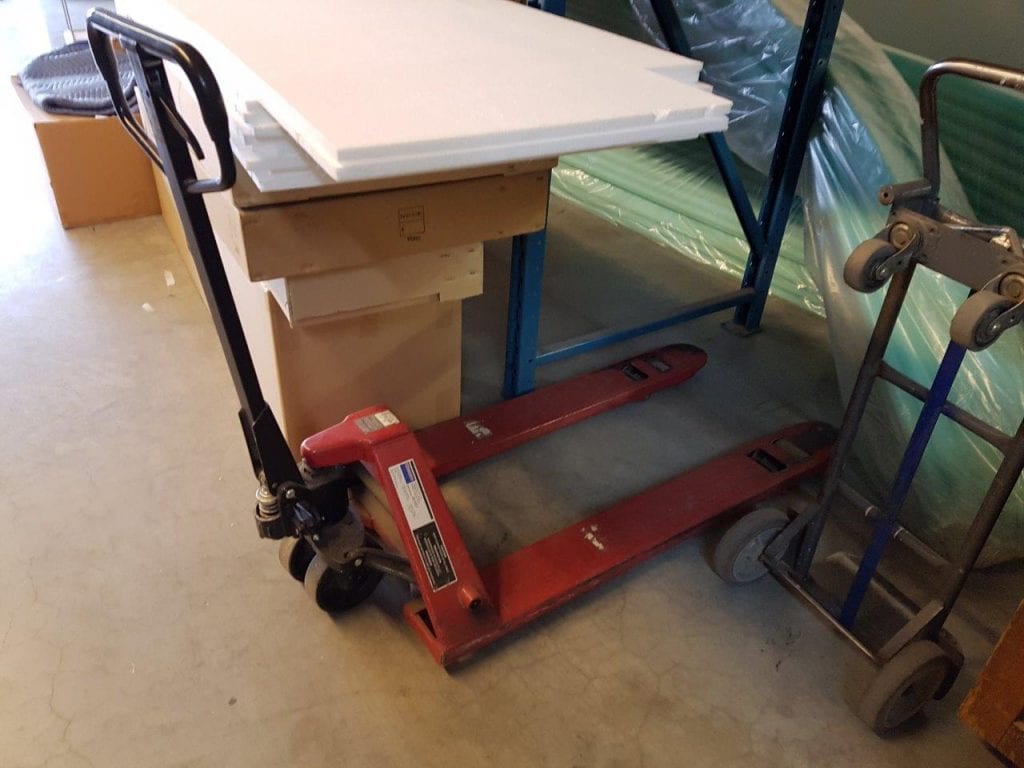

DAYTON 5500 lbs Hand Hydraulic Pallet Truck Model 4YX97

Features and Specifications:

• Hand actuated control lever for selecting RAISE, NEUTRAL and LOWER positions. 4YX97 has steel hub with polyurethane coating.
• Features a cushion grip with a 3-position lever and a flow valve for controlled lowering.
• Push rods are fixed with no adjustment needed. 4mm-thick steel with reinforced fork bracing and sealed ball bearings on wheels. 7″-dia. main wheel.
• Load Capacity:  5500 lb.
• Construction:  Steel
• Fork Height Lowered:  3″
• Fork Height Raised:  7-3/4″
• Width Across Forks:  27″
• Width Between Forks:  14-3/8″
• Fork Length:  48″
• Fork Width:  6-1/4″
• Pallet Jack Operation:  Manual
• Key Pallet Jack Feature:  General Purpose
• Overall Length:  63″
• Overall Width:  27″
• Overall Height:  47-3/4″
• Roller Dia.:  2-29/32″
• Main Wheel Size:  7″
• Wheel Material & Roller Material:  Polyurethane
• Bearings:  Sealed Ball
• Steering Arc:  210 Degrees
• Grease Fittings:  12 External
• Handle:  Cushion Grip
• Finish:  Polyurethane
• Wheel Base:  49-1/2″

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction  Manual Available.
