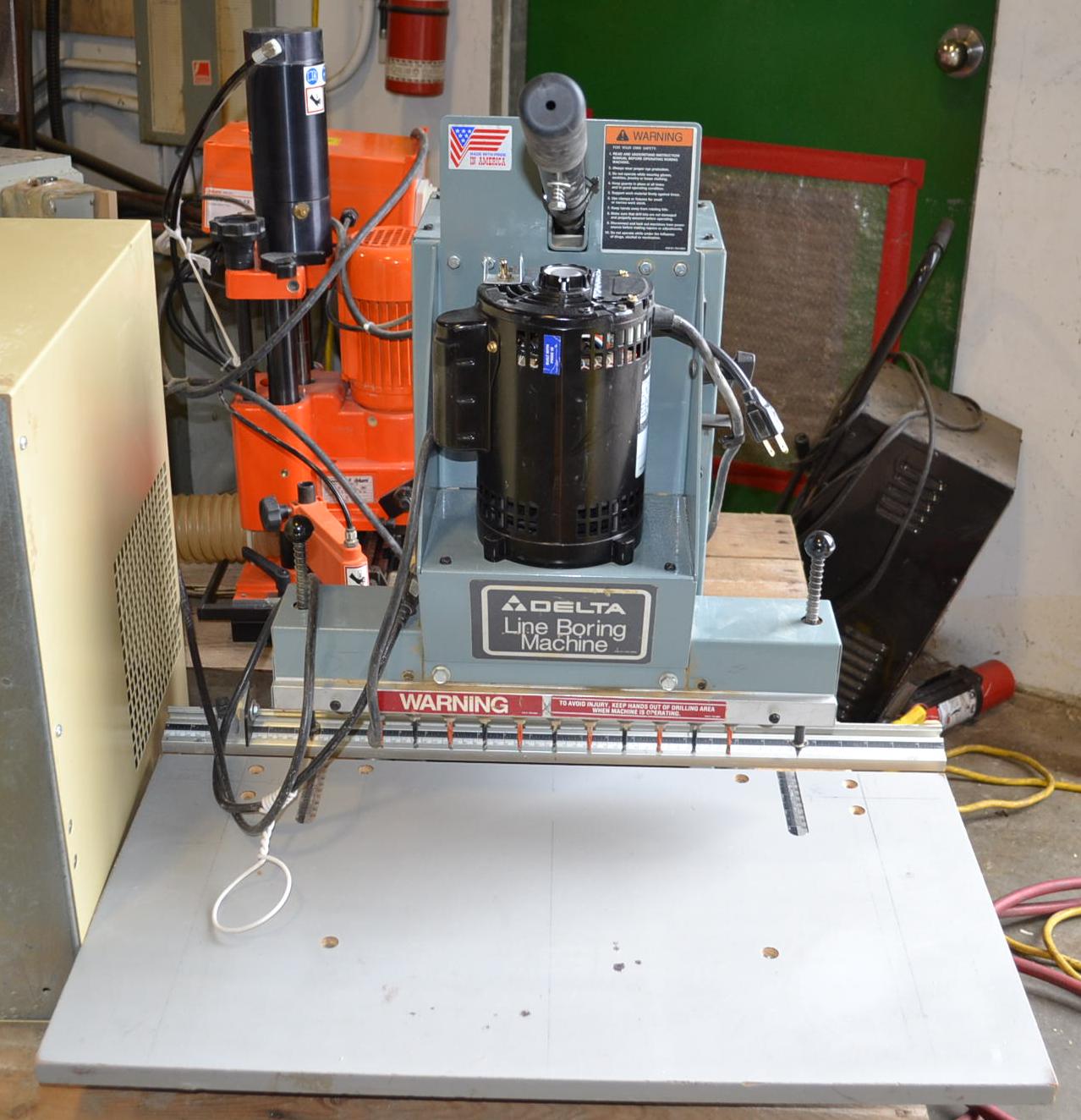

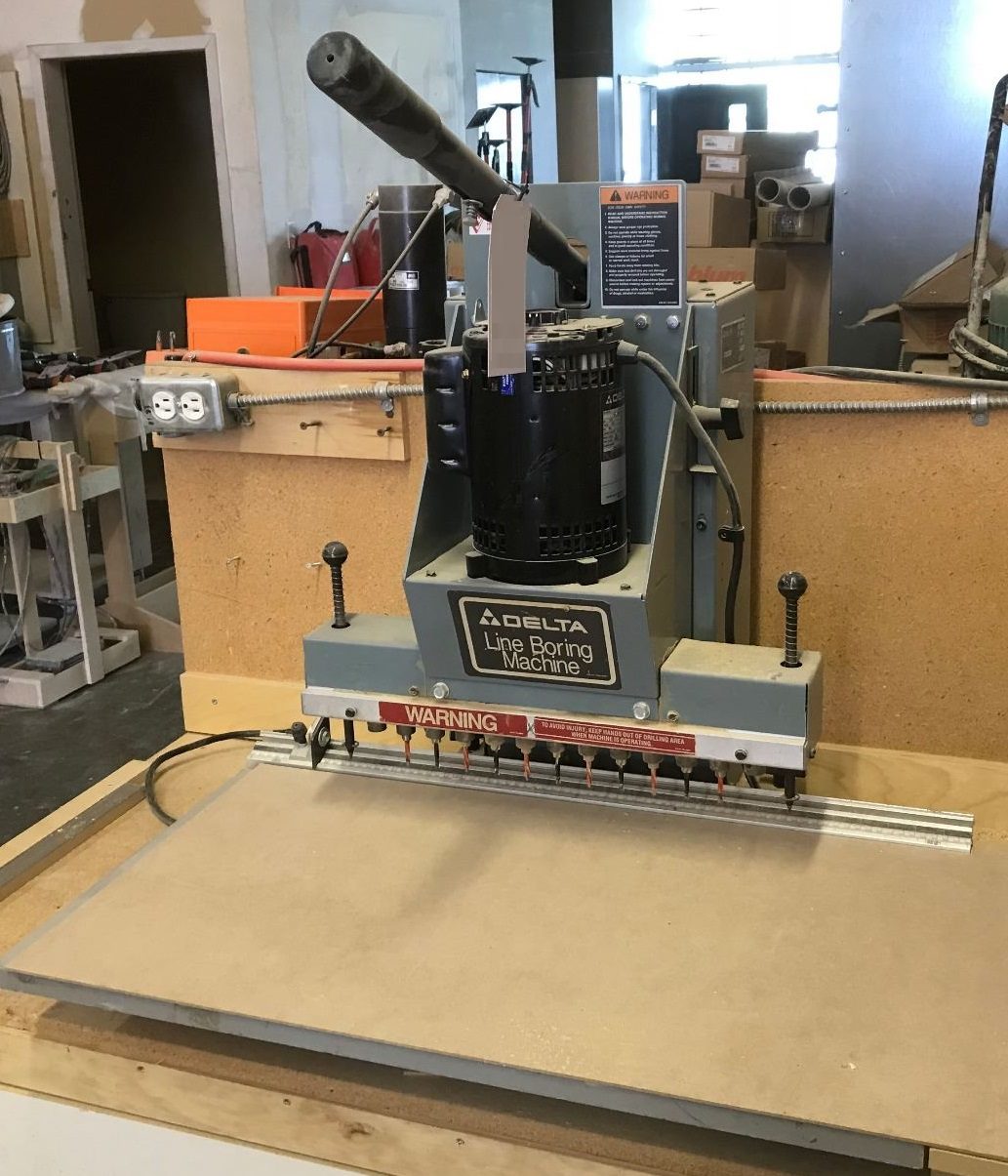

Delta 32-325 3/4-Horsepower 13-Spindle Line Boring Machine

Features and Specifications:

• The DELTA^® 32-325 13 Spindle Boring Machine provides a full 12″ of work space in front of the boring head to handle extra-large boards:

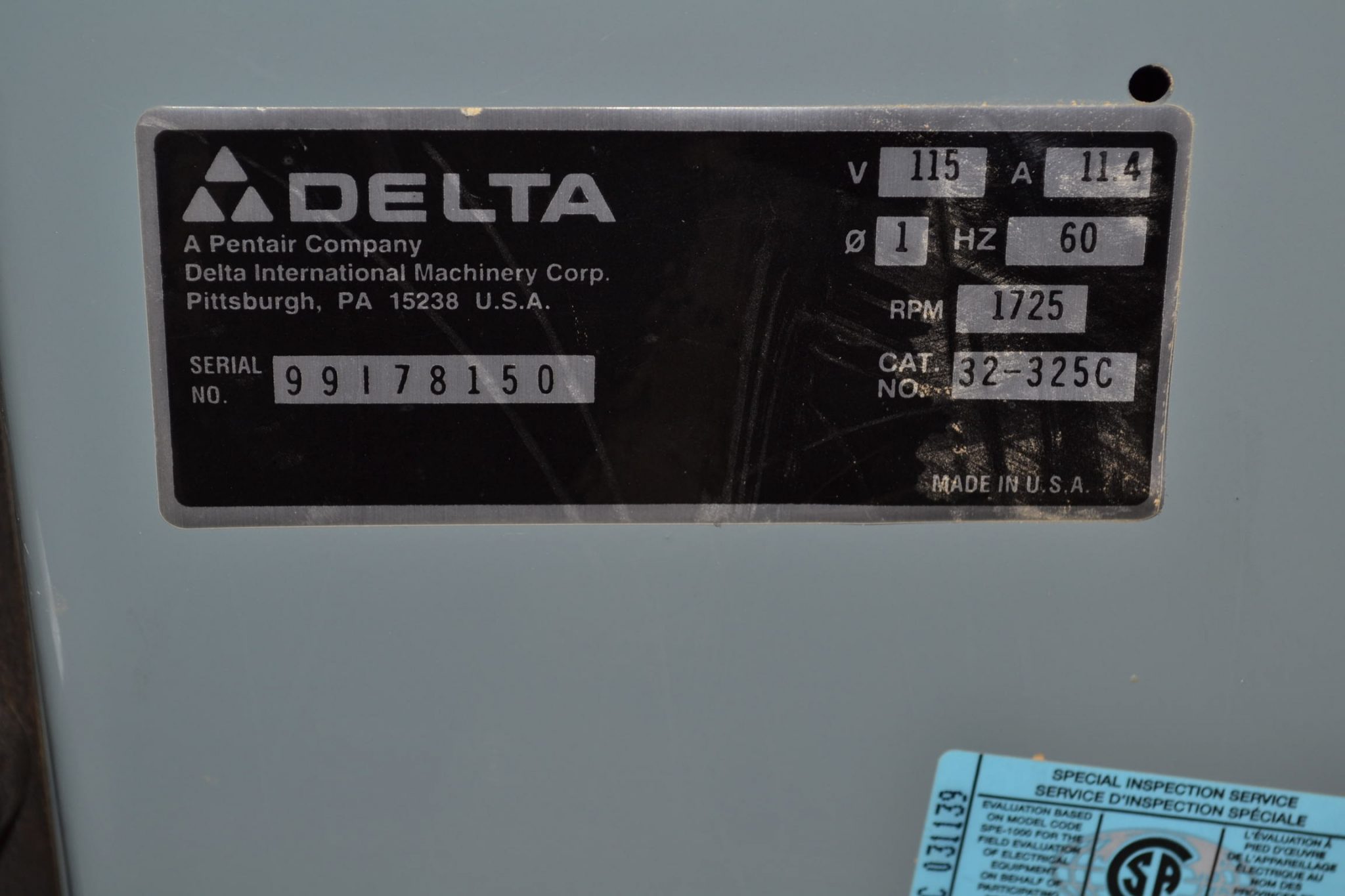

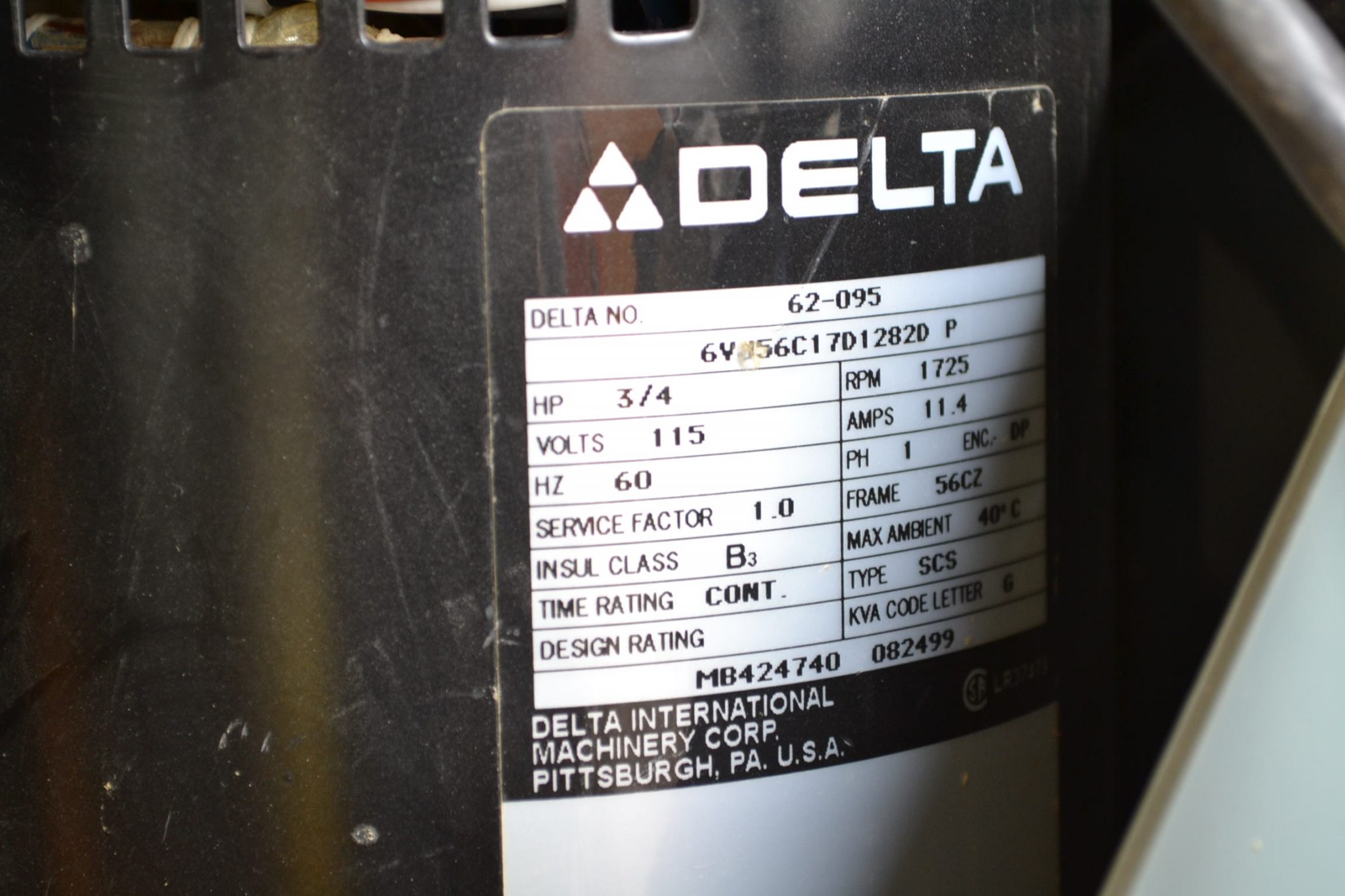

• 3/4HP, 120V, 1,725 RPM, 1PH motor.
• See-through spindle guard for safety – 10mm collets, 4″ throat capacity. Adjustable depth stop controls the 2″ downward travel.
• Telescoping handle extends from 16″ to 23″ for increased leverage – retracts when not in use.
• Fully adjustable 16″ x 29-3/4″ table and fence have English and metric scales for quick set-up and accurate boring.
• Indexing pins help maintain correct spindle alignment for resuming line boring operations in long workpieces.
• Work stops on either end of the fence allow you to line up work from the left or right for performing parallel boring patterns.

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
