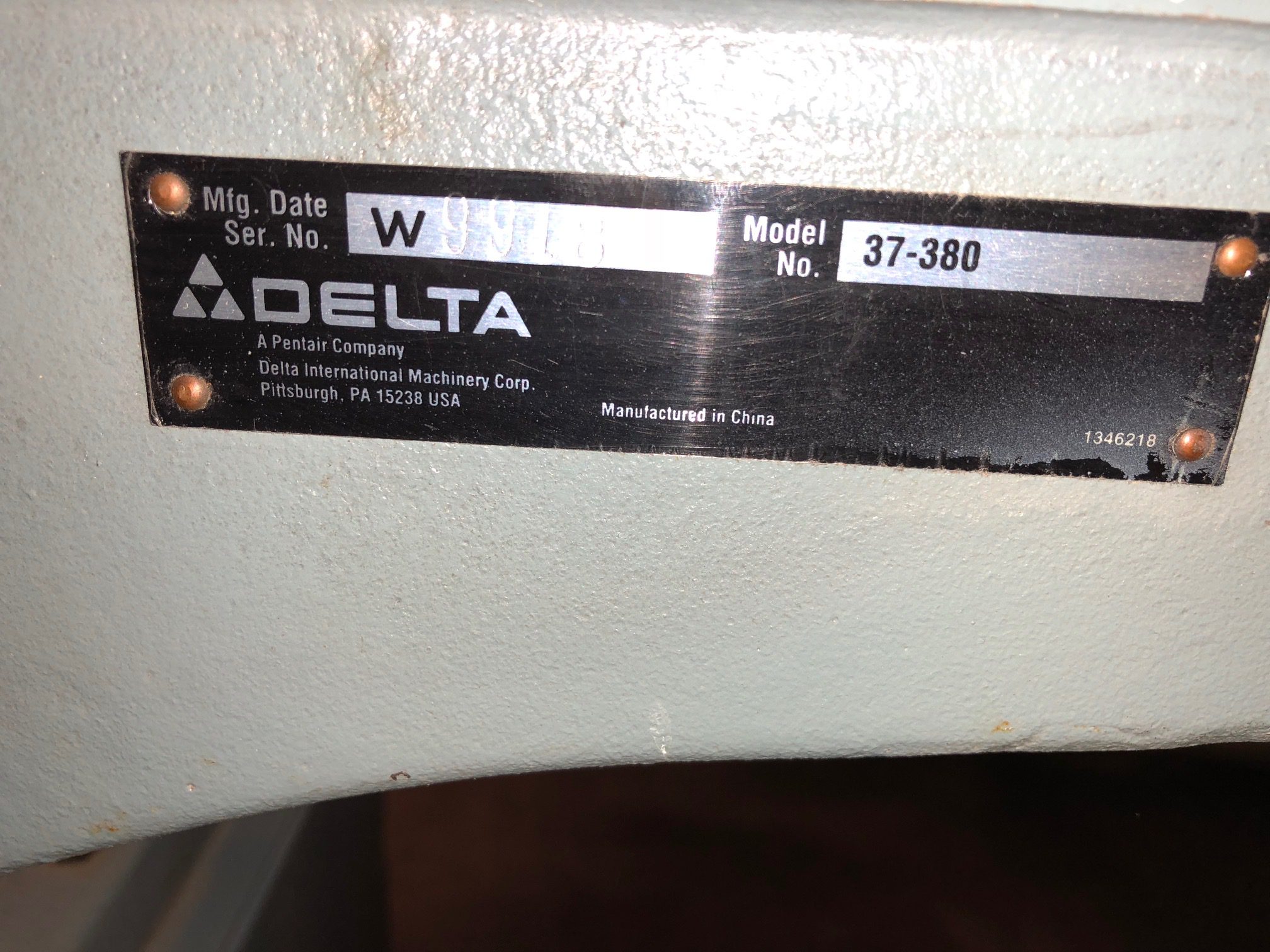

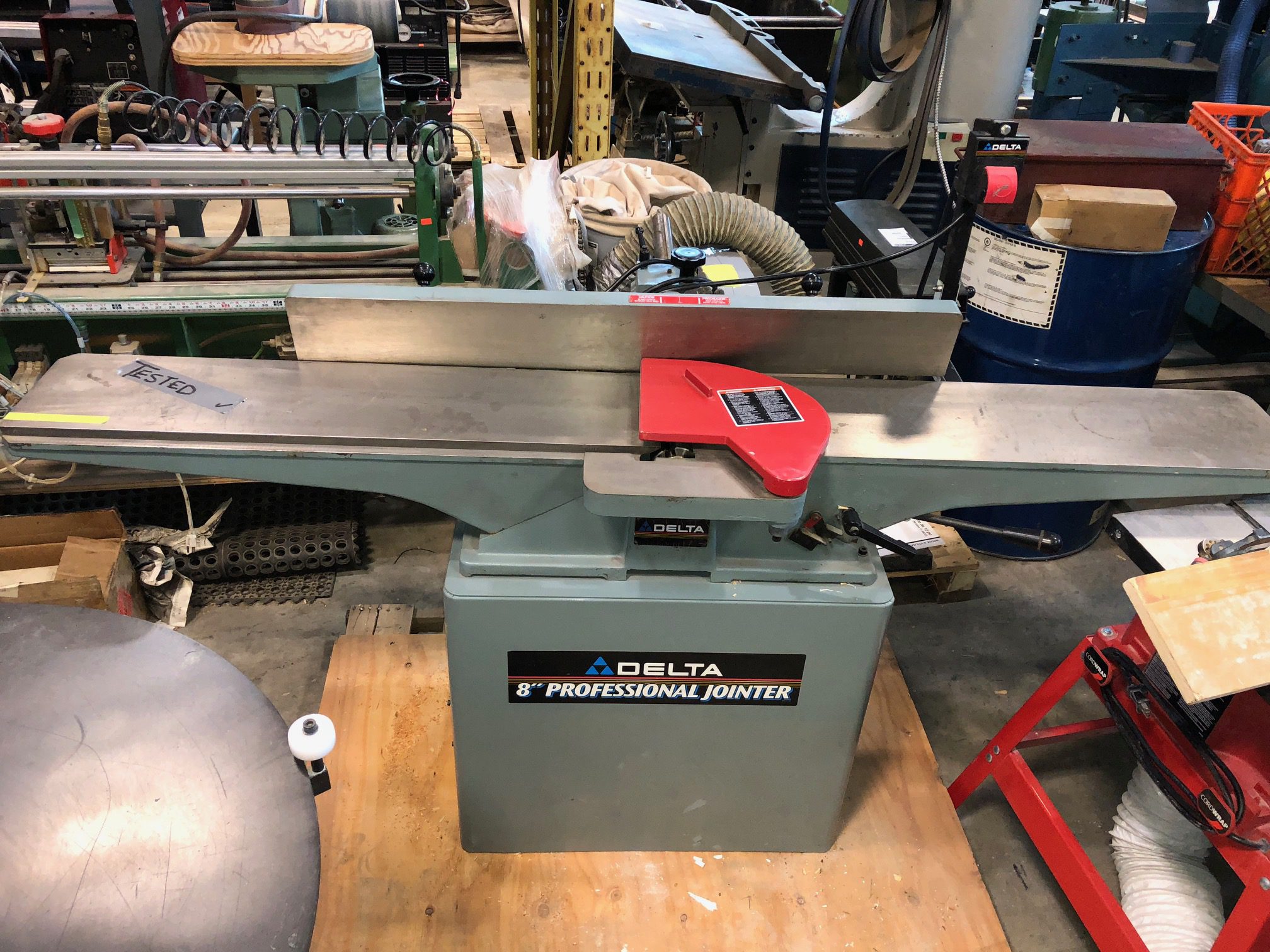

DELTA 37-380 Professional 8-Inch Jointer

Features and Specifications:

• 120/240-Volt 1-Phase
• 1-1/2-Horsepower
• 8-Inch Jointer
• Enclosed steel cabinet houses a powerful 1-1/2-horsepower motor and includes an integral dust connector with 4-inch diameter outlet for easy dust collection hookup.
• Rack and pinion fence adjustment for precise fence movement.
• Large, cast-iron infeed and outfeed tables support extra long stock.
• Safety cutterhead guard pivots out of the way of work during operations.
• Conveniently positioned, on/off-paddle switch is placed high above the table.
• Extra-large, center-mounted, cast-iron fence provides maximum work support throughout the cut and tilts 45 degrees in and out.
• Infeed table-positioning lever is easy to use for fast, accurate height adjustments.
• MOTOR: 1- 1/2 HP

CUTTING CAPACITY:

• Width: 8″(203 mm)
• Depth: 1/2″(13 mm max.)
• Cuts Per Minute: 16,800
• Rabbeting: 1/2″(13 mm)

CUTTER HEAD:

• Diameter: 2 1/2″(64 mm)
• Number of knives: 3
• Speed: 5600 rpm, 16,800 cpm

TABLE:

• Length: 72 3/4″(1848 mm)
• Length of infeed table: 35 1/4″(895 mm)
• Length of outfeed table: 35 5/8″(905 mm)
• Height from floor 32 1/2″(826 mm)
• FENCE:
• Size: 4 7/8″ X 35″(124 X 889 mm)
• Tilt: 45° in and out
• Positive stops: 90° and 45° in and out
• OVERALL DIMENSIONS:
• Depth: 34″(864 mm)
• Width: 72 3/4″(1848 mm)
• Height: 48″(1219 mm)
• WEIGHT: 414 lbs.(188 kg)

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available
