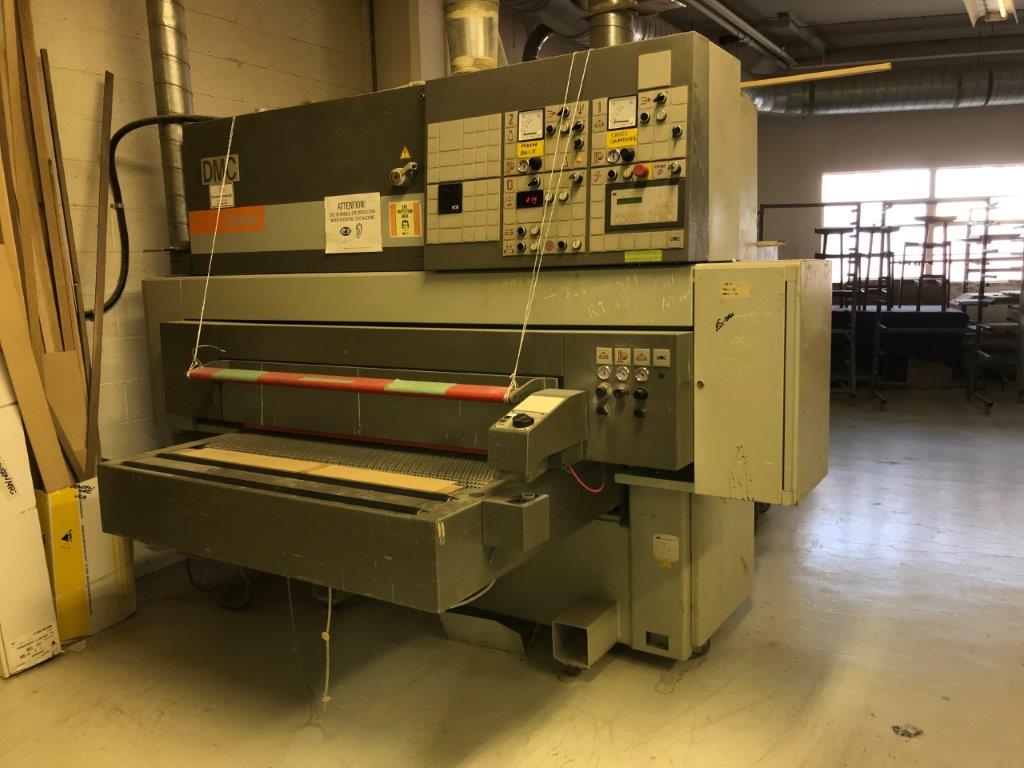

DMC UNISAND 130, Wide Belt Veneer Sander

Features and Specifications:

• Heavy duty wood sanding machine
• 1995 Model machine in very good condition
• 52″ Width capacity
• 1st Head : Cross belt
• 2nd Head : Contact drum
• 3rd Head : Platen
• 4th Head : Platen
• Rotary panel cleaner
• Variable infeed speeds
• Seperate control panel
• Sanding width : 1300 mm
• Sanding aggregates entirely:  3
• Cross-belts : 1
• Segmental pressure padel : electropneumatically
• Lacquer sanding
• Vacuum table
• Sanding belt length : 2620 mm
•  Machine control : DMC HYDRA 2
• Workpiece thickness min : 3 mm
• Passage height max : 120 mm
• Sanding pads : 2
• Segment width : 30 mm
• Main motor power : 15 kW
• Belt speed max : 18 m/s
• Adjustable sanding belt speed stepwise
• Feedrate max :  19 m/min
• Continuously variable feed
• Blow-off device
• Jump-in control
• Configuration of aggregates  : s-p-p-u
• CE-mark
• Total connection:  36.5  kW
• Weight kg 3430

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
