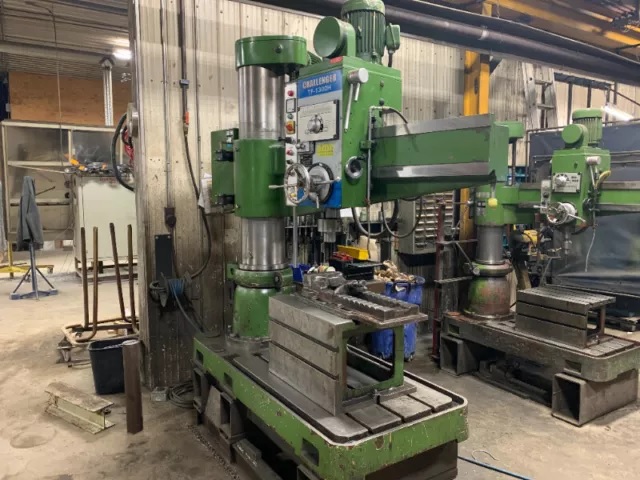

Drill Press Challenger TF 1300H

• DRILLING CAPACITY – STEEL 2.16″
• DRILLING CAPACITY – CAST IRON 2.6″
• TAPPING CAPACITY – STEEL 1.57″
• TAPPING CAPACITY – CAST IRON 1.96″
• BORING CAPACITY – STEEL 3.93″
• BORING CAPACITY – CAST IRON 6.88″
• SPINDLE STROKE 9-7/8″
• MORSE TAPER 5 MT
• SPINDLE SPEEDS (12) 44 – 1500
• SPINDLE FEEDS 0.002″, 0.0035″, 0.006″
• COLUMN DIAMETER 11-7/8″
• MAX. DISTANCE COLUMN SURFACE TO SPINDLE CENTER 50″
• MIN. DISTANCE COLUMN SURFACE TO SPINDLE CENTER 15.35″
• HORIZONTAL TRAVEL OF HEADSTOCK 37″
• MAX. DISTANCE BASE TO SPINDLE 48-1/2″
• MIN. DISTANCE BASE TO SPINDLE 11.4″
• MACHINE HEIGHT FROM FLOOR 25.85″

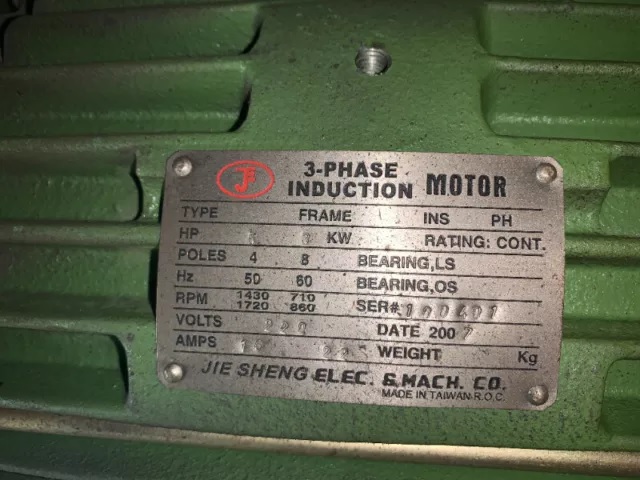

• SPINDLE DRIVE MOTOR 5 HP
• ARM ELEVATION MOTOR 2 HP
• COOLANT PUMP 1/8 HP
• APPROX. NET WEIGHT 2,850 KG
• APPROX. GROSS WEIGHT 3,300 KG
• DIMENSIONS (LxWxH) 90″ x 39″ x 88″
• OIL MOTOR 1 HP

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
