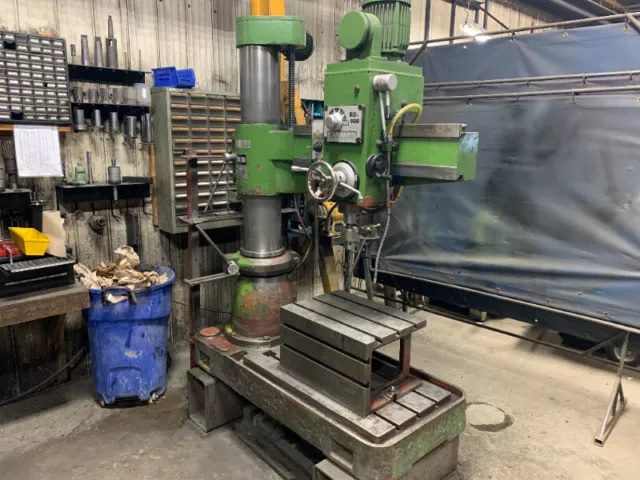

Drill Press RD900

Specifications

• Drilling Capacity: Steel φ38 / Cast iron φ50
• Tapping Capacity: Steel φ19 / Cast iron φ25
• Boring Capacity: Steel φ75 / Cast iron φ105
• Spindle stroke / Spindle taper: 200/MT4
• Spindle speeds 88 – 1500 RPM (6 speeds)
• Spindle fees 0.05, 0.09, 0.15
• Column diameter 210mm
• Max. distance, spindle centre to column 920mm
• Min. distance, spindle centre to column 290mm
• Horizontal travel of headstock 630mm
• Max. distance, from base to spindle 1110mm
• Min. distance, from base to spindle 282mm
• M/C over height of column 1850mm
• M/C height from floor (max.) 2175mm
• Dimension of base 1435mm (L) x 640mm (W) x 150mm (H)

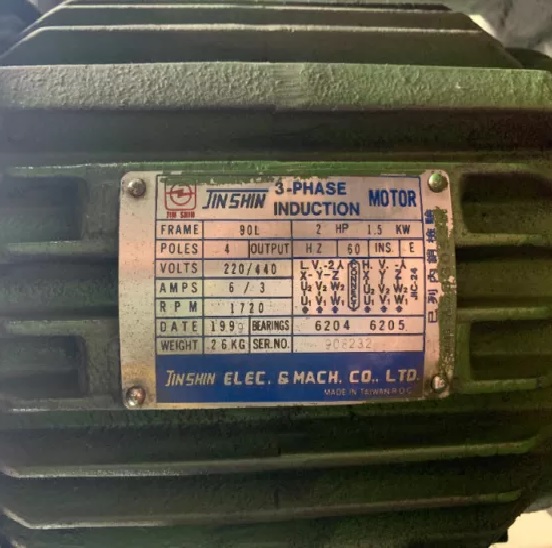

• Main drive motor 2 HP

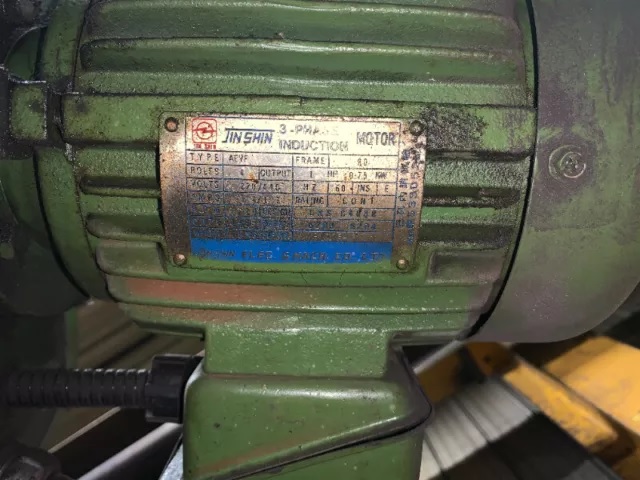

• Arm elevation motor 1 HP
• Coolant pump 1/8 HP
• Overall Dimensions: 1,575 mm (L) x 813 mm (W) x 2,057 mm (H)
• Weight approximately 1.3 ton
• $1000 of tooling not included and can be purchased as extra.

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
