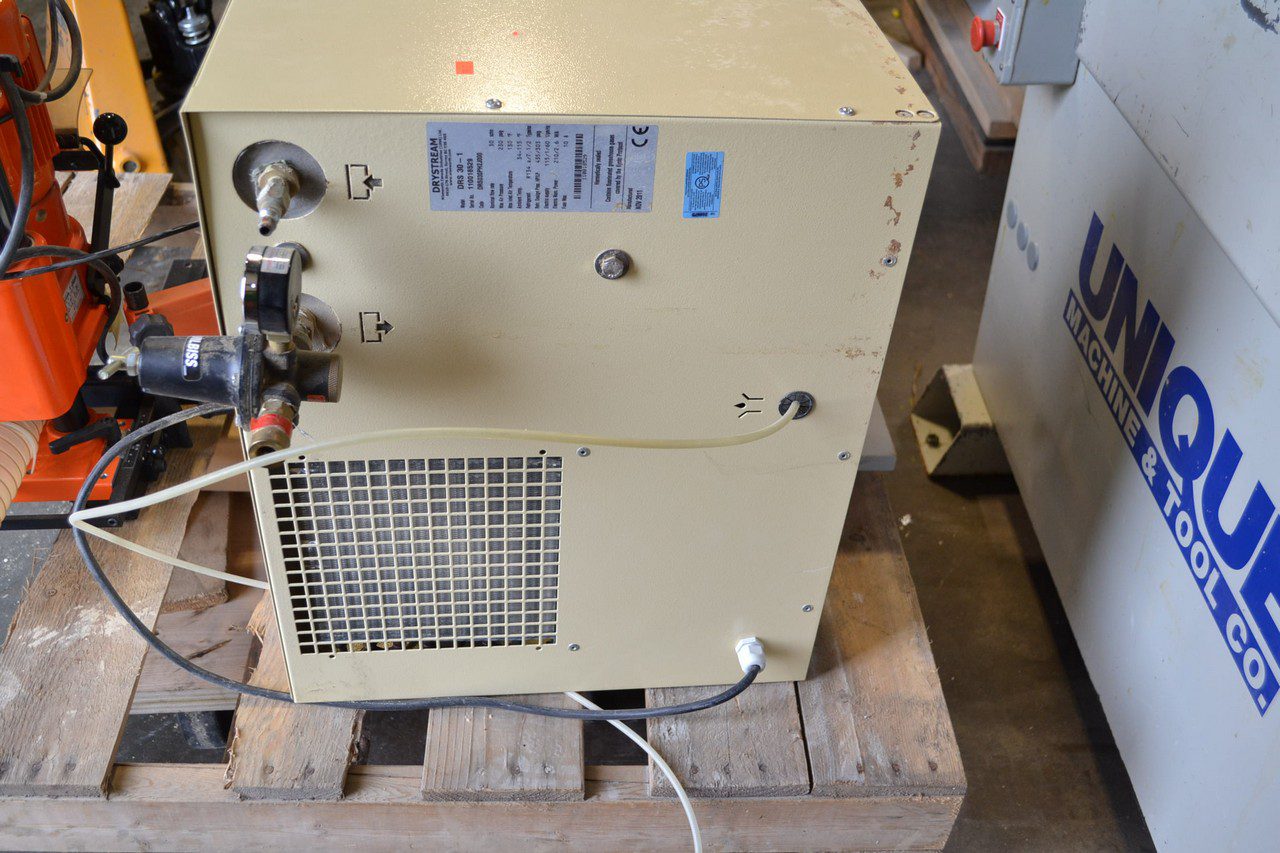

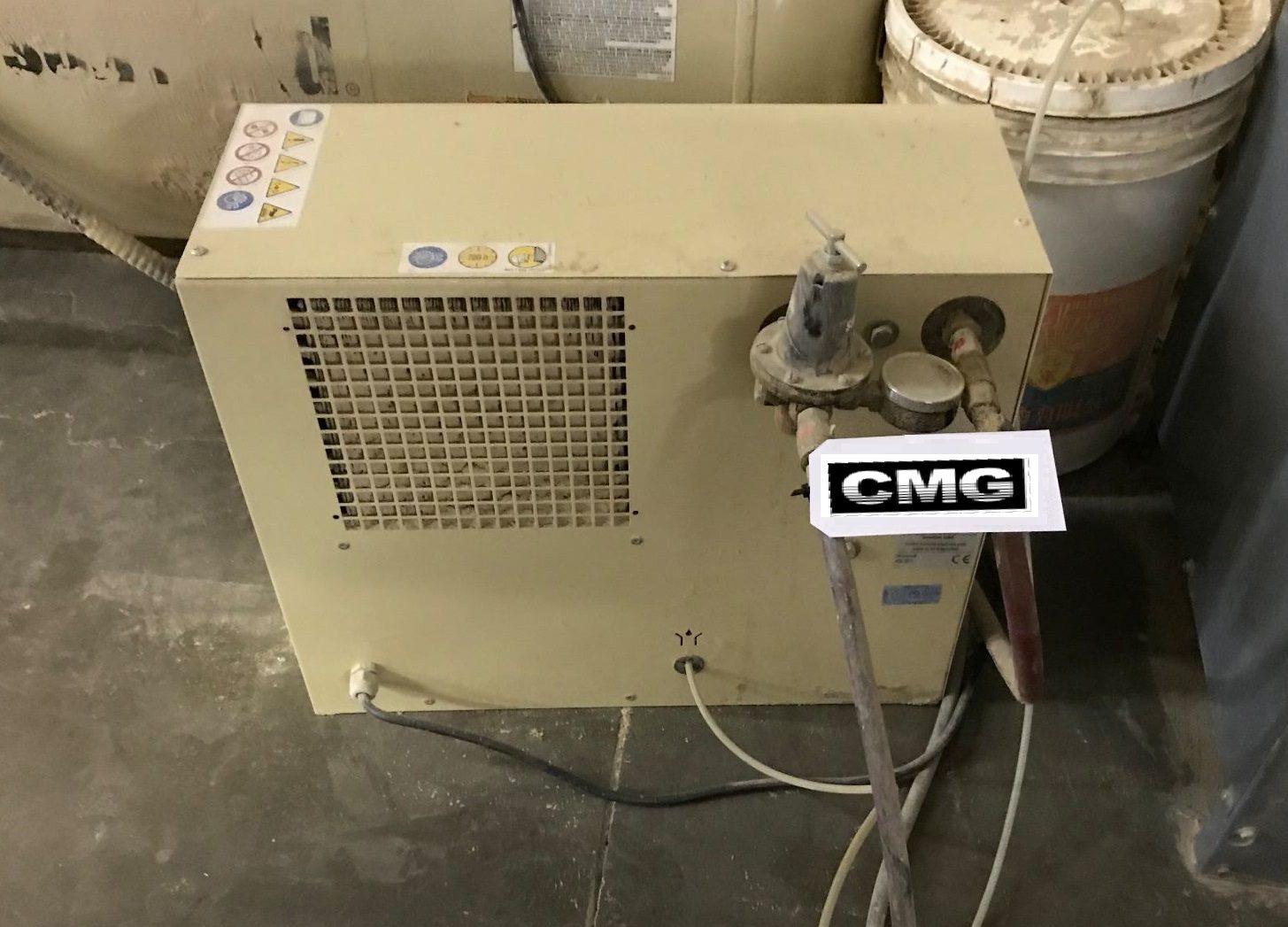

DryStream air dryer DRS 30

Features and Specifications:

• Refrigerated Dryers cool compressed air by mechanical refrigeration and removes water vapor/condensation by a moisture separator.
• Condensation is automatically drained reducing maintenance.
• Dew point Indicator checks the air quality level at a glance.
• Quick fit electrical connection makes installation simple and the compact lightweight design easily mounts on the floor or wall. All DryStar Dryers use environmentally friendly R134.a/7.1/2 Type/Oz refrigerant.
• Cools Air to 1-4°C
• Removes Water Vapour
• Quick Fit Electrical Connection
• Automatic Drain Valve
• Easy to Install
• Environmentally Friendly
• Low power consumption
• Max Inlet Temperature: 130°F
• Ambient Temp. 34-115 F
• Refrigerant R134.a/7.1/2 Type/Oz
• Power Type: 115/1/60
• Electric Nom. Power 210W/2.6A
• Fuse Max 10A
• Refr.Design Pres. HP/LP 435/303 PSIG
• Nominal Air Flow CFM: 30 CFM
• Max Pressure PSIG: 230
• General purpose pre-filter recommended to remove contaminants

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
