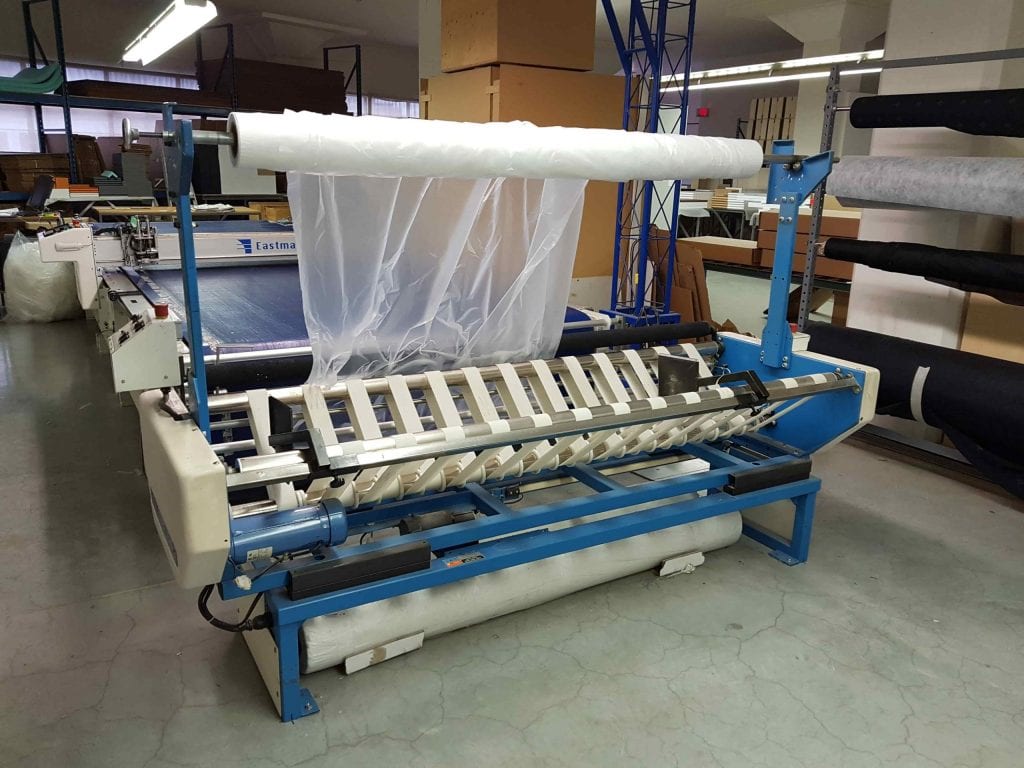

Eastman Power Cradle System

Features and Specifications:

The Power Cradle System provides an efficient way of feeding a variety of material to the cutting system from a cradle, in a relaxed or tension less state with precise edge control. This system is ideal for tightly wound materials like canvas, kevlar, cordura and other industrial textiles.

• Variable speed rate controlled by a dancer bar
• Tilt-back option for loading heavy material rolls
• Dual-cradle configuration available
• Optional upright assembly to enhance feeding flexibility
• Available in mirror image or standard configuration
• Automatic edge control included
• Reverse Roll Attachment
• Uprights / Expandabar
• Uprights / Frozen Bar
• Out of cloth sensor
• Out of Cloth switch for use with Blue Jay system
• Loop Sensor for tension-free spreading
• Extended dancer arm
• Standard Weight Capacity 300 lbs. (136 kg)
• Maximum Roll Diameter 24 in. (61 cm) Custom-built systems available for up to 48 in. (1.2m) diameter rolls.
• Maximum weight capacity reduced to 250 lbs. (113kg) with 48″ diameter rolls.
• Power Requirements 110V at 15 amps, 1 ph

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Specification Manual Available.
