Specifications:

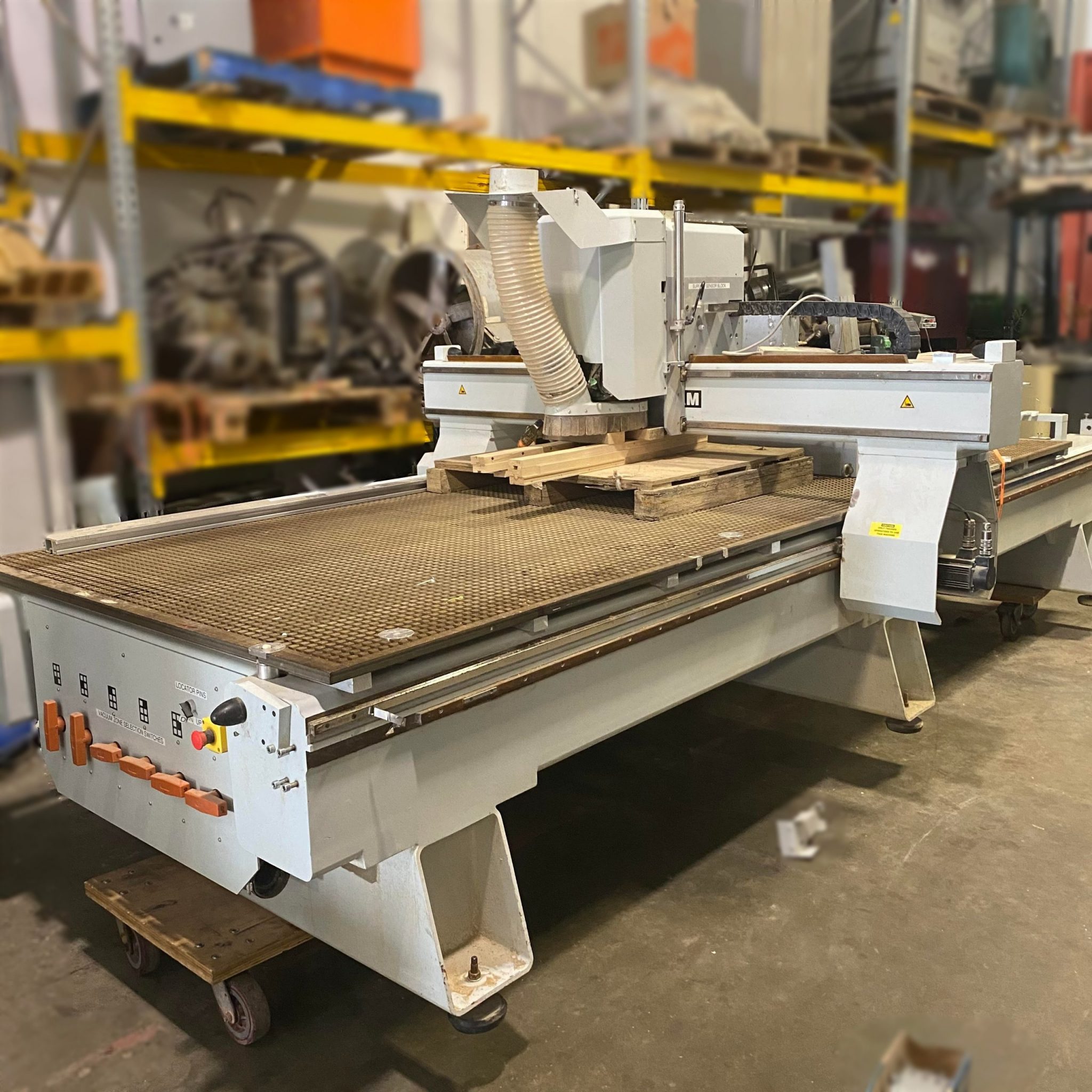

- Space-saving fixed table – moving gantry design for small machine footprint
- Single structure welded, stress relieved and machined all-steel baseframe, gantry and gantry feet
- Steel structures are reinforced with heavy ribs to resist flex and dampen vibrations
- Each machine design is efficiently optimized and validated by using Finite Element Analysis (FEA) to ensure quality, performance, and safety
- Open machine bed for easy loading and unloading by forklift or overhead crane
- High preload profiled linear bearings with cover strips on all axis

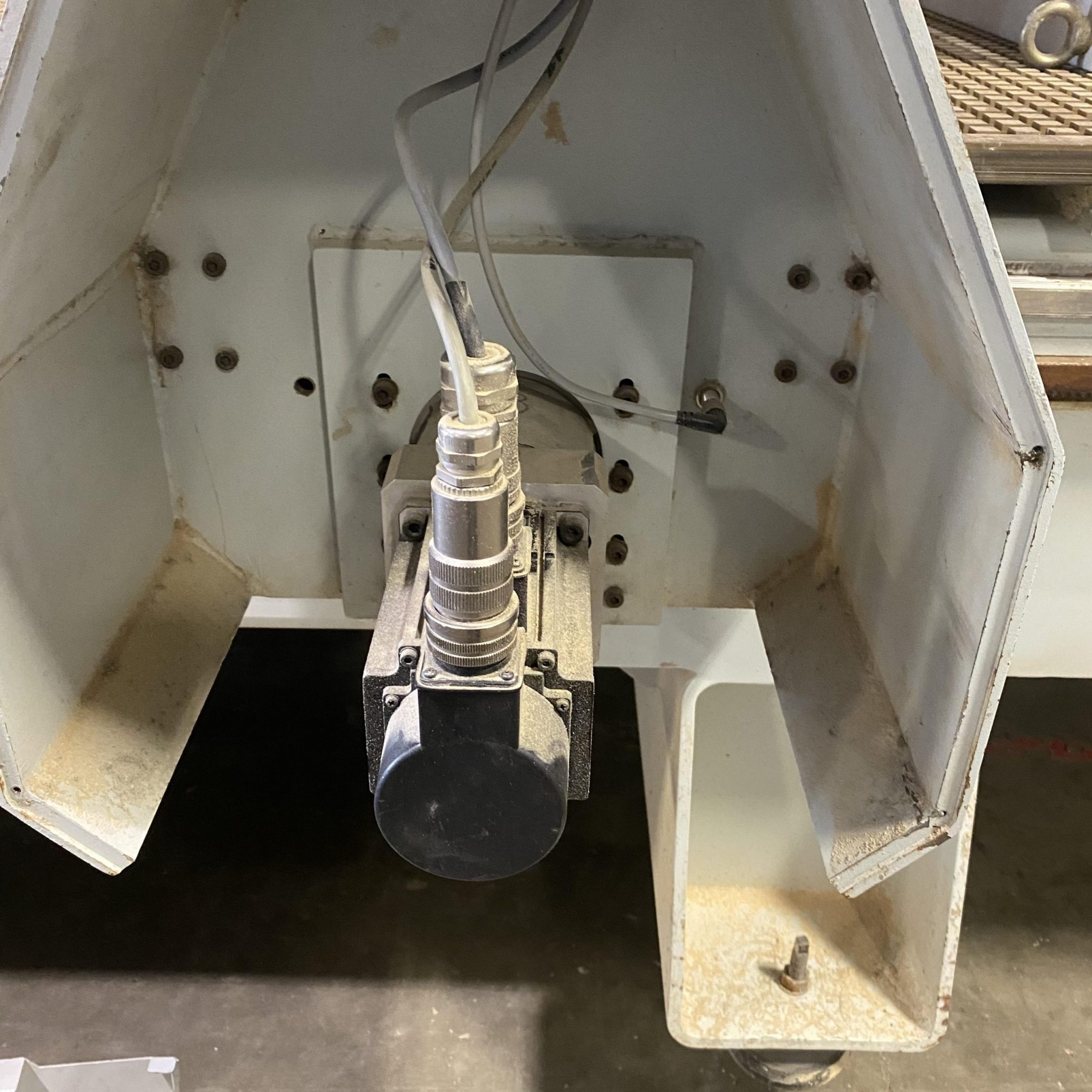

- Brushless digital A/C servo drives and motors on all axis
- Dual side drive and synchronised X-axis; no twist under load like applicable to a single center-mounted ballscrew or cantilevered design
- Rack and pinion drive system on X and Y axis
- High precision ballscrew on Z axis (anchored at both ends)
- Low-backlash planetary gear boxes
- Fully closed cable carriers prevent the cables from damage by chips and fine dust
- High quality, shielded cables for energy chains are a guarantee of reliability
- Z-axis clearance 200 mm, optional 280 mm
- Z-axis travel 280 mm
- Maximum axis speed 60 m/min (1,500 mm/s) depending on controller, motors and drives

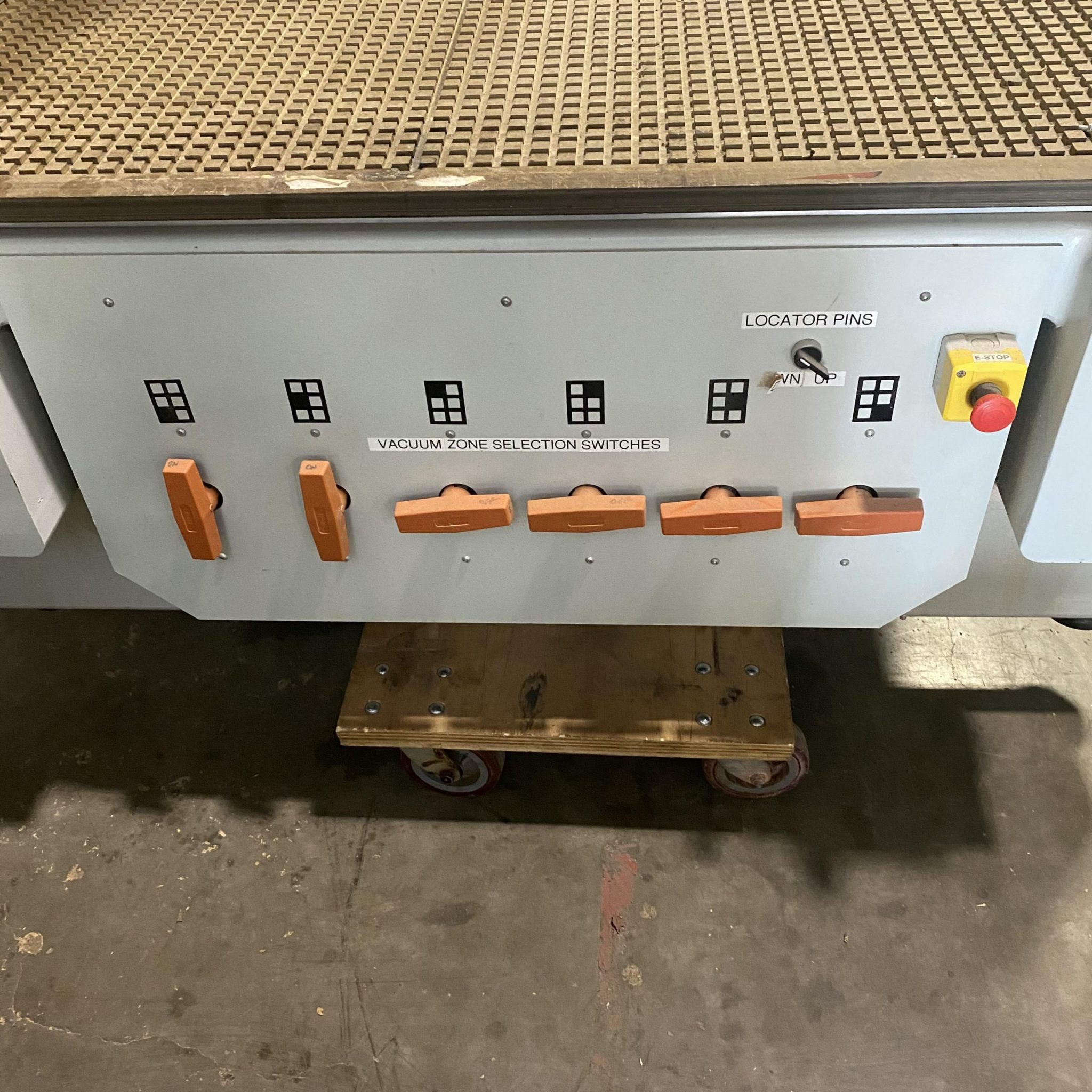

- Vacuum Pumps Included
SHIPPING: FULL TRUCK LOAD
- Serial No: 08036024
- MFG Year: 2008
- 3 x 230 V
- 50/60 Hz
- 3 Phase
- Short nose 8.9 HP
- S1 Continuous 10.7 HP
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information
