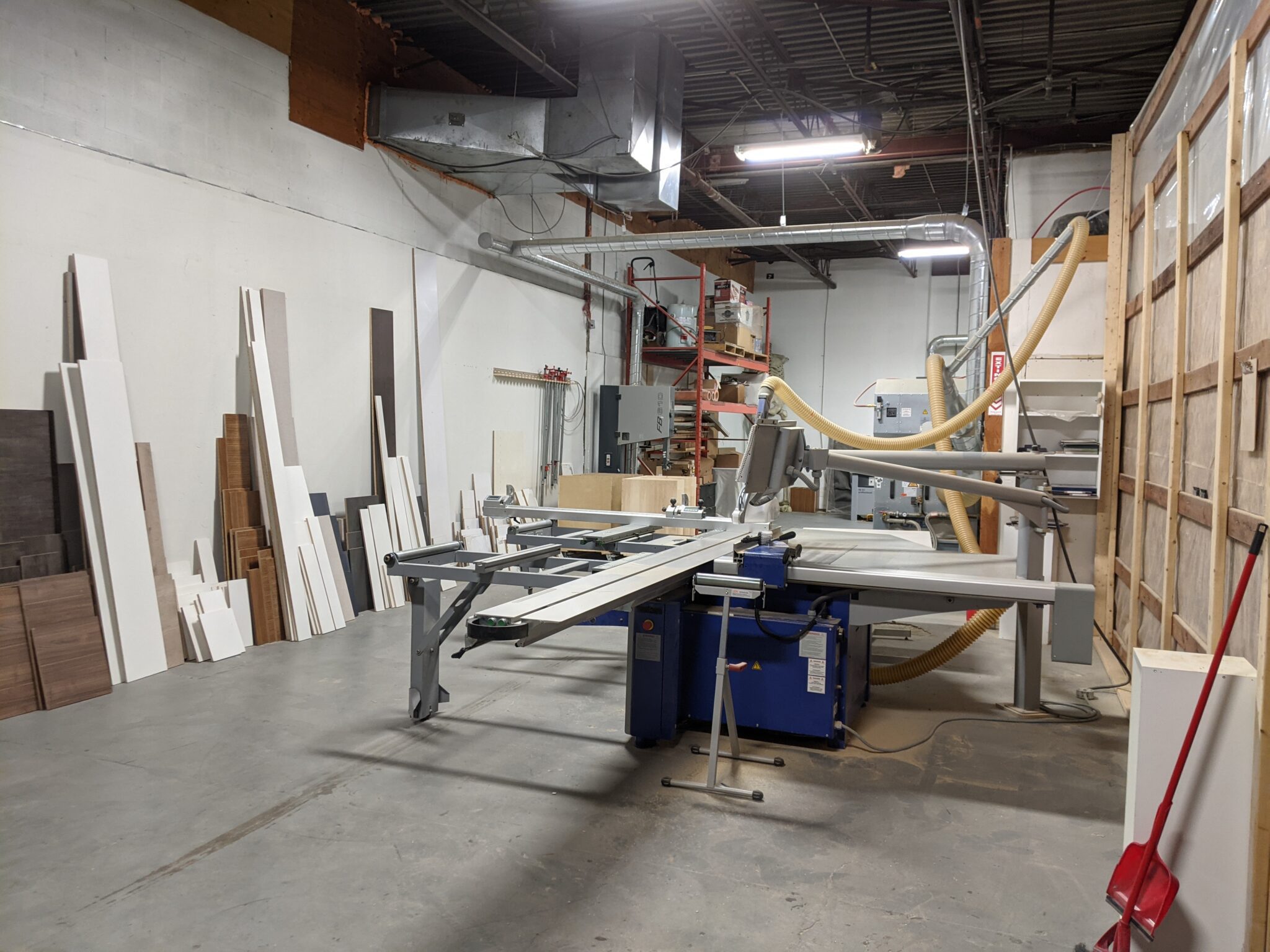

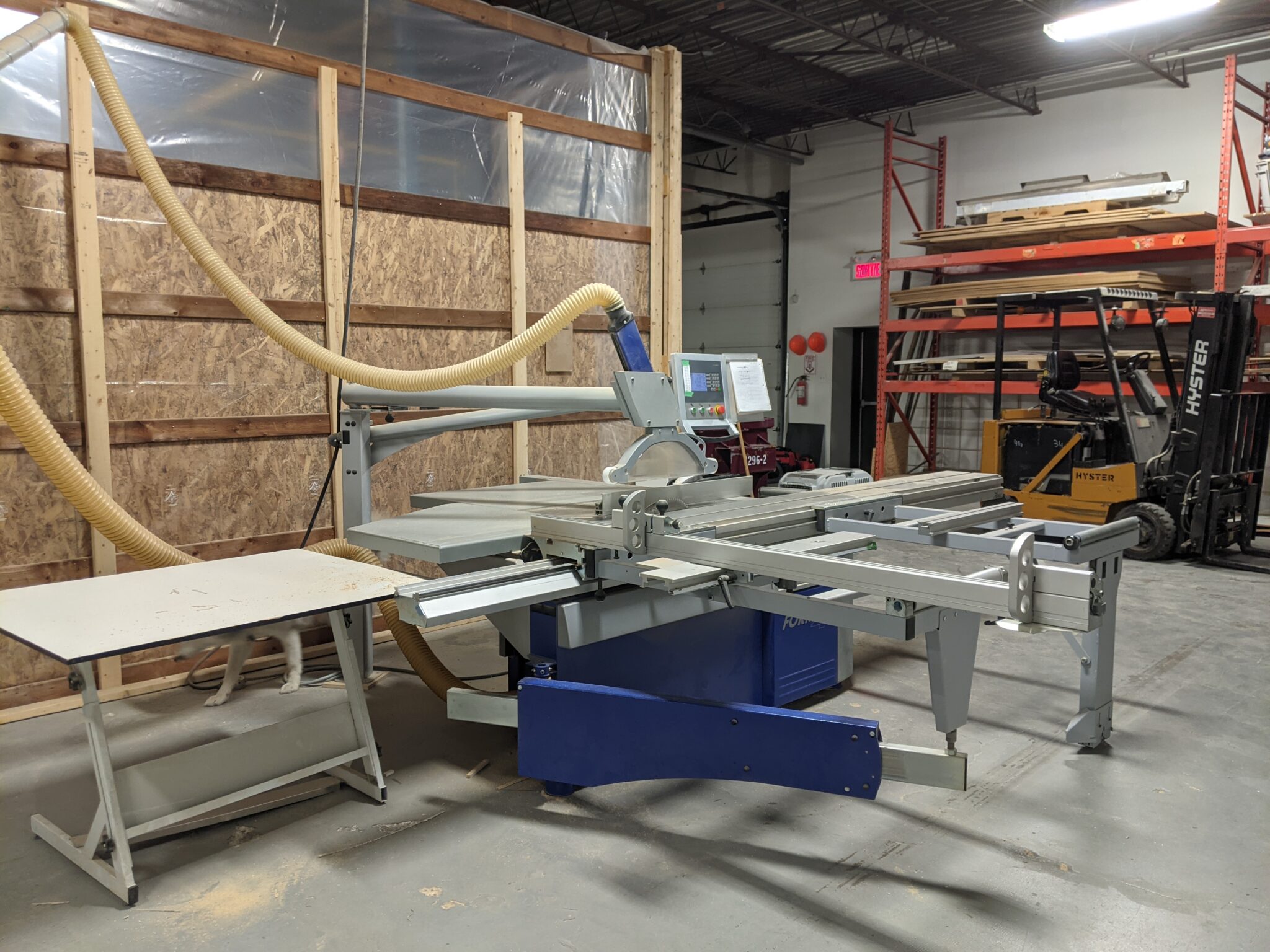

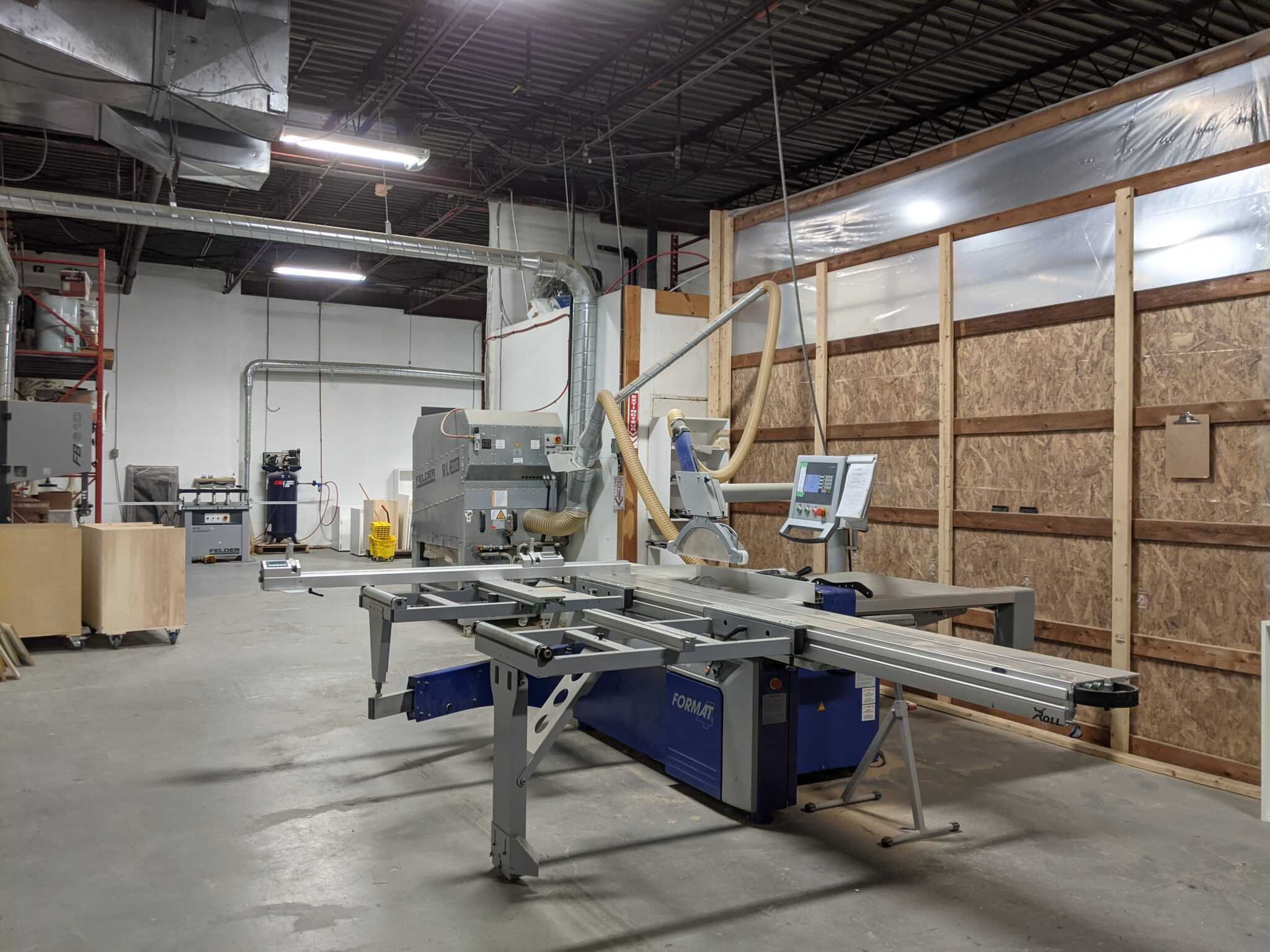

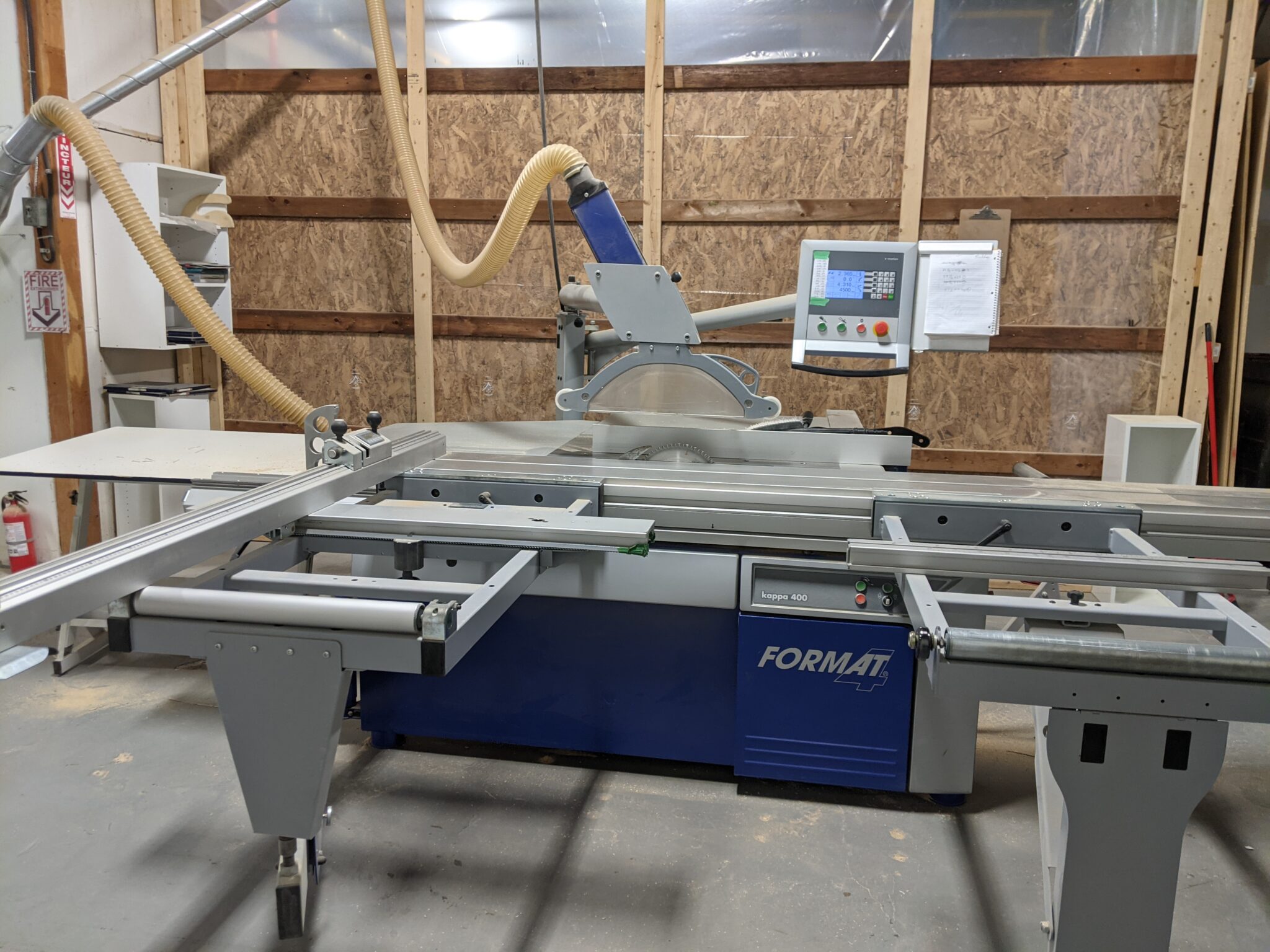

Format Kappa 400-x motion CNC Sliding Saw

Specifications

• Manufacture Year: 2016
• Electrical angular and height adjustment with digital display
• Format sliding table “x-Roll”, Cutting length 2500 mm, Edging shoe
• Optional cutting length: 2800 / 3200 / 3700 mm
• Support table 1500 mm
• Planer stop 3200 mm, 90°-45° tiltable, 2 fence jaws

Options

• Tool compartment for 5 saw blades mit max. diameter 400 mm
• Pre-scoring unit “Classic” or “Automatic”
• “easy-Lock” – tool-less quick-changing system
• “Quick-Lock” – Quick-changing system
• Level grid index for sliding table

Technical data (2017)

• Saw blade diameter: 250 – 400 mm
• Cutting height: 133 mm
• Circular saw blade pivoting: 0° – 45°
• Cutting width: 800 mm (optionally 1250 mm)
• Motor performance: 5,5 kW (optionally 7,35 kW)
• Rotation speed: 3500 / 4500 / 5500 rpm

Models

• 550
• Control: “Power-Drive
• x-Motion
• CNC control with 5,7″ Touch-coloured screen in the overhead control panel
• Optional continuous rotation speed: 2000 – 6000 rpm

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
