    SKU: 592-3 CAD $10,500.00

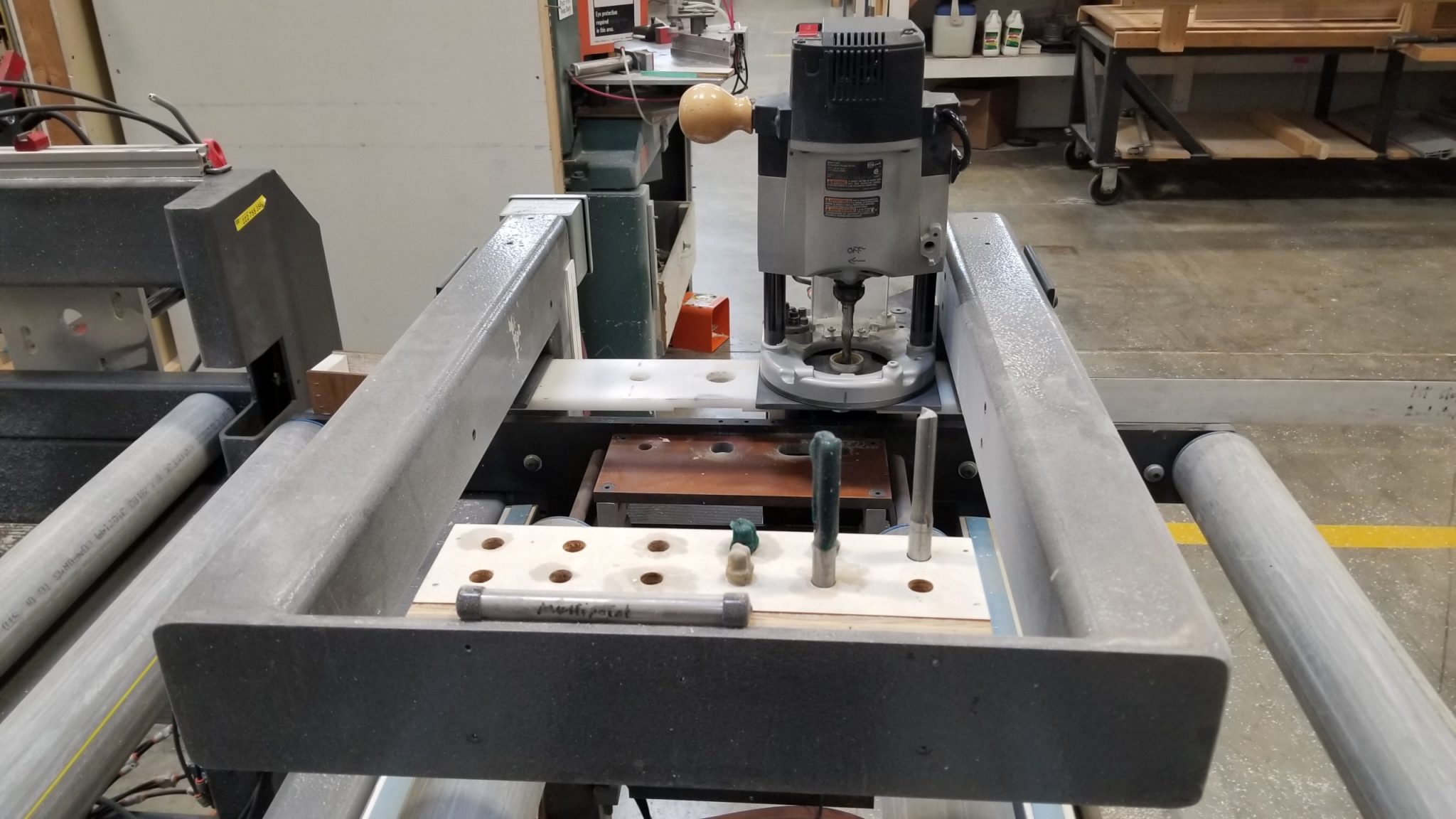

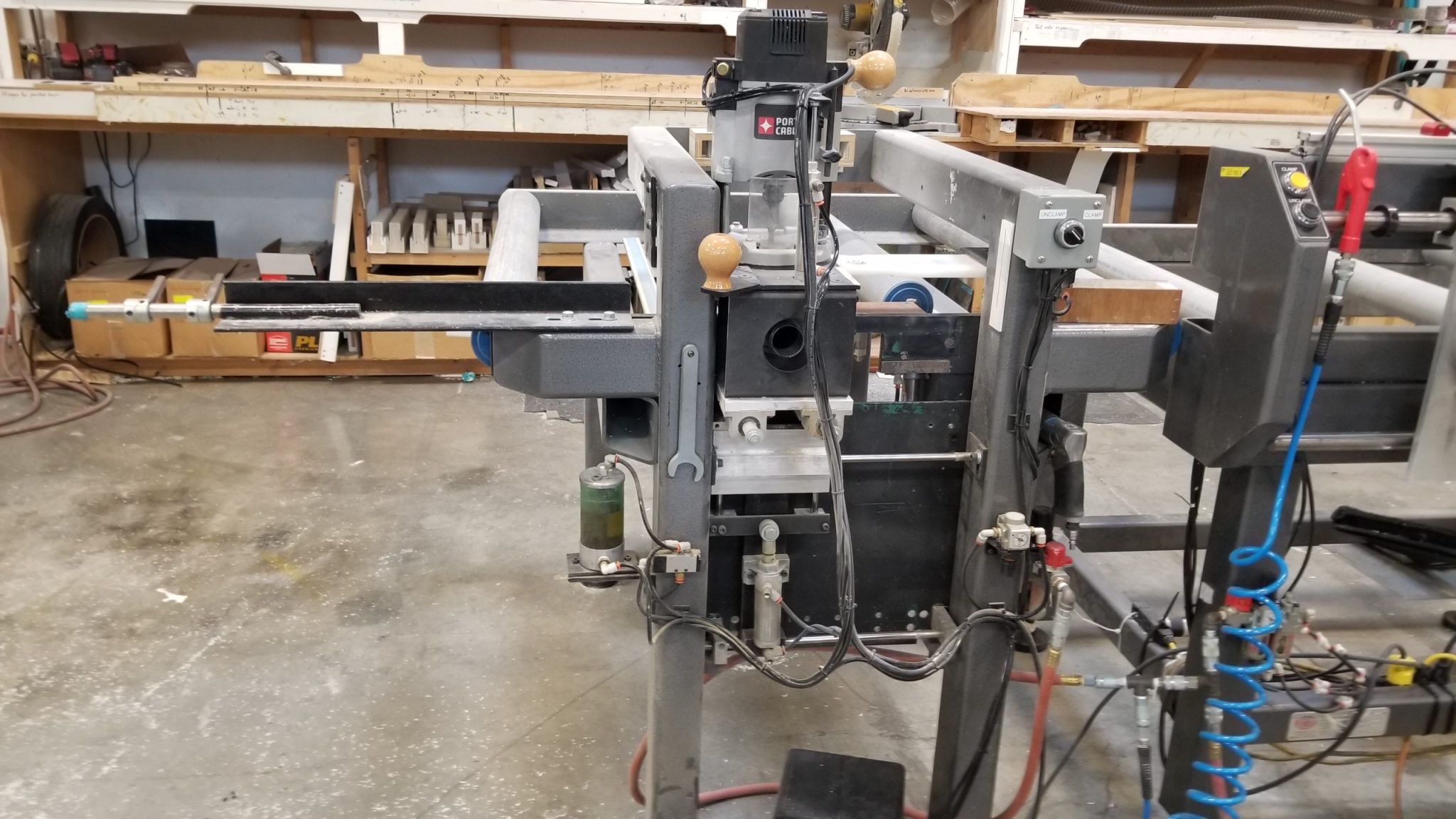

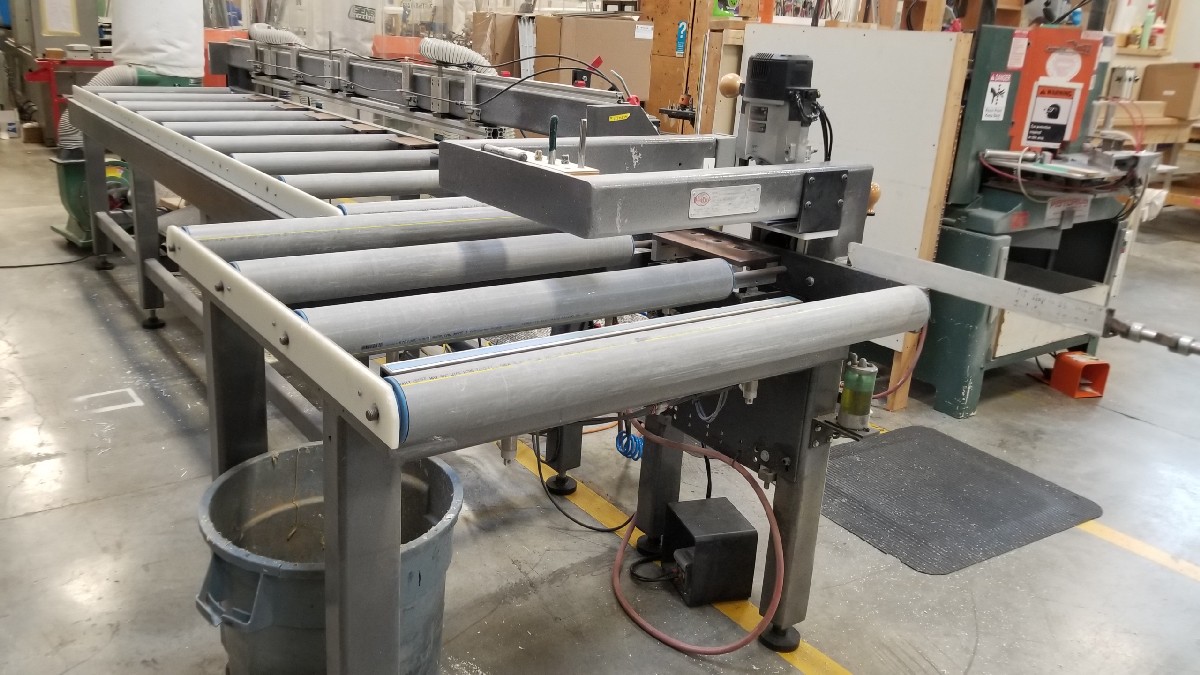

    Fullhouse DP EDGE Deep Pocket Mortise Machine

    Used Fullhouse DP EDGE Deep Pocket Mortise Machine
    Used Fullhouse DP EDGE Deep Pocket Mortise Machine Fullhouse DP EDGE Deep Pocket Mortise Machine Fullhouse DP EDGE Deep Pocket Mortise Machine Fullhouse DP EDGE Deep Pocket Mortise Machine

    Features

    • Machines long deep pocket locks and routes for the necessary faceplate.
    • The DP Edge will easily machine for any custom lock.
    • Gives door shops ability to machine specialty locks which will reduce lead times on custom orders.
    • Reduced labor and increases quality compared to using hand jigs.
    • Machines doors for 3 & 5 point lock systems from W&F, Winkhaus, Hoppe and more.
    • Commercial locks can be machined in 1 minute and multipoint locks in 3 minutes.
    • Will machine for any length lock and up to 4 3/4″ deep.
    • Quick change stops are included for different lock heights.
    • Locks can be placed anywhere along the edge of the door.
    • Machines complete Euro Groove on the edge of the door.
    • Heavy duty rails and full length clamp ensures the pocket is always centered in the door.
    • Dust Collection hookups and air blowoffs are included on each router carriage.
    • Doors are rolled in from either end on a set of rollers.
    • Optional hinge carriage can be added for machining any custom hinge size and location.
    • Optional CNC (3 Axis) control system with hi frequency router automatically processes the edges, top & bottom of doors for any custom hardware.  Includes custom programming to match all customer requirements. Available with an automatic tool changer, pre-drills and pneumatic corner chisels.  Great for commercial door companies.

    Capabilities

    Door Height: Up to 10’0″
    Door Width: Up to 4’0″
    Door Thickness: Up to 2 1/4″
    Lock Size: Any Length, Up to 4 3/4″ deep

    Specifications

    Machine Size: 12’L x 4’6″W x 5’H
    Electrical Requirements: 120v 1phase 20AMP
    Air Requirements: 1.5 CFM @ 90-100 PSI
    Shipping Weight: 1500 lbs.
    Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
