Features and Specifications:
- 2004 Model

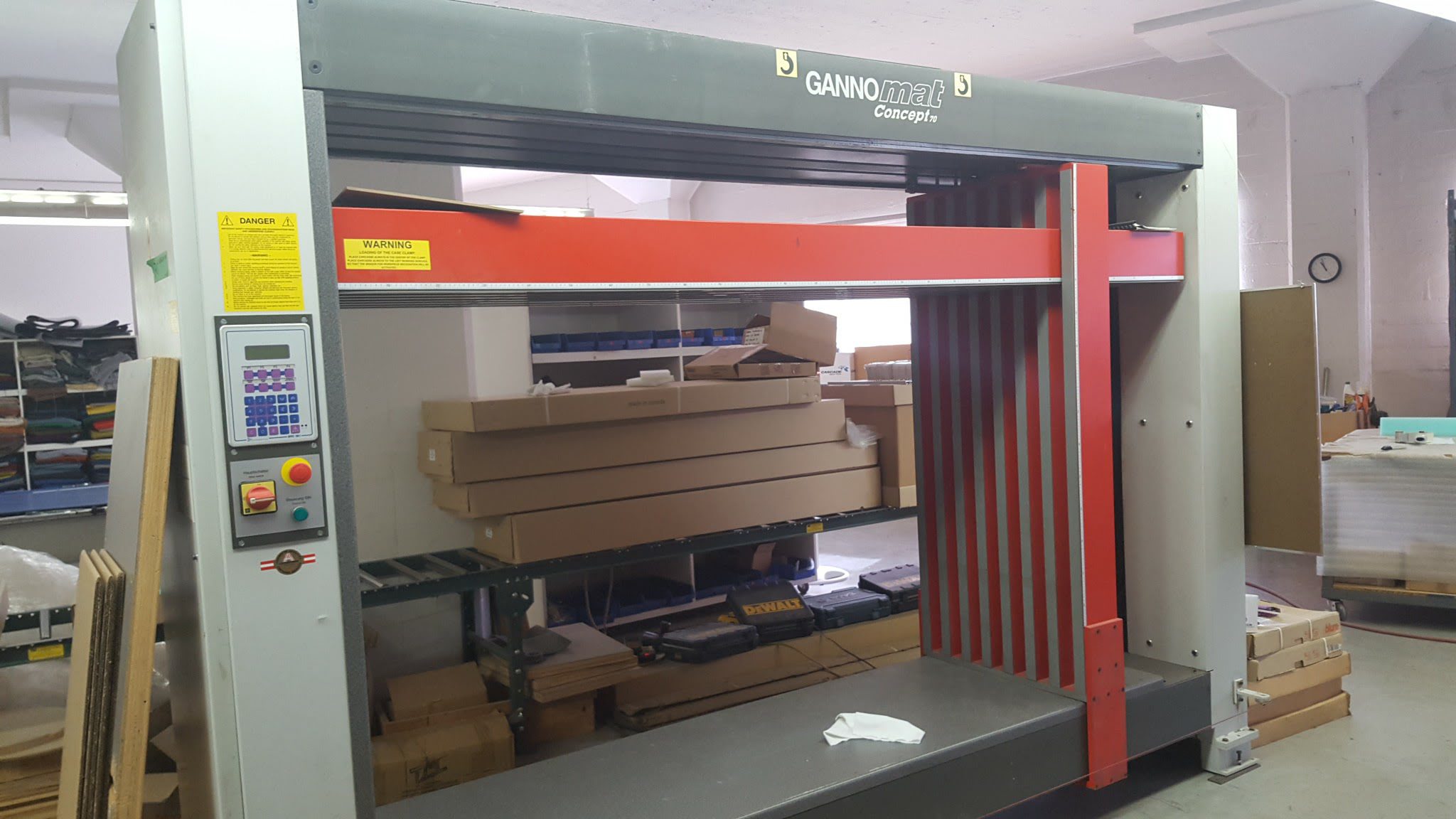

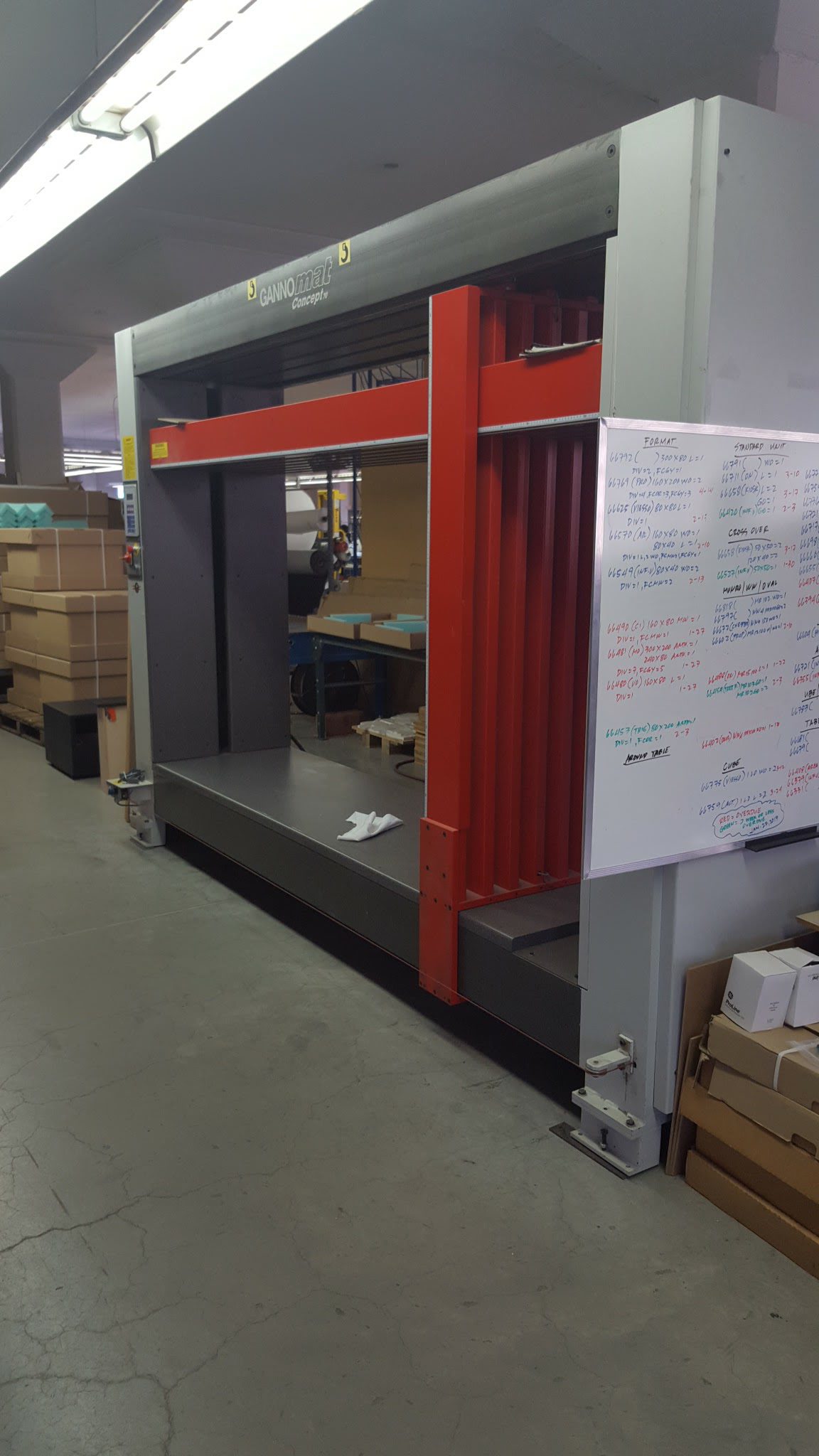

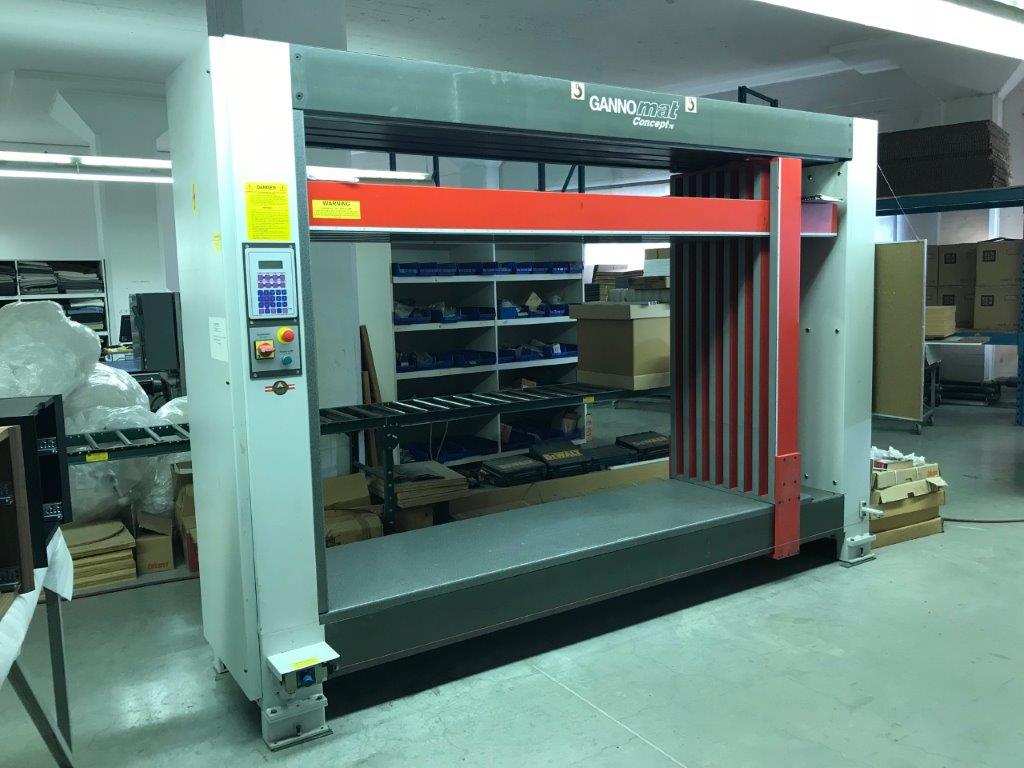

- The Concept Primus 70 case clamp is designed for architectural case goods and other doweled work pieces.
- This clamp has a maximum pressure of 3500kg and will clamp multiple work pieces with multiple partitions and fixed shelves. This Primus has clamp depth of 700mm.
- Sturdy stress-free welded and assembled steel frame guarantees square cabinet assembly.
- With Interlocking vertical & horizontal pressure beams
- Top pressure beam with 7 machined steel bars (laminae).
- Side pressure beam with 8 machined steel bars (laminae).
- Counter-pressure (bottom/side) surfaces, 38mm thick solid laminated working surface.
- Motorized adjustment of both pressure beams by precision trapezoidal-threaded spindles (for optimal lead and concentricity accuracy) and heavy-duty machine running nut with integral grease reservoir.
- Pressing of work pieces is by two separate helical geared motors (2 x 2.2kW) and electromagnetic disc brakes.
- Maximum pressing force is 3,500 dN (kg) per pressure beam.
- The pressing force of the pressure beams is digitally adjustable and regulated by a frequency changer, resulting in absolutely wear-free operation.
- Pressing velocity 25mm/sec, adjustable to 50mm/sec, controlled by automatic work piece recognition with sensors in the laminae pressure beams.
- back-pressure plates (floor and sidewall),
- 40 mm thick, covered, continuous base plates
- both pressure beams with electromotive adjustment via precision trapezoid threaded spindle
- digital press capacity adjustment

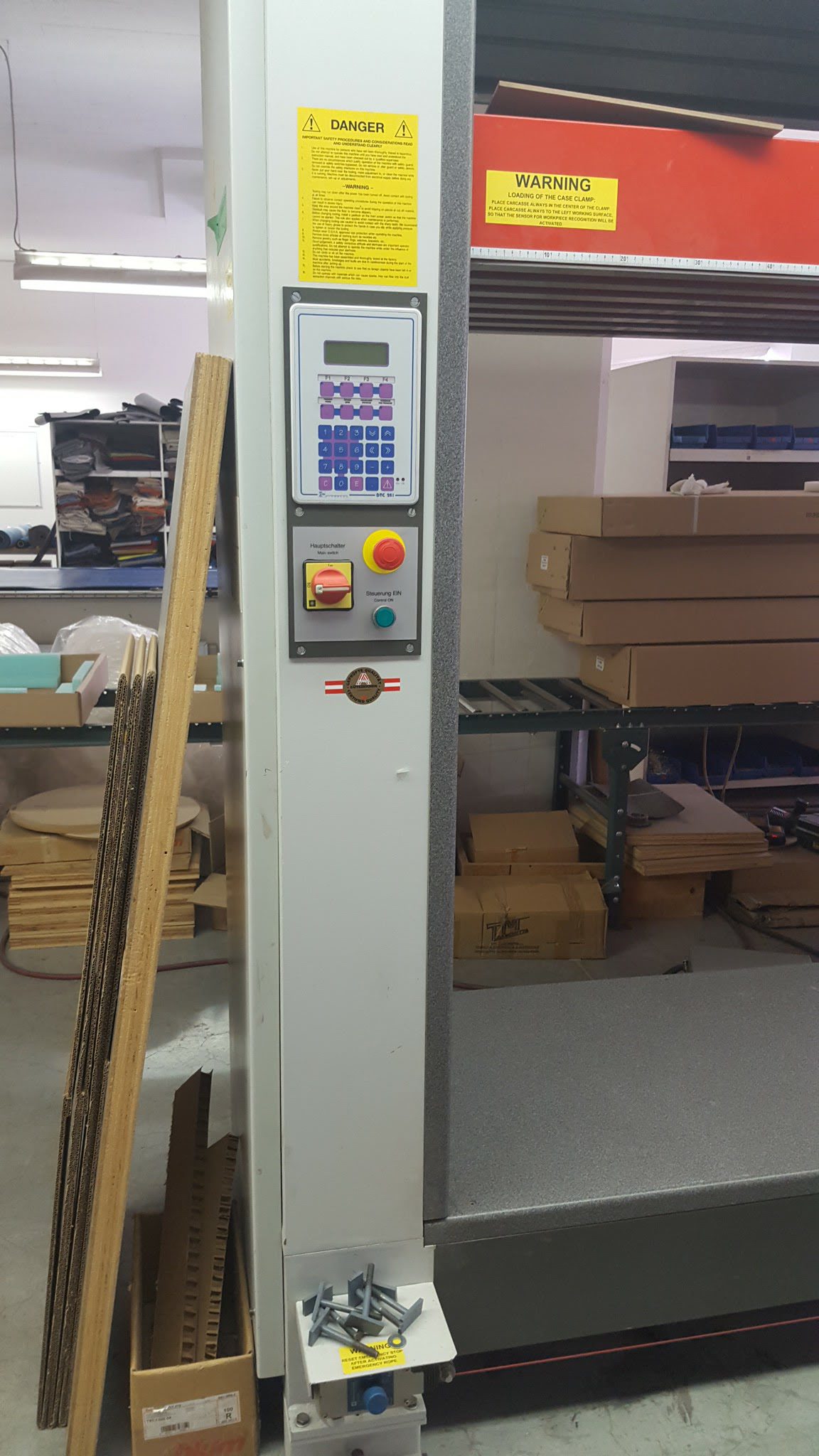

- simple handling via electronic control with LCD-display and foil keypad, with electronic pressure monitoring
- 13 motion-sequences selectable via control
- working height/feeding height 300 mm
- corpus dimensions: length: min. 150 mm, max. 2.550 mm / height: min. 150 mm, max. 1.400 mm / depth: 700 mm
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
