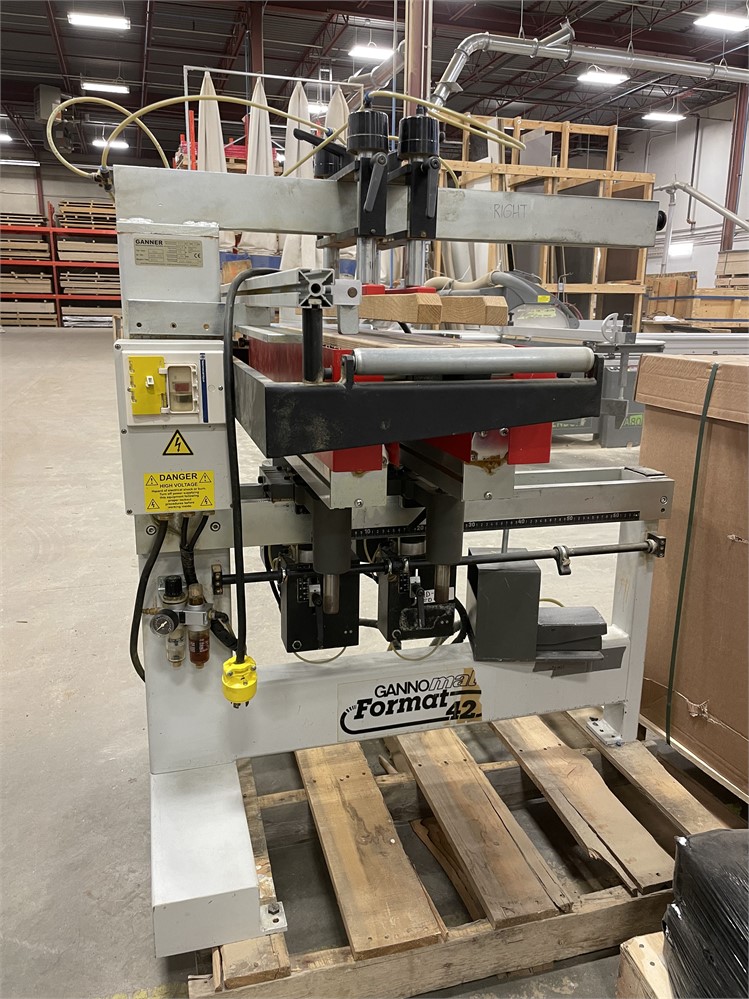

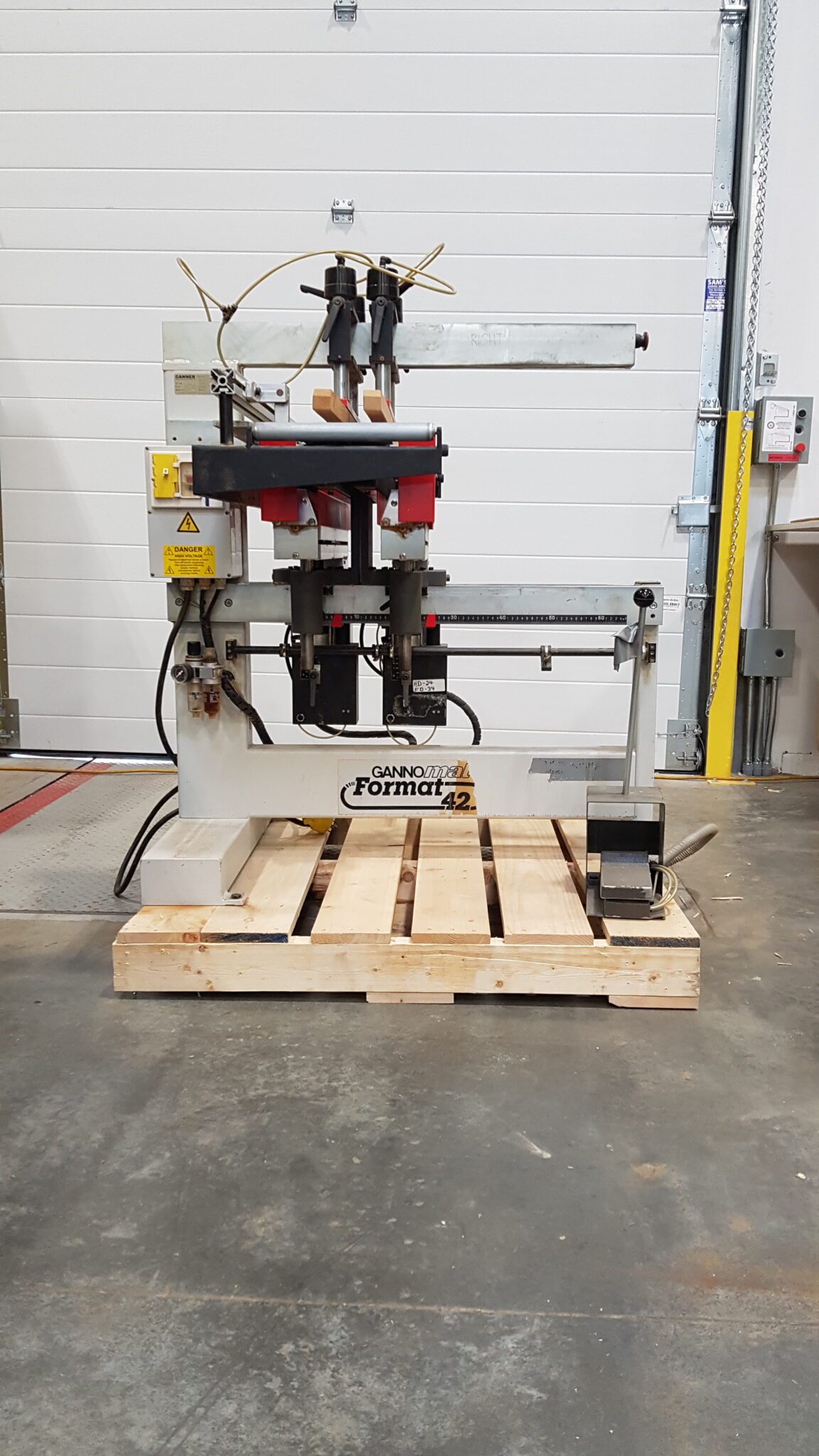

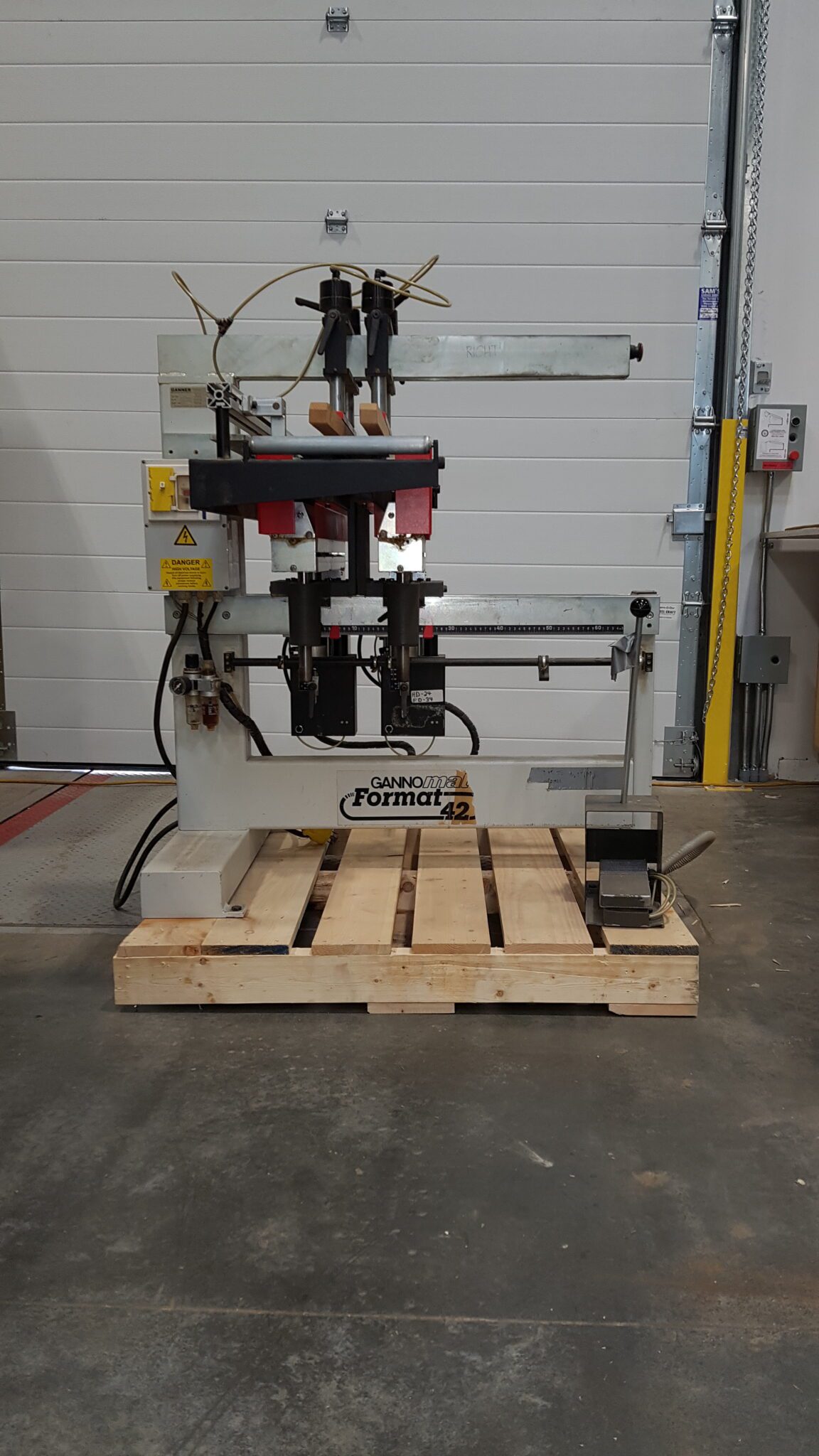

Gannomat Format 42 Double Line Boring Machine

Specifications

• Type: 332
• 220 V
• 3 Phase
• 60 Hz
• 2 VERTICAL BORING HEADS
• 21 SPINDLES PER HEAD ON 32MM CENTERS
• BOTTOM MOUNT
• EACH WITH 2 MOTORS OPERATING AT 2,800 RPM
• 3400 SPINDLE RPM
• 7.5″-25.5″ SPREAD RANGE BETWEEN DRILL LINES
• 2 OVERHEAD PNEUMATIC CLAMPS
• INFEED AND OUTFEED IDLE ROLLERS
• FOOT PEDAL OPERATION
• 2.75″ MAXIMUM PART THICKNESS
• Serial No. 448 292
• Manufacture Year: 2002

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
