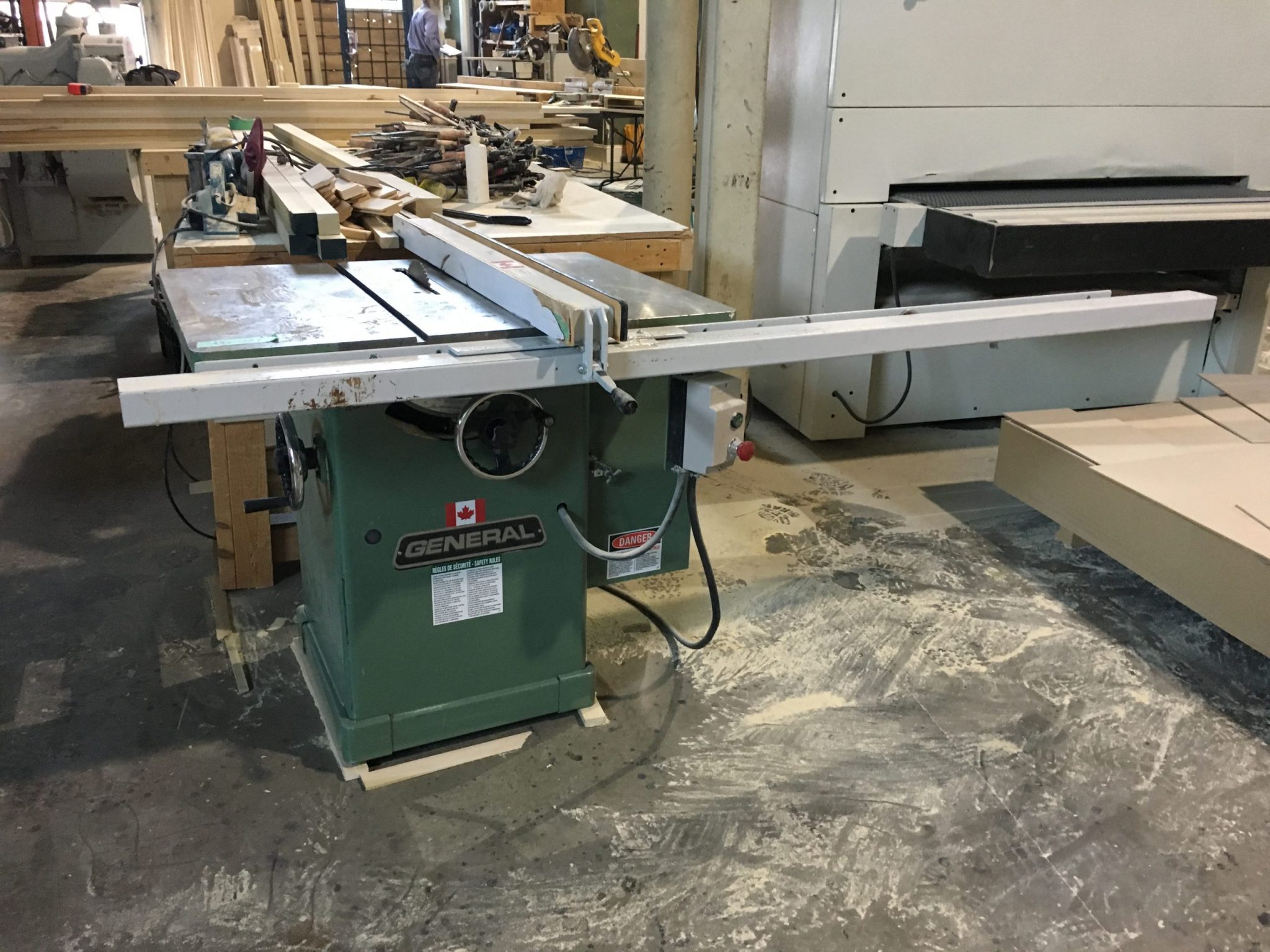

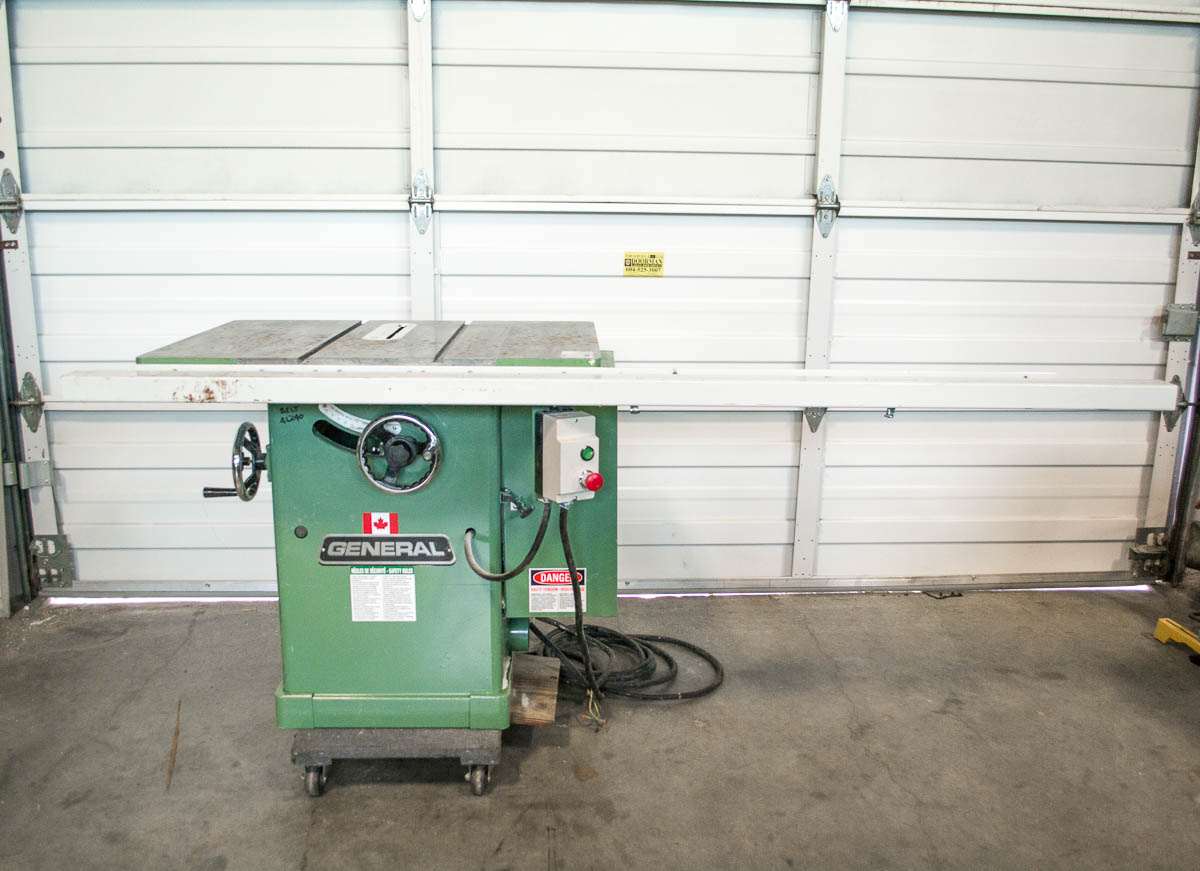

General 350R 10″ Table Saw

Manufacturer Description:

• Powder coated, scratch resistant, high quality reinforced steel cabinet.

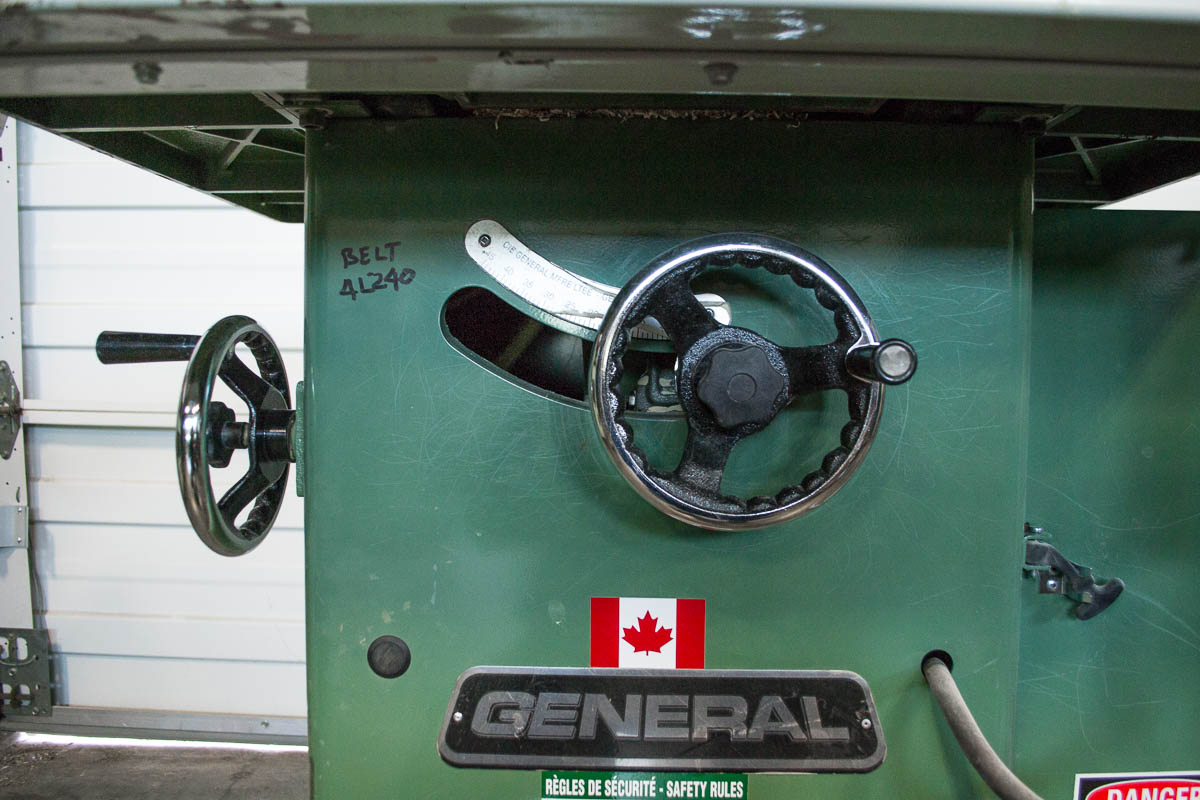

• Large, heavy-duty cast-iron handwheels for effortless blade adjustments.
• Magnetic 2-step safety switch to prevent unwanted or unintentional start-up is equipped with an extra-large easy access stop panel and a lock-out key to prevent unauthorized use of the saw.
• Powerful, totally enclosed, fan cooled industrial motor.
• Matching dual V-belt drive, on balanced cast-iron pulleys for smooth vibration-free running.
• Arbor mounted on heavy-duty, permanently lubricated, sealed ballbearings.

Manufacturer Specifications:

BLADE /ARBOR DIAMETER
10” (254 MM) / 5⁄8” (16 mm)

MAX. DEPTH OF CUT AT 90° / 45°
3 1⁄8” (79 mm)/ 2 1⁄8” (54 mm)

ARBOR TILT RANGE
0° À 45°

MAX. RIP TO LEFT / RIGHT OF BLADE
12” (305 mm) / 50” (1270 mm)

MAXIMUM DADO WIDTH
13⁄16” (21 MM)

DISTANCE AHEAD OF BLADE
12 3⁄4” (324 MM)
