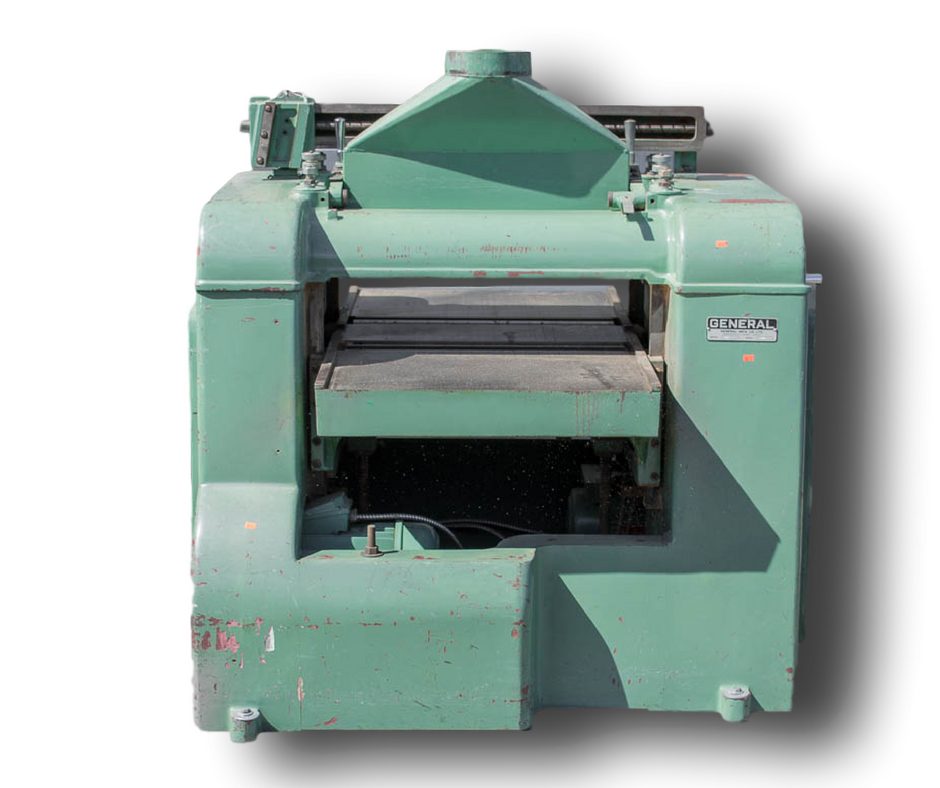

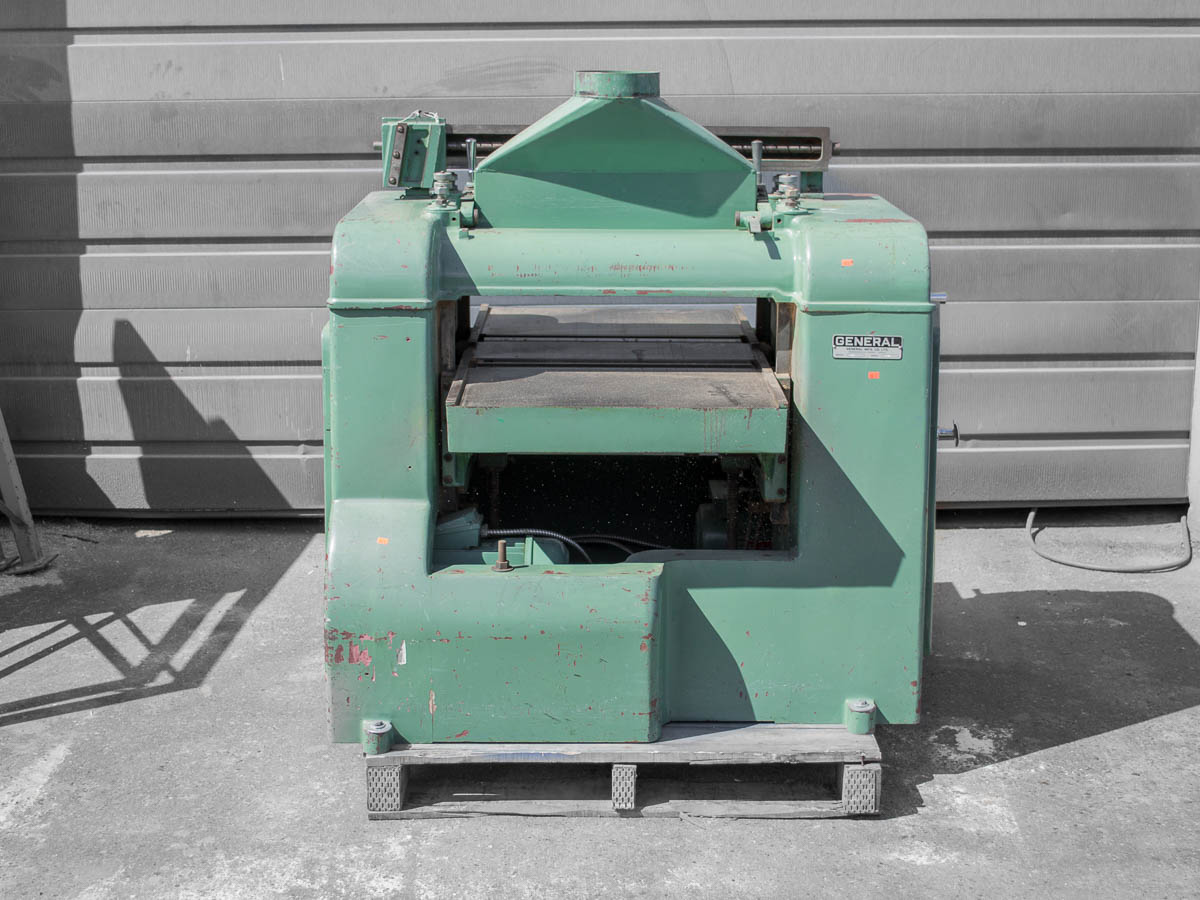

General 430 24″ Planer

Manufacturer Specifications

• Capacity: Stock 1/8″ to 8″ thick-single single pieces 11 3/4″ long-min.
• Pieces 4″long butted.
• Cutting circle: 4 1/2″ Diameter
• Depth of Cut: 1/2″
• Feed: variable feed from 20 to 60 FPM
• Feed Rolls: 4″ Diameter.
• Cutter head: Alloy steel and turns at 4000 RPM
• Table: 25 3/4 x 45″ long
• Floor space: 48″ x 58″ x 48″ high
• Weight: 3600 lbs
