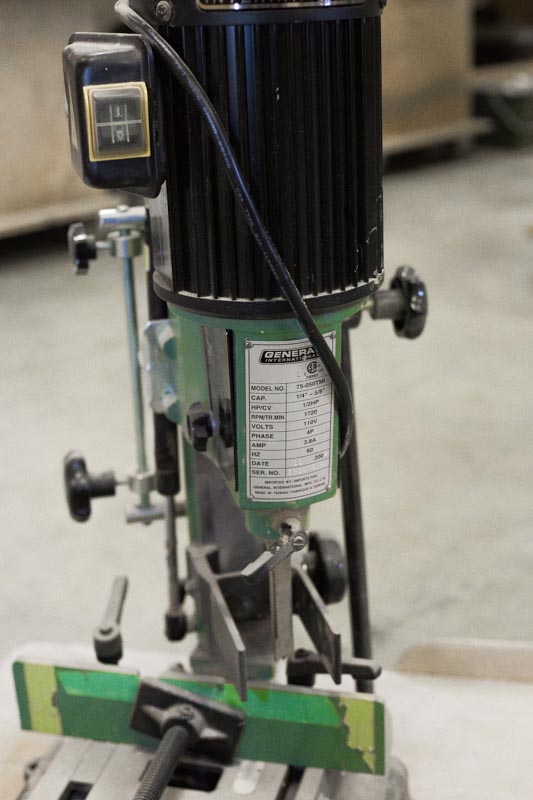

General 750-050TM1 0.5HP Mortiser

Specifications:

• Chisel capacity: 1/4” TO 5/8” (6 TO 16 mm)
• Maximum chisel stroke: 9” (228 mm)
• Distance from fence to center chisel: 4” (102 mm)
• Distance from ø chisel to table (chisel 1/4”): 6” TO 9″ (152 TO 228 mm)
• Chuck capacity: 1/2” (13 mm)
• Table size: 13 1/2” x 9” (343 x 230 mm)
• Fence size: 14 1/8” x 2 7/8” (360 x 73 mm)
• Base size: 14 1/8” x 10 3/8” (360 x 265 mm)
• Overall height: 29” (736 mm)
• Spindle speed: 1720 RPM
• Motor: 1/2 HP, 110 V, 1 Ph, 3.8 A
• Weight: 106 LBS (48 kg)
