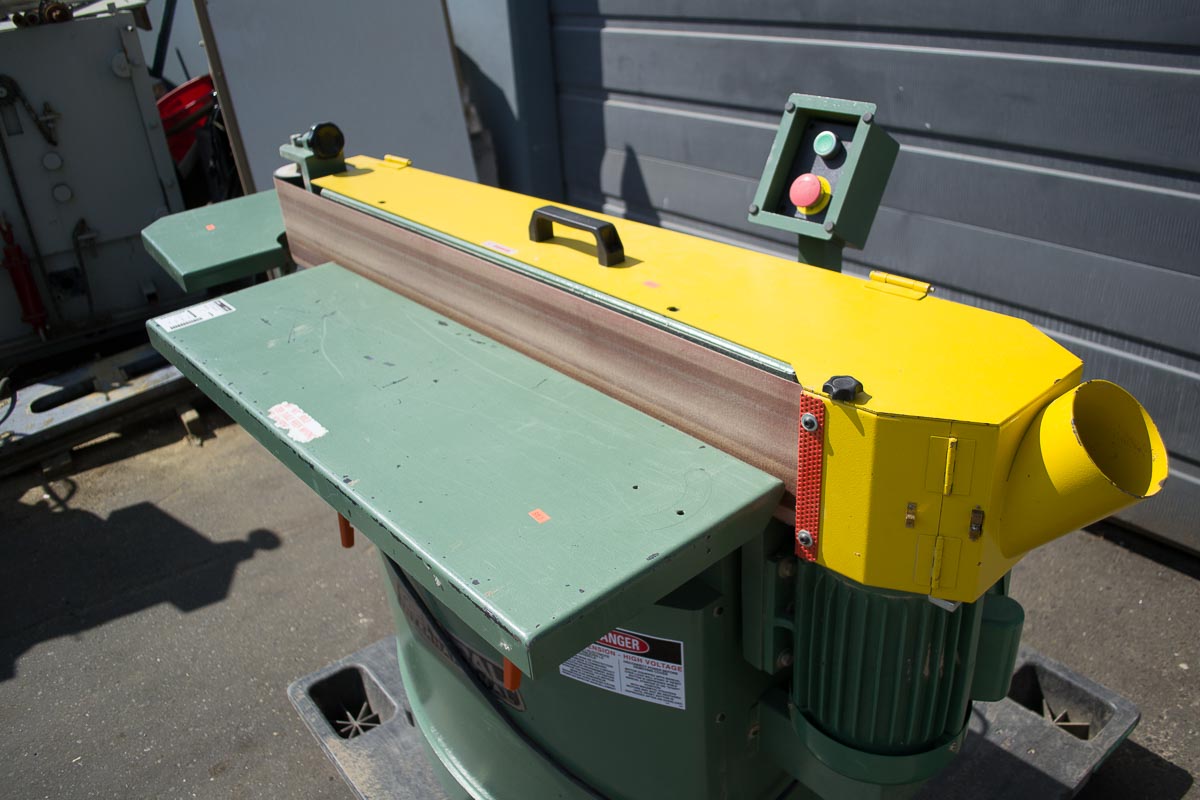

Manufacturer Information:
- Entire head moves up and down to maximize belt life and minimize tracking adjustments.
- Large adjustable height steel front table tilts up to 45° for bevelled edge sanding.
- Inward and outward tilting adjustable height steel auxiliary end table
- Easy adjustment of sanding belt tension and tracking.
- Precision machined, dynamically alanced aluminum drive pulleys.
- Heavy steel base ensures a solid stable platform while sanding.

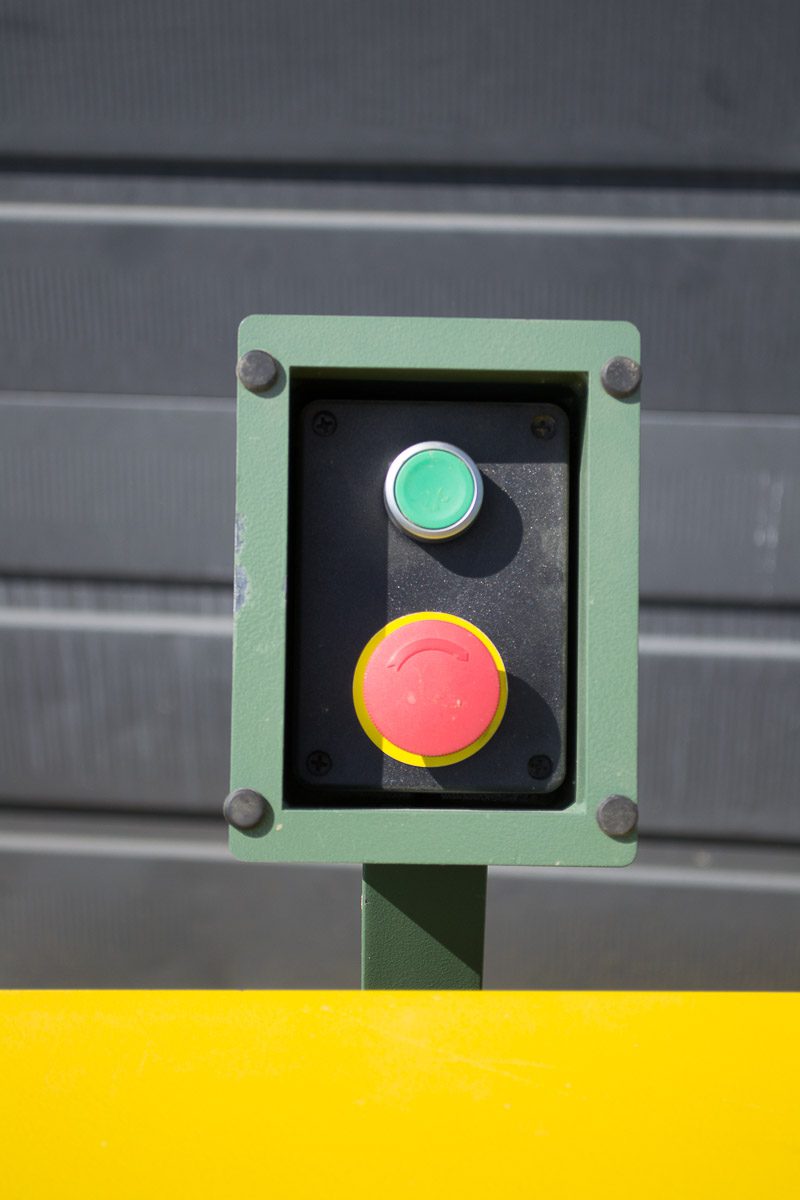

- Magnetic switch for added safety.
Manufacturer Specifications:
- Length of oscillation
- UP: 3/8’’ (10 mm)
- DOWN: 3/8” (10 mm)
- TOTAL: 3/4’’ (20 mm)
- Belt size: 6’’ x 108’’ (152 x 2743 mm)
- Belt speed: 3250 lin.fpm (975 lin. mpm
- Front table size (l x w): 36 1/4” x 11 13/16’’ (920 x 300 mm)
- Table tilt: 45°
- Table height: 30 5/16” (770 mm)
- Table height adjustment: 5 1/2″ (150 mm)
- Auxiliary table size (l x w x h): 13 3/8” x 18 5/16” (340 x 465 mm)
- Dust outlet: (2) 4″ (102 mm)
- Motor M1:2 HP, 220 V, 1 Ph, 10.5 A
