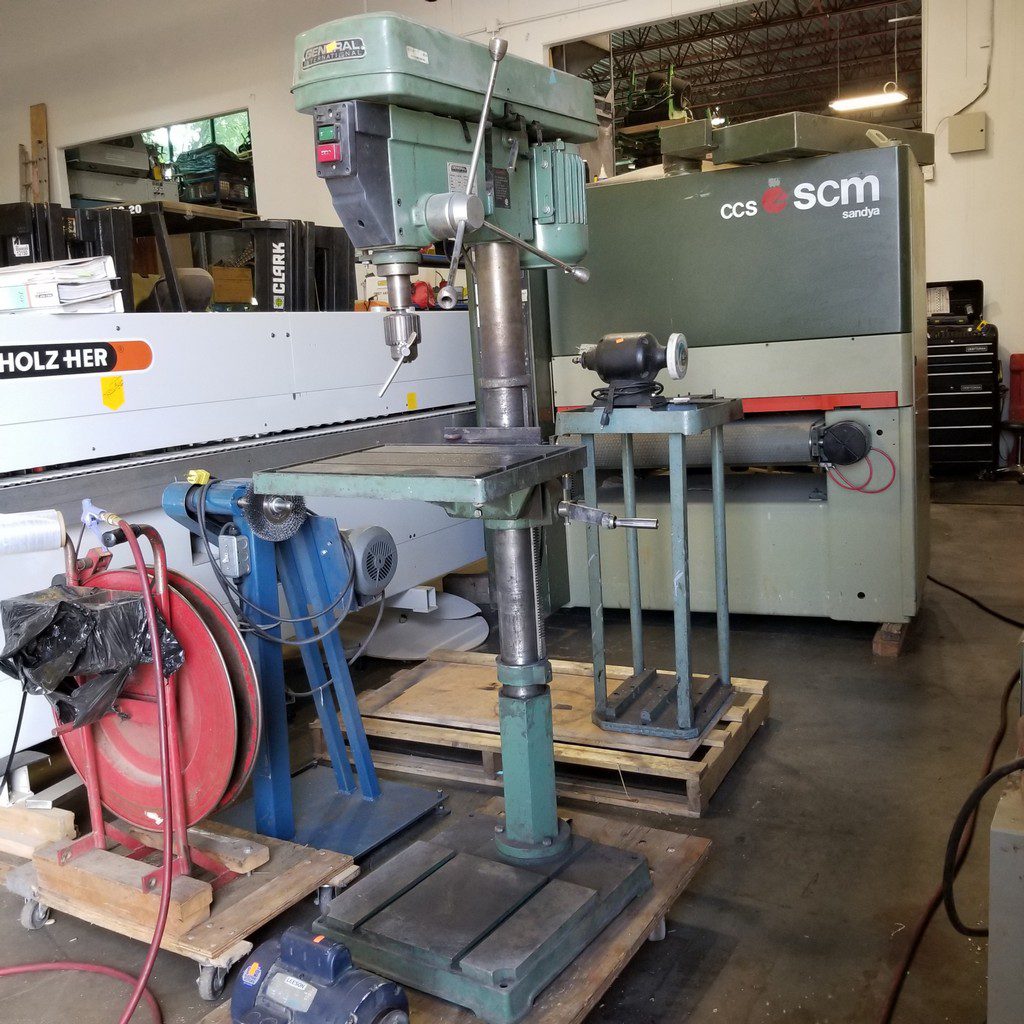

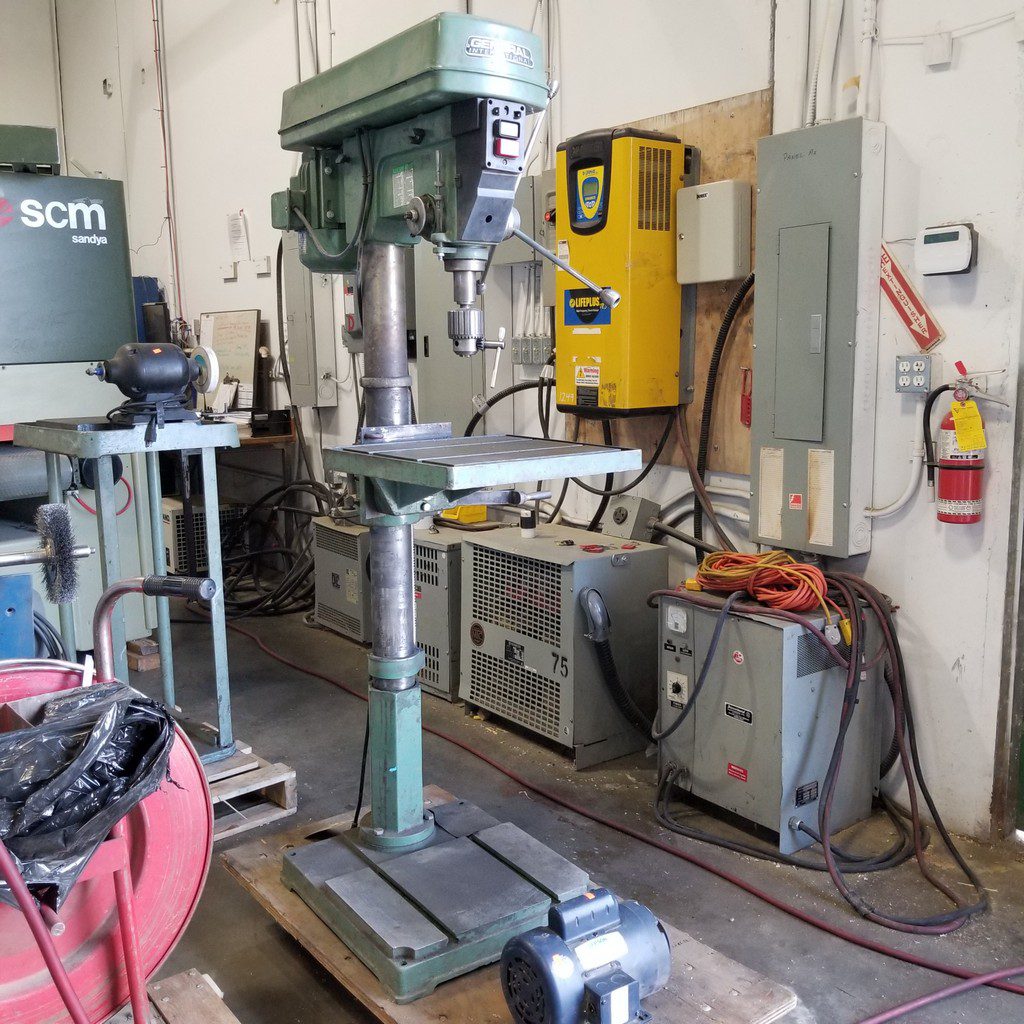

General International 22″ Drill Press

SPECIFICATIONS

• Swing 22” (559 mm)
• Drilling capacity 1 1⁄4” (32 mm)

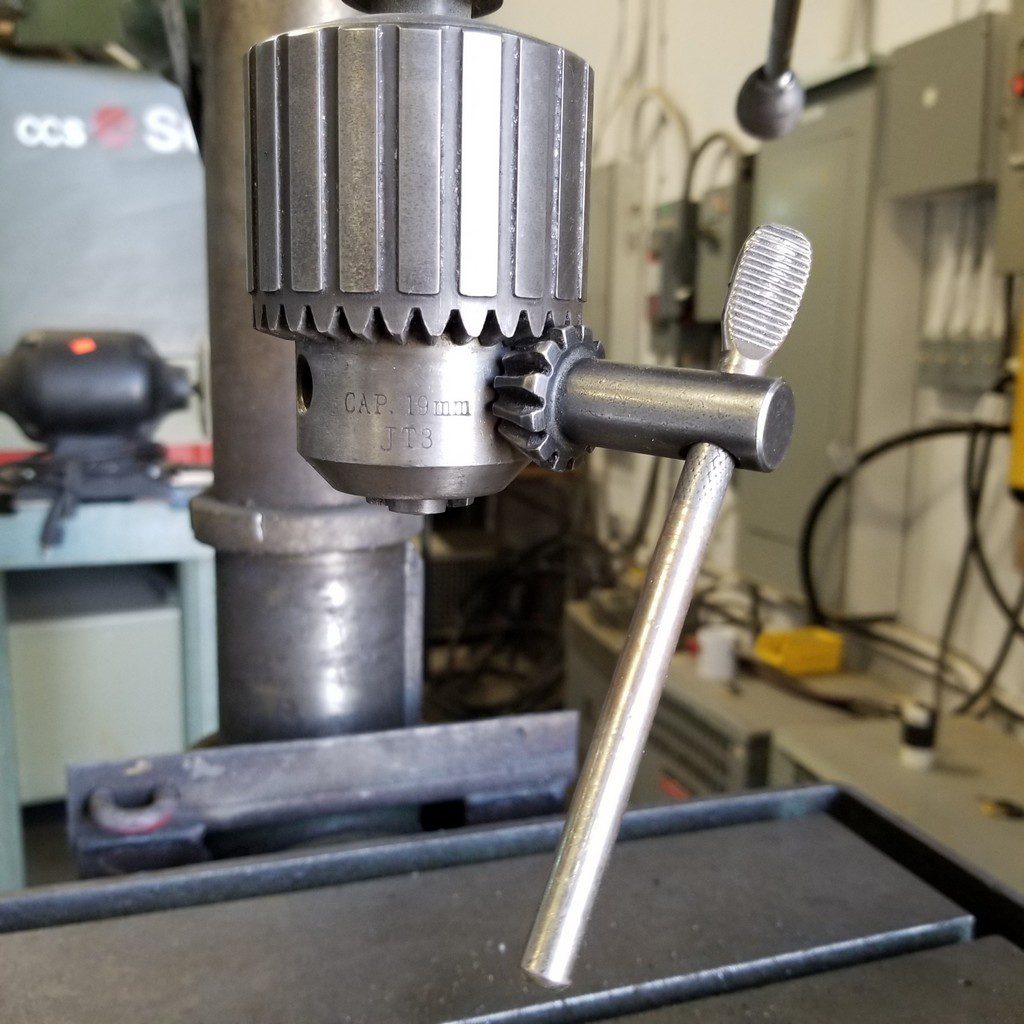

• Chuck size 3⁄4” (19 mm)
• Spindle travel 4 1⁄2” (114 mm)
• Spindle travel to table 25 1/2” (597 mm)
• Spindle travel to 46 3⁄4” (1188 mm)
• Table size 18 1⁄2” x 16 1⁄8” (470 x 410 mm)
• Column diameter 3 5/8” (92 mm)
• Spindle speeds (12) 120 – 2270 rpm
• Spindle taper MT 4
• Overall height 68 3⁄4” (1747 mm)
• Base size 22 1⁄2” x 19 1⁄2” (572 x 496 mm)

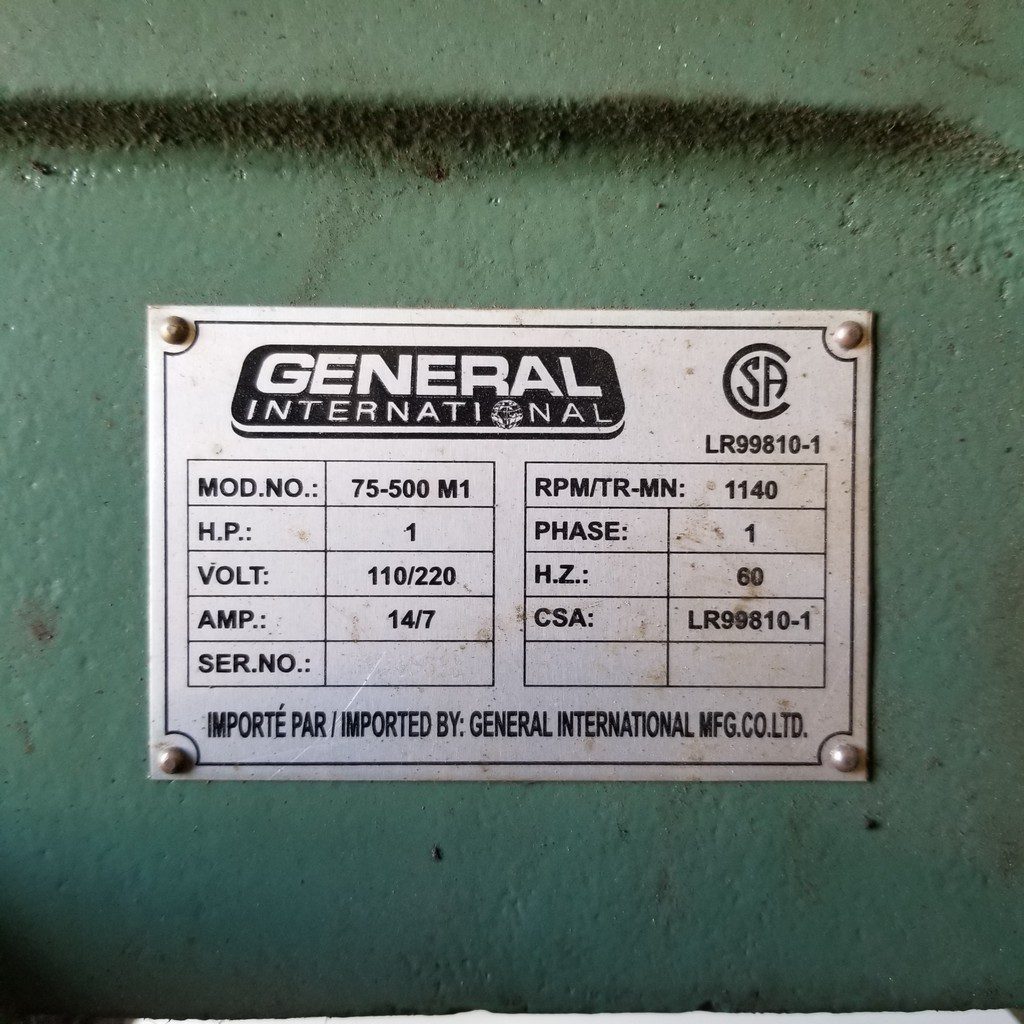

• Motor 1 HP, 110 V, 1 Ph, 14 A
• Weight 372 LBS (169 kg)

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
