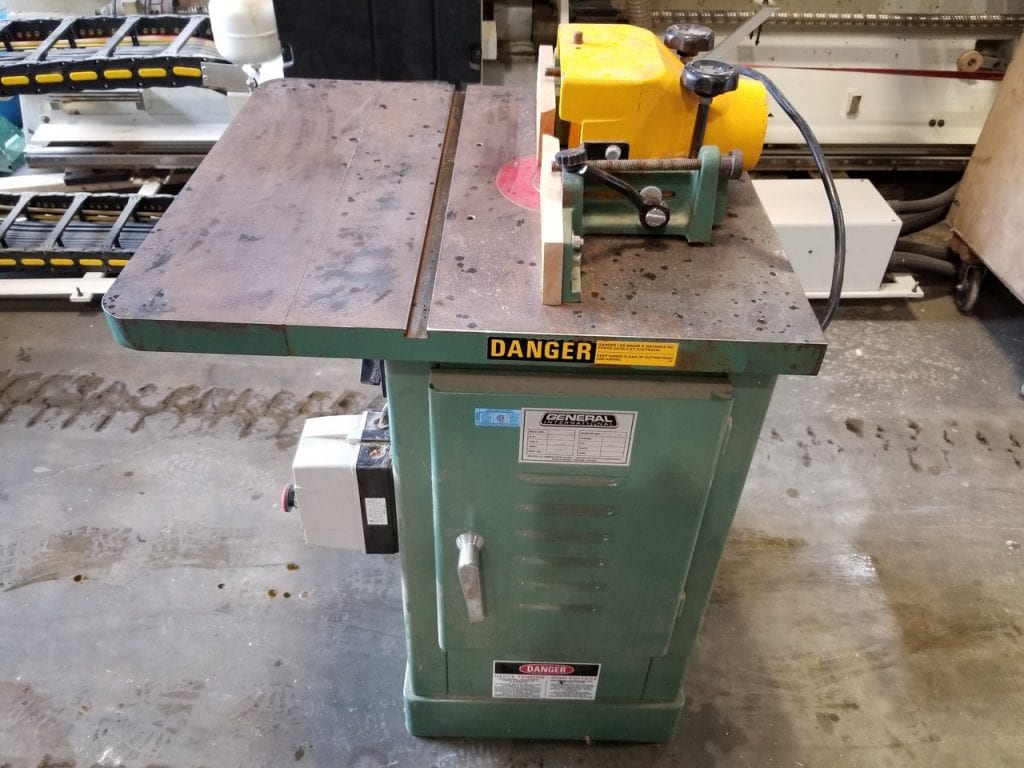

General International 3/4″ Wood Spindle Shaper

Specifications:

• Magnetic 2-step safety switch to prevent unintentional start-up is equipped with an extra-large
  easy access stop panel and a lock-out key to prevent unauthorized use.
• Extra large, heavy cast-iron table with a smooth, ground surface finish.
• Two (2) spindle speeds, with reverse.
• Independent left and right fences feature precision micro-adjustment.
• Industrial motor protected against dust by a totally enclosed cabinet.
• Fence system / cutter head guard: Includes a cutter guard, spring hold-downs and a built-in 4″ dust collection outlet.
• T-slot miter gauge for better workpiece control.
• Deluxe adjustment fence system 27” x 25” (686 x 635 mm)
• Table height 34” (864 mm)
• Spindle opening diameters 7”, 3 1/2”, 3” (177, 89 & 76 mm)
• Spindles diameters 1/2” & 3/4” (13 & 19 mm)
• Spindle travel 3” (76 mm)
• Spindle speeds 8000 & 10 000 rpm
• Fence sizes (aluminum) 3” x 11” (76 x 279 mm)
• Dust chute outlet 4” (102 mm)
• Overall dimensions (l x w x h) 21 1/4” x 17 1/4” x 42 1/2″ (540 x 438 x 1080 mm)
• Motor 3 HP, 220 V, 1 Ph
• Weight (shipping / net) 343 lbs (156 kg) / 326 lbs (148 kg)

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
