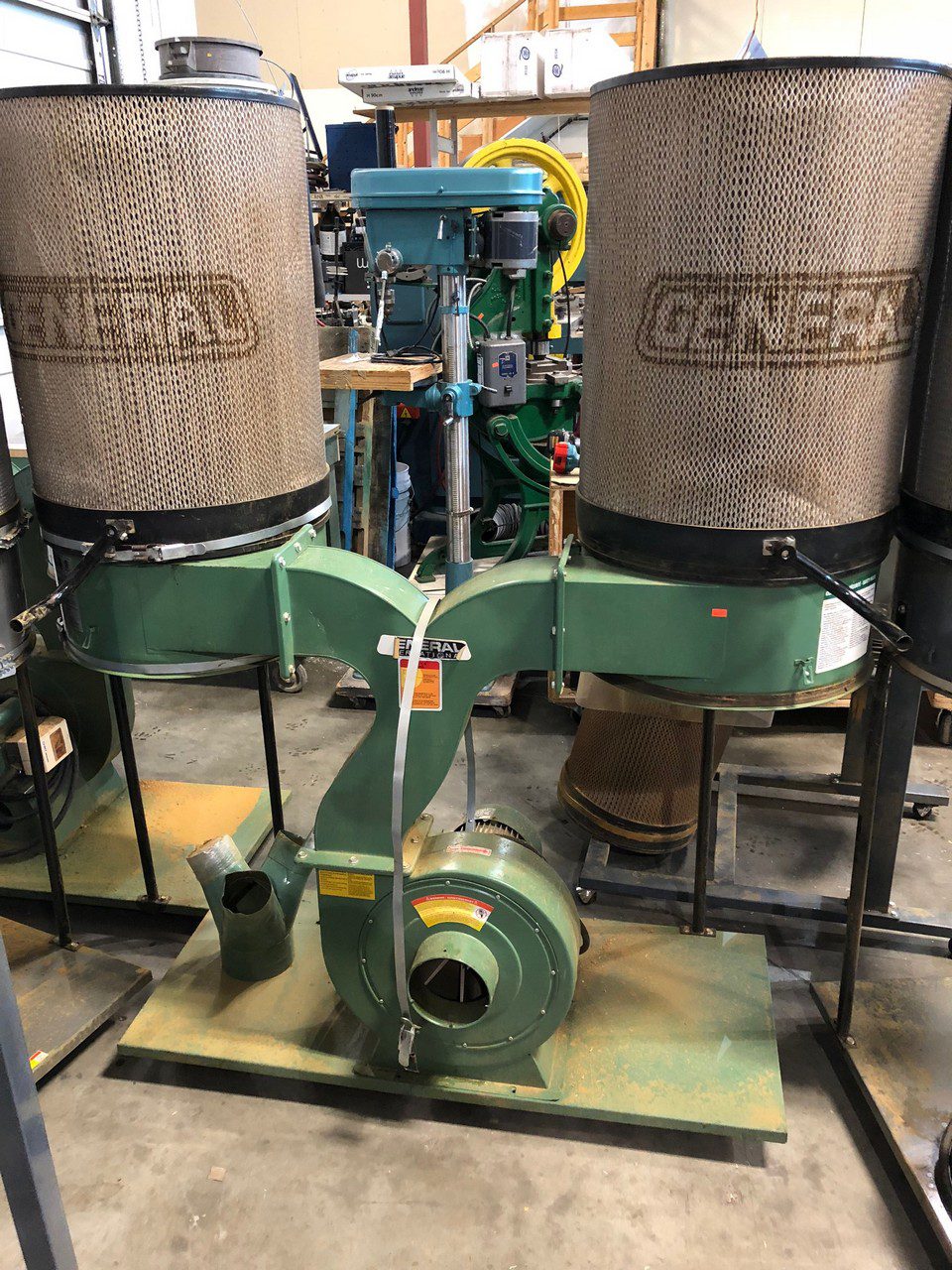

General International 3 HP Dust Collector Model 10-210 M1

Features and Specifications:

• Heavy-duty motor design with a continuous duty rating for industrial applications
• Base mounted on 4 swivel casters for total mobility and stability
• Precision spin-balanced aluminum impeller for smooth operation, minimal noise and to reduce the risk of sparking
• Equipped with 2 micron filter bags (not included on “CF” canister filter model)
• Quick-release bag clamps with metal straps
• Safety switch with key, prevents unit from being started when key is removed
• Collection bags made from extra thick, transparent, recyclable plastic
• Inlet diameter: (1) 6 in. (152 mm)/(or 3) 4 in. (102 mm)
• Airflow capacity: 2280 CFM
• Blower wheel diameter: 12 in. (305 mm)
• Sound rating: 80 to 95 dB
• Bag diameter: 20 in. (508 mm)
• Bag capacity: 83 Gal. (377 l)
• Static pressure 15-9/16 l of water

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
