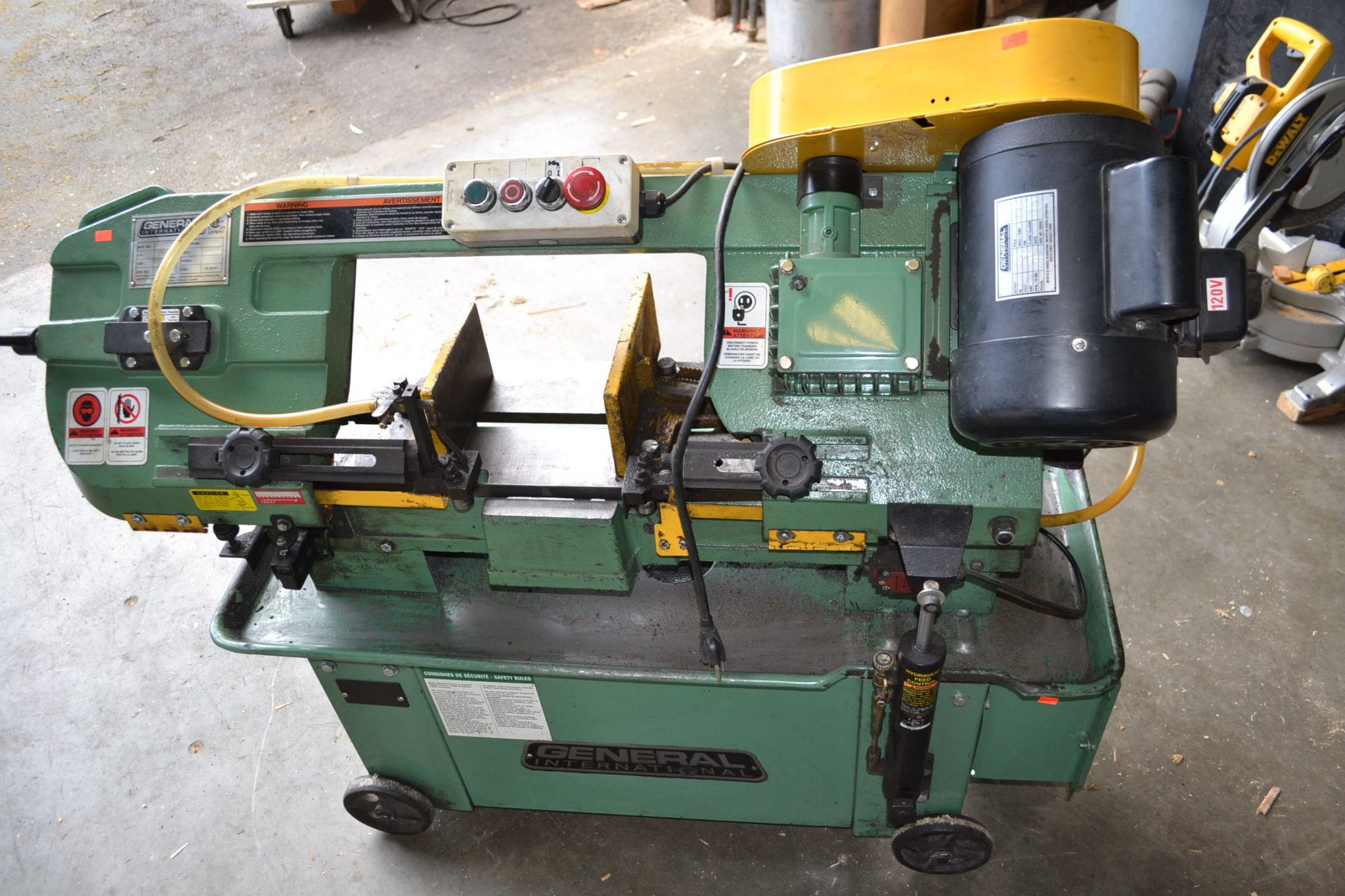

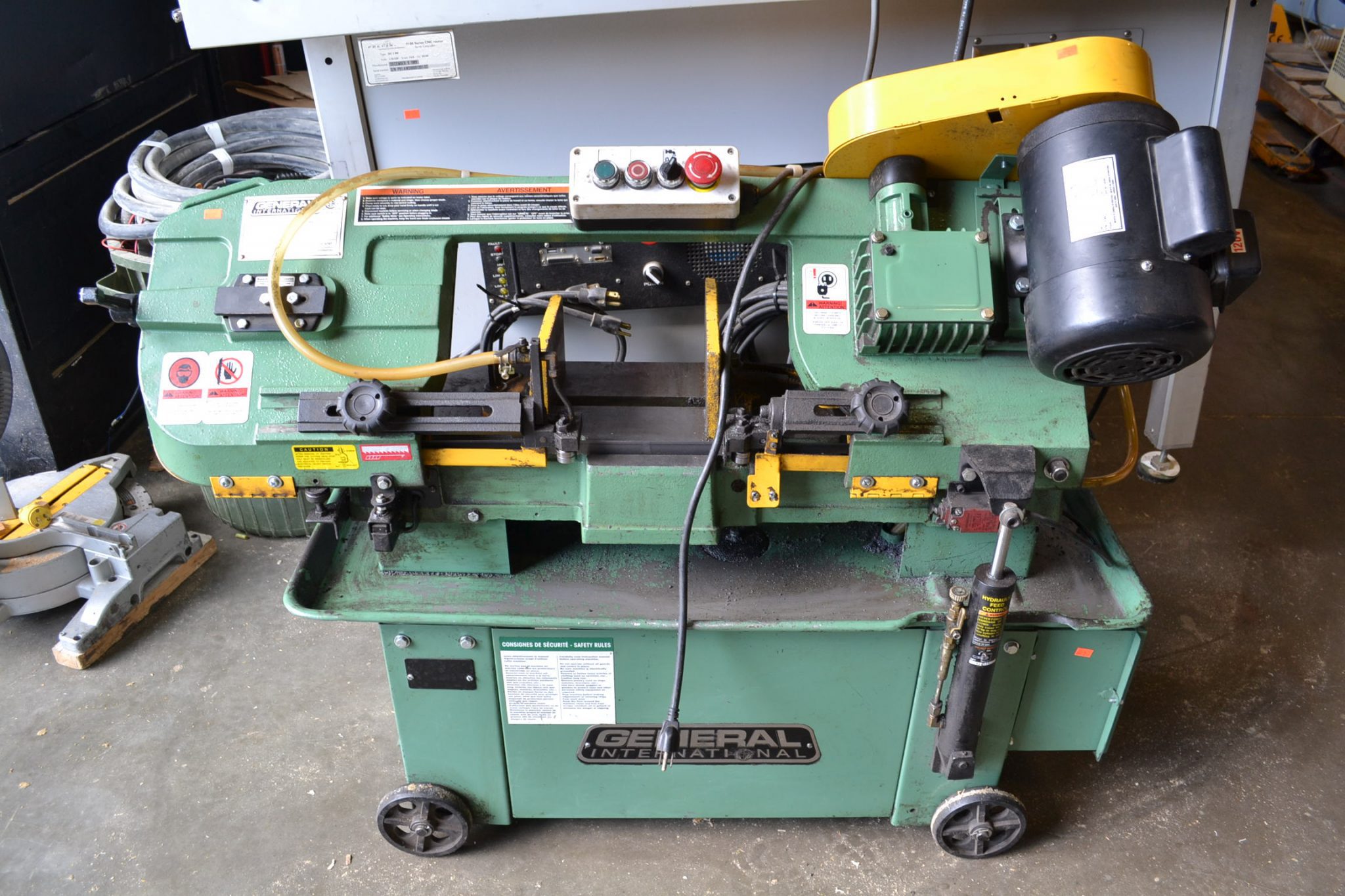

General International 7″ X 12″ metal cutting bandsaw

Features and Specifications:

• Industrial Metal Cutting Band Saw with Mobile Base and Coolant Pump
• Horizontal or vertical cutting.
• Automatic shut-off.
• Chip brush and safety guard included.
• Quick-adjust vise with full 90º to 45º mitering.
• Adjustable blade tension and guide bearings.
• Adjustable hydraulic down feed control.
• Coolant system with built-in tank and pump.
• 4-speed design.
• Cutting capacity at 90º (Rectangular) 7″ x 12″ (179 x 305 mm)
• Cutting capacity at 90º (Round) 7″ (179 mm)
• Cutting capacity at 45º (Rectangular) 4″ x 7″ (102 x 178 mm)
• Cutting capacity at 45º (Round) 4″ (102 mm)
• Blade size 3/4″ x 0.035″ x 93″ (19 x 0.9 x 2360 mm)
• Blade speeds 86, 132, 178 & 260 FPM
• Base dimensions (L x W) 51″ x 20″ (1295 x 508 mm)
• Overall dimensions (L x W x H) 49 1/4″ x 27 1/8″ x 40 3/4″     (1250 x 690 x 1035 mm)

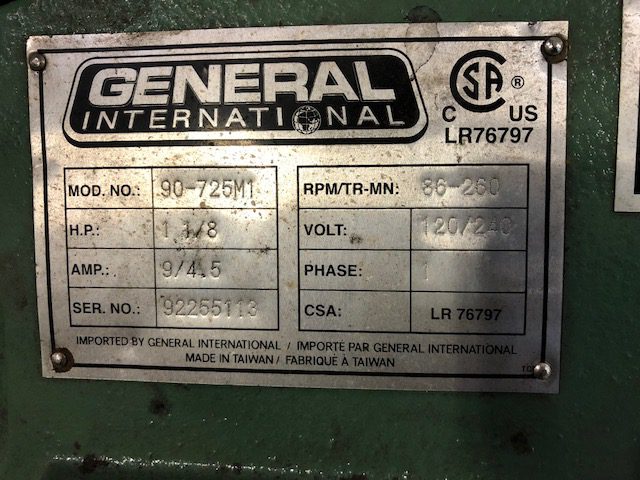

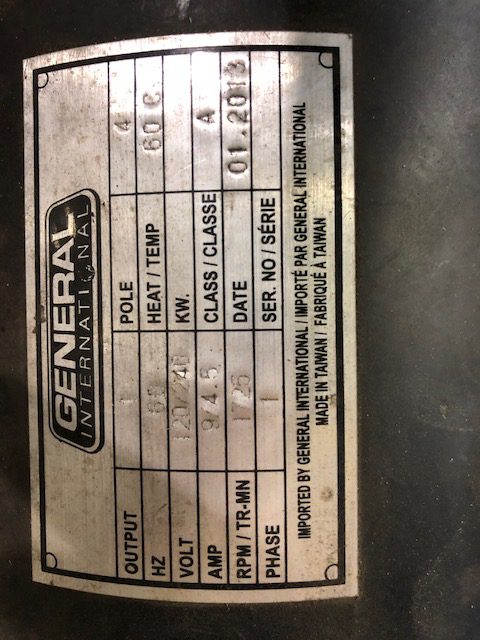

• Motor (pre-wired 120 V) 1-1/8 HP, 120/240 V, 1 Ph, 9/4.5 A
• Weight 330 lbs (150 kg)

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
