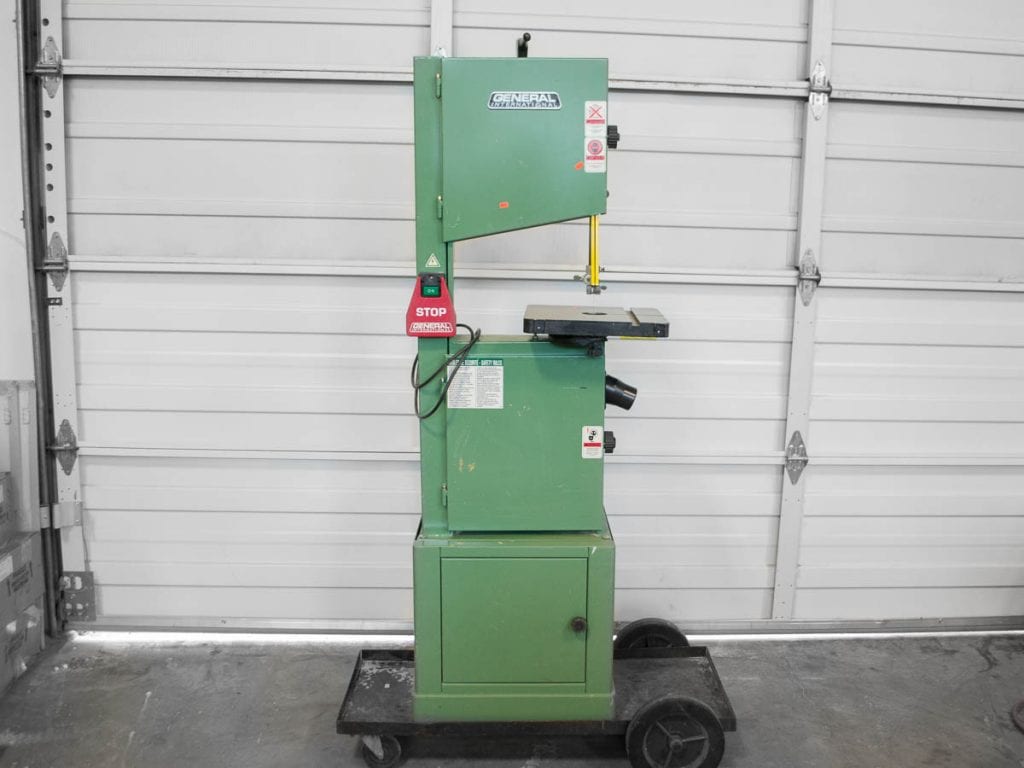

General International 90-100M1 14″ Vertical Bandsaw

Manufacturer Specifications:

• Wheel size: 13 7/8” (353 mm)
• Wheel speeds (2): 495 & 825 rpm
• Blade speeds (2): 1800 & 3000 lin. fpm (549 & 915 lin. mpm)
• Blade width: 1/8” to 3/4” (3 to 19 mm)
• Blade length: 93 1/2” (2375 mm)

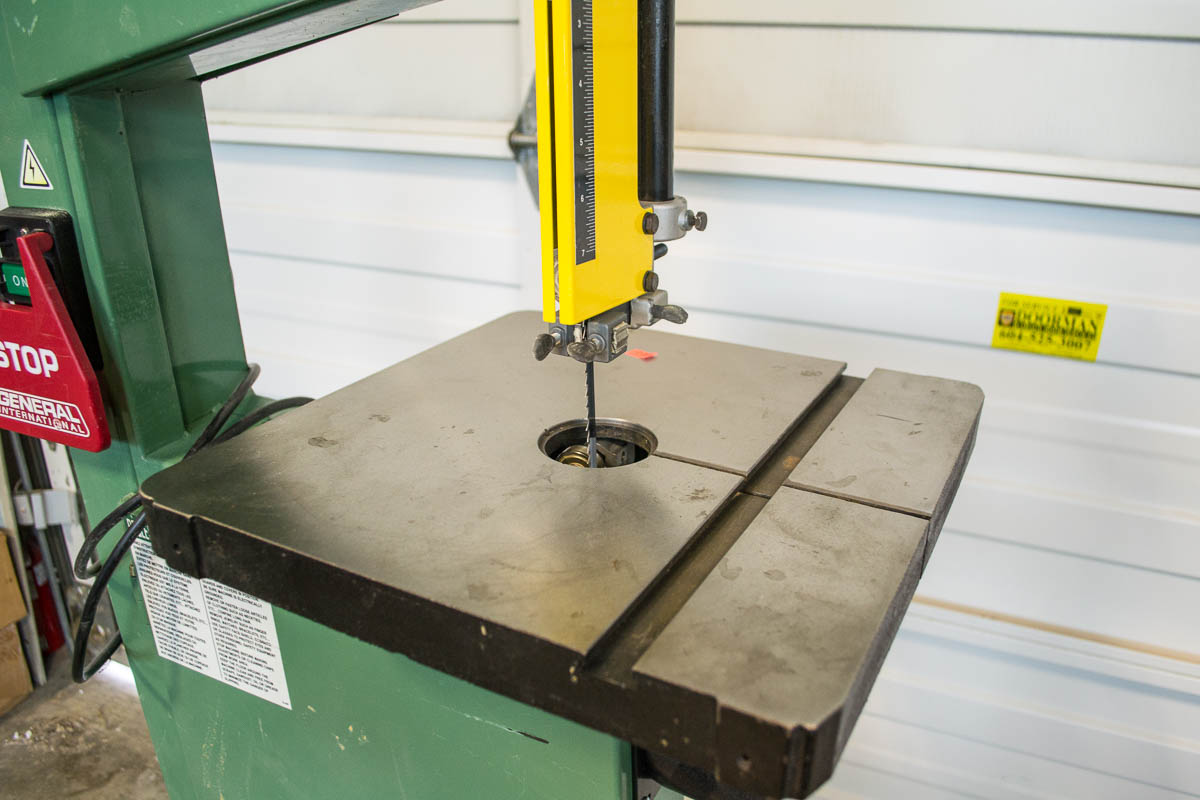

• Table size: 16” x 16” (406 x 406 mm)
• Table tilt: 0° to 45° (right) / 0° to 10° (left)
• Table height: 42 3/4” (1086 mm)
• Maximum width of cut: 13 1/2” (343 mm)
• Maximum height of cut: 6” (150 mm) – up to 12” with optional riser kit (#90-130)
• Dust outlet: 4” (102 mm)
• Base dimensions (l x w): 18 5/8” x 15 3/4” (460 x 400 mm)
