SKU: 90000-332

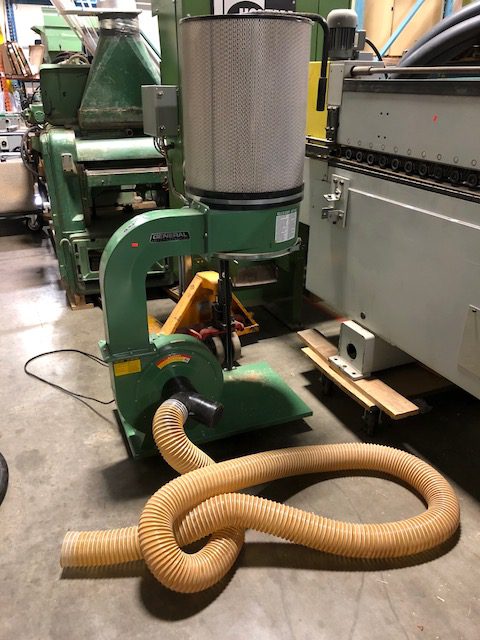

General International Single Phase 2HP Dust Collector

Out of Stock But wait, we have similar products

Features and Specifications:

  • Heavy-duty motor design with a continuous duty rating for industrial applications.
  • Equipped with totally enclosed, fan cooled, permanently lubricated motor.
  • Heavy-duty base, mounted on four swivel casters for total mobility and stability.
  • Precision spin-balanced aluminum impeller for smooth operation, minimal noise and to reduce the risk of sparking.
  • Equipped with 2 micron filter bag (not included on “CF“ canister filter model).
  • Quick-release bag clamps with metal straps.
  • Safety switch with key, prevents unit from being started when key is removed.

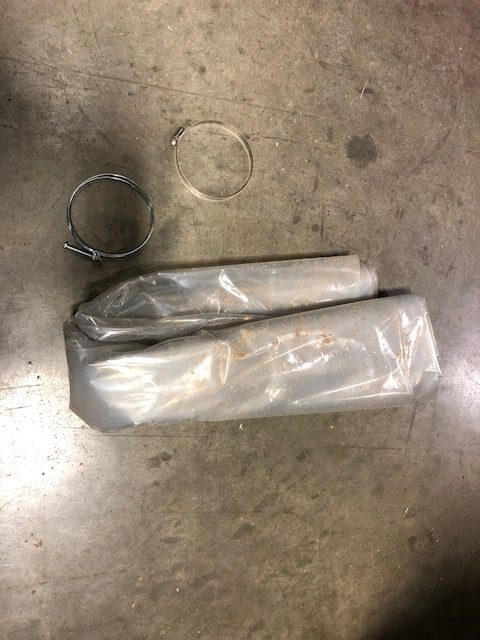

  • Heavy-duty collection bag made from extra thick, transparent, recyclable plastic.
Inlet diameter (1) 6” (152 mm) / (or 2) 4″ (102 mm)
Airflow capacity 1550 cfm
Blower wheel diameter 12 3/4” (323 mm)
Sound rating 80 to 90 dB
Bag diameter 20” (508 mm)
Bag capacity 42 gallon (190.9 l)
Static pressure (without bag) 11 1/4” of water
Overall dimensions (L x W x H) 39 3/8” x 31 1/2” x 74 3/4” (1000 x 800 x 2000 mm) – 10-110A
39 3/8” x 31 1/2” x 74 3/4” (1000 x 800 x 2000mm) – 10-110A

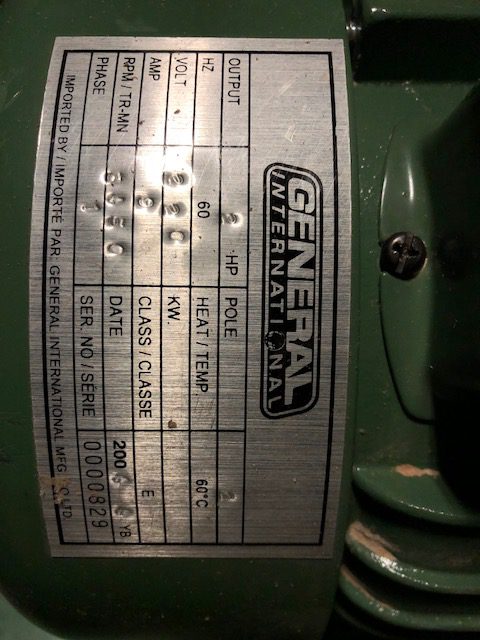

Motor M1 2 HP, 220 V, 1 Ph, 9 A
Weight 132 lbs (60 kg) – 10-110



Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.

Weight 27.22 lbs
Dimensions 40 × 32 × 75 in
