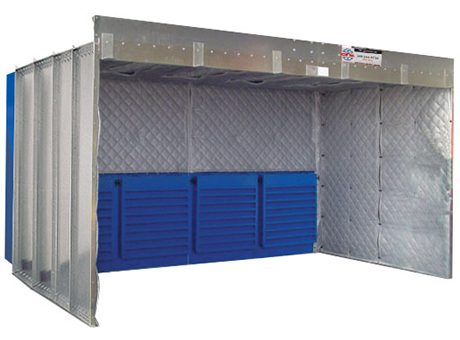

The following features are standard on GFS Sanding & Grinding Booths:
- Heavy-Duty Panels GFS’ Sanding and Grinding Booths are constructed with single-skin,
- 18-gauge, G-90 galvanized steel. Solid Construction Pre-punched booth panels and nut-and-bolt assembly takes the guesswork out of installing a dust collection booth, and provides more structural integrity.

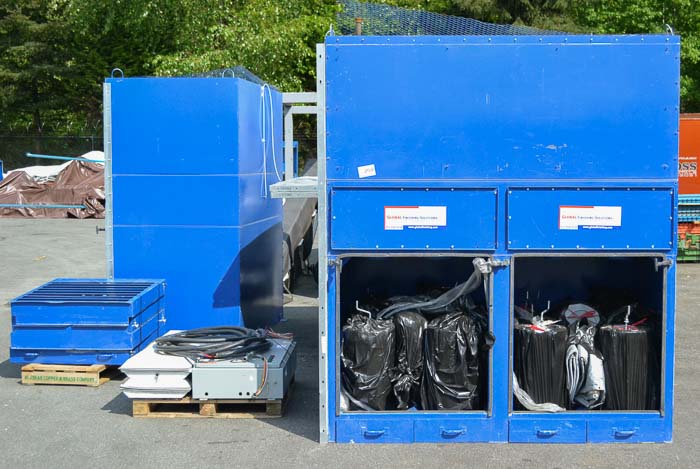

- Dust Collection Modules
- Integrated into GFS’ Sanding & Grinding Booths are fully assembled dust collection modules.
- These modules operate by pulling air into the module and through a cartridge filtration system. Dust is filtered out, while clean air is exhausted back into the plant. Standard modules obtain up to 99.8% efficiency at 5 micron particle size.
- Fans & Motors
- GFS sanding and grinding booths include a heavy-duty, high-capacity, low-noise plug fan (rated at 1.5” SP). Superior Lighting
- GFS Sanding & Grinding Booths feature integrated 4-tube, inside-access fluorescent light fixtures. GFS light fixtures are ETL listed (Class 1 Division 2) and come complete with T-8 color-corrected tubes.
