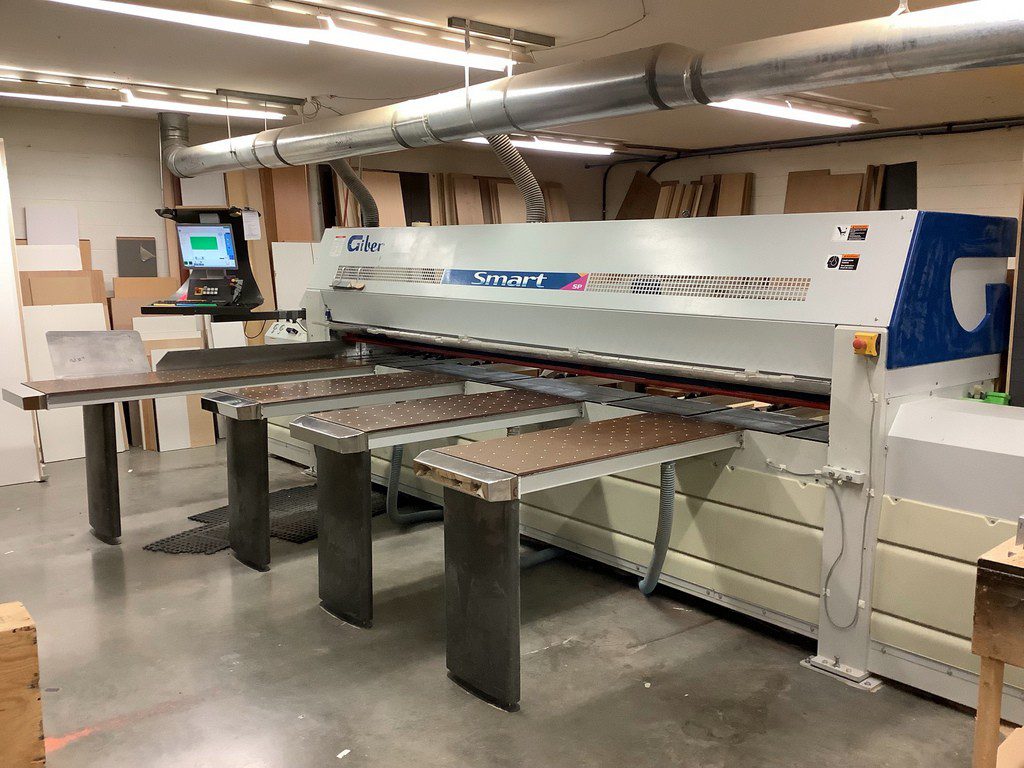

Giben Smart SP Beam Saw

Specifications

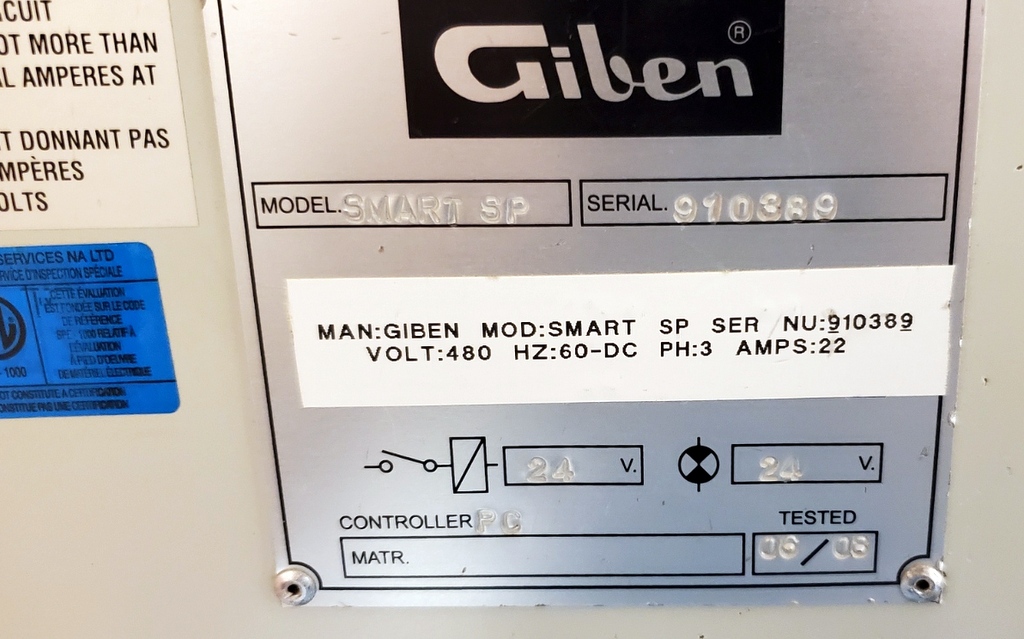

• Model: Smart SP
• Serial No. 910389
• 480 V
• 22 Amps
• 3 Phase
• 60 Hz
• Year of Mfg: 2008

• First Installed in 2011 – Same owner is still operating saw
• Well Maintained

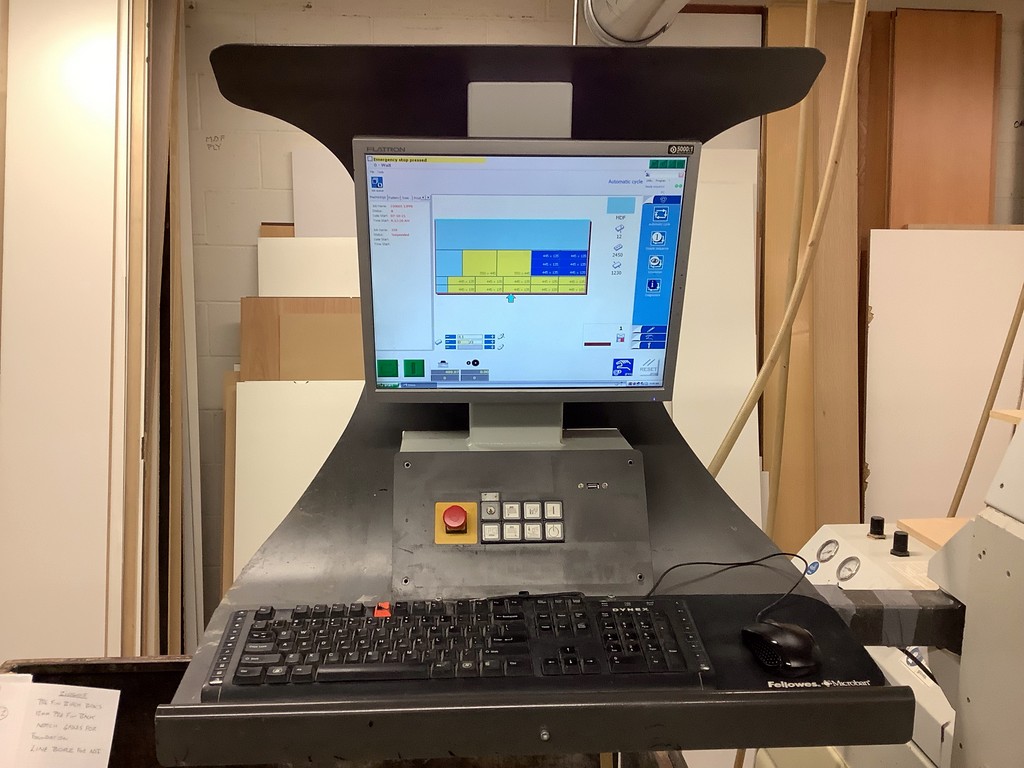

• New Controller installed in 2017
• Very Good Condition

• Cutting length 3800mm (12.5`)
• Blade projection 75mm (2.95″)
• Grippers opening 65mm (2 9/16″)
• Max depth of clean cut 64mm (2 1/2″)
• Main blade diameter 320mm
• Main saw motor 15HP
• Scoring saw diameter 180mm
• Scoring saw motor 1.5HP

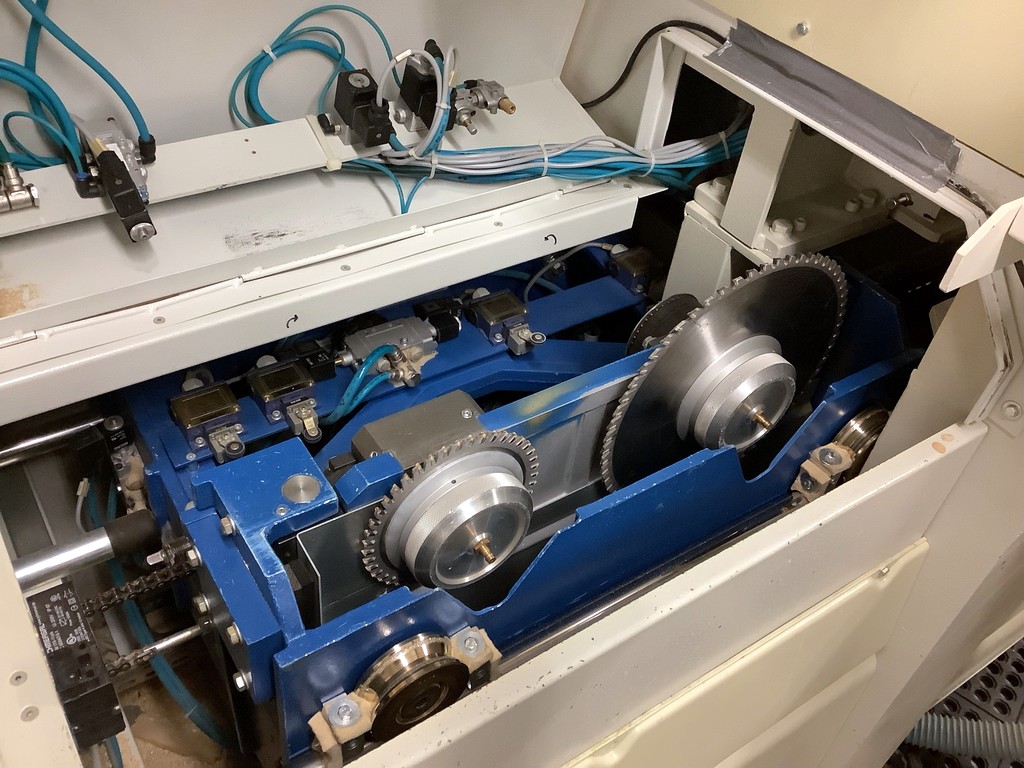

• Saw carriage traverse by brushless AC with inverter
• Saw carriage feed speeds from 5 to 50m/m (16 to 131f/m)
• Carriage returns at 60m/m (131f/m)
• Pneumatic locking, automatic positioning side aligner by roller behind cut line
• Side aligner stroke 1220mm (48″)
• Min width to side align 60mm (2.4″)
• Pneumatic quick release saw blade hubs
• Pusher stroke 3350mm (11″)
• Pusher drive by brushless AC motor with inverter
• Pusher guidance by round bar
• Pusher advancing speeds .8 to 25m/m
• Pusher returns at 40m/m
• 7 floating grippers
• 8 roller profiles under pusher
• Metric & Imperial measure
• Selectable English, French, Spanish
• 1 only 2000 X 510mm and 3 only 1300 X 510mm air tables
• Safety trip bar along cut line
• Safety flaps
• Saw carriage and pusher cables in cable tracks
• Time delay on saw carriage cover
• Support and parts available

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
