SKU: 484-4

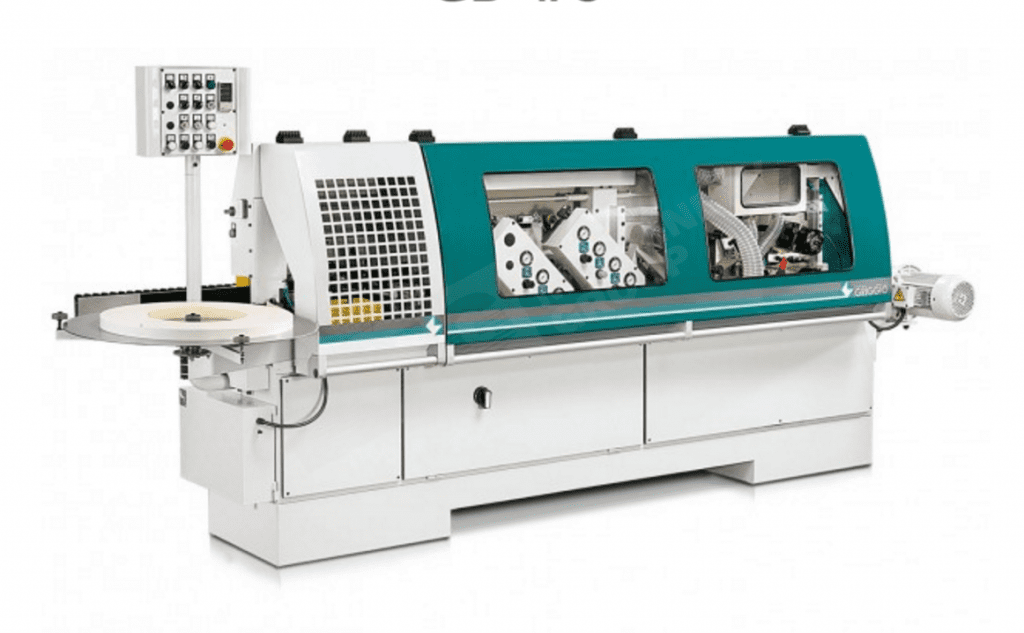

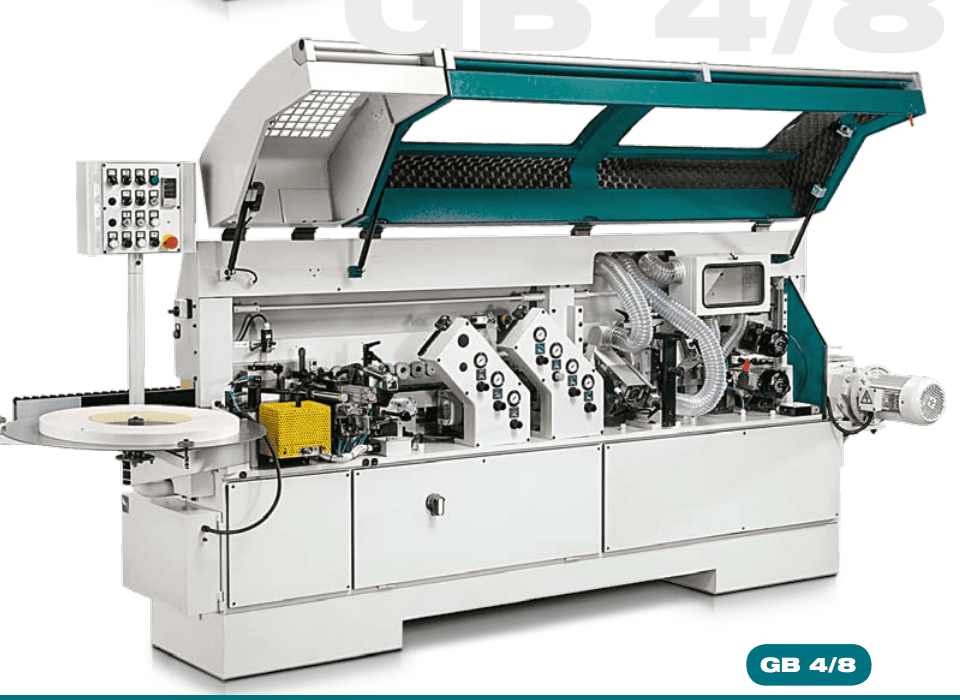

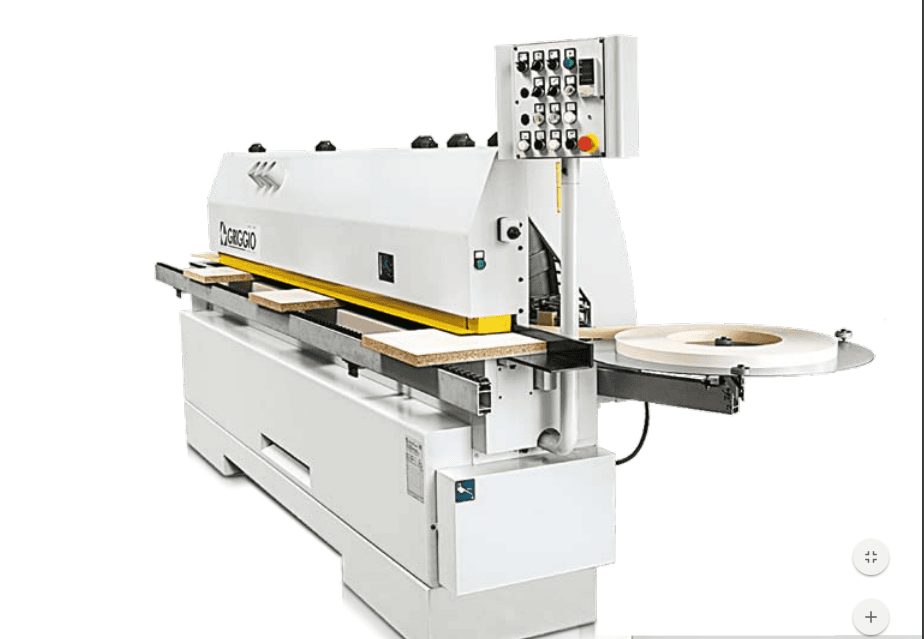

Griggio GB 4/8 Edgebander

Out of Stock But wait, we have similar products

The machine is equipped with:

  • Heated infeed fence
  • Rolls supporting device dia. 800 mm
  • Automatic loader of the edges in strips
  • Glue tank in Teflon with quick heating system 4 lt. Capacity
  • Glue tank in Teflon with electronic control of the temperature 200°-130°. When the machine doesn’t work, the temperature automatically goes down from
  • 200° to 130°

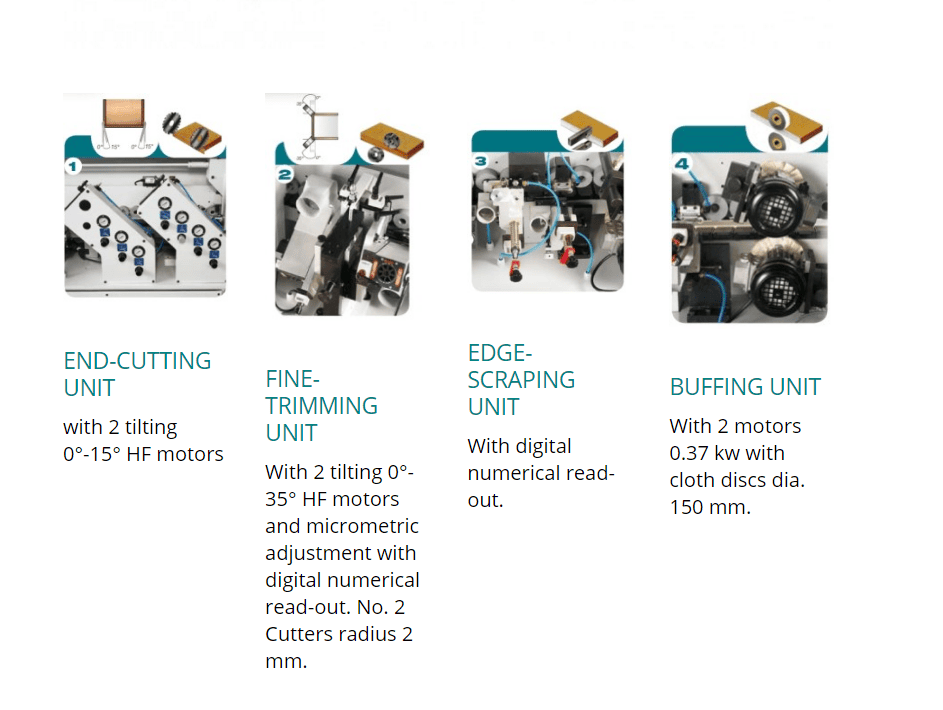

  • No. 2 shears units:
    • * 1st shears unit with pneumatic system to cut edges from 0,4 to 1 mm, with automatic kickback of the edge
    • * 2nd shears unit with pneumatic system to cut PVC and ABS edges with max thickness 3 mm
  • Cutters with 2 mm radius with 4 knives
  • Separate box to collect ABS chips
  • Brushes dia. 150 mm
  • No. 2 feeding speeds 12-16 m/1′
  • Adjustable hanging control panel board
  • Edge pressure unit complete with 3 rollers, adjustable through digital read-out:
  • * 1st motorized roller with separate, adjustable pneumatic pressure system
  • * 2nd and 3rd idle roller with separate, adjustable pneumatic pressure system
  • Lateral support with conveyor roller for wide panels
  • Height manual adjustment of the units with digital numerical read-out
  • Manual upper pressure with double row of rubber wheels with adjustment through digital numerical read-out
  • ‘CE’ standards
Brand
Model
Phase
Min width of the panel (mm) 90
Min length of the panel (mm) 180
Max thickness of the panel (mm) 60
Min thickness of the panel (mm) 12
Edge dimensions in strips (mm) 0,4-8
Edge dimensions in roll (mm) 0,4-3
No.2 feed speed (m/1') 16-Dec
Glue tank capacity (lt) 4
Installed motor power (Kw 8
Air pressure (bar) 6
Condition
