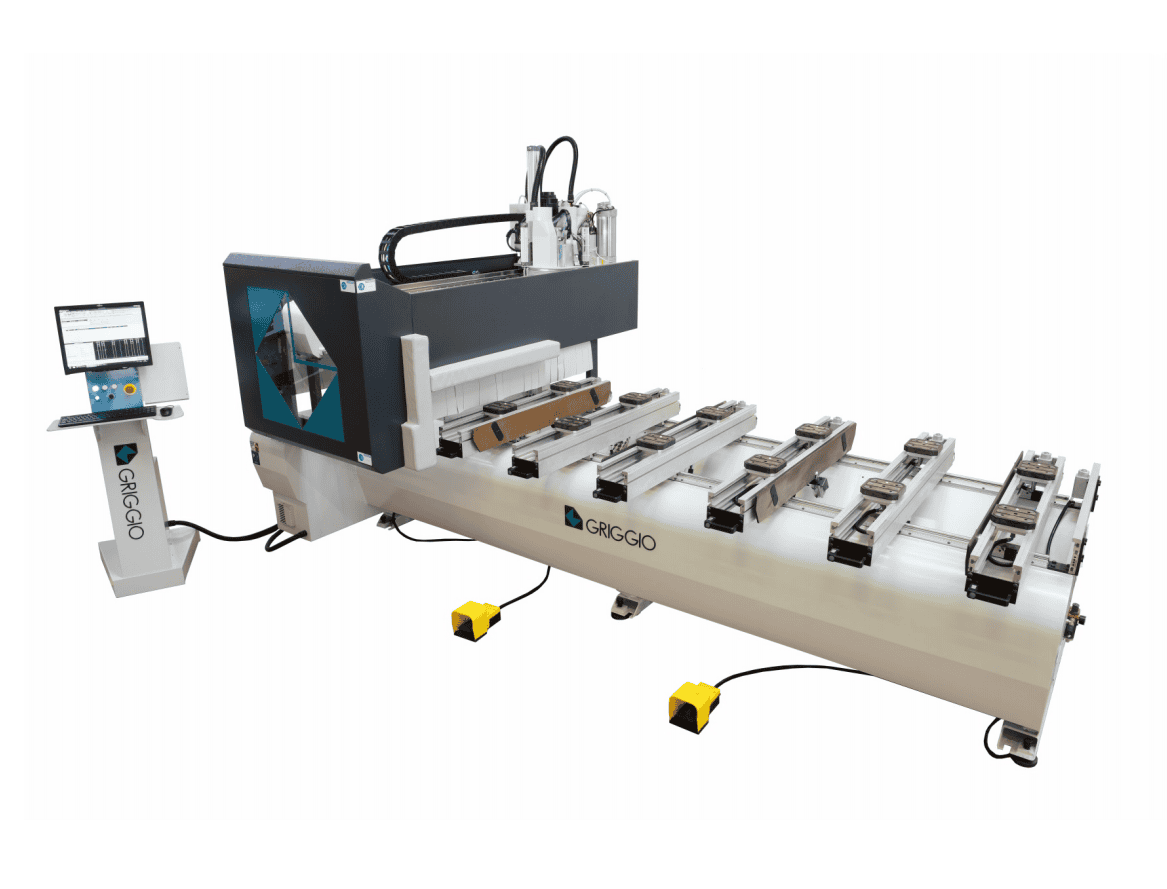

Griggio GIOTTO CNC Working Center

The machine is equipped with:

• Working center with numerical control ready for use and complete with standard tool support store and CAD station. Suction cups made of aluminium and phenolic for proper sealing and long lasting life
• CRANKCASE – Structure in canned, electro‐welded steel sheet to ensure structural stiffness, planarity and to avoid torsions as well as vibrations. Dust coating of all the parts to guarantee longer life during the years.
• UNIT AND UPRIGHT MECHANICS – Axes X and Y are moved by a gearbox and pinion‐rack with helicoidal teeth. Axis Z is moved by a recirculating ball screw. The movement of the axes is made through Brushless drive.
• SOFTWARE – Programming system CAD/CAM capable of interfacing with CNC from 3 to 5 axes. Realized in Windows® environment, it offers a simple and functional interface, ensuring high completeness and customization.

Among the main characteristics:

• 3D display of the panel as well as of the single working sides.
• Project database with graphic display for a quick identification of the projects.
• Wide standard set of complex machinings (single boring, multi fitting in X,Y, hinges holes, slot production, milling menu.
• Highly customizable emptying macroprograms, radius and squaring
• Automatic survey of technological parameters and proper identification of possible programming mistakes not compatible with structural constraints of the machine.
• Simple instruments: translation, rotation, specular, repetition in series
• Advanced instruments: generation of emptying profiles, writtens, curves, bows, modification of corners , joints and selective structures.
• Functions of parametric programmings as well as possibility to create some.
• Import of DXF files generated from CAD systems or commercial programs
• Automatic conversion of DXF files to ISO programs.

The machines of GIOTTO series are proposed in the following versions:

• Giotto NEST machine designed for milling with grid floor
• Giotto 32 machine for drilling and milling with movable planes, ideal for working panel.

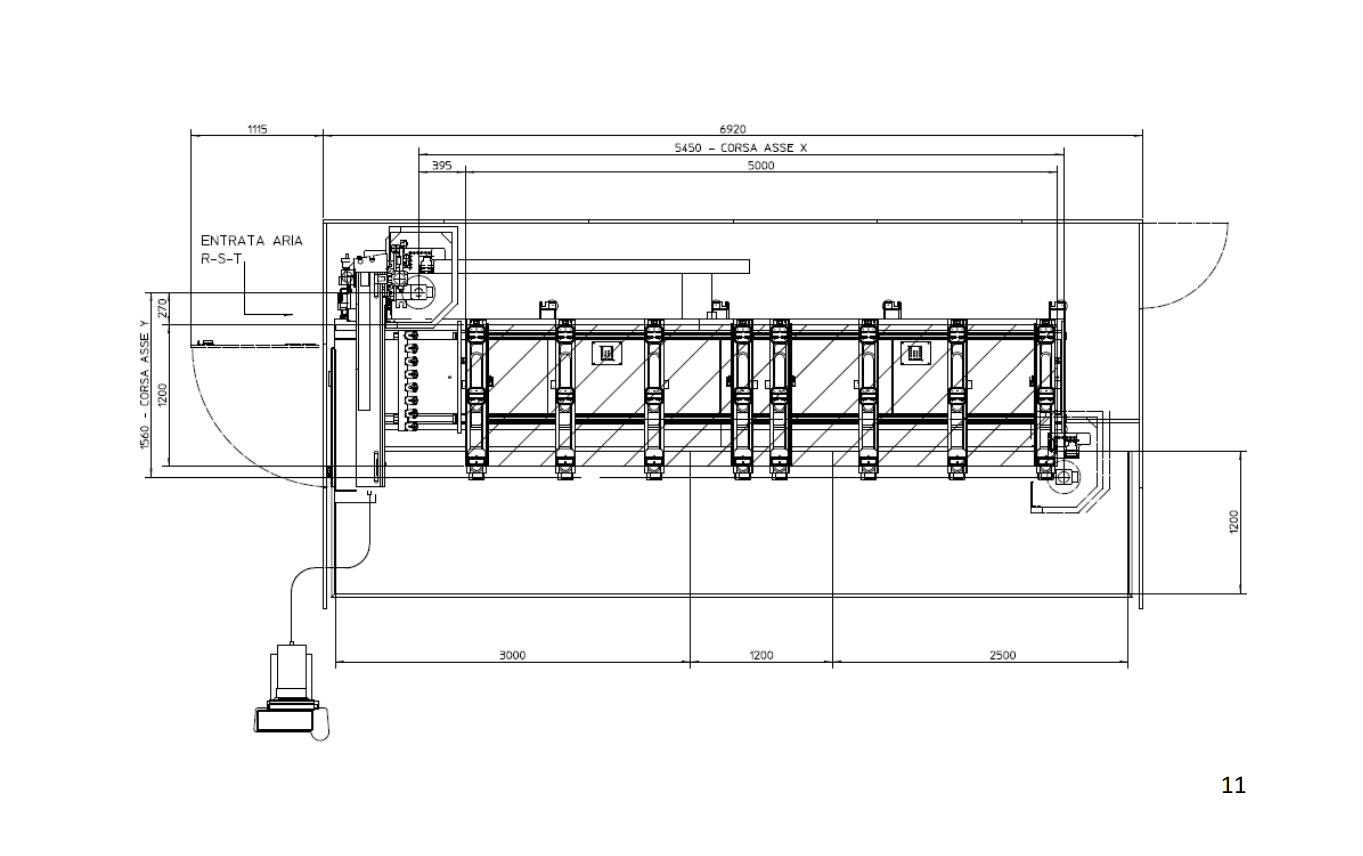

• Giotto 52 drilling and milling machine with working table from 5200 mm
