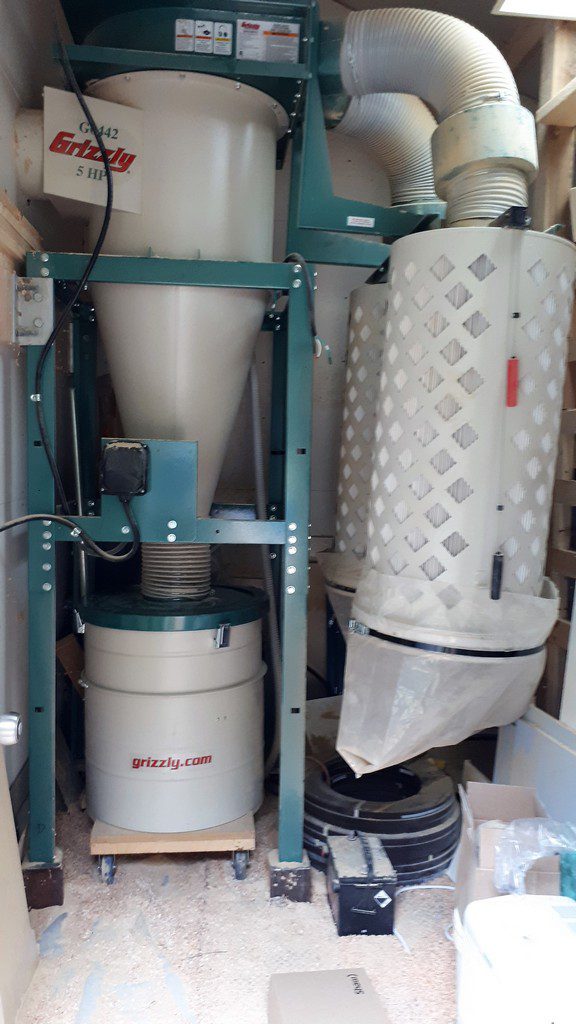

Grizzly G0442 5HP Cyclone Dust Collector

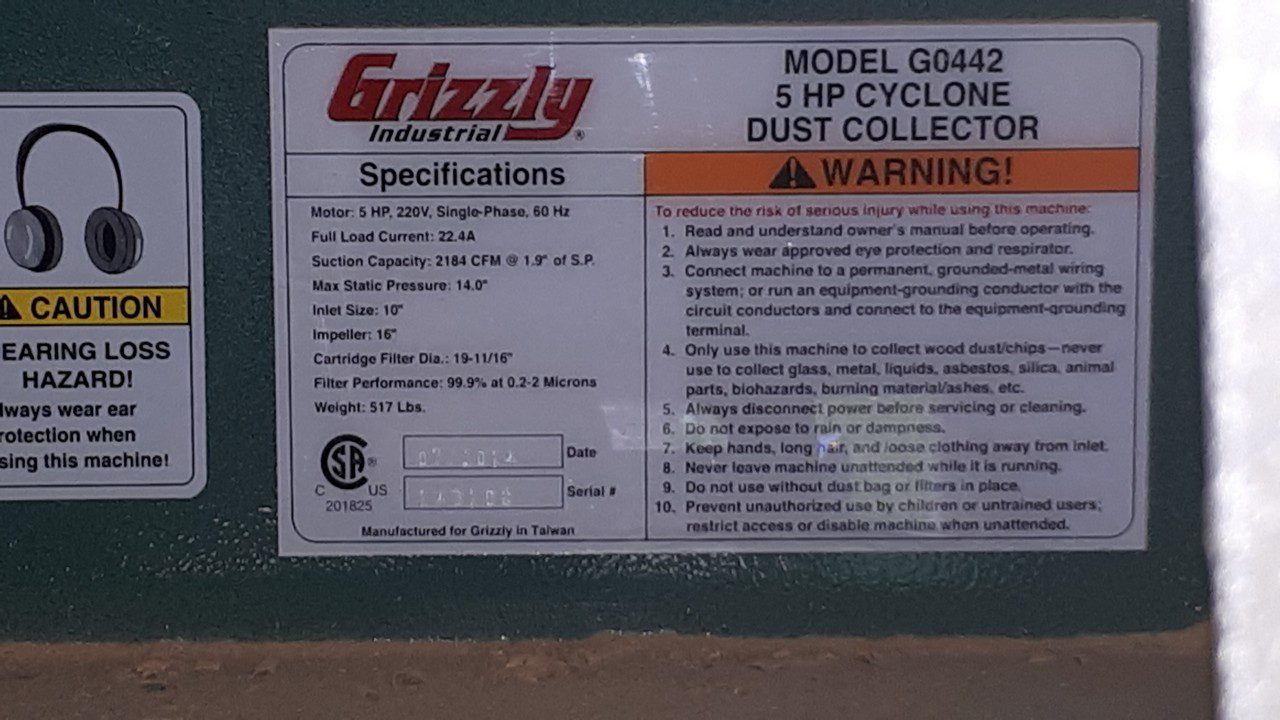

SPECIFICATIONS:

• Motor: 5HP, 220V,
  • single-phase,
  • 3450 RPM,
  • 60 Hz, 22.4A,
  • TEFC, Class “F”

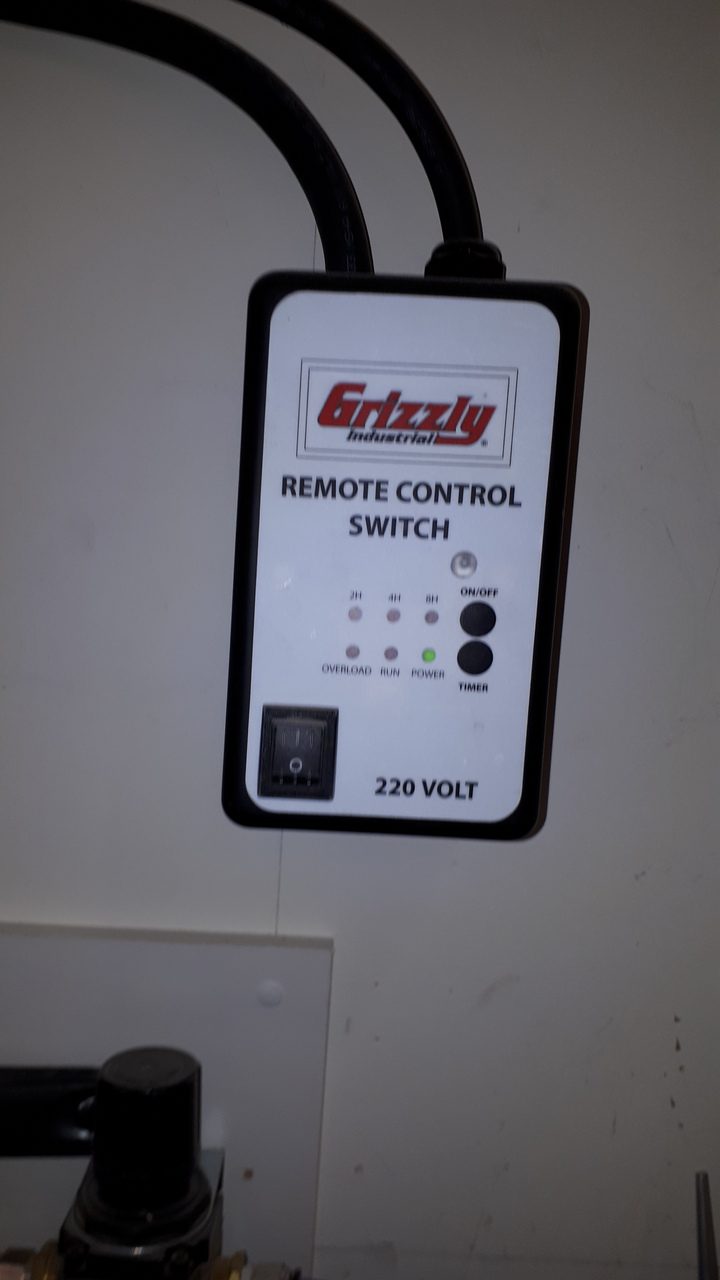

• Switch: Remote controlled magnetic
• Intake hole size: 10″ with 8″ adapter
• Bag material: Plastic
• Impeller: 16″ steel radial fin
• Air suction capacity: 2184 CFM @ 1.9″ SP
• Maximum static pressure: 14.0″
• Filter: 99.9% efficiency captures 0.2–2 micron dust particles
• Filter surface area: 226 sq. ft.
• Collection drum: Steel, 55 gallons
• Sound rating: 83-86 dB
• Overall dimensions: 63″ W x 111-1/2″ H x 56-7/8″ D
• Approximate shipping weight: 632 lbs.

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
