SKU: 616-3

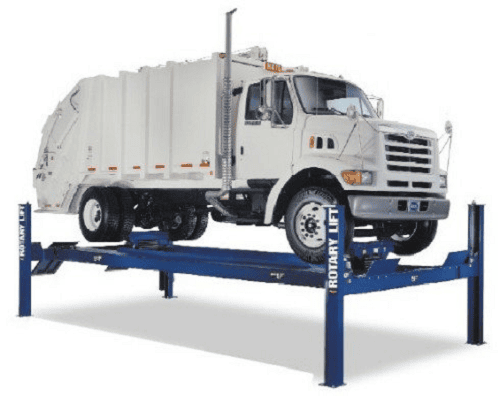

Heavy Duty 4-Post Lift, 30,000 lb. capacity

Out of Stock But wait, we have similar products

Features and Specifications:

Heavy Duty 4-Post Lift, 30,000 lb. capacity
Heavy Duty Surface Mounted Runway-Type Drive-On Lift,
24″ Wide Runway That Can Be Set For Variable Tread Width Setting.
Runways and Ramps Have An Oil Resistant, Non-Skid Coating.
Includes Air Operated Single Point Release Locking Latches.
Internal Air Line with Quick Disconnects,
Electric-Hydraulic Operation.
Comes with 2 Rolling Jacks – RJ150BK

Specification

  • Model: SM30
  • Max. Wheelbase 235″
  • Rise 68″
  • Length Overall 25′ 8 1/8″
  • Width Overall 12′ 4 13/16″
  • Inside of Columns 132″
  • Between Columns 249″
  • Height of Columns 7′ 3/4″
  • Width of Runways 24″
  • Height of Runways 8 3/8″
  • Width Between Runways (min.) 41″
  • Width Between Runways (max.) 48″
  • Lifting Capacity 30,000 lbs.
  • Motor 4 HP
  • Voltage Single Phase 208v-230v
  • Time of Full Rise 105 seconds
  • Min. Bay Size 16’x30′
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Weight 925.78 lbs
Dimensions 309 × 48 × 48 in
