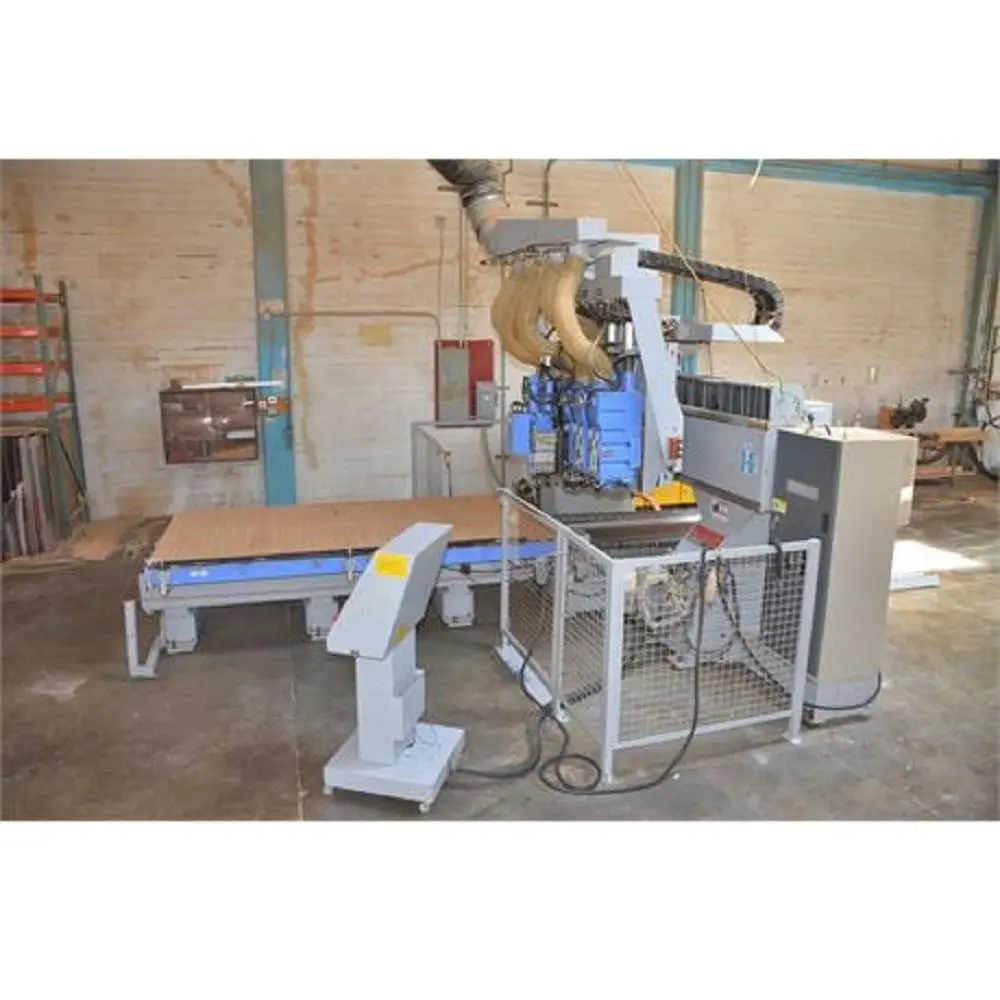

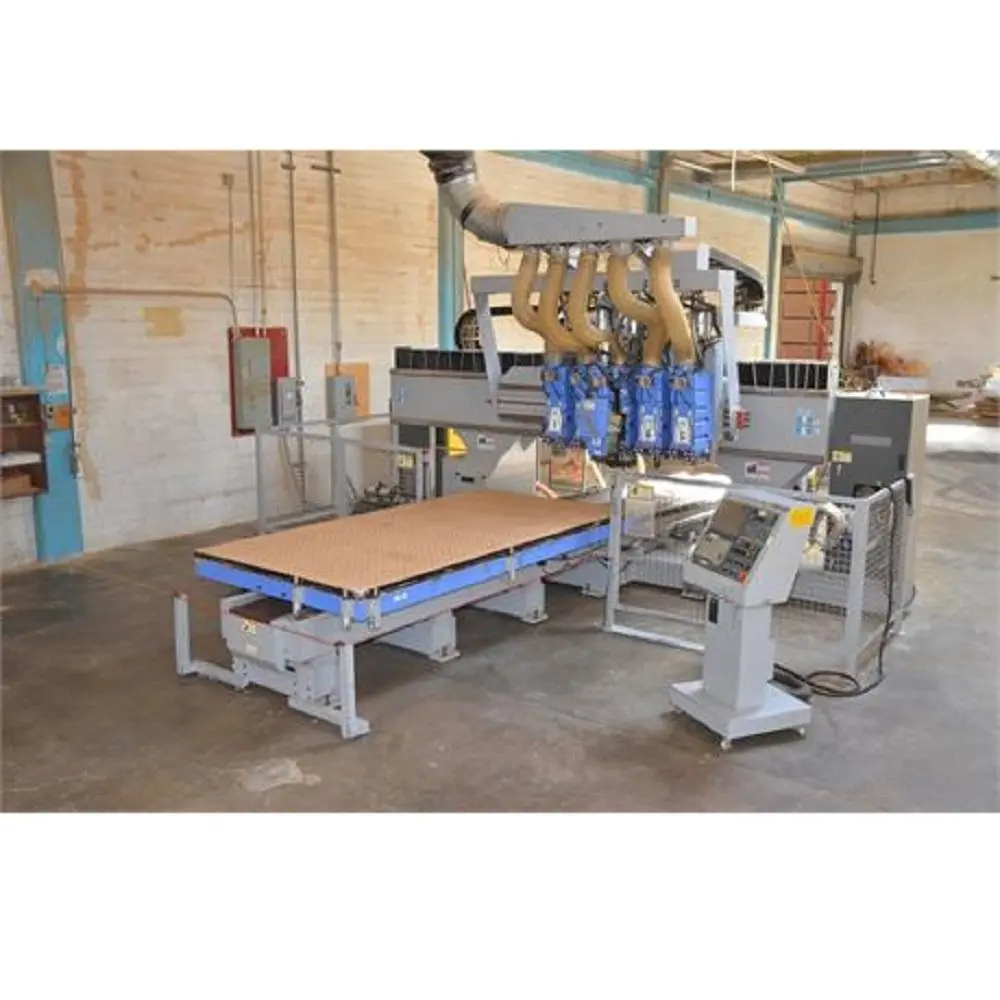

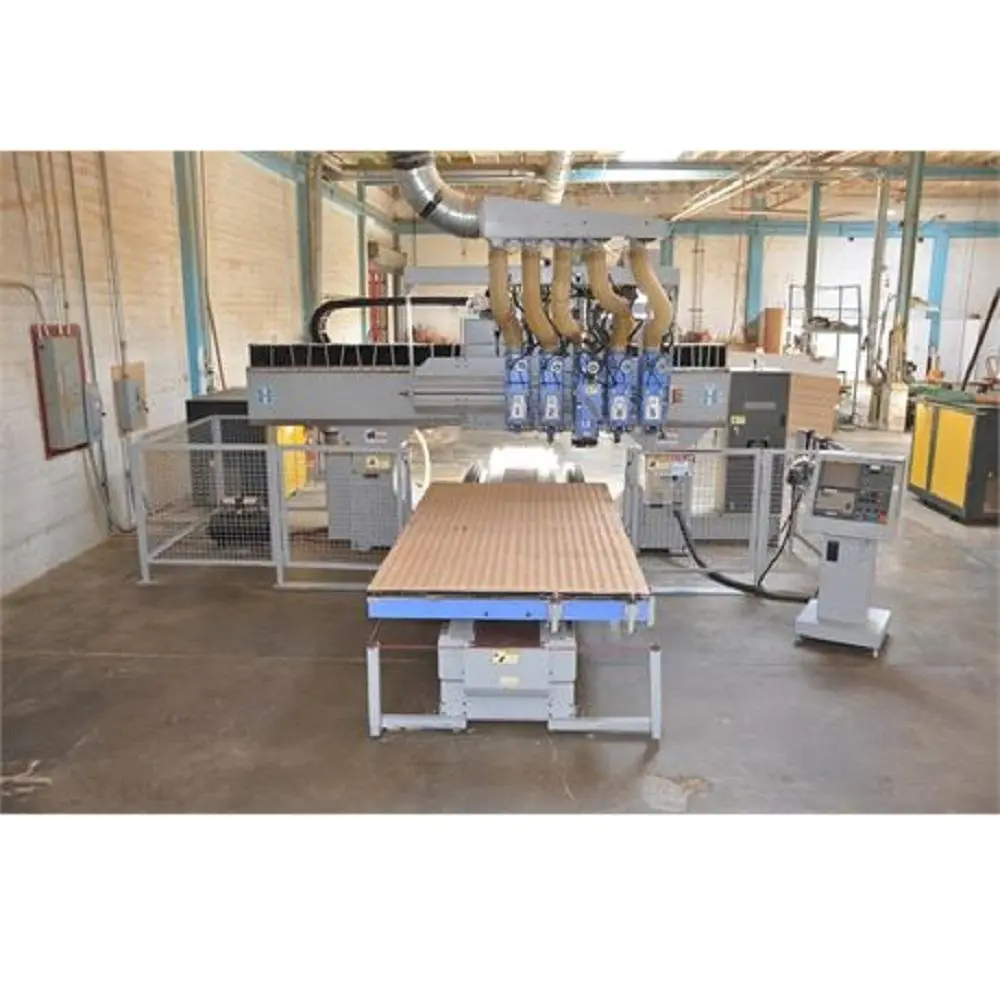

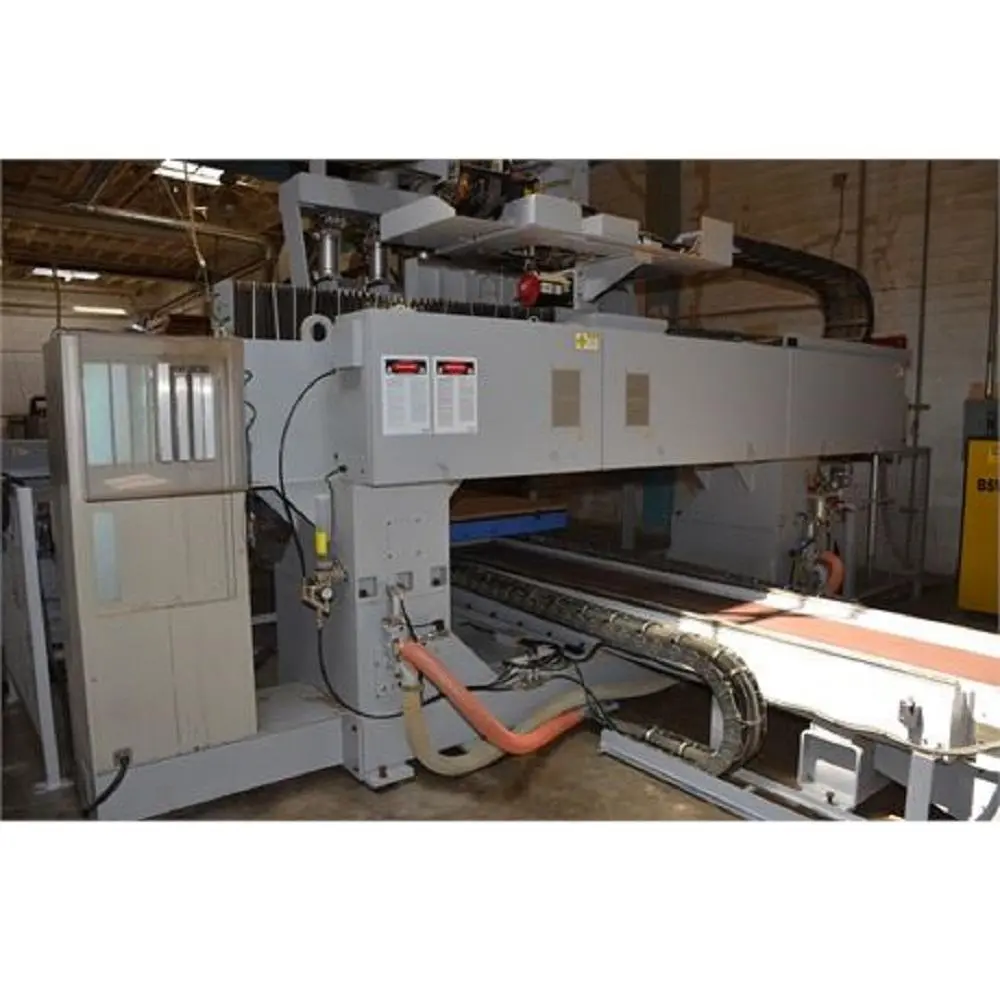

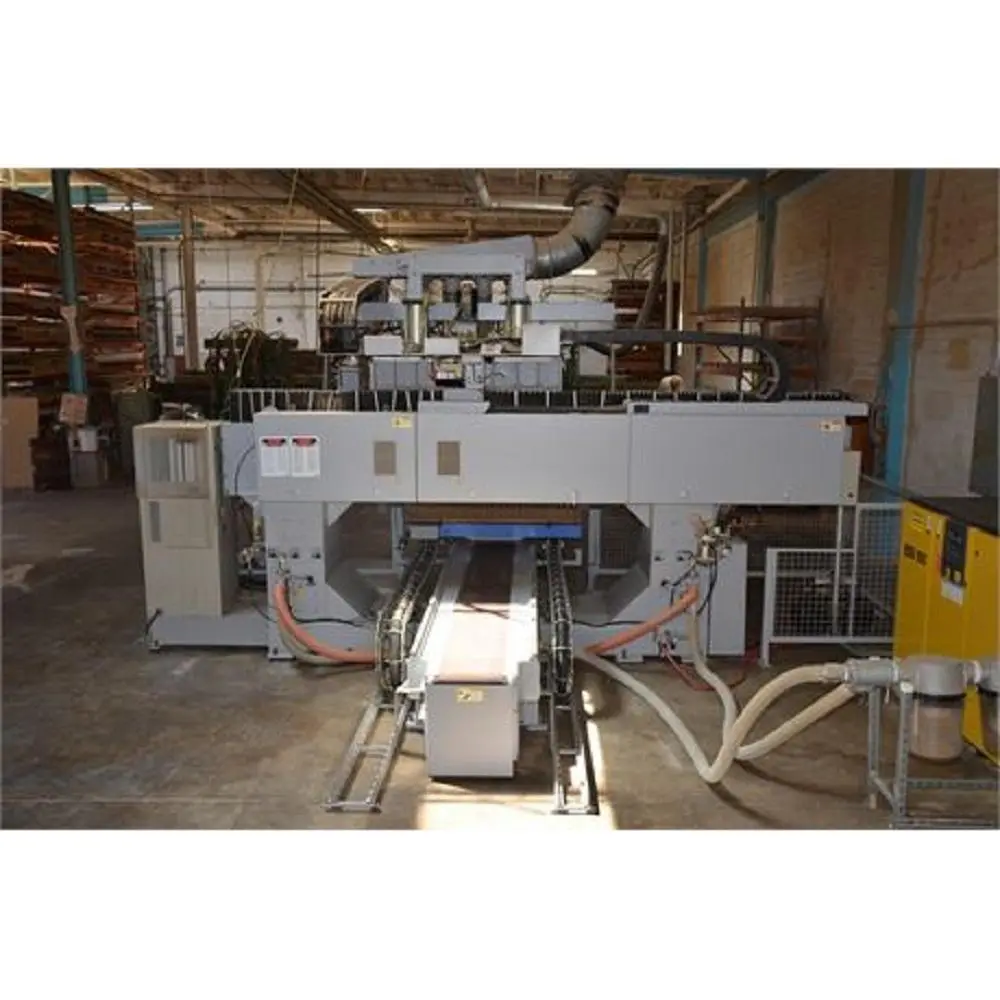

Used Heian NC-531PF CNC Router 5′ x 10′ Table

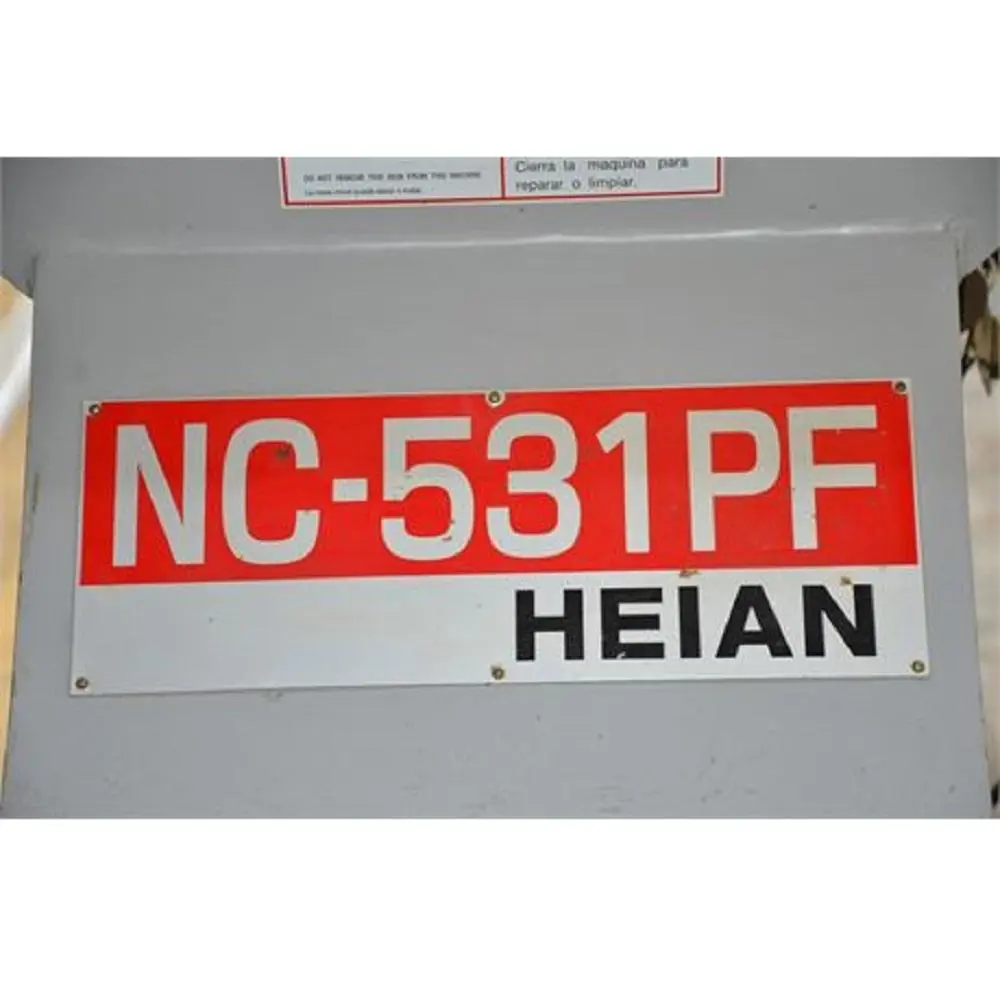

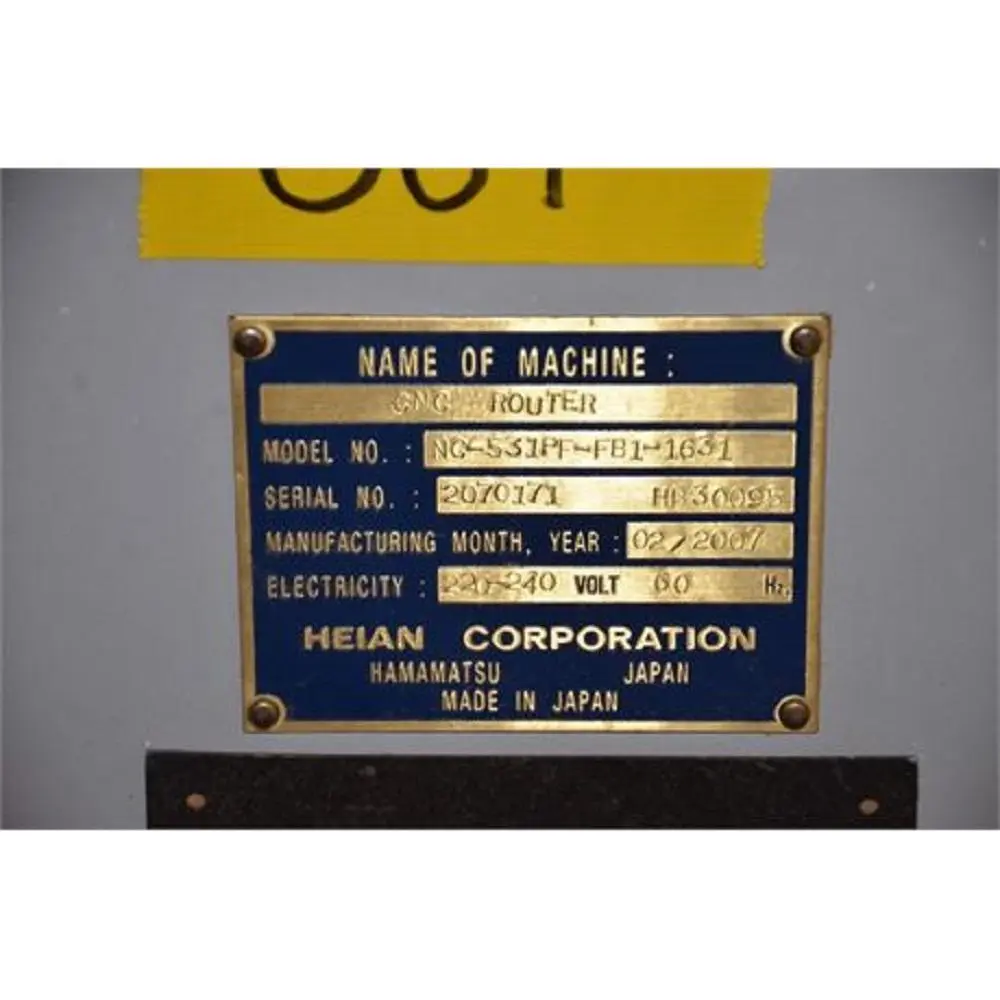

2007 Heian CNC NC-531PF Router

Can process wood or non-ferrous metal.

• 230 V
• 3 Phase
• 12 HP
• 5×10 table

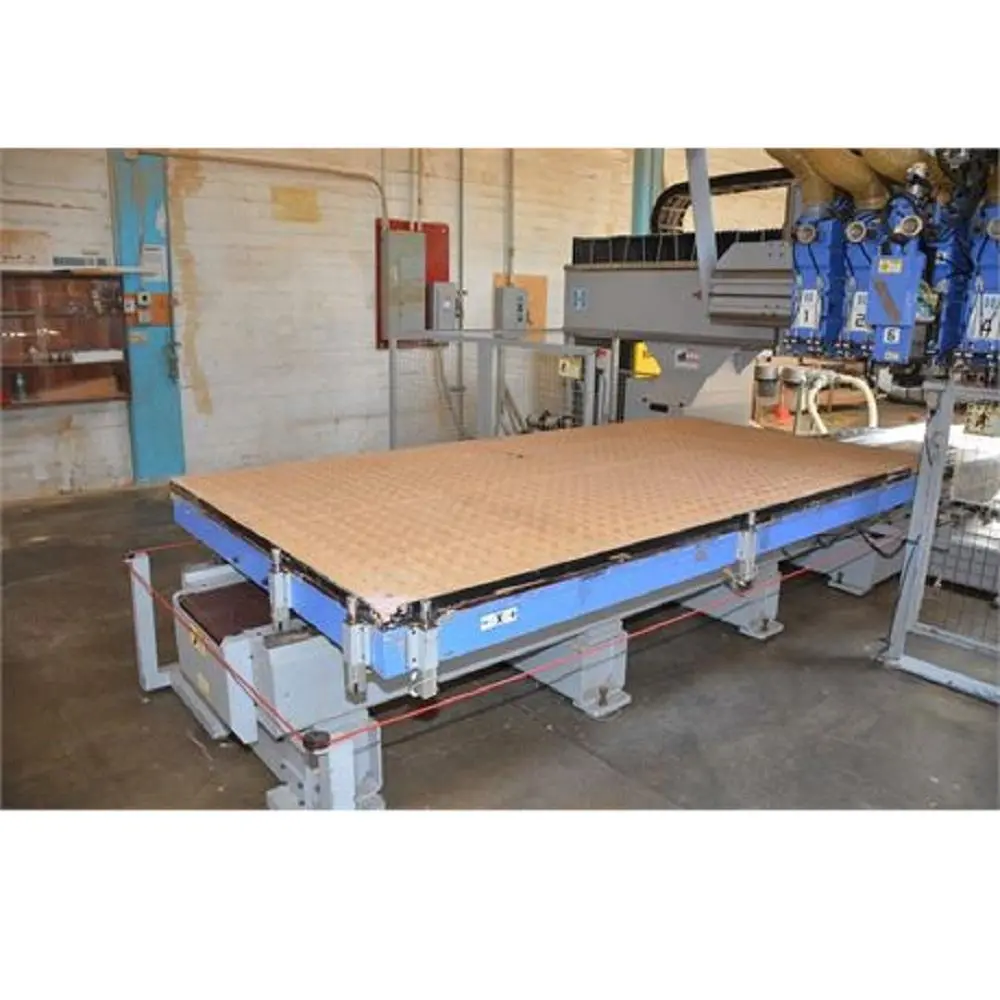

• Single 122″ x 64″ tables in a front to back configuration with an Extra Heavy Duty center supported bridge for high production, independent table operation.

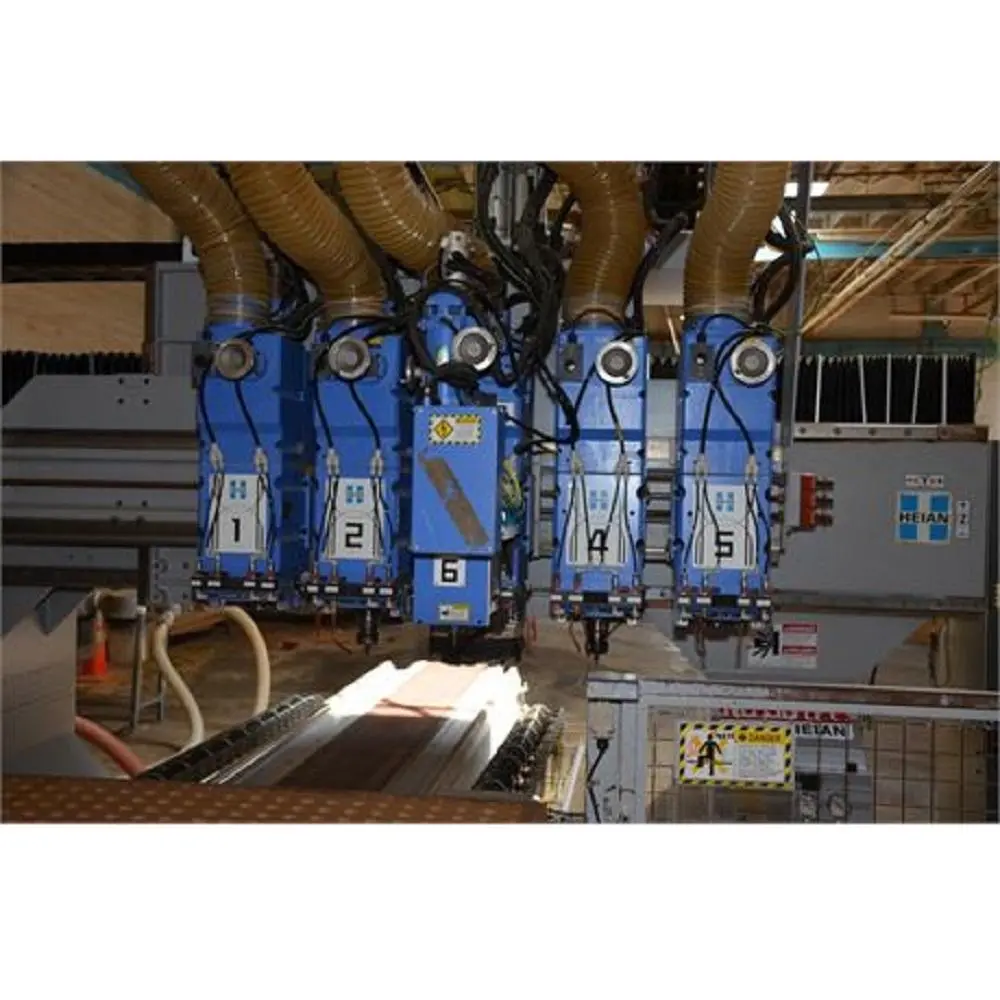

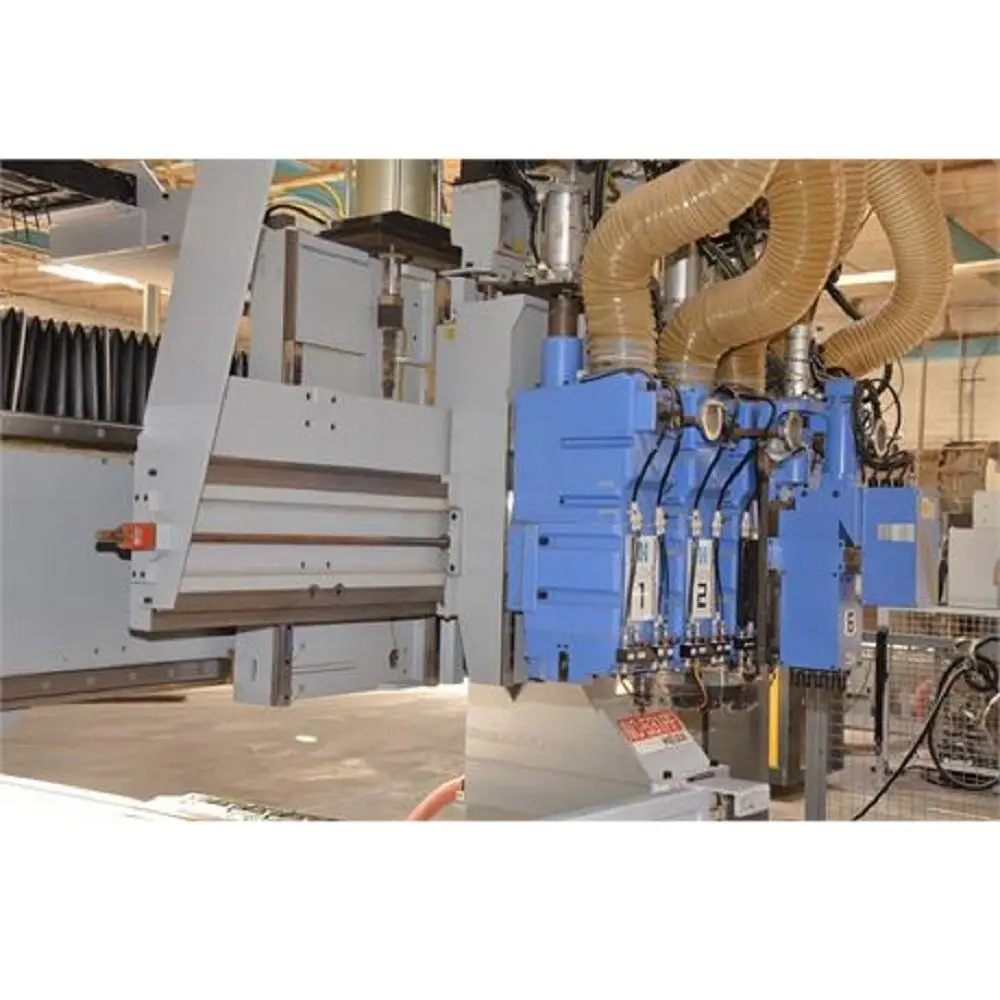

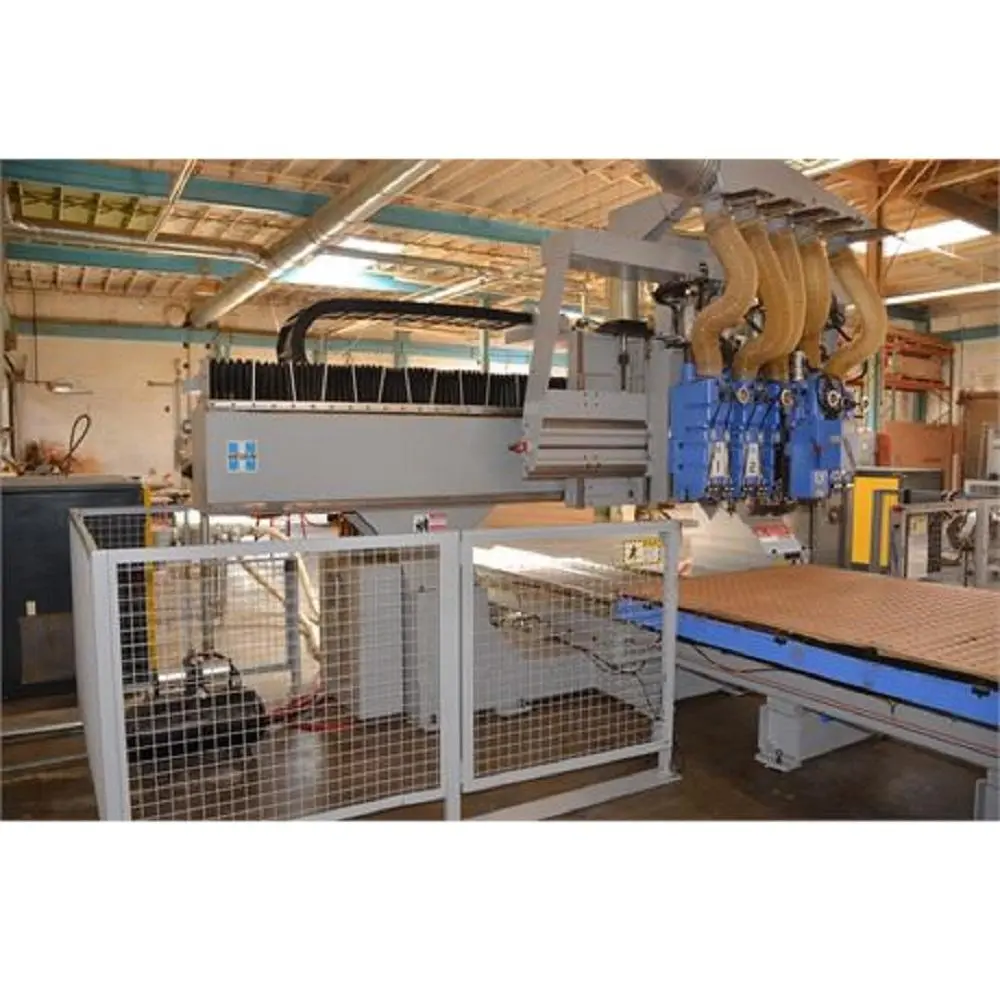

• Spindle #1 8.8 kw spindle, spindle speed of 23,800 RPM, mounted on a pneumatically actuated cast iron slide for reduced vibration.
• Spindle #2 8.8 kw spindle, spindle speed of 23,800 RPM, mounted on a pneumatically actuated cast iron slide for reduced vibration.
• Spindle #3 8.8 kw spindle, spindle speed of 23,800 RPM, mounted on a pneumatically actuated cast iron slide for reduced vibration.
• Spindle #4 8.8 kw spindles with, spindle speed of 23,800 RPM, mounted on a pneumatically actuated cast iron slide for reduced vibration.
• Spindle #5 8.8 kw spindles with, spindle speed of 23,800 RPM, mounted on a pneumatically actuated cast iron slide for reduced vibration.
• #6 Piggy-back vertical boreer with 5-spindles vertical in the X-axis

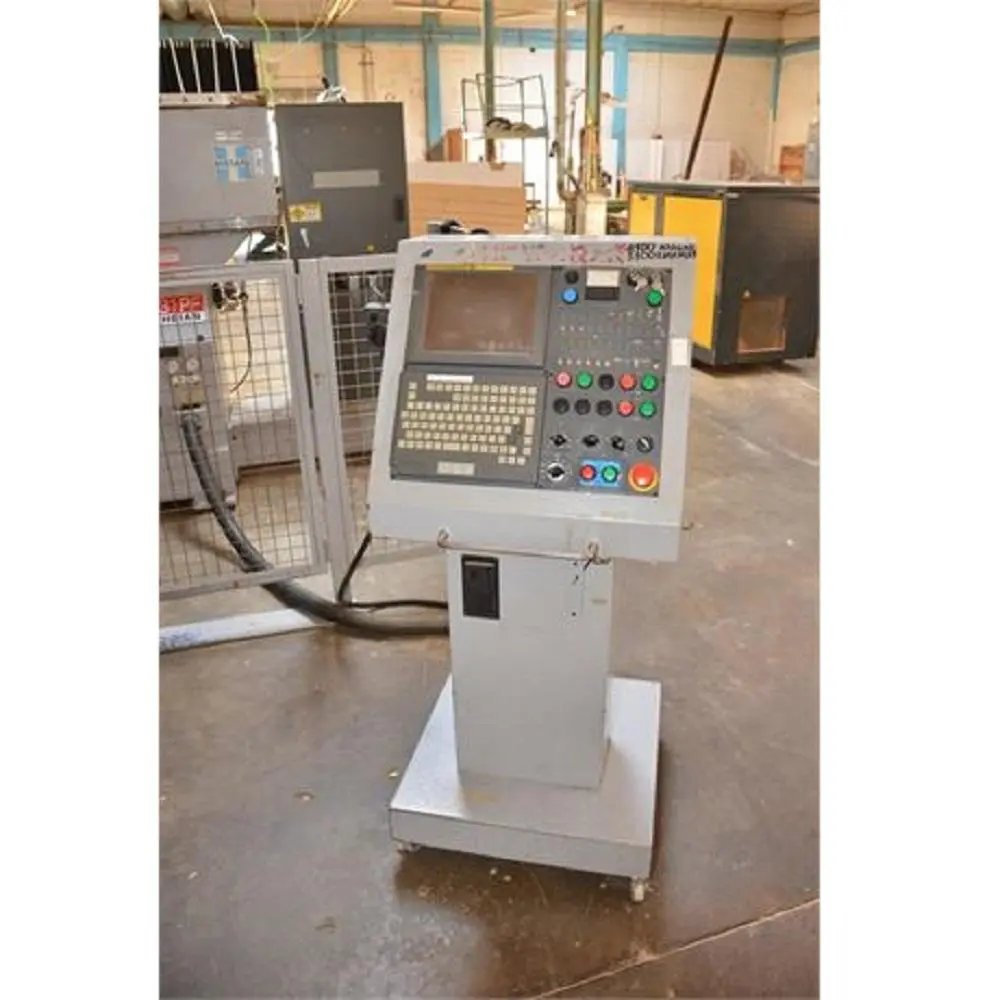

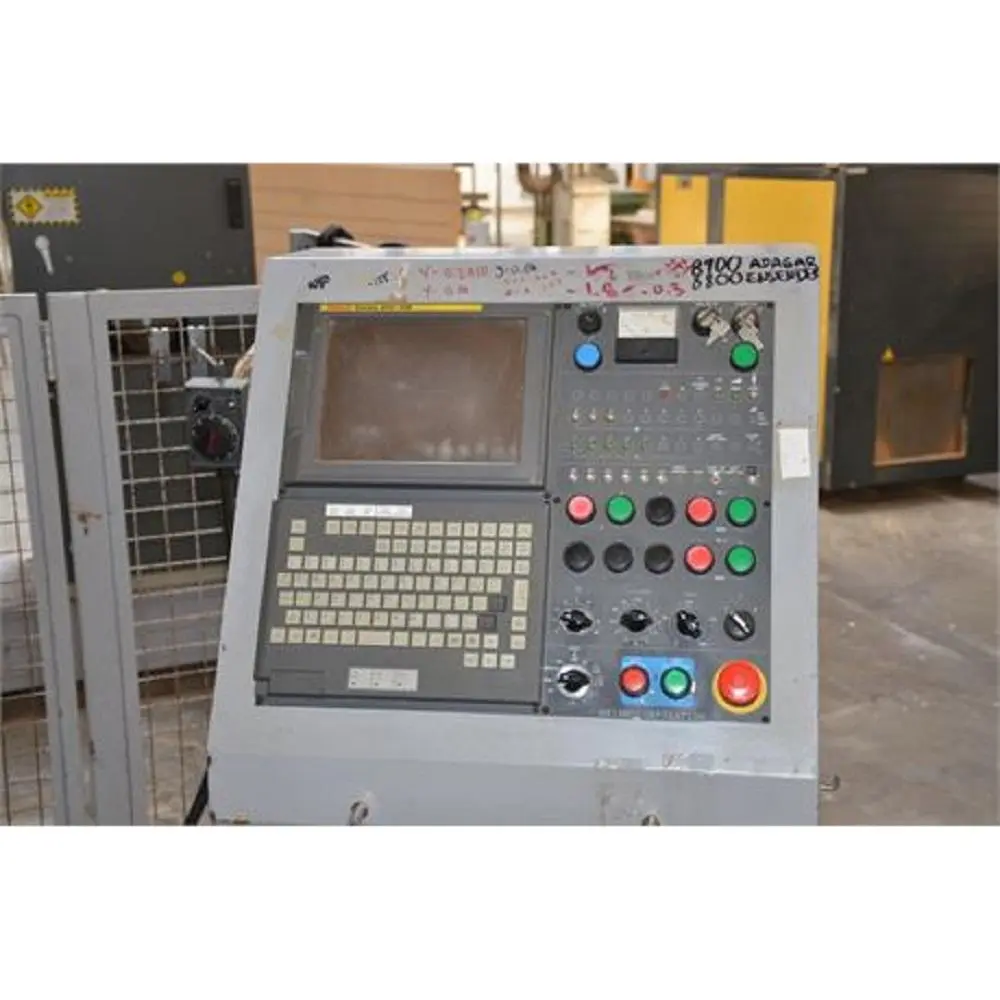

• Fanuc 210i – MB Controller.

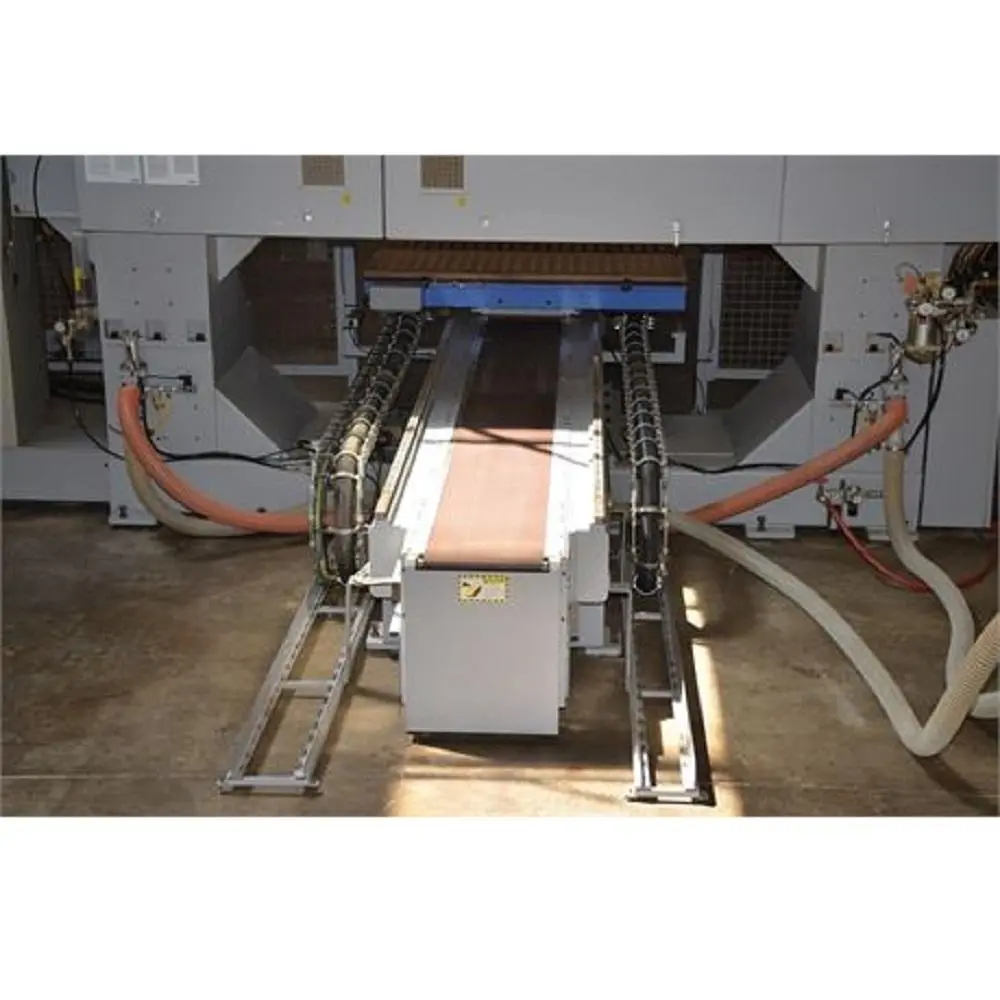

• 15″ W Powered scrap conveyor exiting to the rear.
• FANUC Brushless AC Servo motors with matching Servo amplifiers drive precision ground ball screws for axis motion, all axes ride on precision ground rectangular ways with tank type bearing; ballnut & way bearings are serviced by an automatic lubrication system.

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
